QSMOTOR 180 90H 8000W 72V 110KPH Mid Drive Motor With FarDriver ND721200 Controller For Offroad Dirtbike E Motorcycle
- Category: >>>
- Supplier: Taizhou Quanshun Vehicle Accessories Co. Ltd.
Share on (1600550648375):
Product Overview
Description
QSMOTOR QS180 90H 8000W 72V 140KPH Mid Drive Motor with Fardrive controller encoder type For Offroad Dirtbike Adult Electric Motorcycle
For 180 8000W motor powertrain kits, it could be used for electric motorcycle, which could be 72V 140KPH.
e.g. Electric Motorcycle
E-motorcycle weight, approx 120kg+2*80kg
Speed: peak 140km/h
Gear ratio: 1:3.7
Climbing slope: 15°@70kph280kg
Tire: 150/70-17
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
Note: Because now has not material in stock, it needs very long time to produce, at least 1 month, so before place order pls consider that.

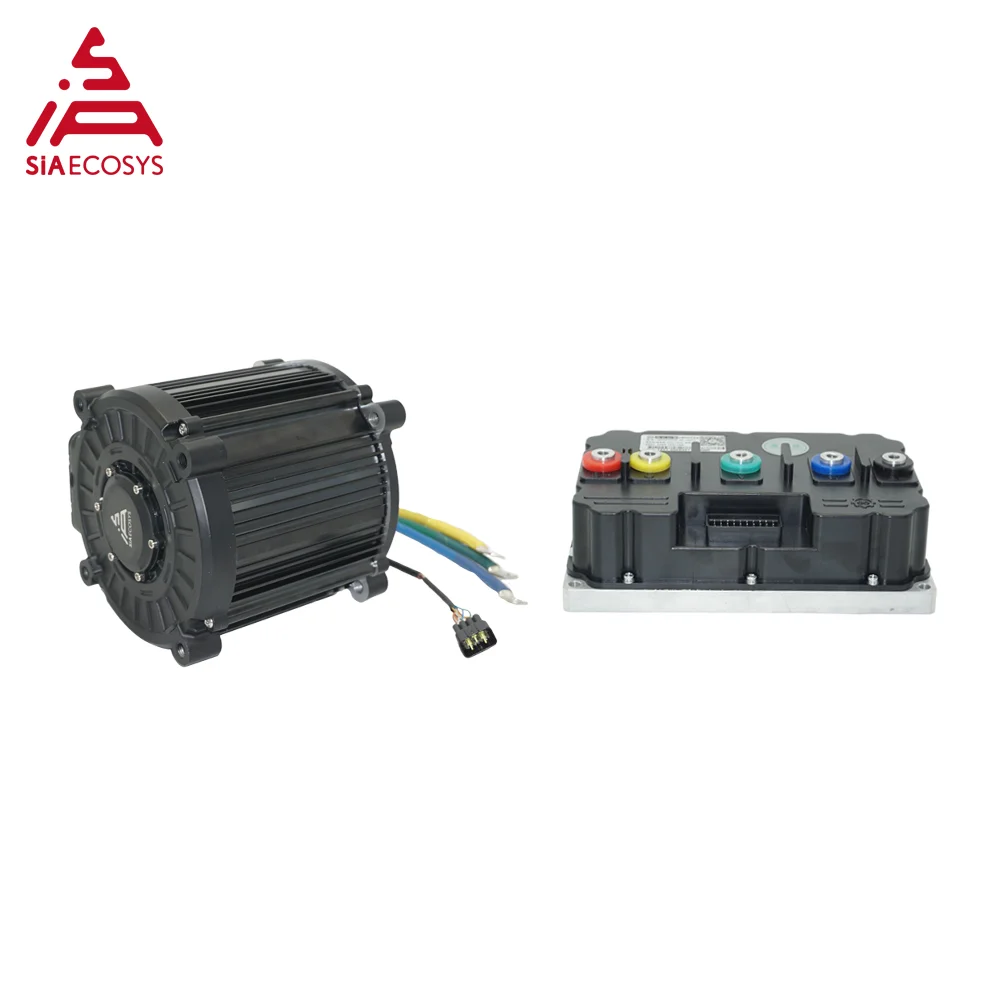

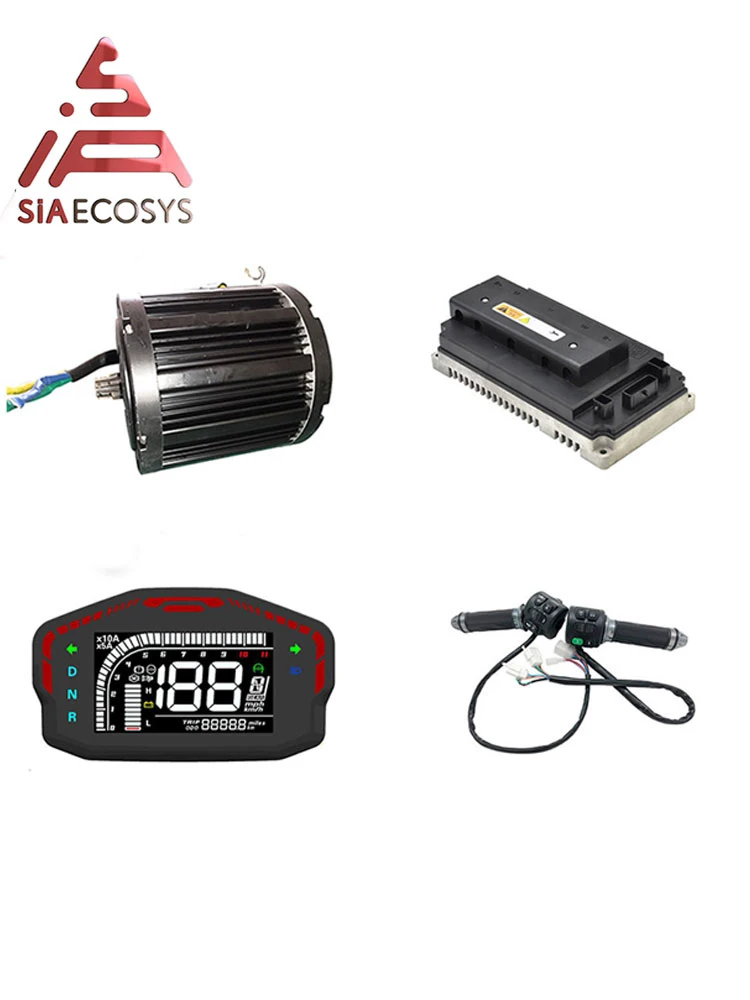

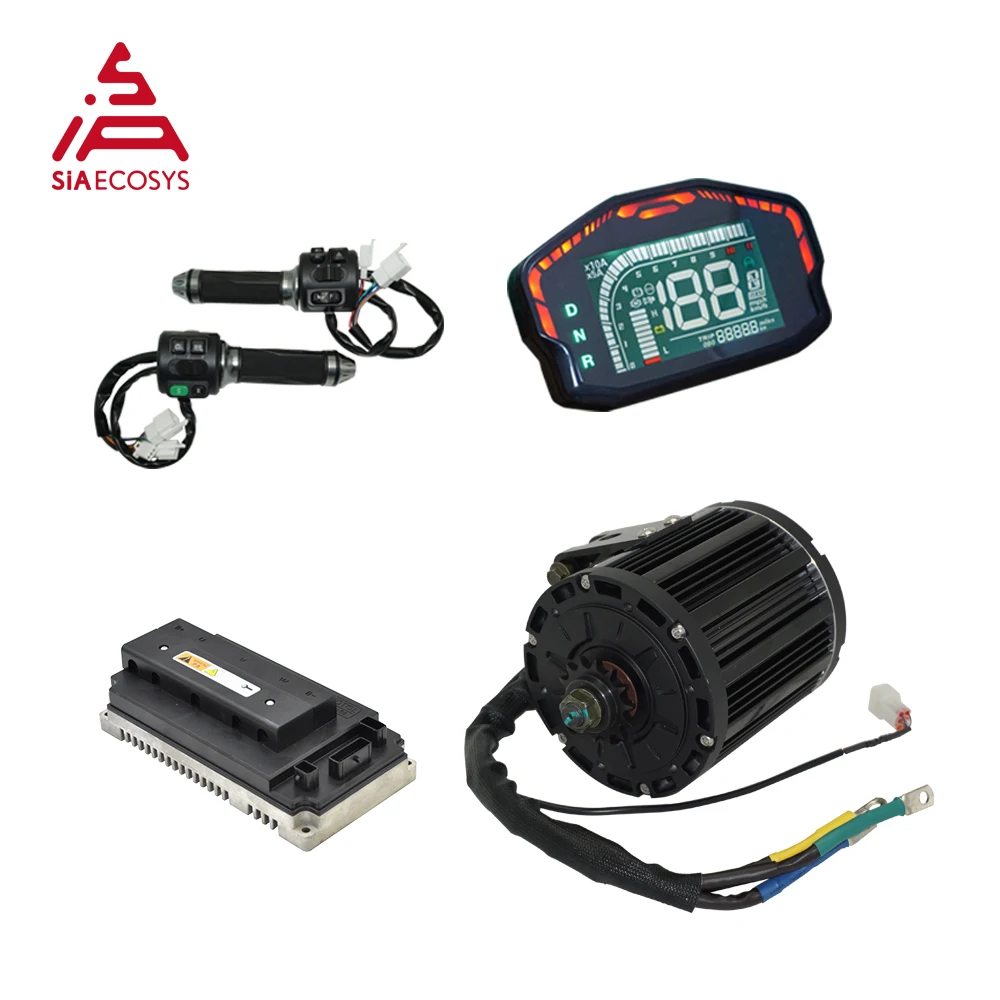

One set including below kits:

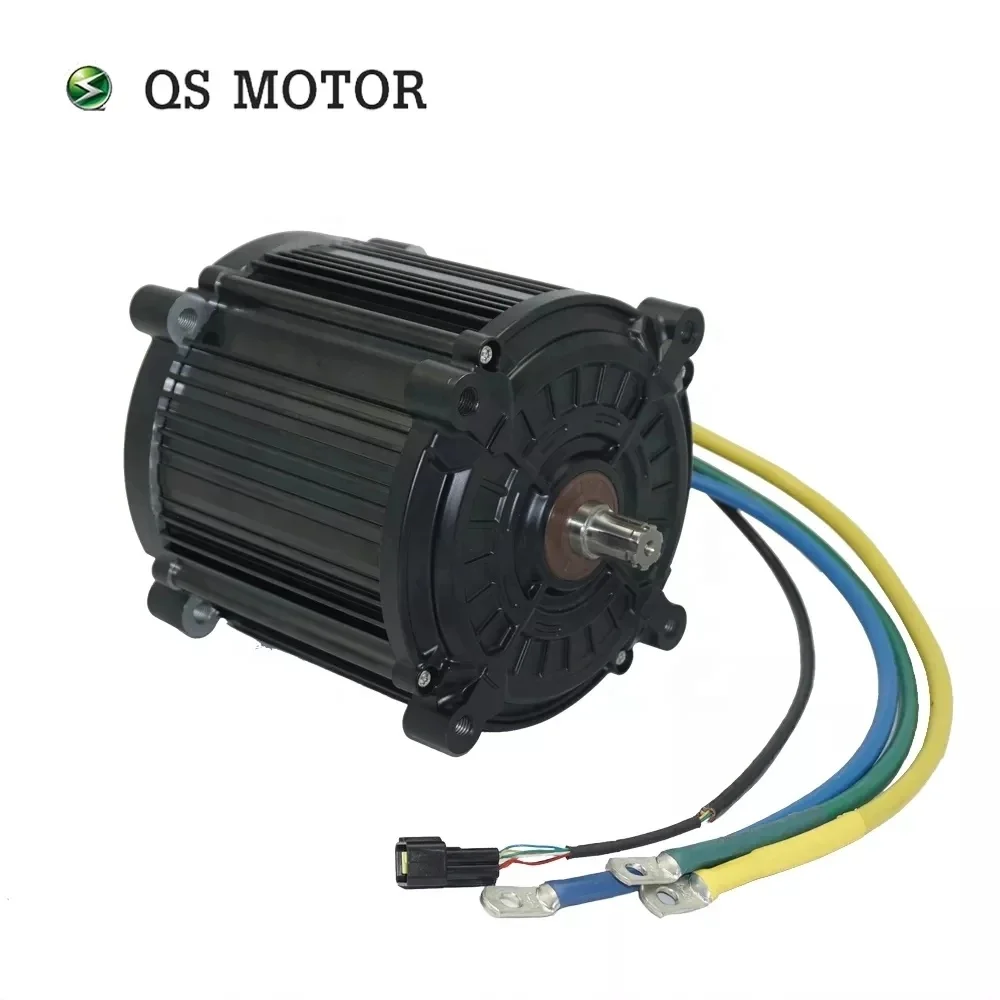

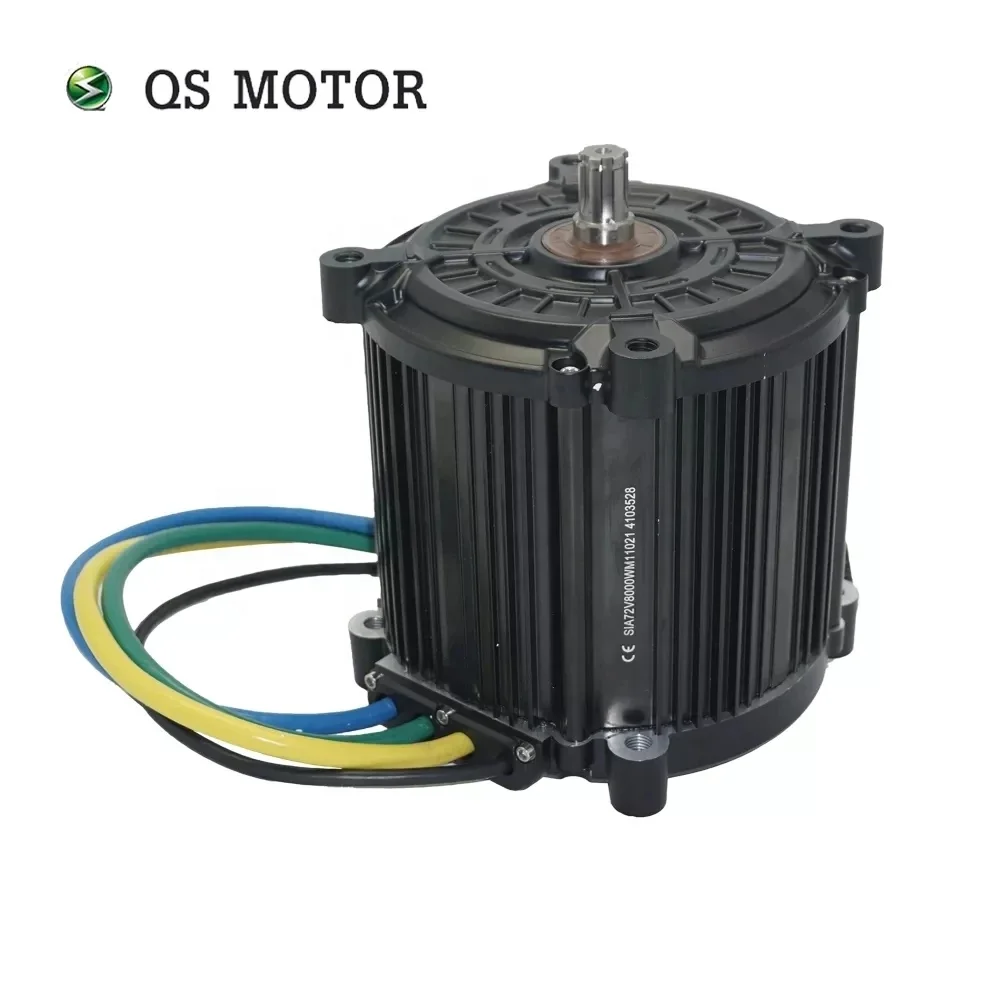

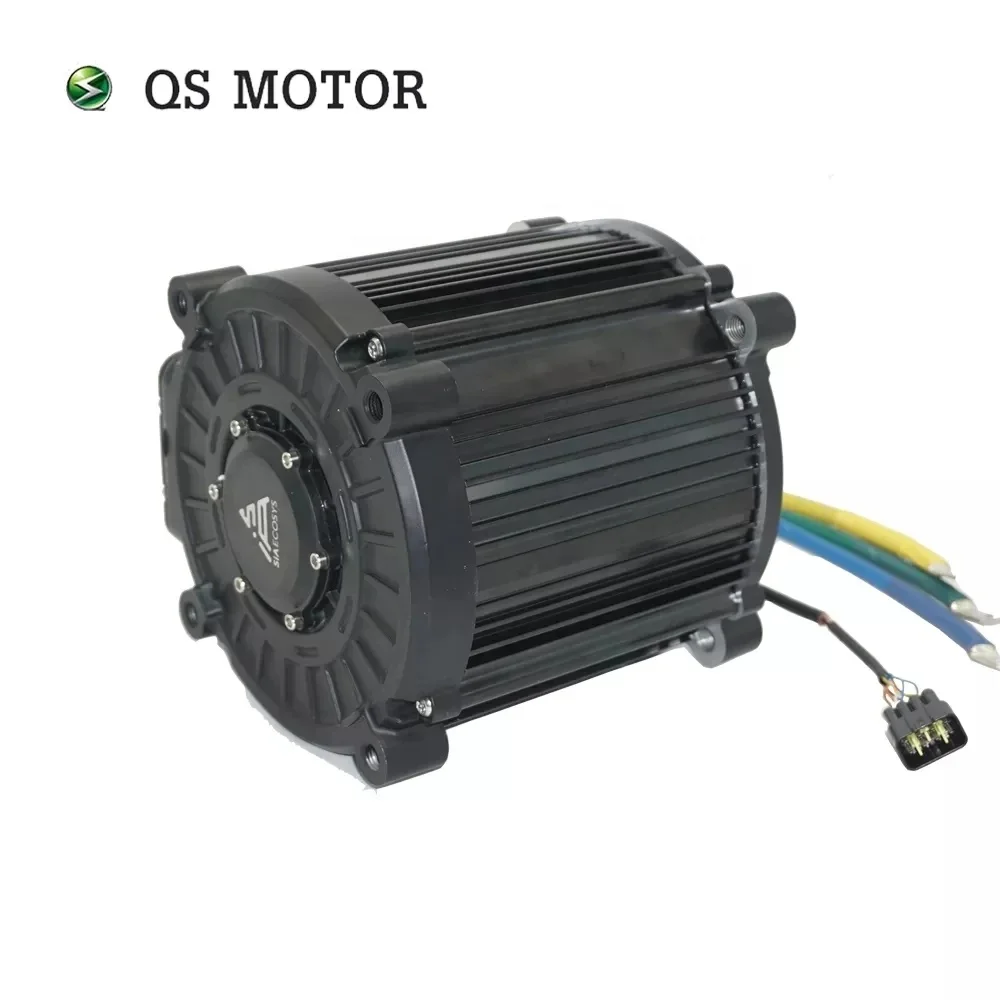

1. 1pc X 180 8KW Mid Dirve motor

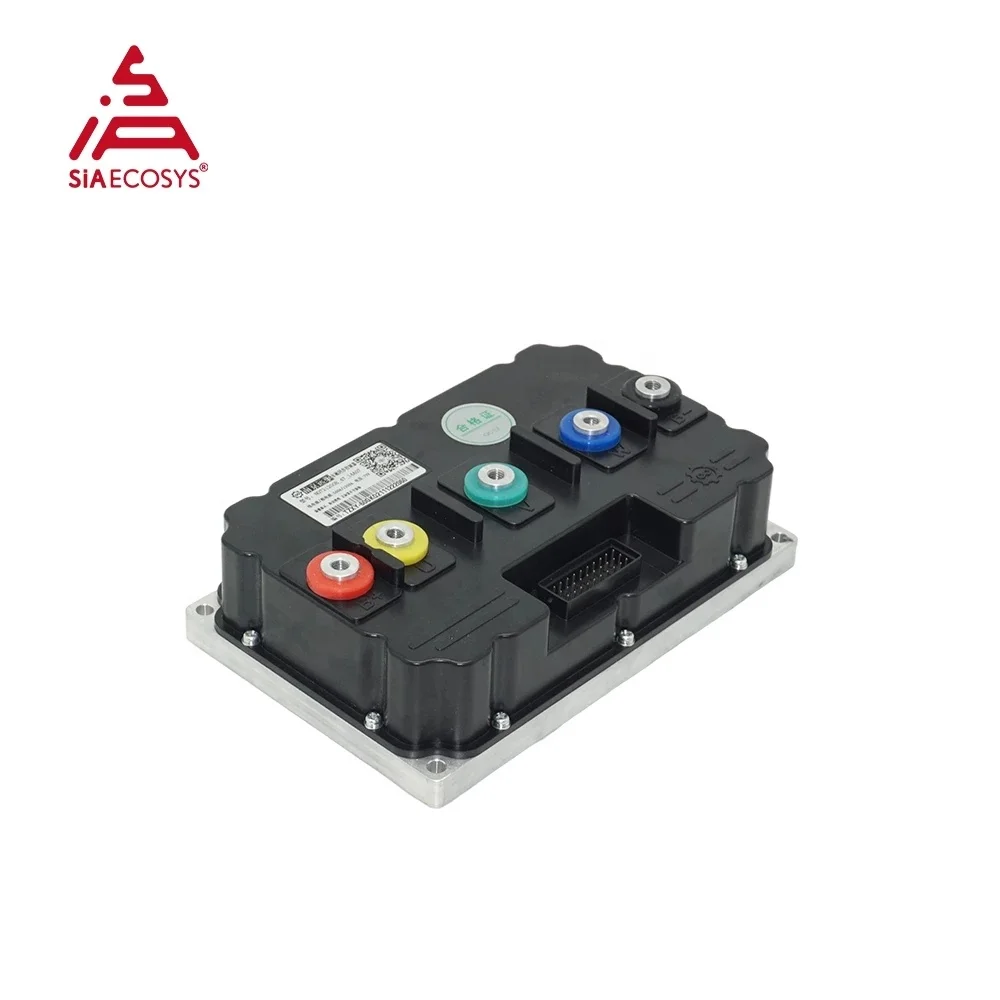

2. 1pc X ND721200 Far Driver Controller
3. 1pc X Far Driver Controller BT adapter
Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking
Product description

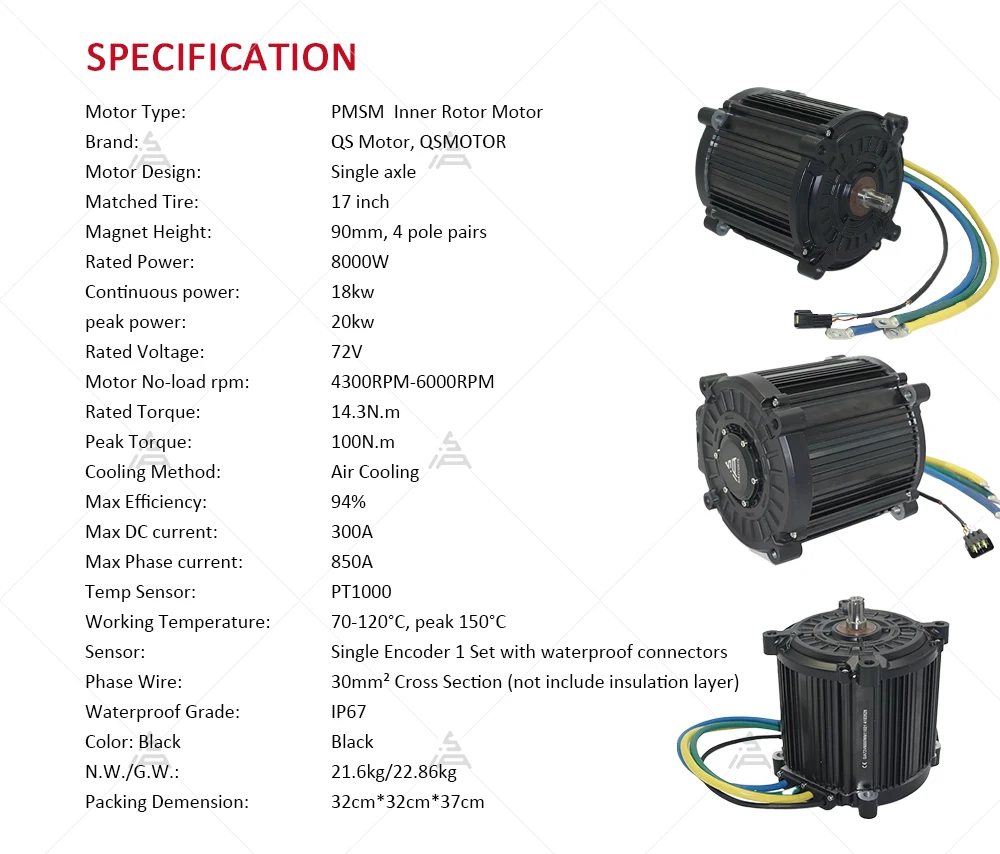

Genearlly Spec:

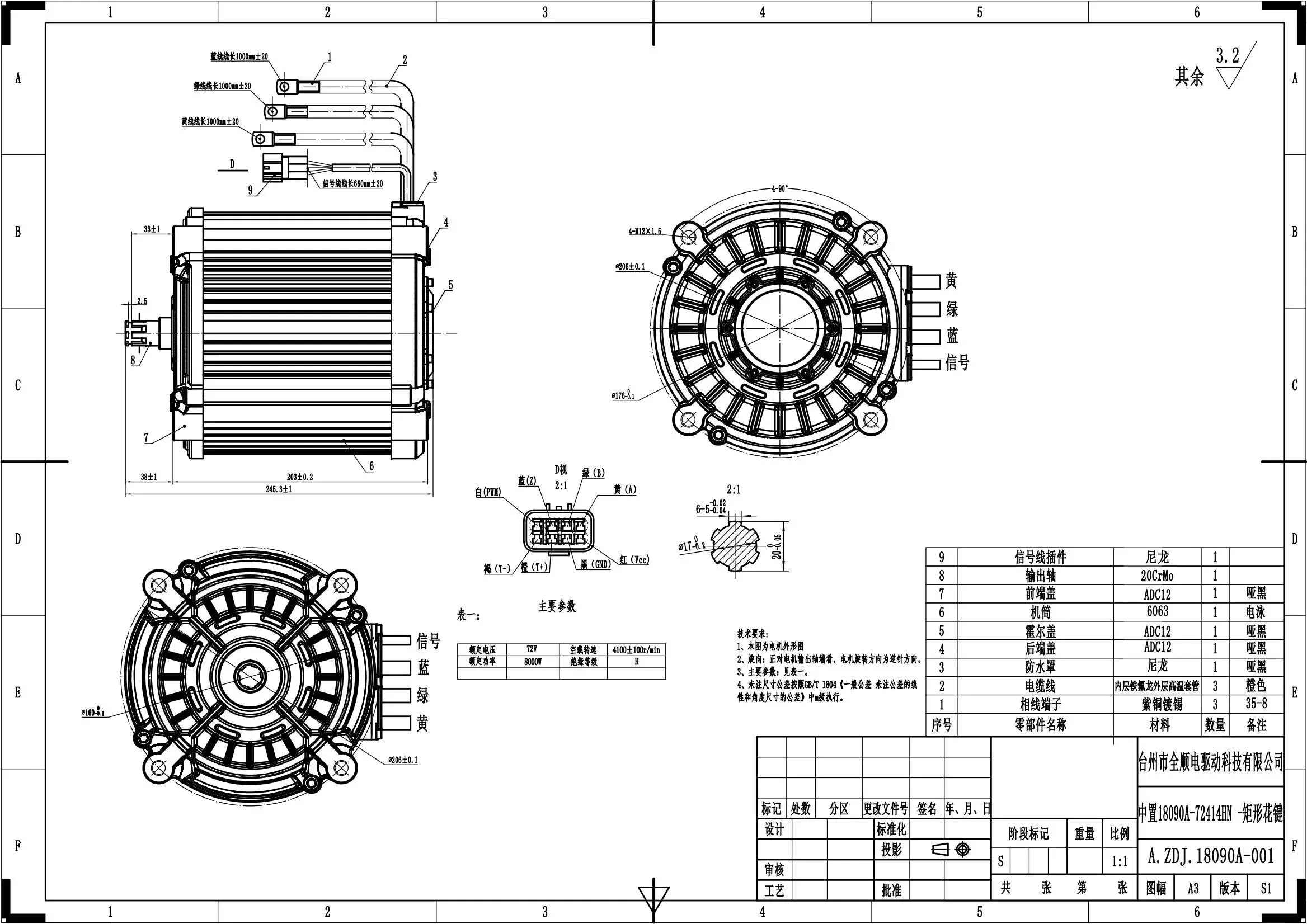

Dimension Drawing:

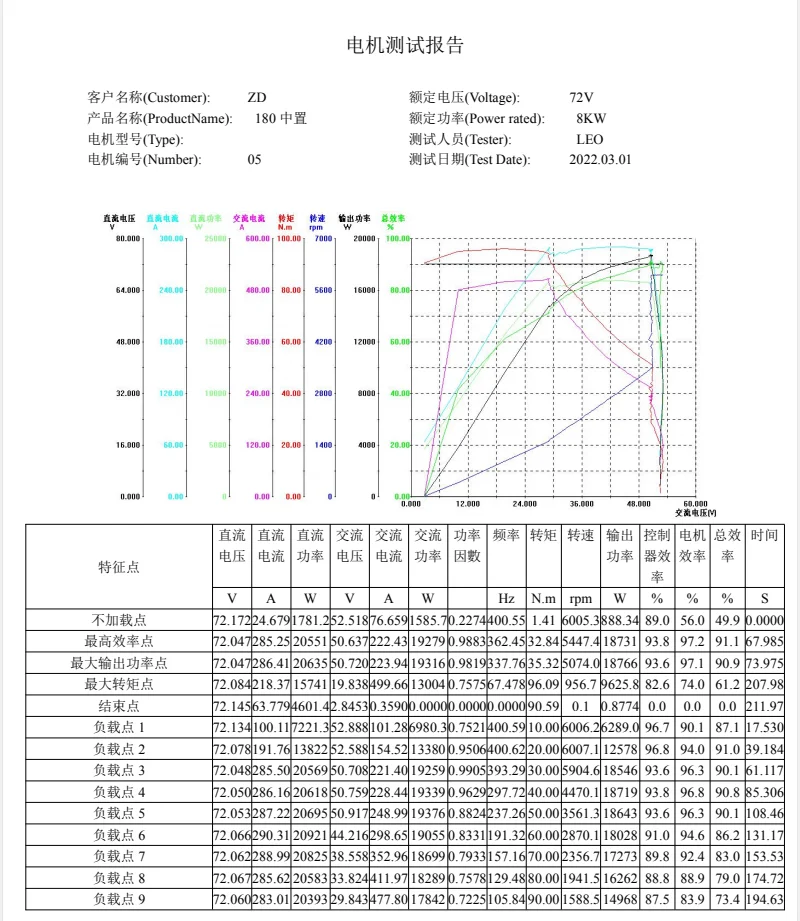

Test Report

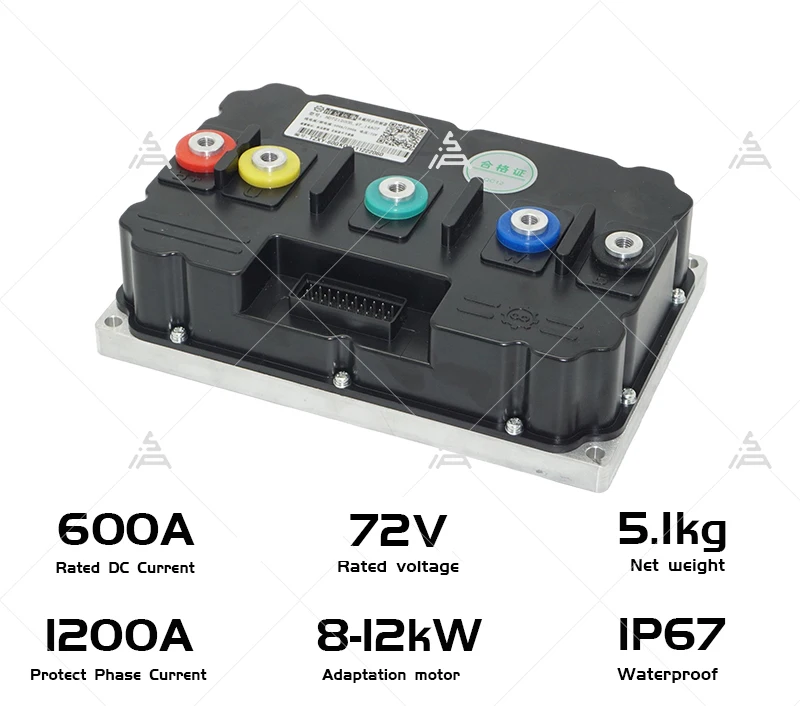

ND721200 Far driver contorller encoder version:

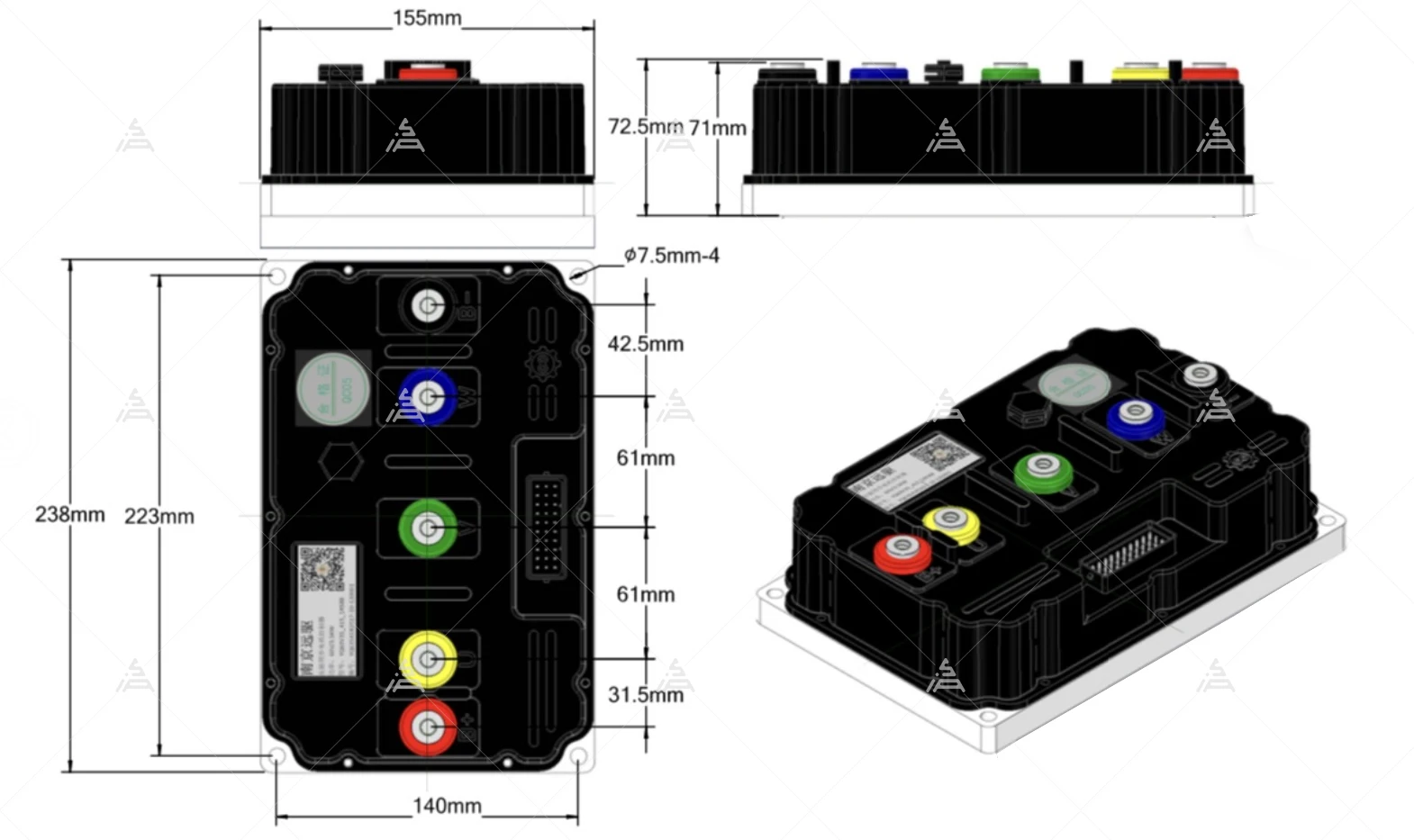

Drawing

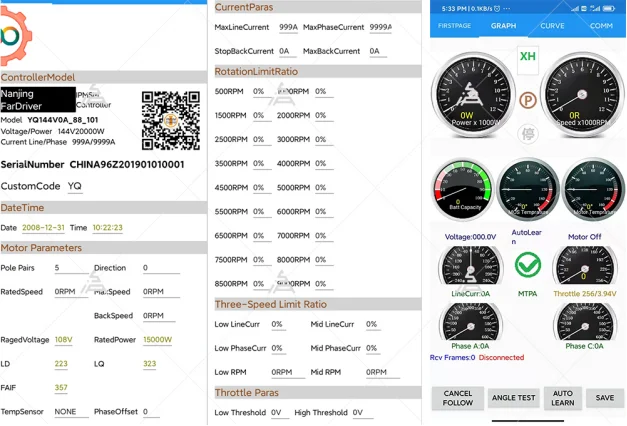

Controller Software Interface

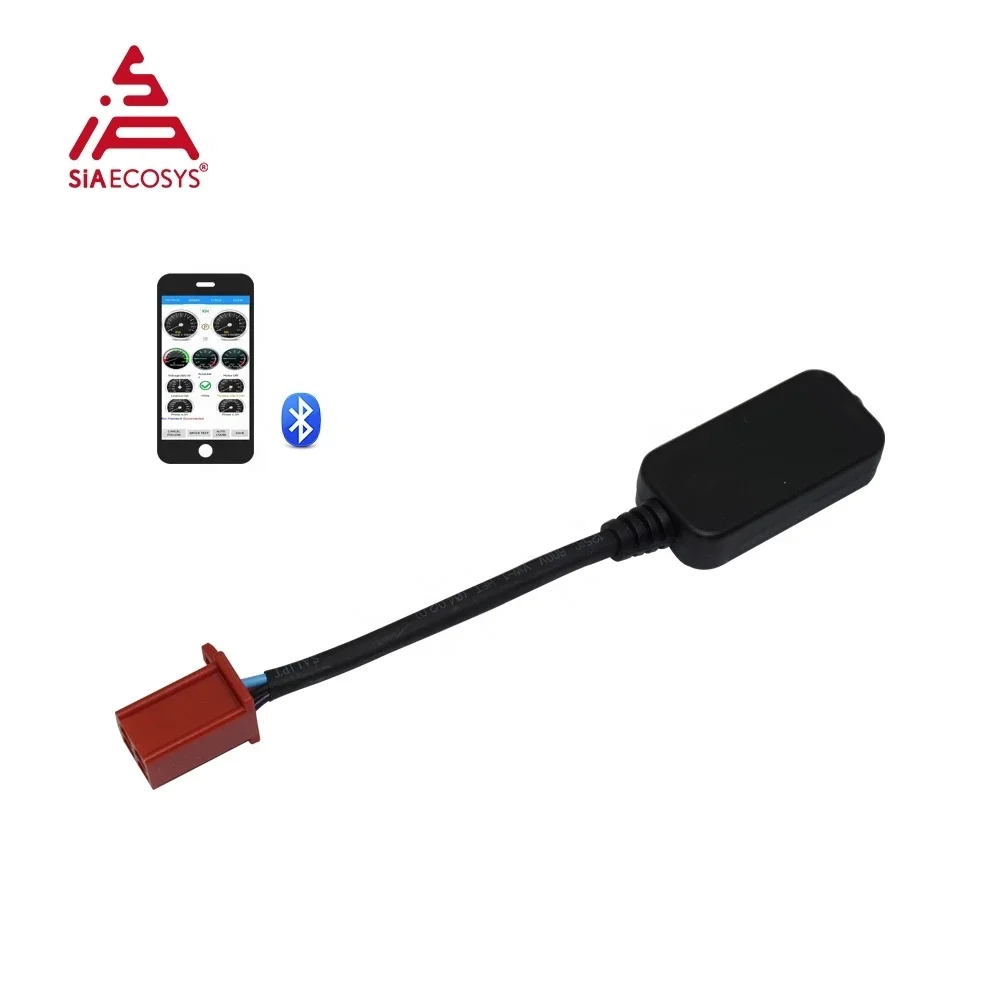

Far Driver controller BT adapter
Controller Software Interface
Other Conversion Kits recommedation:
QS 3kW mid dirve motor Conversion kits recommdation :
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
