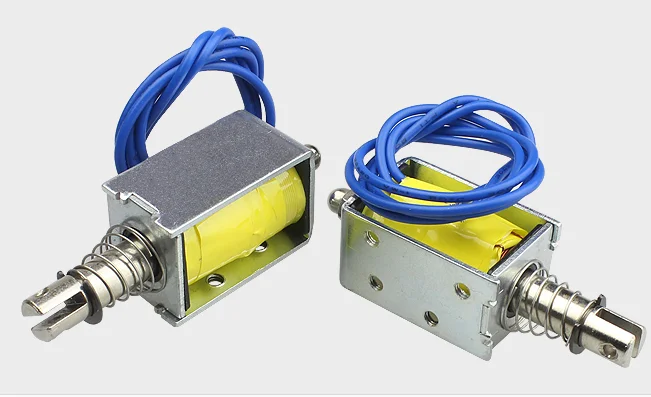

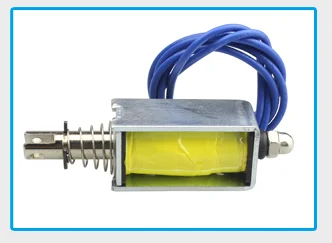

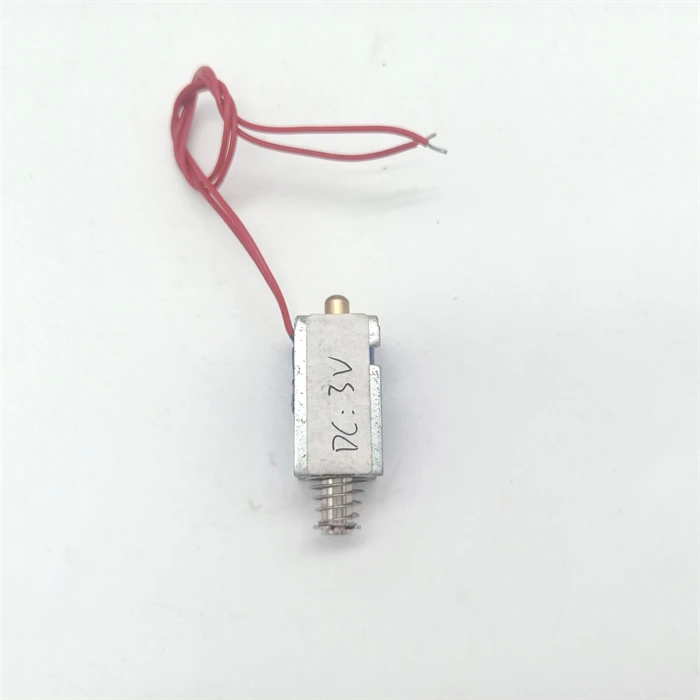

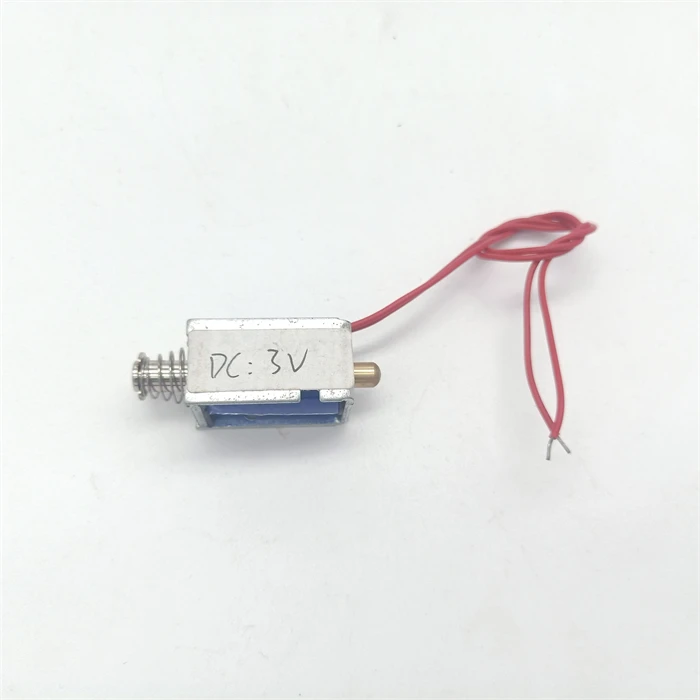

New arrival Mini solenoid for electric locks DC 6 V 12 V 24 Volt solenoid Push pull solenoid bolt lock
- Category: >>>
- Supplier: Dongguan Cixin Electromagnetic Technology Co. Ltd.
Share on (1600550665717):
Product Overview
Description
Products Description
Product introduction
Brand: Magnetic Core Technology
Name: Frame push-pull electromagnet
Model: U0630
Voltage: generally DC6V-DC220V according to customer needs
Current: 0.5A-7A according to customer needs
Stroke and strength: When the stroke is 5MM, the strength can reach 600 grams. The specific situation depends on the customer's use.
Typical life: generally more than 500,000 times
Name: Frame push-pull electromagnet
Model: U0630
Voltage: generally DC6V-DC220V according to customer needs
Current: 0.5A-7A according to customer needs
Stroke and strength: When the stroke is 5MM, the strength can reach 600 grams. The specific situation depends on the customer's use.
Typical life: generally more than 500,000 times

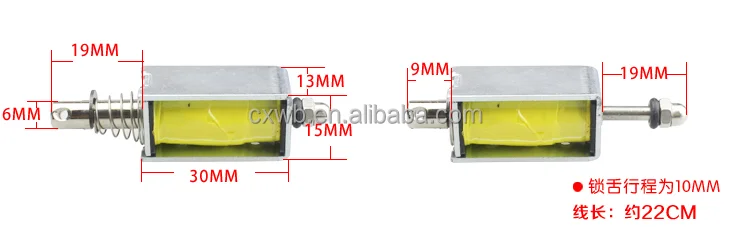

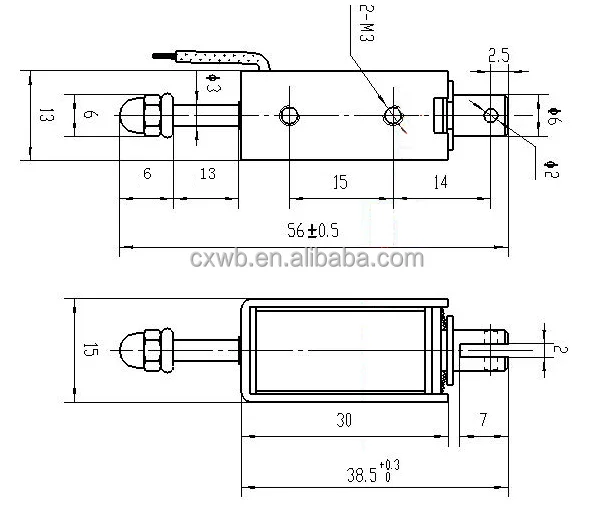

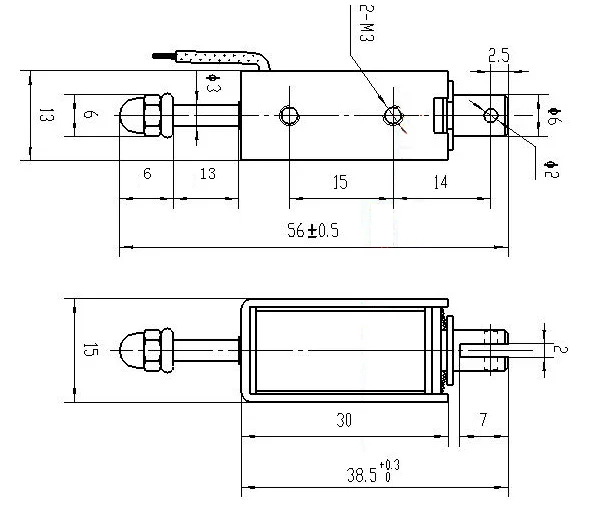

Details Images
Company Profile
product brand | Cixin Electronimagnetic Technology | Tongue stroke | 10mm |
proudct name | U0630 | lock tongue suction force | 0.8-6N |
operating voltage | 6v/12v/DC24v | opening time | < 5s |
using current | 1.4A/0.8A/0.8A | scope of application | all kinds of electrical equipment |
