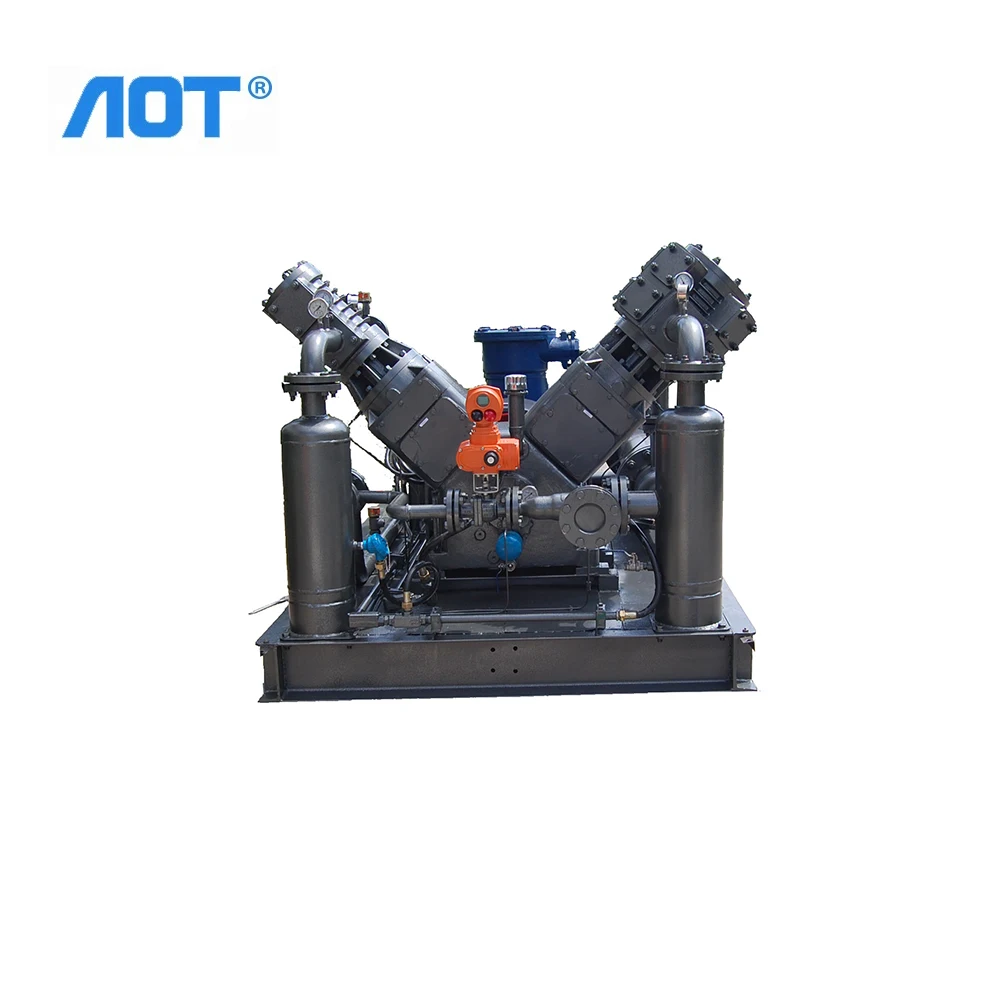

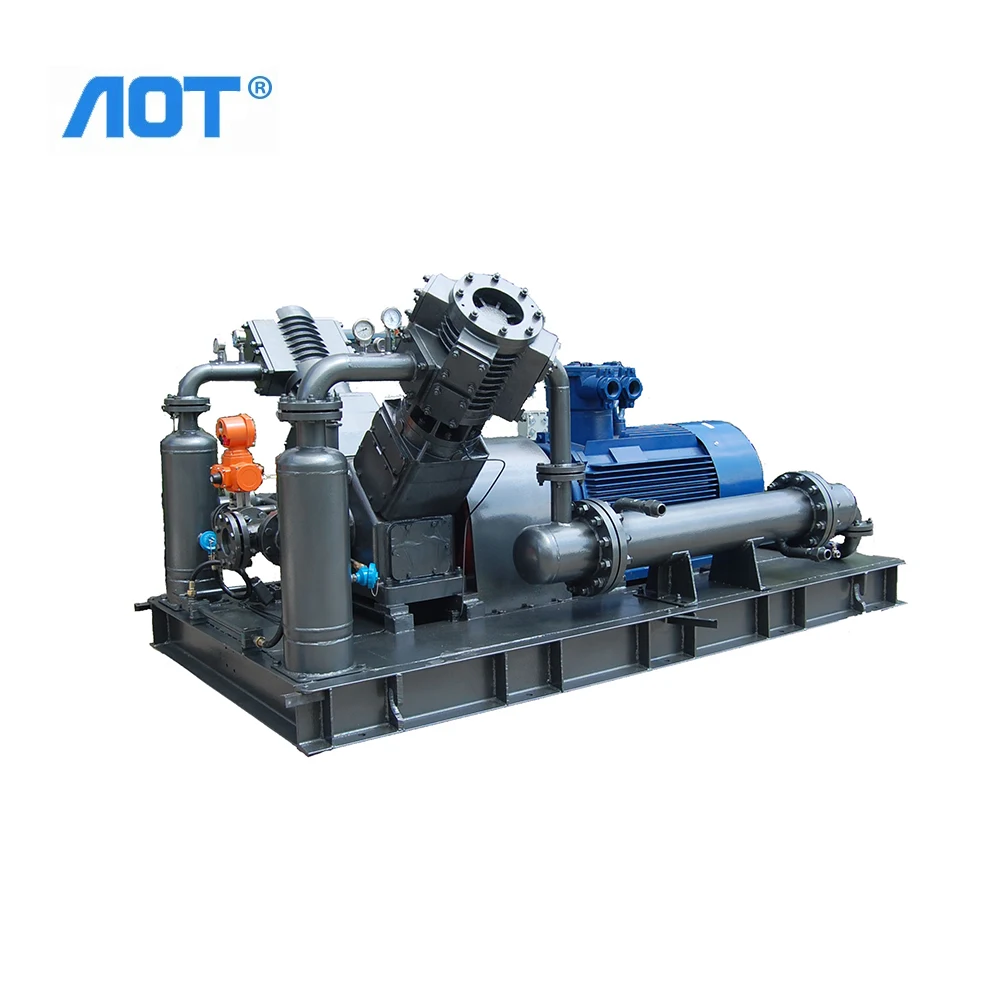

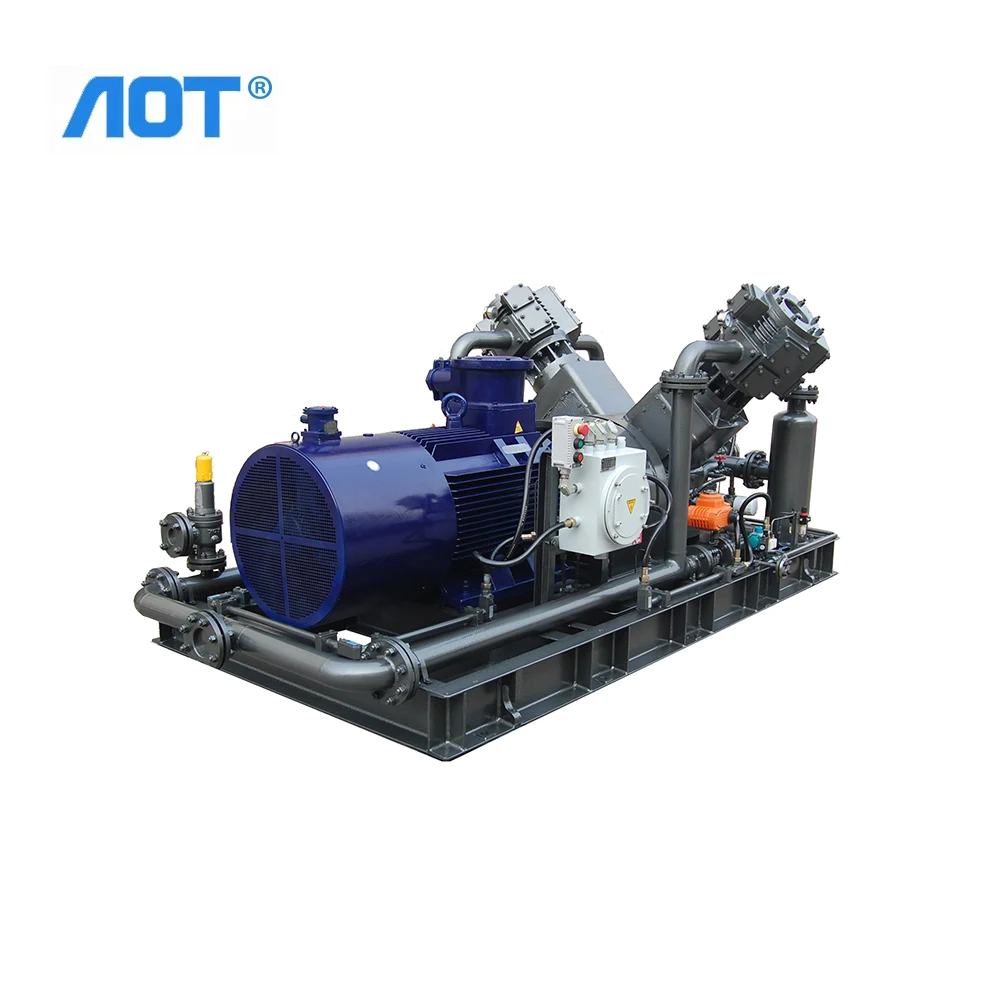

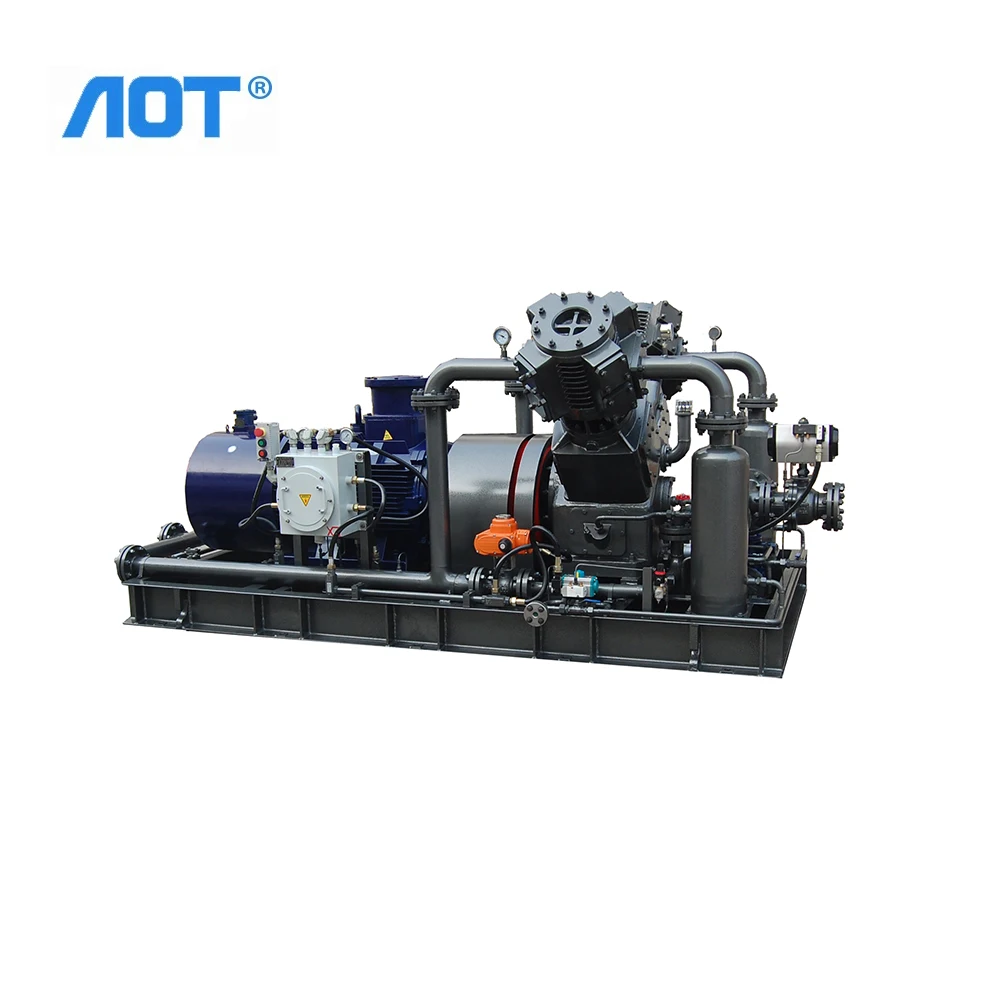

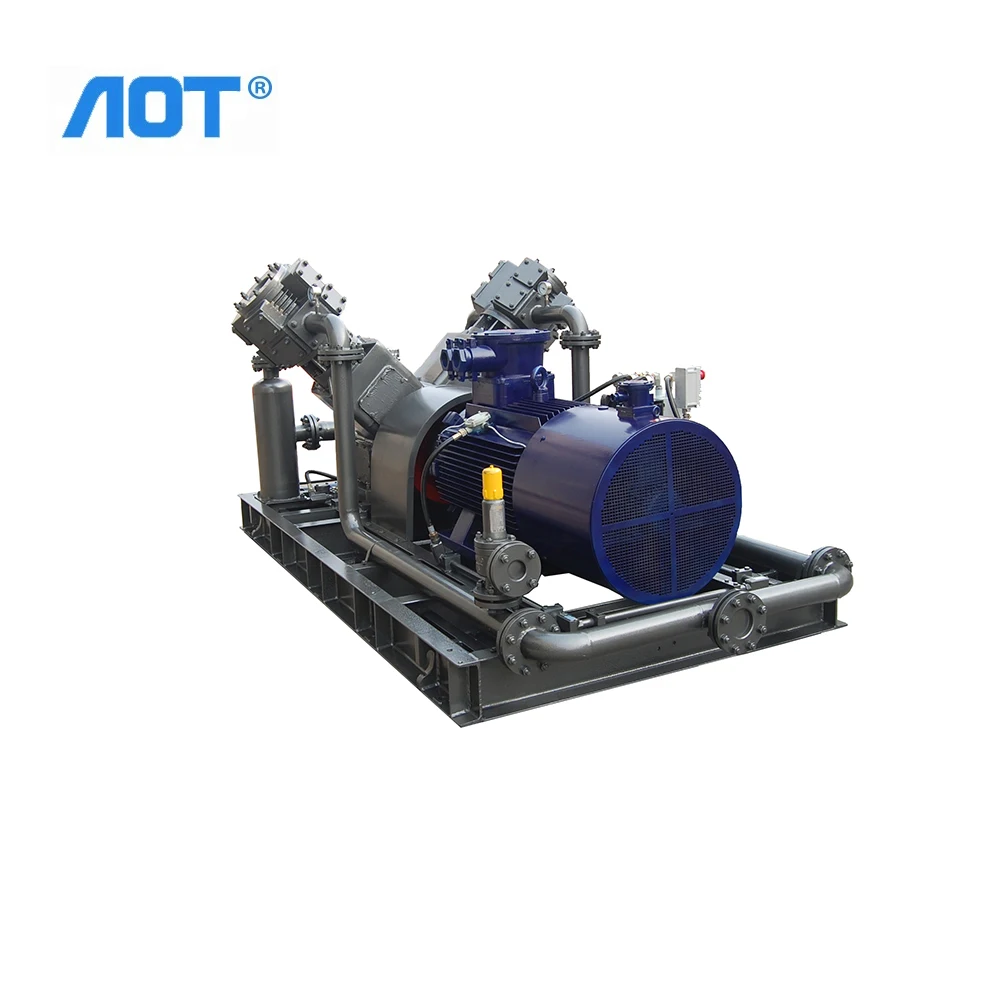

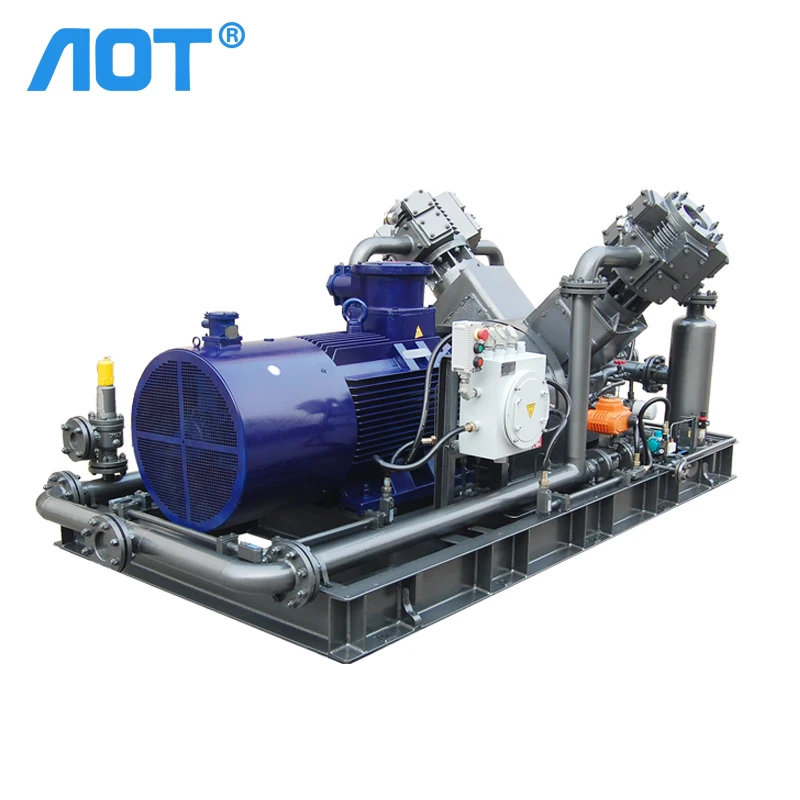

Explosion proof motor coupling piston biogas compressor Methane CH4 gas compressor for hot sale
- Category: >>>
- Supplier: Bengbu Aot Compressor Co. Ltd.
Share on (1600550738175):
Product Overview
Description
Product Description
AOT Compressor
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Product Overview:
✿ Product Overview: In response to the national demand for new and renewable energy, our company has developed large, medium and small compressors.With unique professional and technical level,our compressor products are cost-effective. discharge pressure from 0.2MPa to 25MPa , displacement from 0.2m3/min to 40m3/min,the compressor has Z-type, D-type and other forms.
✿ Features: the whole machine has the characteristics of low noise, high stability, simple structure and convenient maintenance. The product is safe and reliable.
✿ Application: widely used in rural stations, sewage treatment plants, and new filling stations.
Detailed Images
Technical Parameters
Compressor | Product Model | VW-4/0.002-3.5 | |||
Type | V Type（customization ） | ||||
Compressed medium | CH4 | ||||
Nominal volume flow(Nm3/h) | 216 | ||||
Compression stage | 2 | ||||
Cylinder number | 2 | ||||
Driving mode | Coupling | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Air cooling | ||||
Rotational speed (r/min) | 740★ | ||||
Suction pressure (Bar ) | 0.002 | ||||
Discharge Pressure (Bar ) | 3.5 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤150 after cooling≤40 | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YBPX3-250M-8 | |||
Explosion-proof grade | DIIBT4 | ||||
Rotational speed (r/min) | 740★ | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 36.4 | ||||
Rated power (Kw) | 30 | ||||
Compressor size (L×W×H) mm | ≈3000*1600*1400★ | ||||
Weight(kg) | ≈2800★ | ||||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | Number |
1 | Compressor host | 1 |
2 | Variable frequency explosion-proof motor | 1 |
3 | Air cooler | 1 set |
4 | Inlet gas-liquid separator | 2 |
5 | The relief valve | 2 |
6 | Shared chassis | 1 |
7 | Gearing | 1 set |
8 | Piping components | 1 set |
9 | Random spare parts | 1 set |
10 | The technical documentation | 1 set |
11 | Variable frequency control cabinet | High intake pressure automatic alarm shutdown Low intake pressure automatic alarm shutdown High exhaust pressure automatic alarm shutdown Variable frequency gas volume regulation |
12 | Pre cooler | 1 set |
Related Products
Five reasons to choose AOT compressor :
✔ Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
✔ Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
✔ "Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
✔ A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
✔ 12-Monthly free warranty:
All factory compressors are Free warranty for 12 months, lifetime warranty, so that users can be more assured.
✔ Perennial spare parts support:
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
✔ A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
✔ 12-Monthly free warranty:
All factory compressors are Free warranty for 12 months, lifetime warranty, so that users can be more assured.
✔ Perennial spare parts support:
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
Our Company
Bengbu AOT Compressor Co., is located in Bengbu Anhui.China. This is the world's important compressor production base. The company specializes in the development, manufacturing and sales of compressor products. The company is mainly engaged in the new type of high efficiency and environment-friendly special gas compressor for oxygen, hydrogen, menthane , liquefied gas, natural gas and gas station and chemical industry. The company has always adhered to the scientific and technology and design concept of compressor industry at home and abroad, combined with the actual situation in China, and applied scientific enterprise management and advanced manufacturing techiology in the design, development, assembly process and testing means. Product quality, to create first-class products.
Our Services
One-years warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
Packing & Delivery
FAQ
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a compressor .
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/h
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. ______compressor .application:
If you are interested in it,please contact me freely
