CX Series double acting block compact short stroke adjustable small thin hydraulic cylinder

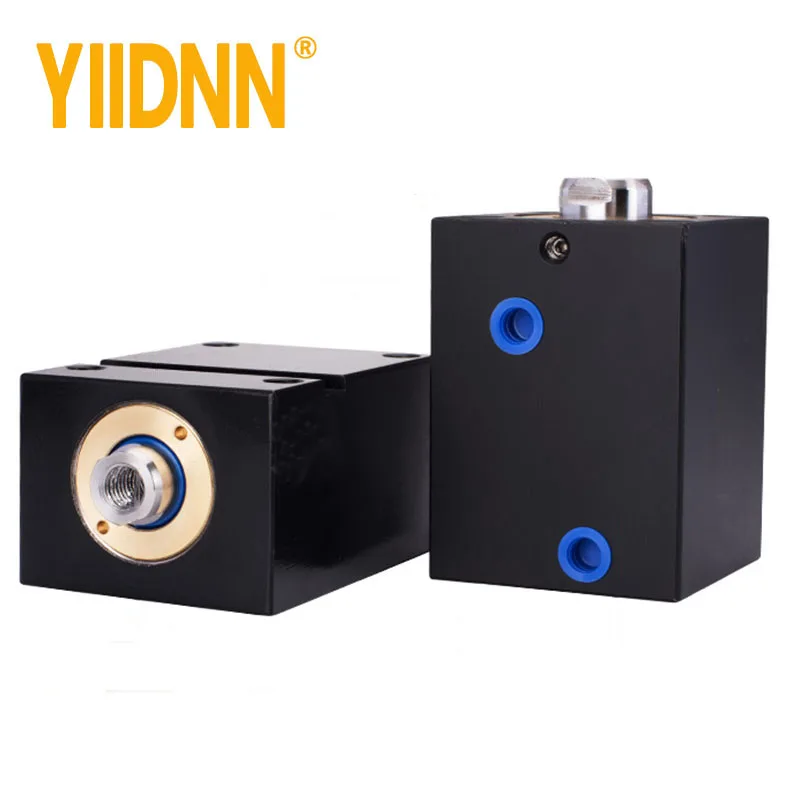

CX Series double-acting block compact short stroke adjustable small thin hydraulic cylinder
CX Series double-acting block compact short stroke adjustable small thin hydraulic cylinder

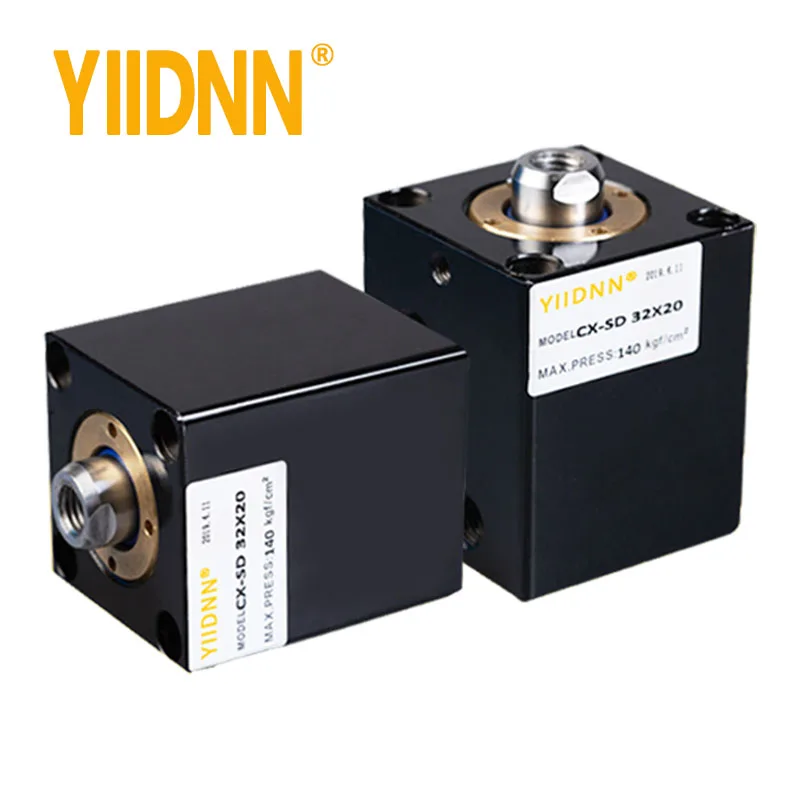

CX Series double-acting block compact short stroke adjustable small thin hydraulic cylinder

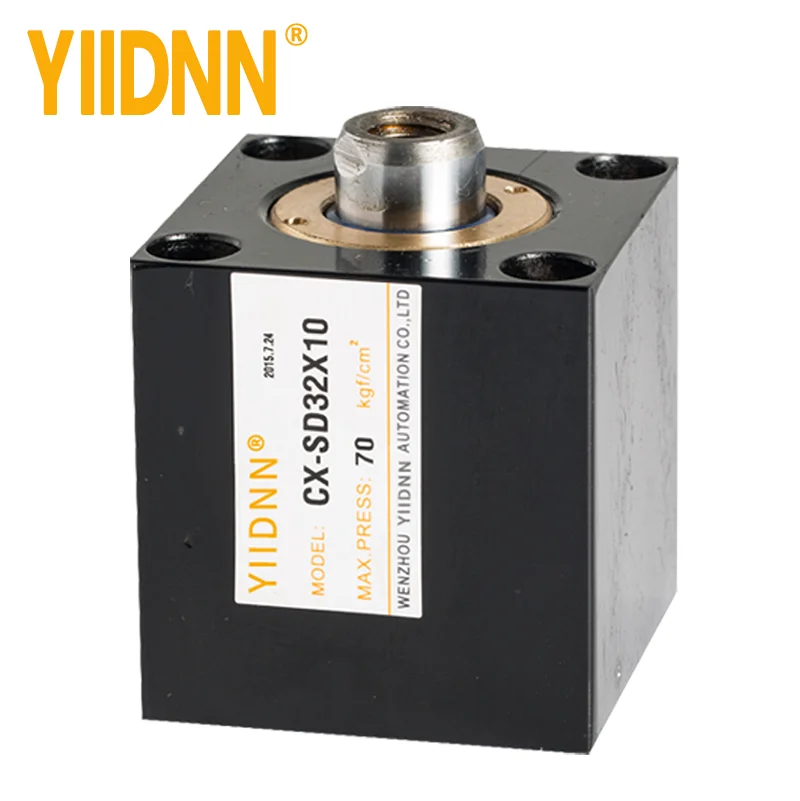

CX Series double-acting block compact short stroke adjustable small thin hydraulic cylinder

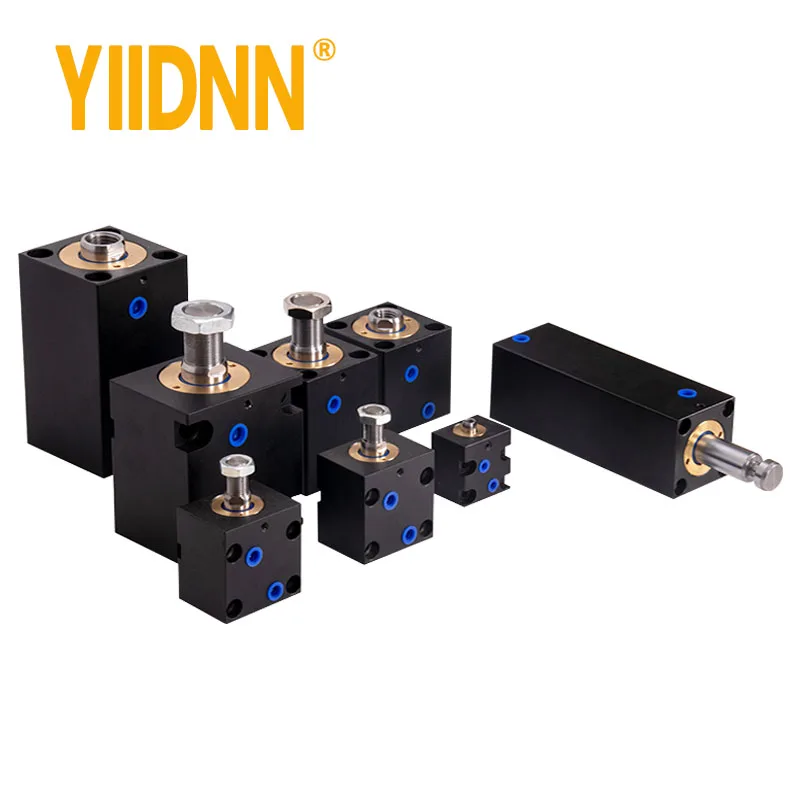

CX Series double-acting block compact short stroke adjustable small thin hydraulic cylinder
CX Series double-acting block compact short stroke adjustable small thin hydraulic cylinder

CX Series double acting block compact short stroke adjustable small thin hydraulic cylinder

Share on (1600550760847):


Price:

Quantity:


Product Overview

Description



Products Description


Introduction of product：
◆Standard:GB/T15622-2995
◆Use high-quality seal to avoid leakabe and have long service life.
◆The rod cover and rear cover make from No45 Steel,and the piston is chrome plate,With the compact structure,more durable.
◆Thera are several mounting typs,SD,FA,LB,TC,CA,CB,CBA, and CAB,The designer cloud choose it according to the demand.
◆Anyother special cylinder cloud order,welcome to contact with us.


Bore size(mm)
32
40
50
63
80
Working fluid
Hydraulic oil
Barrel material
STKM13C/SUS304/AL6063-T5
Barrel inner roughness(um)
0.4-0.8
Piston rod material
S45C
Piston rod roughness(um)
0.4-0.8
Piston rod finish
Chrome plated
Working pressure
0.3-14MPa
Working temp
-10---+60℃
Working speed
8-300(mm/s)
Std. stroke(mm)
5,20,15,20,25,30,40,50




Company Profile






Shanghai Yiidnn Electric Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing, processing, maintenance and sales. We mainly produce pneumatic presses, pneumatic components, cable markers, stainless steel ties, electrical accessories etc, and support non-standard customization.
Our slogan is "Stand East, Connect the World", adhering to the concept of "Science and Technology Innovation, Win-Win Cooperation", with "Excellent Products, Reasonable Prices, Honesty and Trustworthiness, Service First" as our goal Efforts to provide customers with better products and services, your needs are our greatest pursuit.


Why Choose Us




With 7 years of production and sales experience, Yiidnn has mature technology, advanced equipment, excellent team and thoughtful service system, and is particularly good at non-standard production, so you have no worries.


Certifications




Packing & Delivery




FAQ


Q1: Is it a factory or a trading company?
Answer: We are a comprehensive enterprise integrating R&D, production, processing, maintenance and sales, with 7 years of experience.

Q2: Does it support non-standard or customized products?
Answer: Yes, please consult our sales staff for detailed information.

Q3: Do you support OEM?
Answer: Yes.

Q4: How does the factory conduct quality control?
Answer: Quality is very important. From the beginning to the end of production, we pay attention to quality control. Before packaging and shipping, each product will be fully assembled and carefully tested.

Q5: About the delivery time?
Answer: It depends on the quantity you ordered. Conventional products are basically in stock. Some special products and large orders will be put into production again according to your order.

Q6: Can you get some samples?
Answer: Yes, sample orders can be used for quality inspection and market testing.
