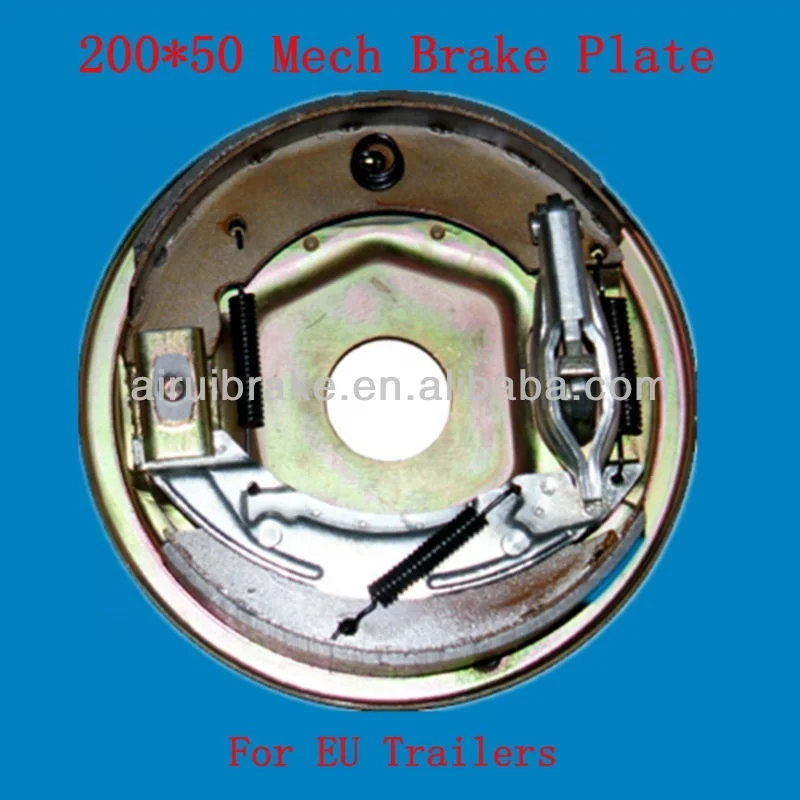

Mechanical trailer brake 200*50 back plate Knott Euro marketTrailer Parts & Accessories
- Category: >>>
- Supplier: Weifang Airui (Axletek) Brake Systems Co. Ltd.
Share on (1600550769911):
Product Overview
Description
Product Description

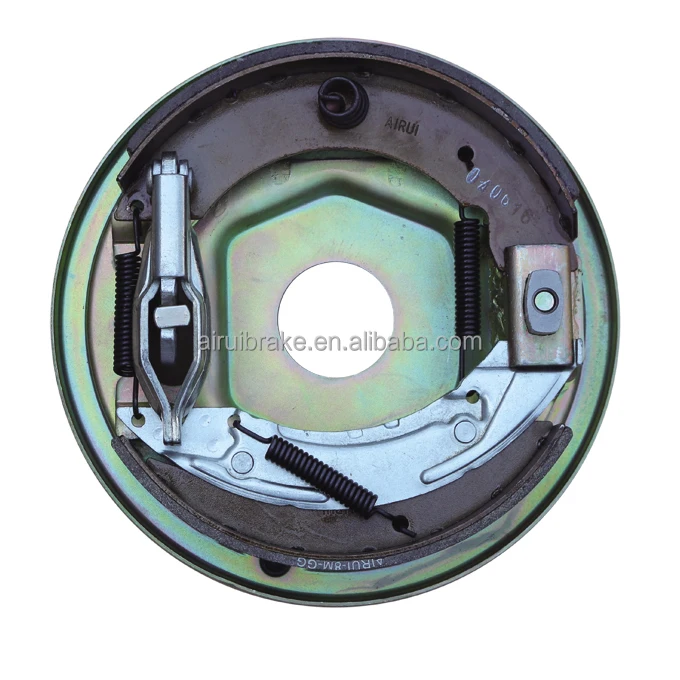

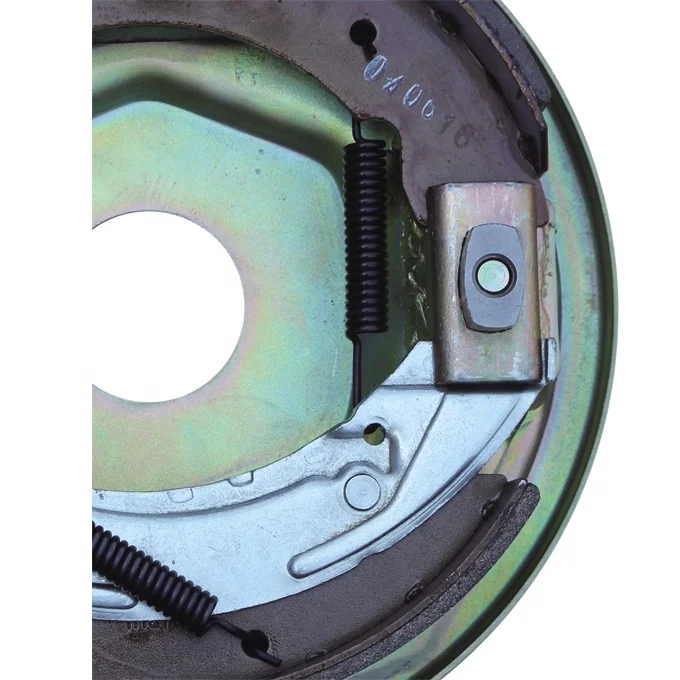

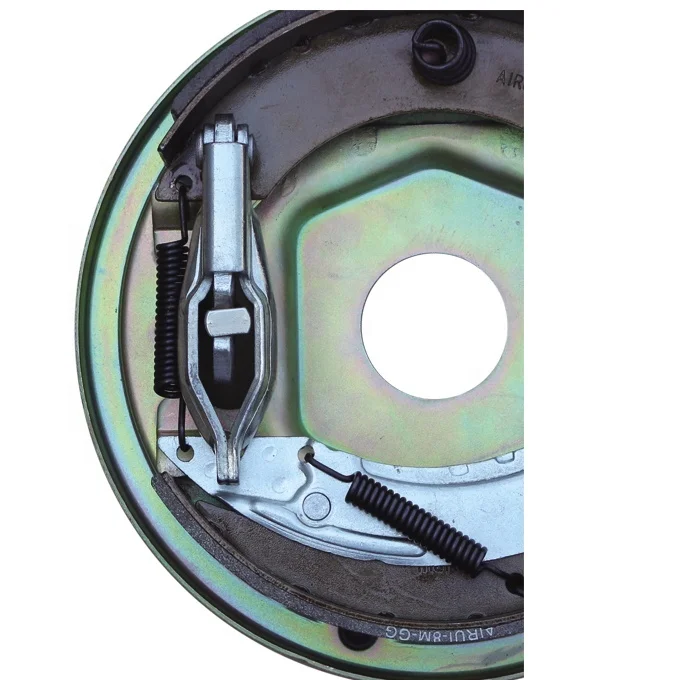

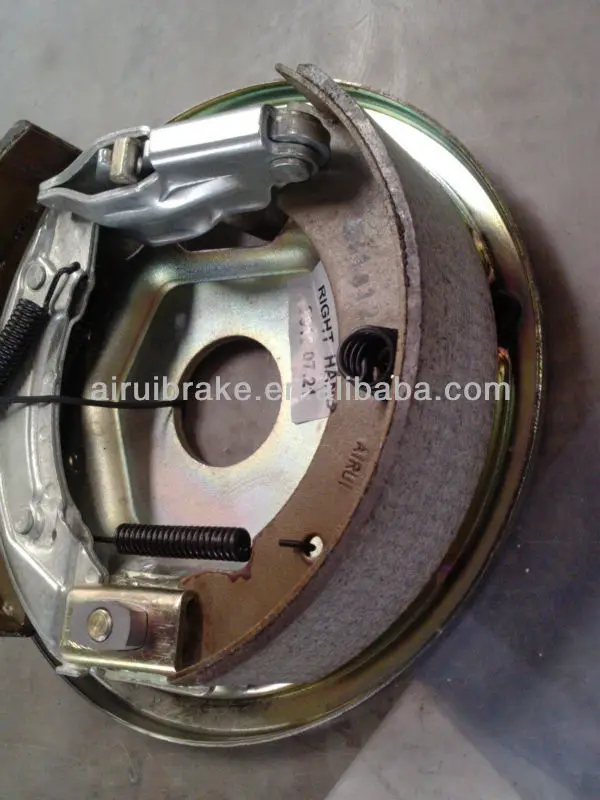

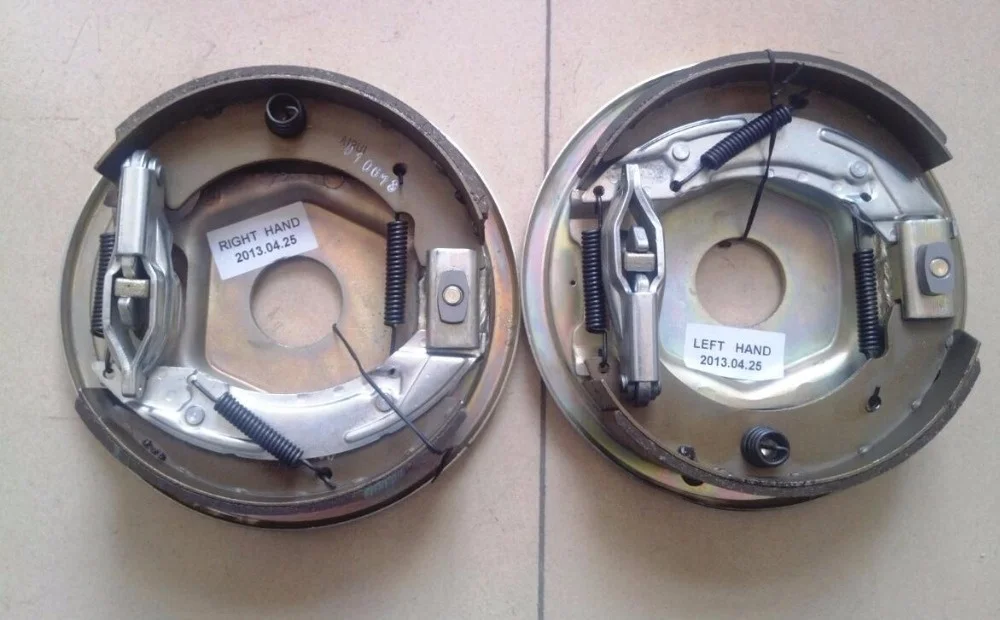

Mechanical Trailer Hand brake assembly
More details:
1. Size: Diameter: 199mm
Brake lining width: 49mm
2. Electric voltage: 0
3. Maximum load: 1000kg
4. Used for single/tandem axle box trailers,
off-road trailers, tradesman trailers,
caravan and motor homes

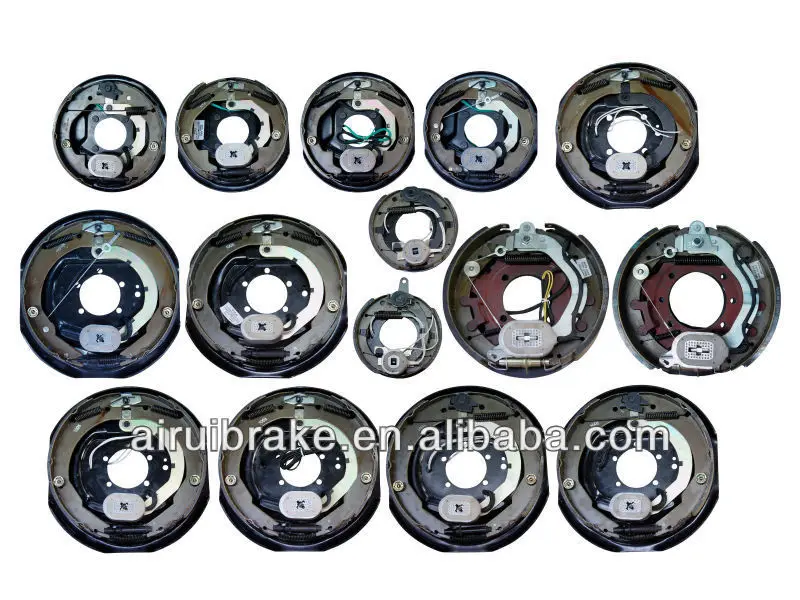

| Model No. | Brake type | Wideness | Thickness | Voltage | Cylinder | Max. Load |
| B07E(AZ008) | Electric Brake | 7 | 1 1/4 | 12 | 2,000 lb | |
| B10E(AZ004) | Electric Brake | 10 | 2 1/4 | 12 | 3,500 lb | |
| B11E(AZ017) | Electric Brake | 11 | 2 | 12 | 6,000 lb | |
| B12E(AZ003) | Electric Brake | 12 | 2 | 12 | 7,000 lb | |
| B35E(AZ056) | Electric Brake | 10 | 1 3/4 | 12 | 3,500 lb | |
| B44E(AZ063) | Electric Brake | 10 | 2 1/4 | 12 | 4,400 lb | |
| B10EA(AZ022) | Electric Brake self-adjusting | 10 | 2 1/4 | 12 | 3,500 lb | |
| B11EA(AZ064) | Electric Brake self-adjusting | 11 | 2 | 12 | 6,000 lb | |
| B12EA(AZ021) | Electric Brake self-adjusting | 12 | 2 | 12 | 7,000 lb | |
| B35EA(AZ060) | Electric Brake self-adjusting | 10 | 1 3/4 | 12 | 3,500 lb | |
| B44EA(AZ057) | Electric Brake self-adjusting | 10 | 2 1/4 | 12 | 4,400 lb | |
| B10EAP(AZ037) | Electric Brake self-adjusting w/parking | 10 | 2 1/4 | 12 | 3,500 lb | |
| B12EAP(AZ036) | Electric Brake self-adjusting w/parking | 12 | 2 | 12 | 7,000 lb | |
| B07EP(AZ034) | Electric Brake with Parking lever | 7 | 1 1/4 | 12 | 2,000 lb | |
| B10EP(AZ013) | Electric Brake with Parking lever | 10 | 2 1/4 | 12 | 3,500 lb | |
| B12EP(AZ011) | Electric Brake with Parking lever | 12 | 2 | 12 | 7,000 lb | |
| B35EP(AZ061) | Electric Brake with Parking lever | 10 | 1 3/4 | 12 | 3,500 lb | |
| B44EP(AZ062) | Electric Brake with Parking lever | 10 | 2 1/4 | 12 | 4,400 lb | |
| B09M(AZ038) | Mechannical Brake | 9 | 1 3/4 | 3,000 lb | ||
| B09H(AZ031) | Hydraulic Brake | 9 | 1 3/4 | Duo-servo | 3,000 lb | |
| B10H(AZ007) | Hydraulic Brake | 10 | 2 1/4 | Uni-servo | 3,500 lb | |
| B12H(AZ006) | Hydraulic Brake | 12 | 2 | Uni-servo | 7,000 lb | |
| B10HB(AZ012) | Hydraulic Brake free-backing | 10 | 2 1/4 | Uni-servo | 3,500 lb | |
| B12HB(AZ010) | Hydraulic Brake free-backing | 12 | 2 | Uni-servo | 7,000 lb | |
| B10HBP(AZ019) | Hydraulic Brake free-backing w/parking | 10 | 2 1/4 | Uni-servo | 3,500 lb | |
| B12HBP(AZ018) | Hydraulic Brake free-backing w/parking | 12 | 2 | Uni-servo | 7,000 lb | |
| B10HP(AZ026) | Hydraulic Brake with Parking lever | 10 | 2 1/4 | Uni-servo | 3,500 lb | |
| B12HP(AZ025) | Hydraulic Brake with Parking lever | 12 | 2 | Uni-servo | 7,000 lb | |
| B1208E(AZ001a) | Heavy duty Electric Brake | 12 1/4 | 3 3/8 | 12 | 8,000 lb | |
| B1210E(AZ001b) | Heavy duty Electric Brake | 12 1/4 | 3 3/8 | 12 | 10,000 lb | |
| B1212E(AZ002) | Heavy duty Electric Brake | 12 1/4 | 5 | 12 | 12,000 lb | |
| B1208EP(AZ035) | Heavy duty Electric Brake w/Parking | 12 1/4 | 3 3/8 | 12 | 8,000 lb | |
| B1210EP(AZ001c) | Heavy duty Electric Brake w/Parking | 12 1/4 | 3 3/8 | 12 | 10,000 lb | |
| B1210H(AZ020) | Heavy duty Hydraulic Brake | 12 1/4 | 3 3/8 | Duo-servo | 10,000 lb | |

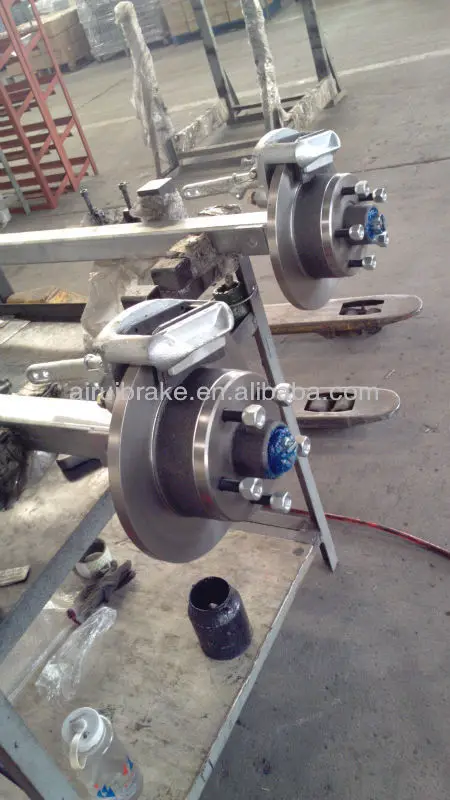

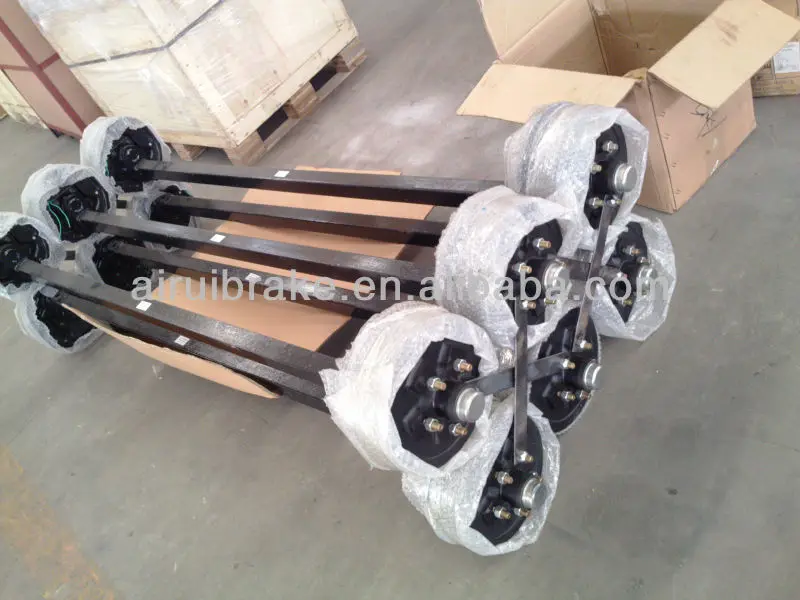

| …to be continued. More trailer chassis parts-axle,hub,drum,caliper… are available too | ||||||
Why our products?
1. non-asbestos brake lining friction material imported from Japan, Germany...
2. All self-made brake shoe&lining, backplate, magnet, arm
3. absolutely good quality with BEST PRICE
Why US?
1. Sino-US joint venture manufacture, whose partner is AXLE TEKNOLOGY LLC, one of the most famous
trailer axle company in America.
2. 1 000 000 pieces of brake assembly was sold in the year of 2012.
3. CSA, ISO9001/TS16949 certifications
4. 7" 9" 10" 11" 12" 12 1/4" electric/hydraulic/mechanical brake assembly for almost all kind of trailer usage.

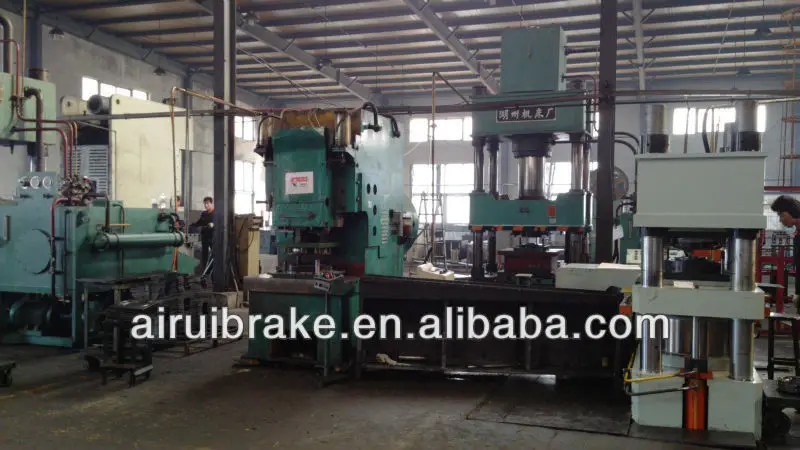

5. complete sets of production equipment, advanced detectionequipment and strong technical force
More products you maybe interested
Specification
item | value |

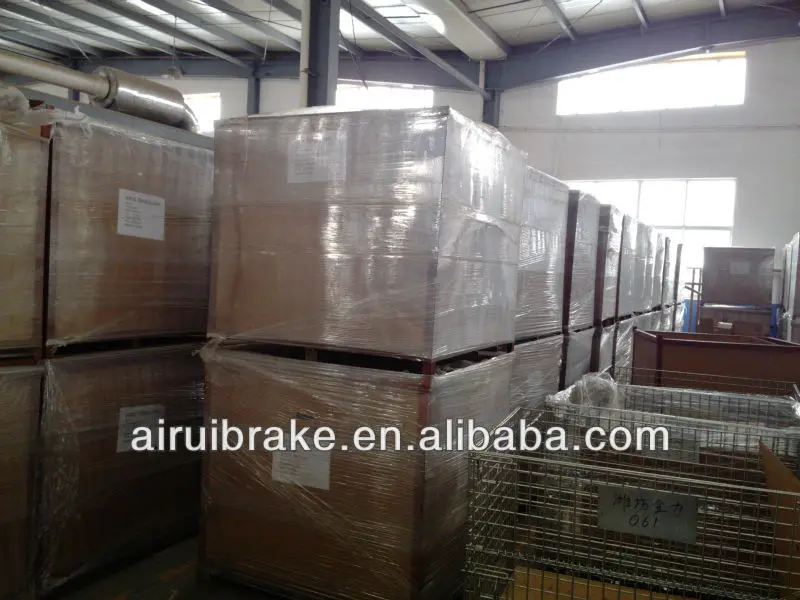

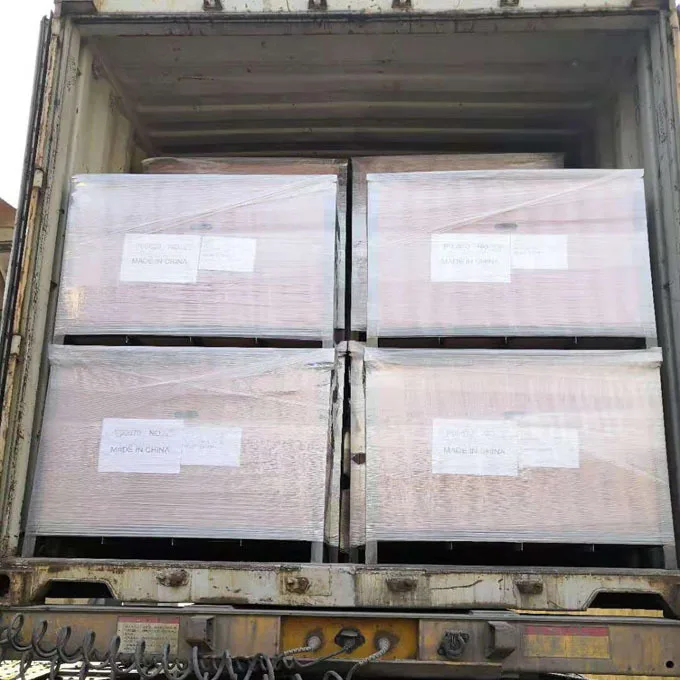

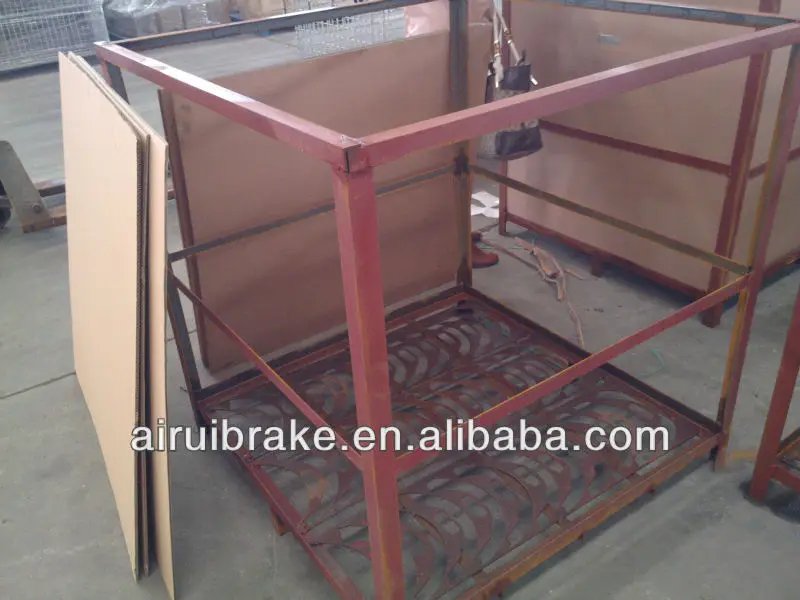

Packing & Delivery

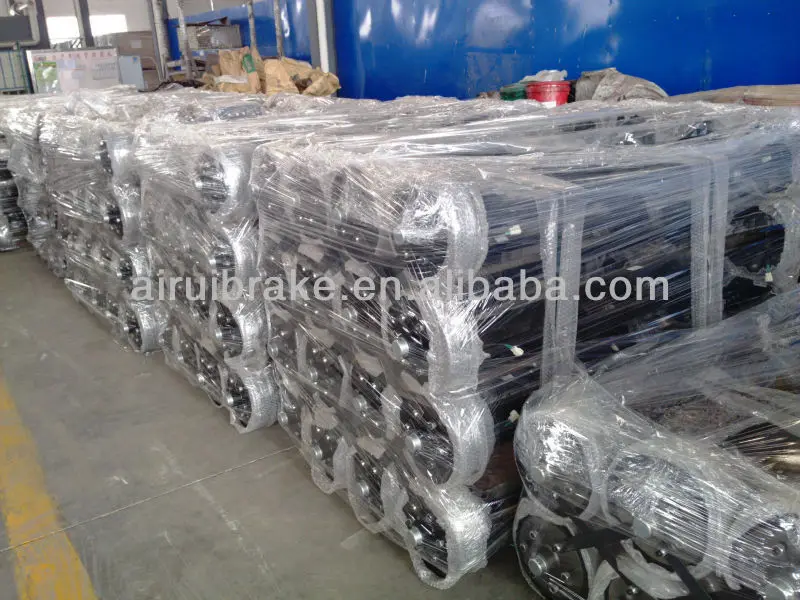

One piece in seperate package
