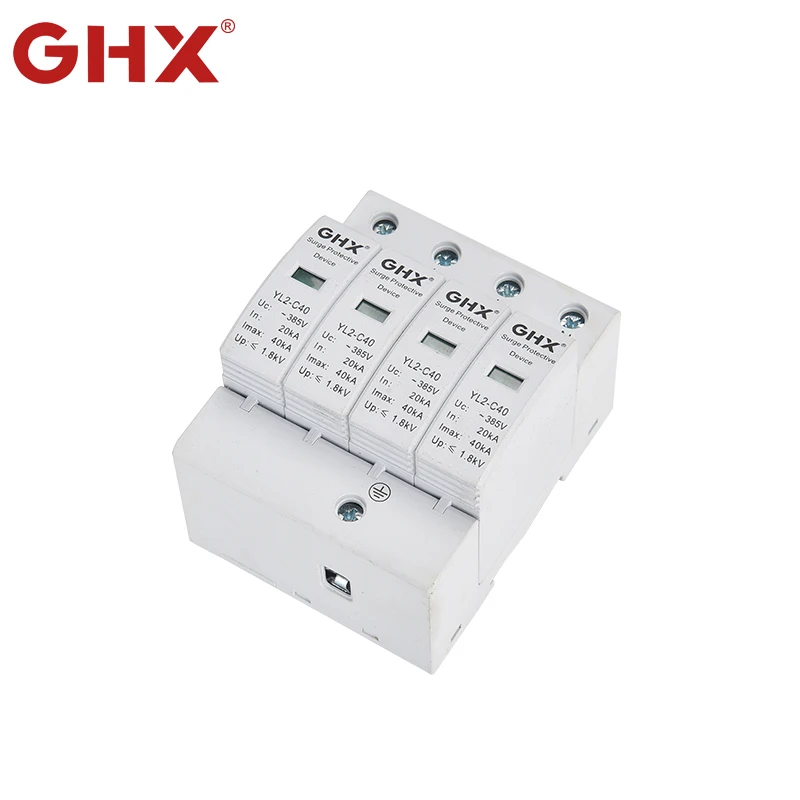

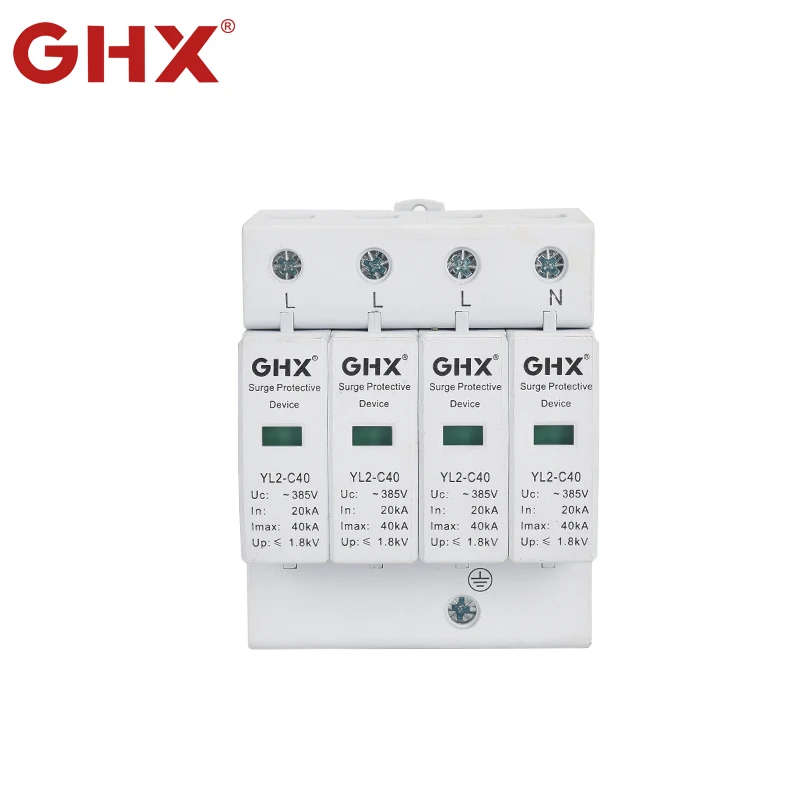

GHX Low voltage surge arrester CE YL2 C40 4P SPD 40KA
- Category: >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd.
Share on (1600550770909):
Product Overview
Description
Product Description
Yuelong Electric(GHX) is a large-scale SPD 40KA manufacturer and supplier in China. We are experts in the field of SPD 40KA OEM and OEM.Our products have a good price advantage and cover most of the Southeast Asia,India,Poland markets. We look forward to becoming your long-term partner in China.
Feature:
SPD 40KA is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc power supply system of AC 50/60Hz,<385V, installation om the joint of LPZ1 or LPZ2 and LPZ3, it is designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted in the module of surge protection device. When the SPD fails in breakdown for over-hart and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.
Product details show:
Could be replaced for the module not need power cut.
Maximum current of endure the lightning stroke 50KA.
Time of response<100ns.
The color of visible window shows operating status, green means normal, red means abnormal.
Maximum current of endure the lightning stroke 50KA.
Time of response<100ns.
The color of visible window shows operating status, green means normal, red means abnormal.
Specification
MODEL | YL2-C40 | YL2-C40 | YL2-C40 | ||||
Rated voltage of Un(V) | 275V | 385V | 420V | ||||
Max. continuous operating voltage Uc(-V) | 275V | 385V | 420V | ||||
Voltage protection level of up(8/20 μs)(KA) | 1.4kV | 1.8kV | 1.9kV | ||||
Normal discharge current In(8/20μs)(KA) | 20 | 20 | 20 | ||||
Max.discharge current of Imax(8/20μs)(KA) | 40 | 40 | 40 | ||||
The response time of NS | < 25 | ||||||
Test level | II Level | ||||||
The width of mm | 18 | ||||||
Color | White | ||||||
Protection grade | IP20 | ||||||
Shell material | Reinforced flame retardant PBT | ||||||
Environmental temperature | .-40℃~+85℃ | ||||||
A fuse or circuit breaker(A) | 25A | ||||||
The line Specifications | Phase line,zero line | 2.5~35mm² | |||||
Wire | 4.0~35mm² | ||||||
The signal line | 1.5mm² | ||||||
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2017,sell to Domestic Market(75.00%),Mid East(10.00%),South Asia(5.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
surge protective device,surge protector,metal cable gland,nylon cable gland,terminal block
4. why should you buy from us not from other suppliers?
10year production experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2017,sell to Domestic Market(75.00%),Mid East(10.00%),South Asia(5.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
surge protective device,surge protector,metal cable gland,nylon cable gland,terminal block
4. why should you buy from us not from other suppliers?
10year production experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese
Packing & Delivery
Surge Protection Device is standard seaworthy package. Base quotation is blank package. OEM design is acceptable.
