Cnc Touch Probe
Cnc Touch Probe
Cnc Touch Probe
Cnc Touch Probe
Cnc Touch Probe
Cnc Touch Probe

Cnc Touch Probe

Share on (1600550777492):


Price:$1,700.00 - $2,900.00

Quantity:


Product Overview

Description



Product Description




Specification


Model
DOP40
Repeatability(2σ)
<1um
Trigger direction
±X,±Y,+Z
Trigger force
XY plane: 0.4-0.8N
Z: 5.8N
Protective range
XY plane: +/-12.5°
Z: 6.35mm
Signal transmission mode
Infrared optical
Operating range
Up to 5m
Trigger life
>10 million
Transmission angle
360° transmission envelope
Transfer activation
Automatic change
Weight without shank
280g
Battery model
2 Lithium battery 14250
Battery life
Stand by
>1080 days
5% utilization
420 days
Continuous work
120 days
Sealing
IP 68
Operating temperature
0-60°C

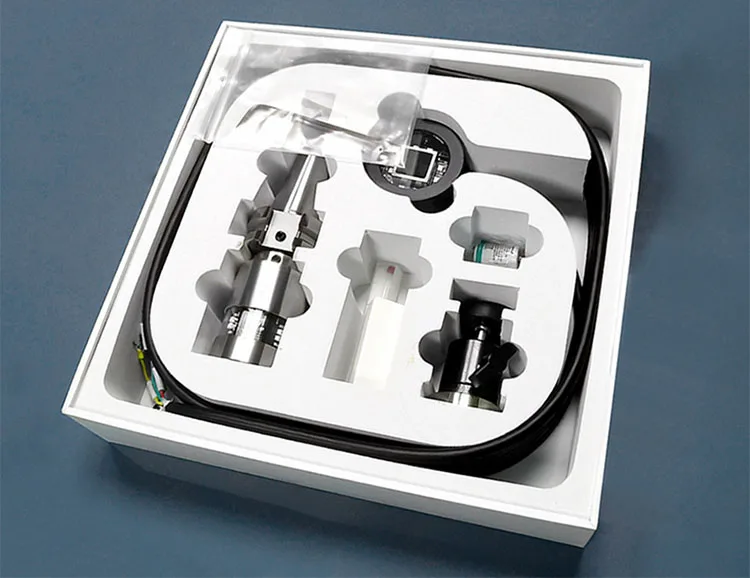

Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Company Profile

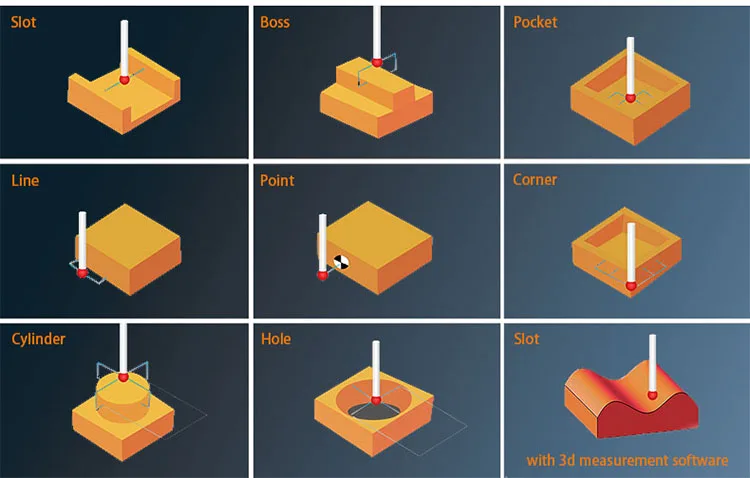

Product Functions




Certifications




Our Customers




FAQ


Q1:Are you a factory or trading company?
A1: We are a factory located in Dongguan city, you are welcome to visit our factory anytime.

Q2: How to choose the appropriate model or specifications?
A2:Based on your requirement and application, our professional sales and engineers will offer you a detailed suggestions regarding models and specifications.

Q3: Do you accept customized service?
A3:Yes, we can provide not only standard products,but also customized service to meet various customer demands.

Q4: What is your warranty perjod?
A4: Our standard product watranty period is one year. Our quality system quarantees the high precision. repeatability, stability and long-life of our products.
