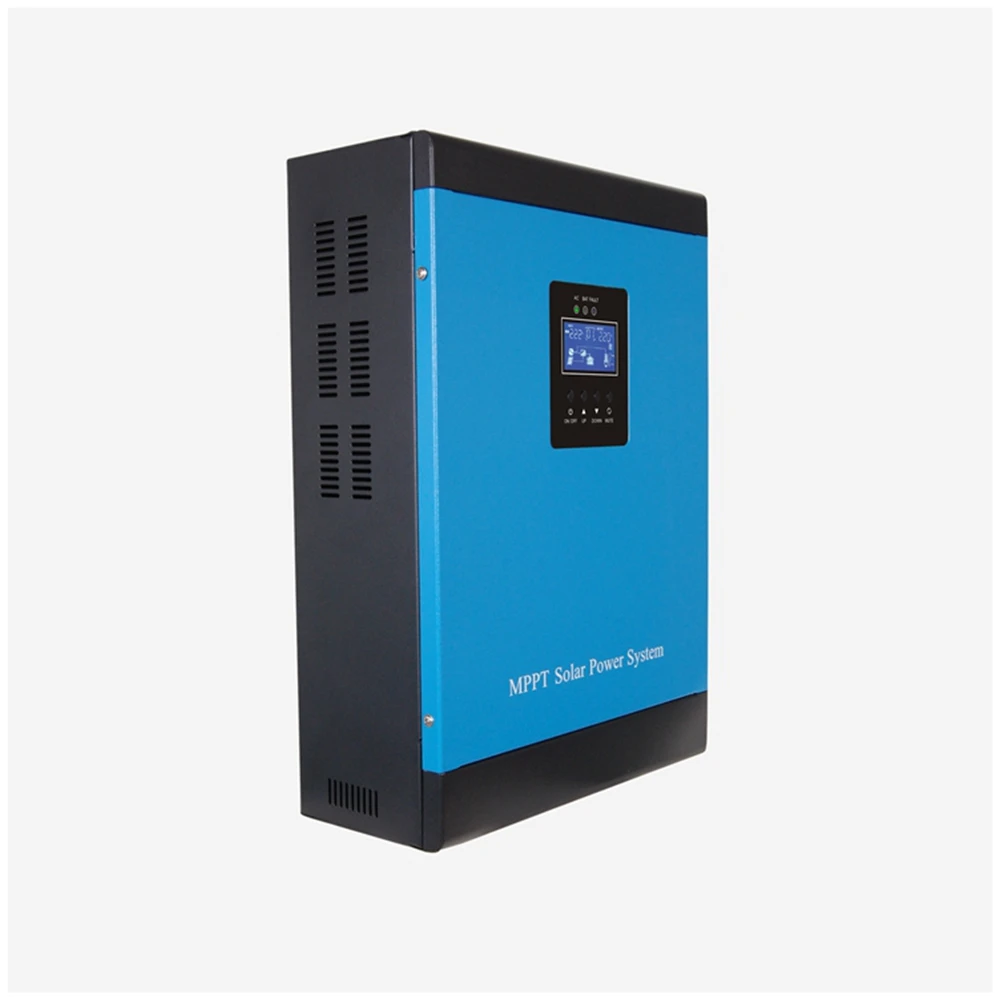

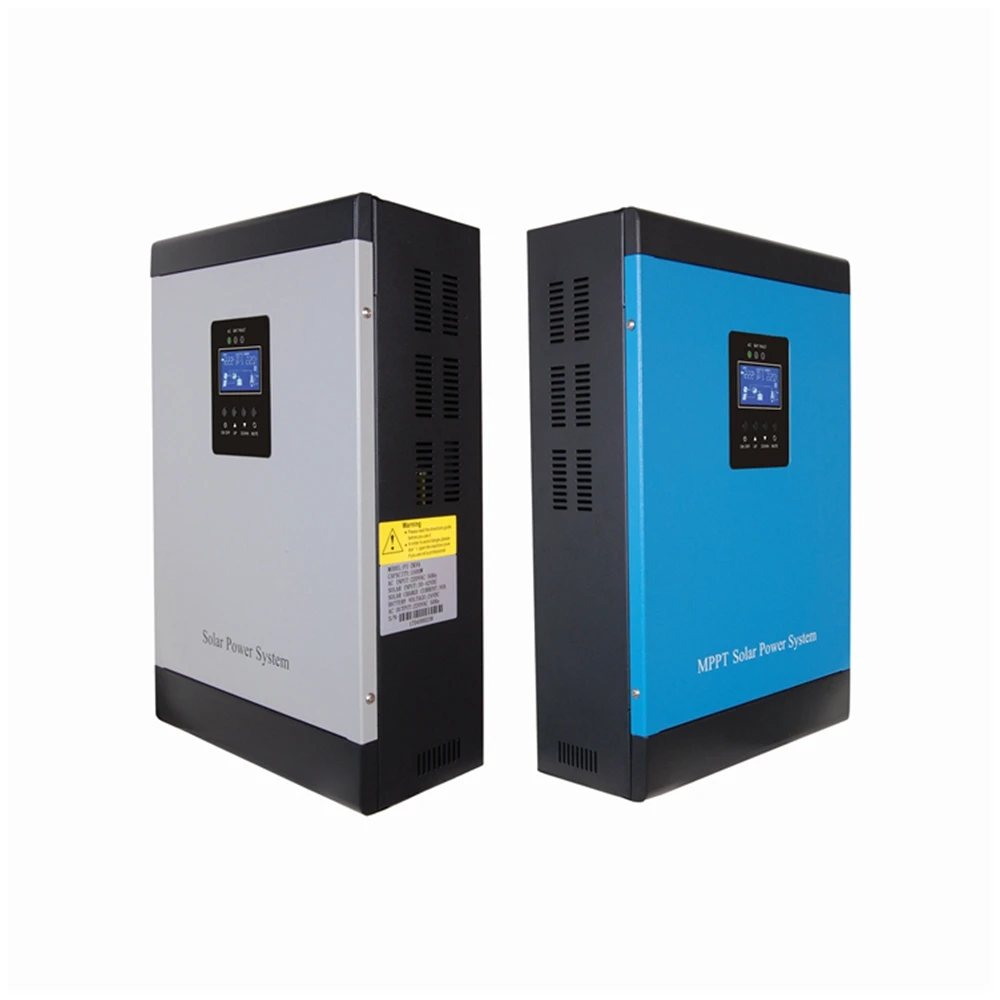

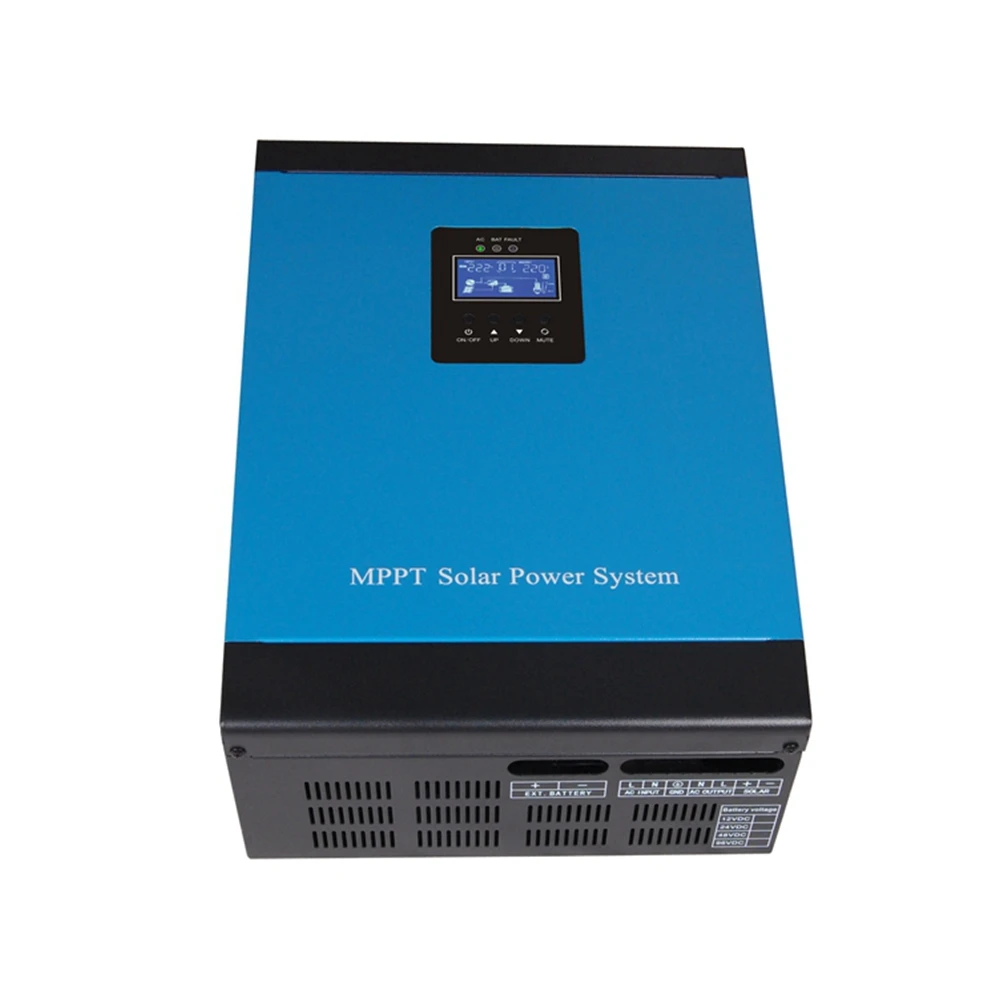

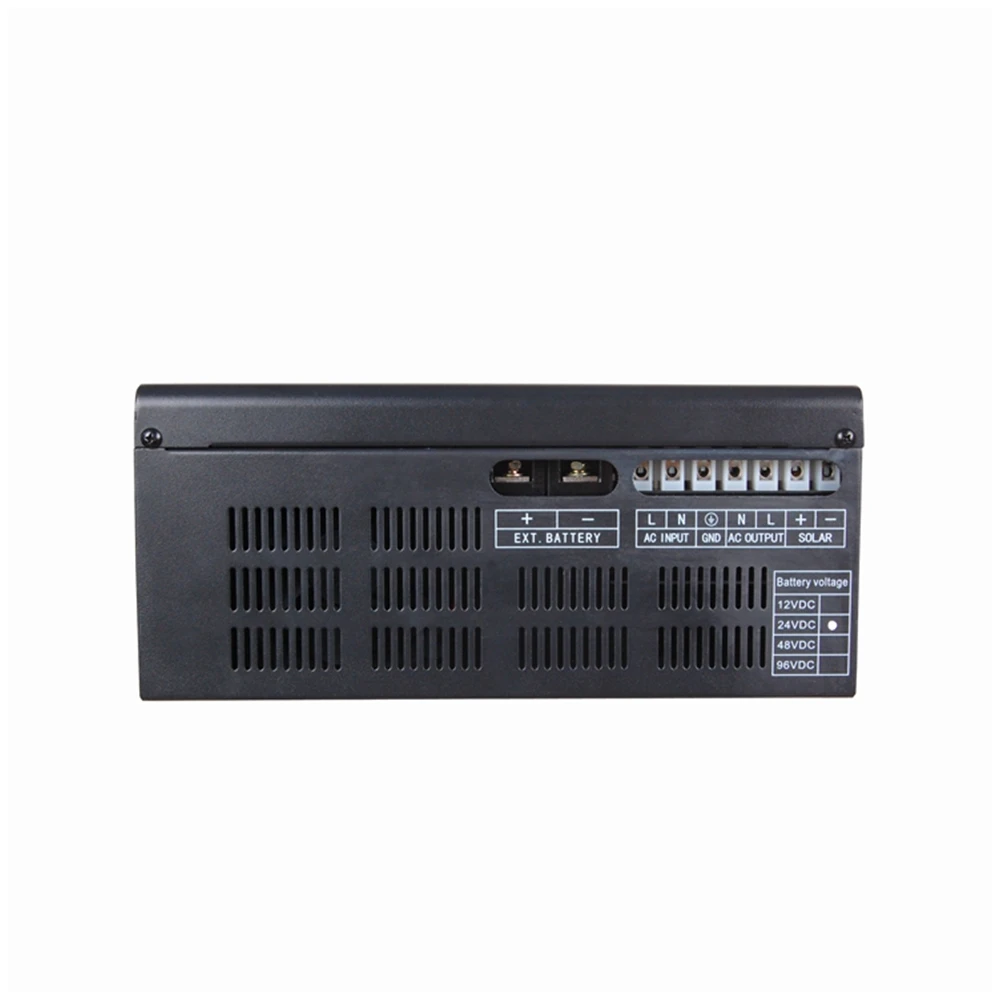

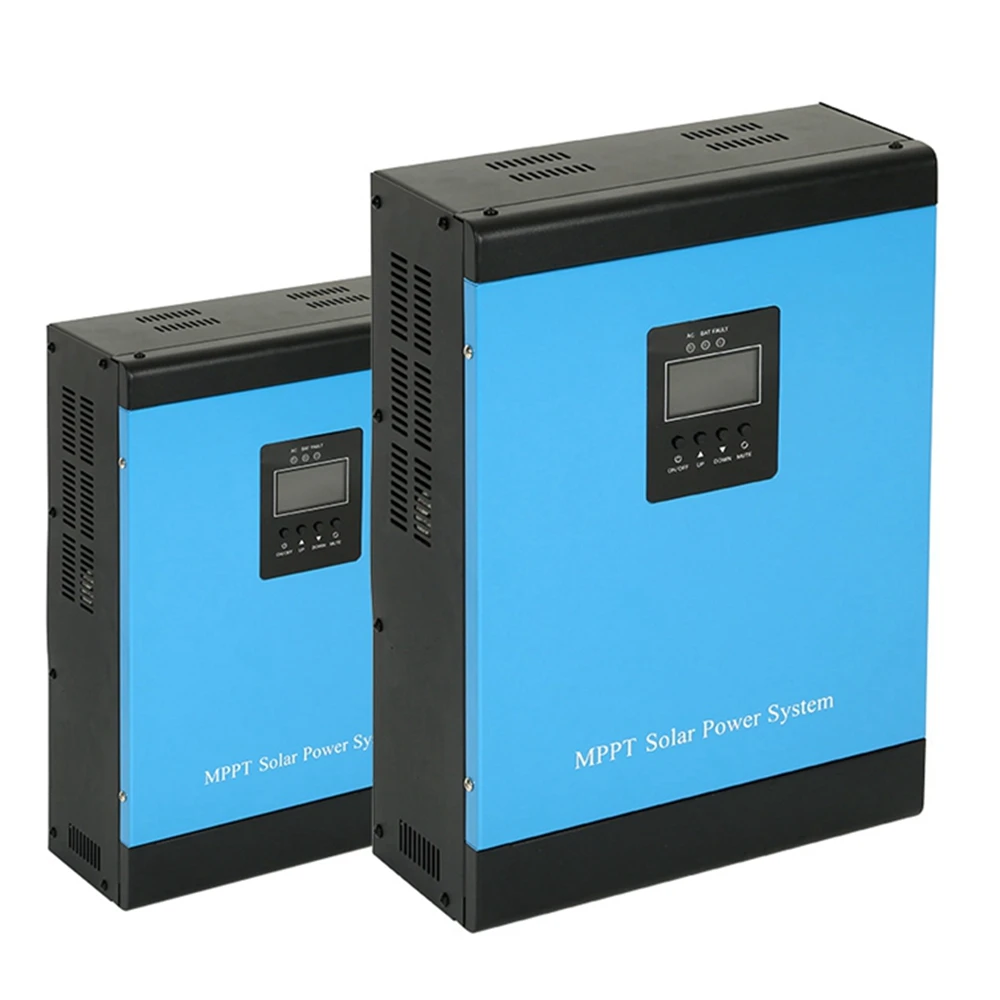

8000W 48v Dc To Ac 220V 230V Solar Hybrid Inverter Pure Sine Wave Off Grid Inverter for Solar System with MPPT solar charger
- Category: >>>
- Supplier: Foshan Han Xiang Electronics Co. Ltd.
Share on (1600550782669):
Product Overview
Description
Product Description
Specification
MODEL MI-**** | 10KVA | 12KVA | 15KVA | 17KVA | |||||
Rated power | 7000W | 8000W | 10KW | 12KW | |||||
Battery voltage | 48/96VDC | ||||||||
Net weight | 46KG | 52KG | 60KG | 63KG | |||||
Grost weight | 53KG | 59KG | 67KG | 70KG | |||||
Dimension(L*W*H) | 570×340×240（mm） | ||||||||
Solar power Controller | Solar rated voltage | 48V:72-160V 96V:144-180V | |||||||
Maximum input voltage | 48V:180V 96V:200V | ||||||||
Charging current | 40A,50A,60A，80A,100,120A(Optional) | ||||||||
Protection type | Solar cells, anti-anti-charge protection,battery open-circuit protection,battery reversal protection | ||||||||
inverter | AC luput voltage range(VAC) | 100/110/120/127/220/230/240V(+20%,-20%) | |||||||
Iuput frequency(Hz) | 45-65Hz | ||||||||
Output voltage range(VAC) | Inverter mode 100/110/120/127/220/230V240V(+2%,-2%) | ||||||||
Utility output voltage range | constant voltage output 100/110/120/127/220/230V240VAC±10% | ||||||||
Output frequency (Hz) | 50/60±1% | ||||||||
Utility output frequency | 50Hz/ 60Hz automatic tracking | ||||||||
Output wavefrom | Pure sine wave | ||||||||
Efficiency | ≥85% | ||||||||
THD | ≤3% | ||||||||
Transfer time(ms) | ≤4ms | ||||||||
Overload protection | rated power >110%; >130%, 10S power off; >150%, 0.6s power off | ||||||||
Temperature protection | ≥85℃ alarm,≥90℃ Shutdown the machine | ||||||||
Battery protection | Automatic detection and discharge protection, overcharge protection,intelligent management | ||||||||
Cooling method | Automatic detection of wind cooling ≤42℃ fan rotating heat dissipation, ≥55°C fan high rotating heat dissipation | ||||||||
Display | LCD (inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage,etc.) | ||||||||
