Product Overview
Description
Product Description
LS1043A Ubuntu embedded industrial computer 10Gbps TSN for edge computing IP-PBX

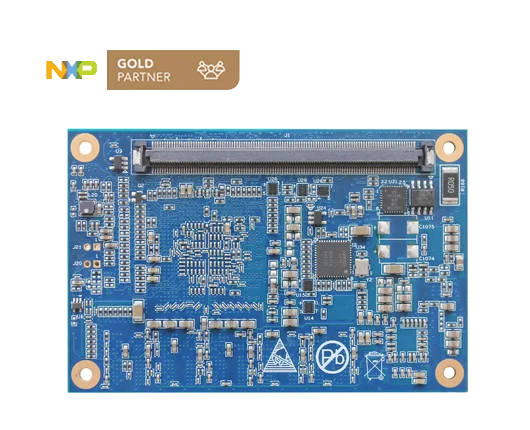

System on Module FET1043A-C based on LS1043A
7 native Ethernet interface(1x 10Gbps and 6x 1000Mbps)
PCIe2.0, SATA3.0, USB3.0, UART, IIC
Supports both Ubuntu and OpenWRT.
Target Applications: router, IoT gateway, IP-PBX, edge computing, gateway, smart city, industrial automation,video surveillance, etc.
Supports both Ubuntu and OpenWRT.
Target Applications: router, IoT gateway, IP-PBX, edge computing, gateway, smart city, industrial automation,video surveillance, etc.

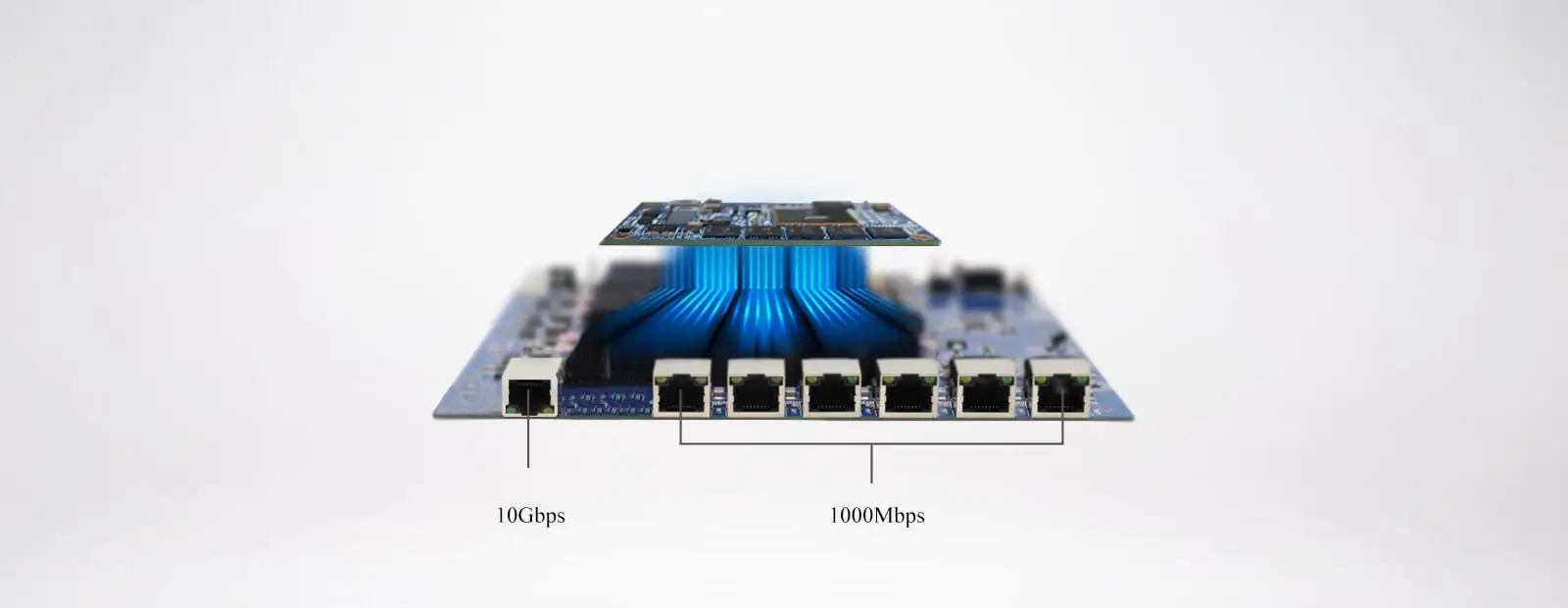

Ls1043A with Native Ethernet Interface
7x Ethernet with one up to 10Gbps and six up to 1000Mbps
High-speed Network
Data Path Acceleration Architecture(DPAA) incorporating acceleration for Packet parsing, classification,
and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation
and de-allocation(BMan). Software supported with DPDK and OVS-DPDK for high
performance in network related data packet processing
and distribution(FMan), queue management for scheduling, packet sequencing,
and congestion management(QMan), and hardware buffer management for buffer allocation
and de-allocation(BMan). Software supported with DPDK and OVS-DPDK for high
performance in network related data packet processing

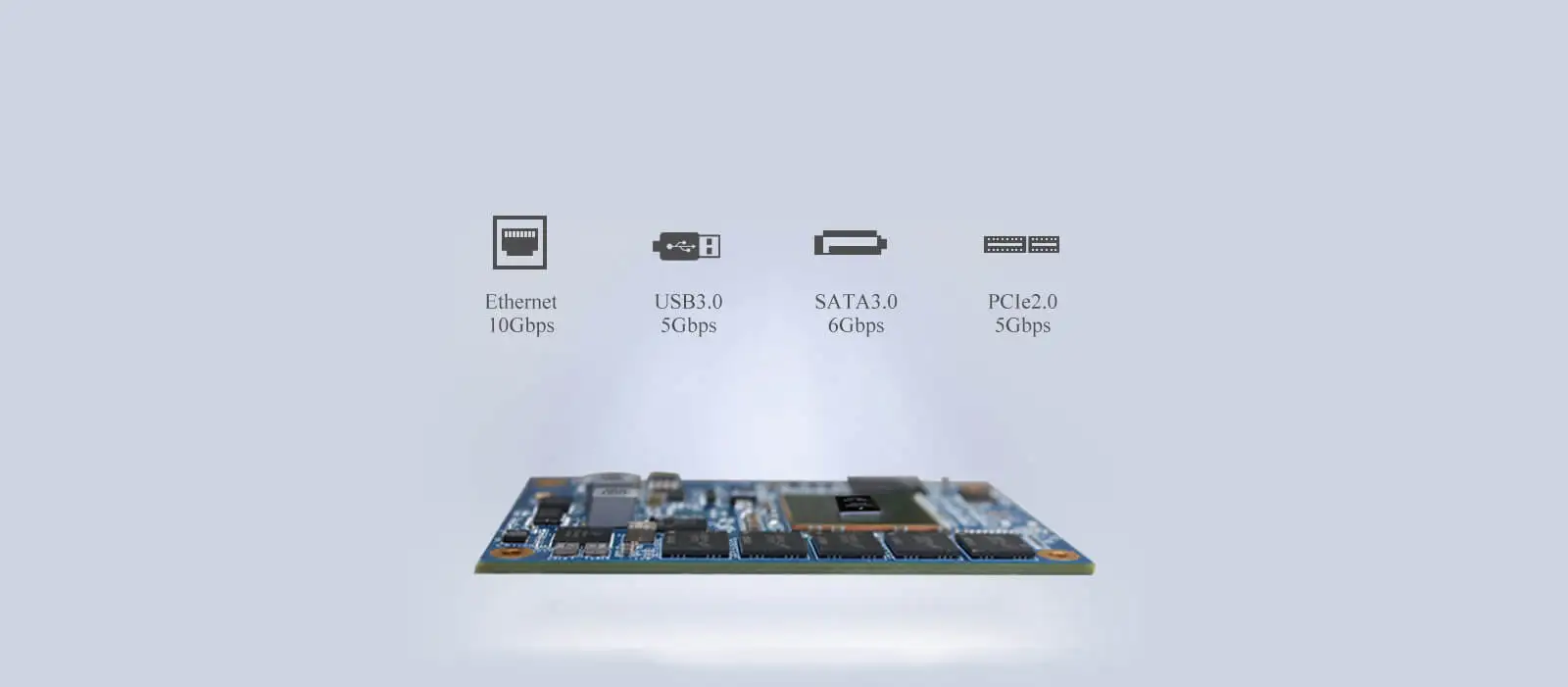

Various High-speed Interfaces
5G bps PCIe2.0, 5Gbps USB3.0, 6Gbps SATA3.0, 10Gbps Ethernet
Flexible scalability
PCIe2.0(up to 5Gbps) scalable for Ethernet, dual-band WiFi and other high-speed peripherals

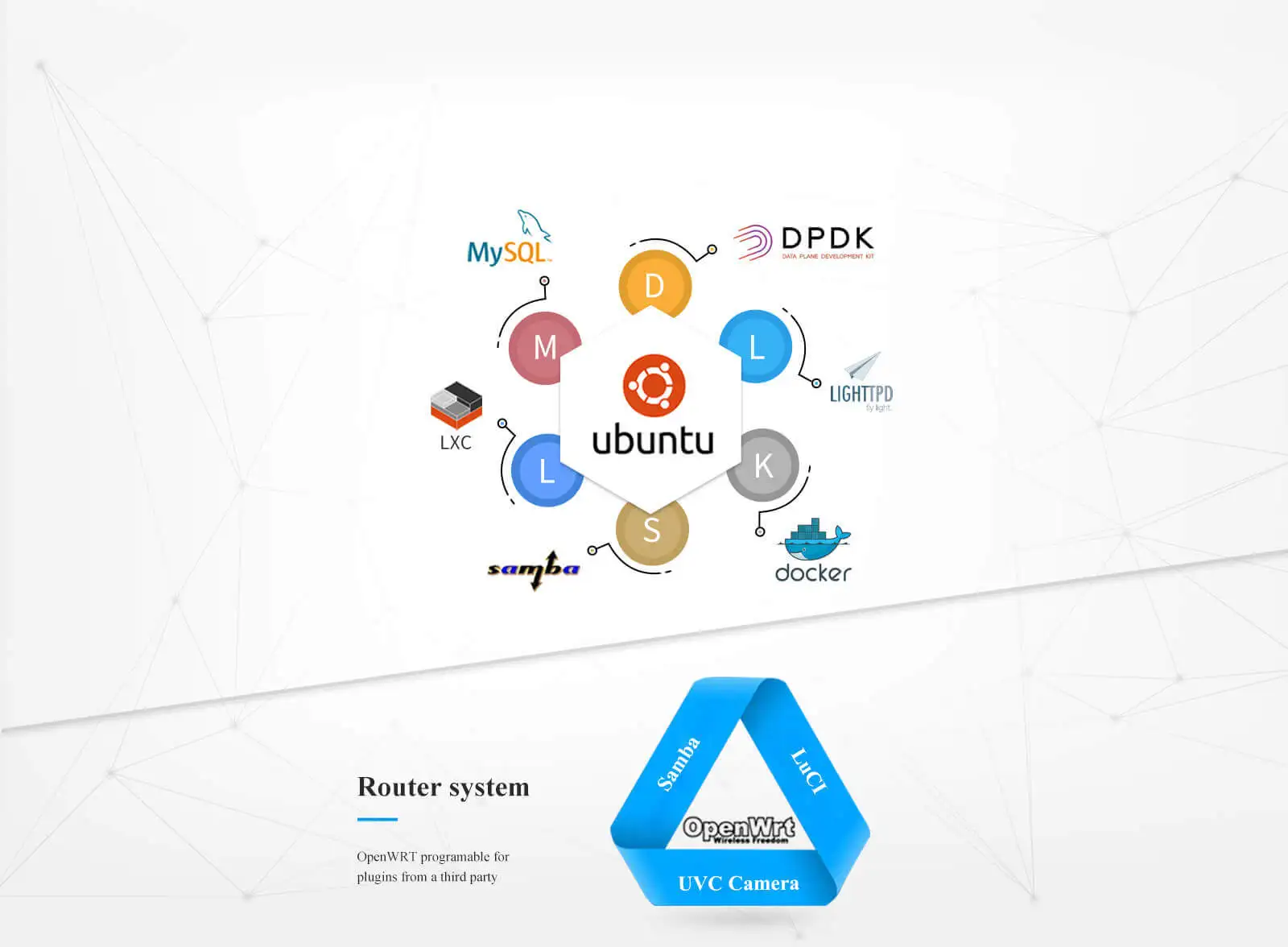

OS Supporting
Ubuntu18.04 and OpenWRT are available for applications
and plugins from third parties, which is convenient for users to do development
Specification
Overview of FET1043A-C System on Module | ||
CPU | NXP LS1043A | |
Architecture | quad-core Cortex-A53 | |
RAM | 2GB DDR4 | |
OS | Ubuntu/OpenWrt | |
Package | COM Express | |
Working Temp Width | -40℃~ +80℃ | |
Main Frequency | ≤1.6GHz | |
Flash | 8GB eMMC; 16MB QSPI NorFlash | |
Voltage Input | 12V | |
Dimensions | 84mm×55mm | |
FET1043A-C System on Module Features | ||||
Peripheral | QTY | Spec. | ||
Ethernet | ≤7 | CPU has 7 native MAC, available for below combinations 7x 1Gbps Ethernet 1x 2.5G/10Gbps and 6x 1Gbps Ethernet 2x 2.5Gbps and 2x 1Gbps Ethernet | ||
PCIe2.0 | ≤3 | SerDes configurable, can support X1, X2, X4 modes, each channel up to 5GT/s | ||
SATA3.0 | ≤1 | SerDes configurable, up to 6Gbps | ||
SerDes2 | 4 | 4x SerDes for high speed peripherals: 3x PCI Express 2.0 controller 1x SATA 3.0 controller up to 4x SGMII with 1000 Mbit/s up to 2x SGMII with 2500 Mbit/s up to one XFI (10 GbE) up to 1x QSGMII | ||
USB3.0 | ≤3 | up to 5Gbps | ||
UART | ≤6 | 2x DUART or 6x UART | ||
IIC | ≤3 | |||
eSDHC | ≤1 | can support SD3.0 EMMC4.5, multiplexed with eMMC, it can be used for system booting or flashing, but can not be used for storage expanding | ||
JTAG | 1 | NXP CodeWarrior TAP | ||
