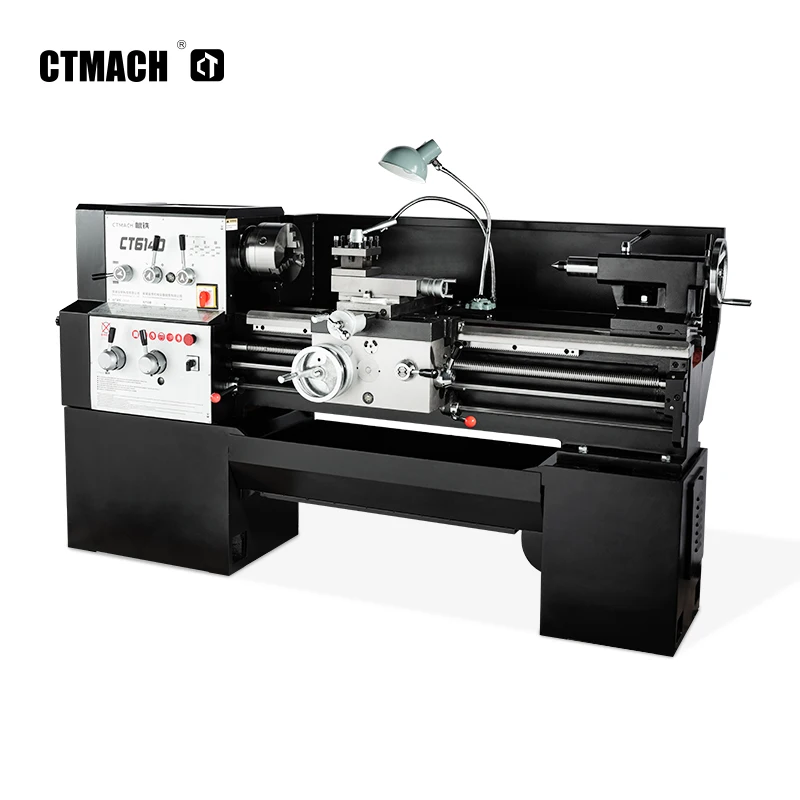

CT6140 big spindle Industrial Heavy Duty Manual lathe for metal working 1000mm metal lathe
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd
Share on (1600550794281):
Product Overview
Description
SIMILAR PRODUCTS

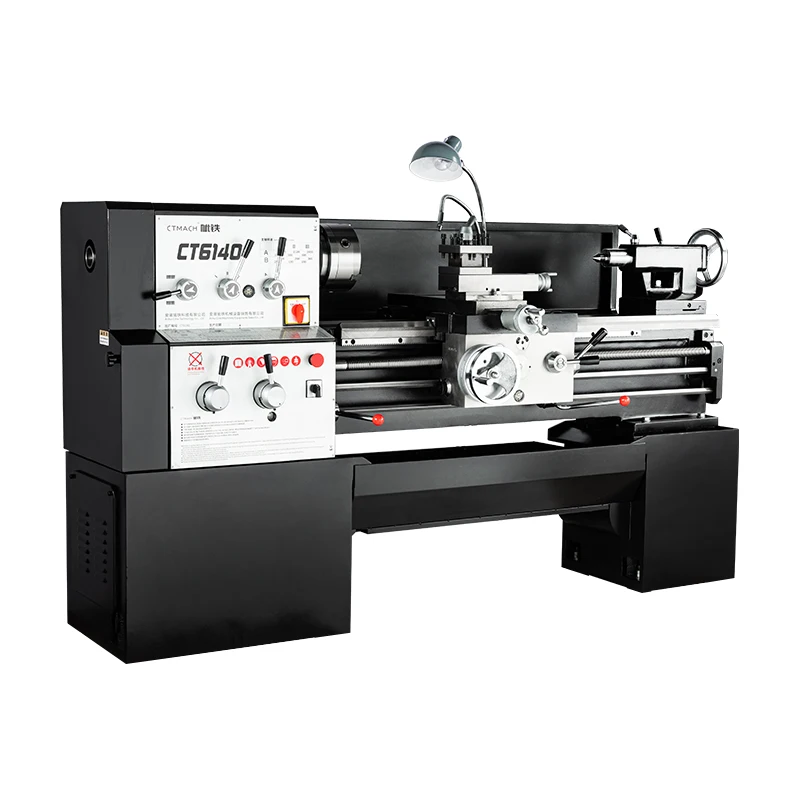

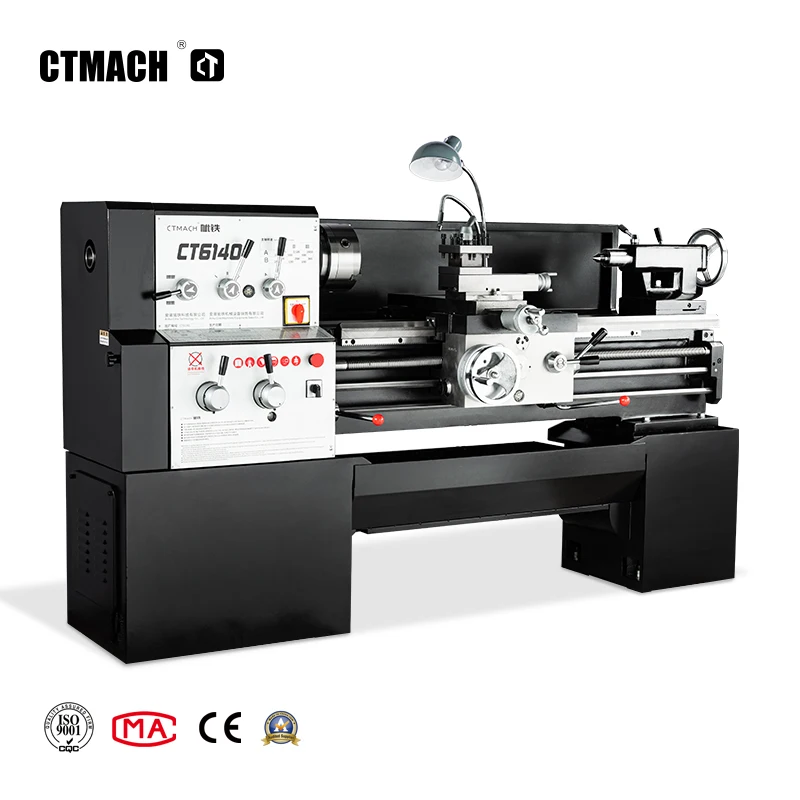

CT6140 Industrial Heavy Duty Lathes
This lathe has strong rigidity and is suitable for strong cutting and high-speed cutting of various ferrous and non-ferrous metals. The machining accuracy of this lathe can reach IT7 level (according to GB1800-79), and the machining surface roughness can reach Ra2.5.
High-precision 200mm three-jaw chuck
Left and right thread transformation

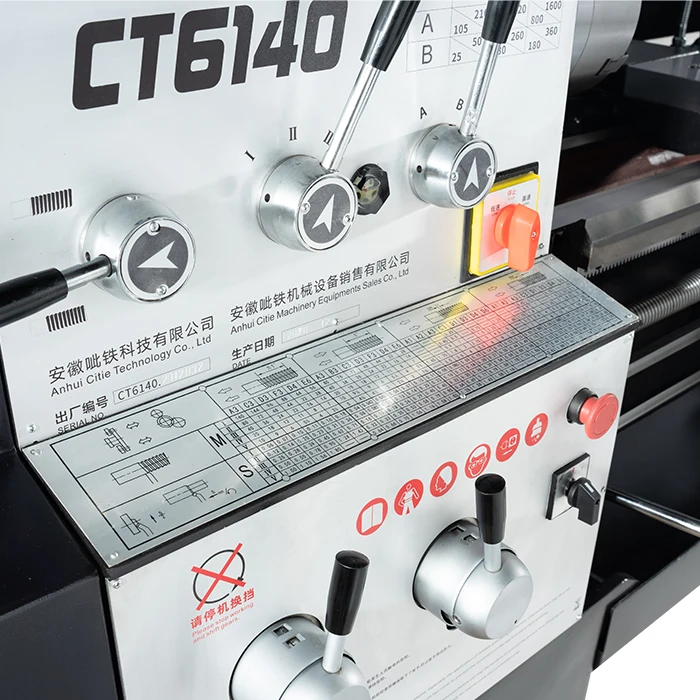

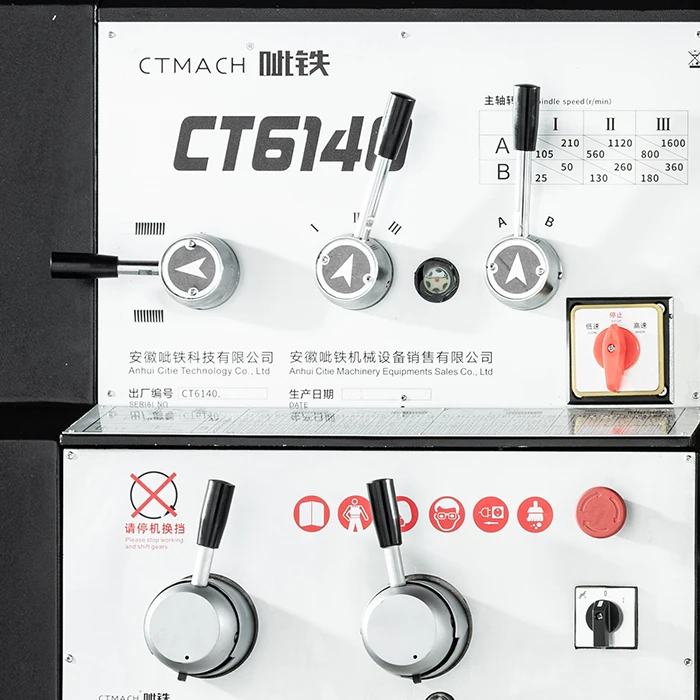

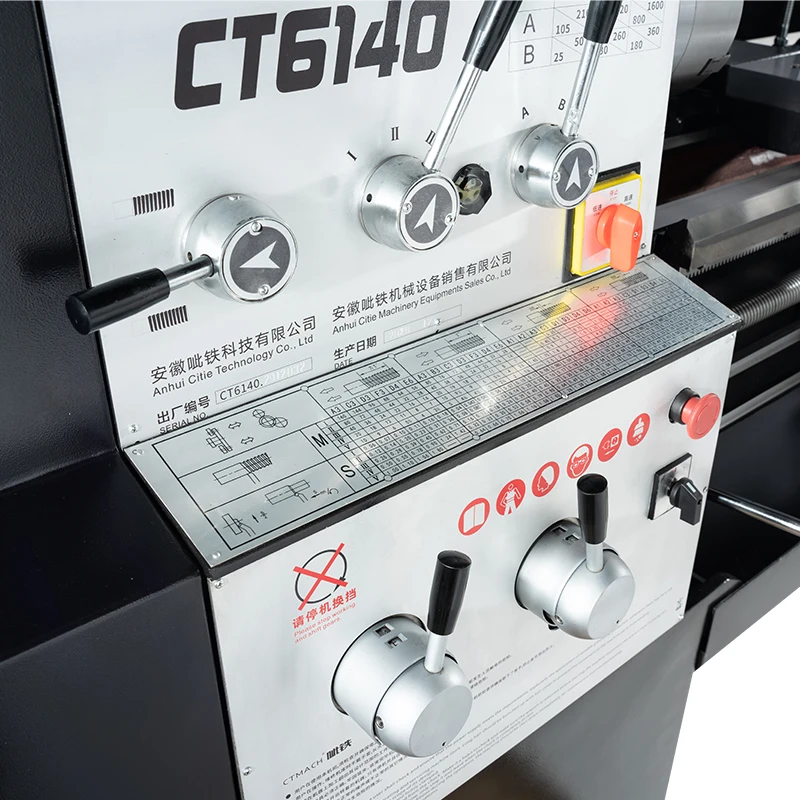

Spindle shift handle
High and low speed change knob

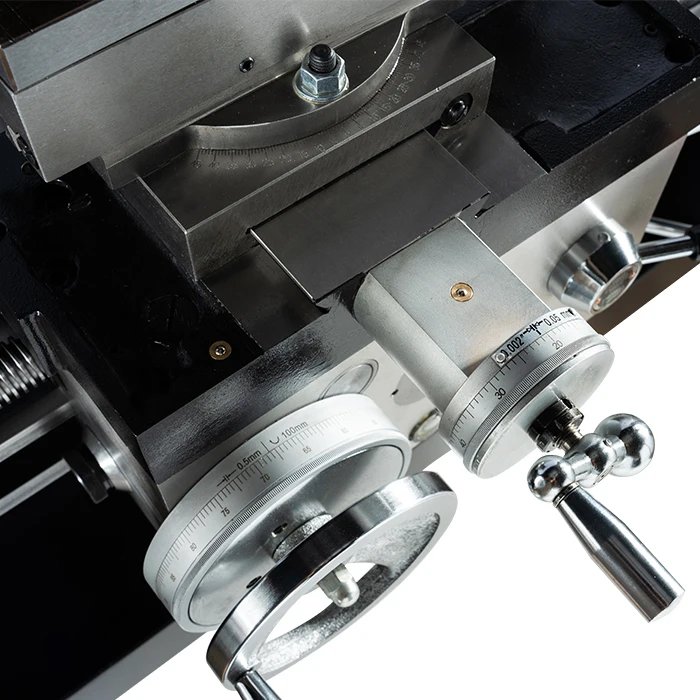

Pitch and feed adjustment handle
total stop button
cooling system
Spindle speed change 25～1600r/min, 12 kinds

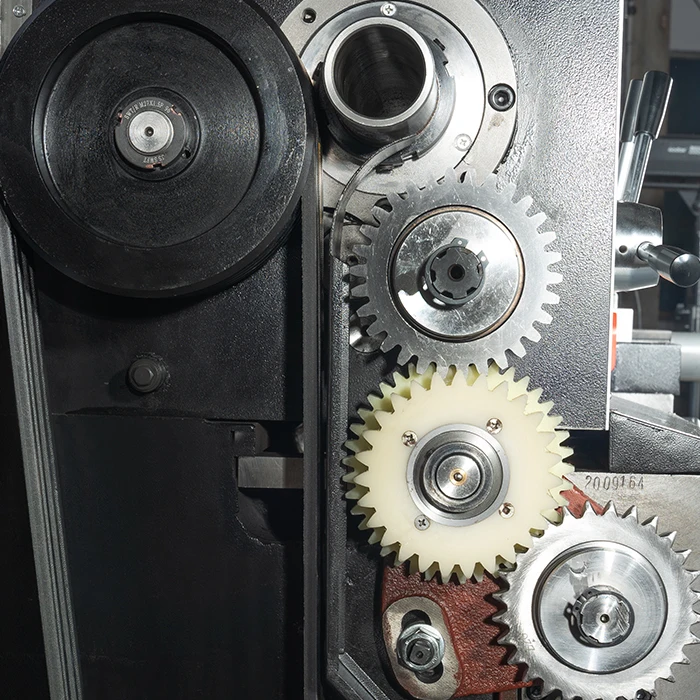

There is no need to replace the hanging wheel for threading. Metric thread 0.45-20mm/r, 30 types, inch thread 1.75-80TPI, 35 types
Double mountain guides and head stocks are induction hardened and precision ground

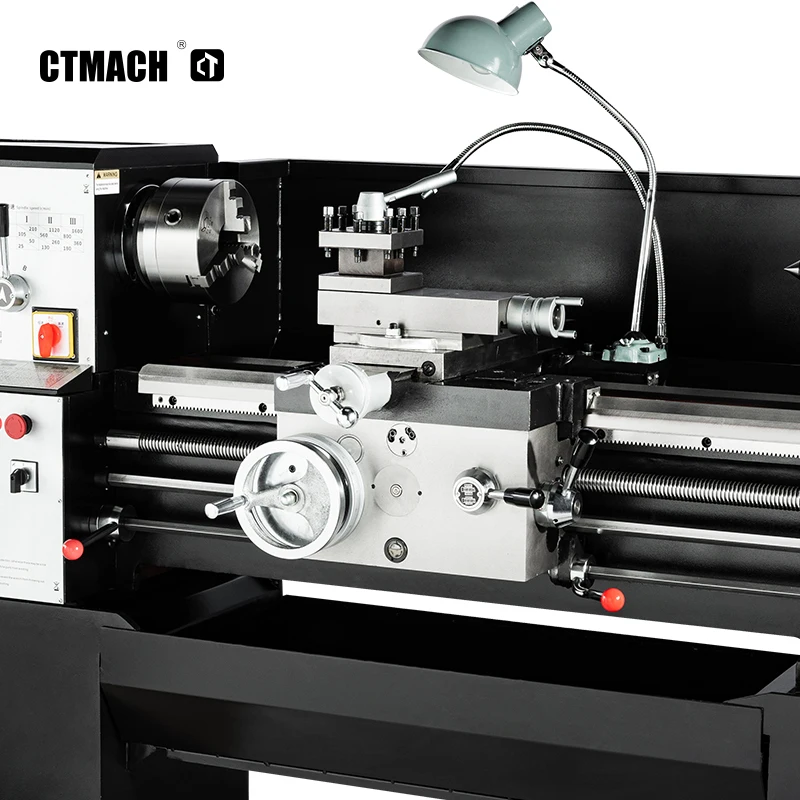

working lamp
Drawer type chip removal device
High-precision 200mm three-jaw chuck
Left and right thread transformation
Spindle shift handle
High and low speed change knob
Pitch and feed adjustment handle
total stop button
cooling system
Spindle speed change 25～1600r/min, 12 kinds
There is no need to replace the hanging wheel for threading. Metric thread 0.45-20mm/r, 30 types, inch thread 1.75-80TPI, 35 types
Double mountain guides and head stocks are induction hardened and precision ground
working lamp
Drawer type chip removal device
PRODUCT SPECIFICATIONS
Swing Over Bed | 400mm | ||||||
Swing Over Cross Slide | 240mm | ||||||
Distance Between Centers | 1000mm | ||||||
Large Carriage Travel | 900mm | ||||||
Middle Carriage Travel | 240mm | ||||||
Small Carriage Travel | 140mm | ||||||
Spindle Taper | MT6 | ||||||
Spindle Bore | 48mm | ||||||

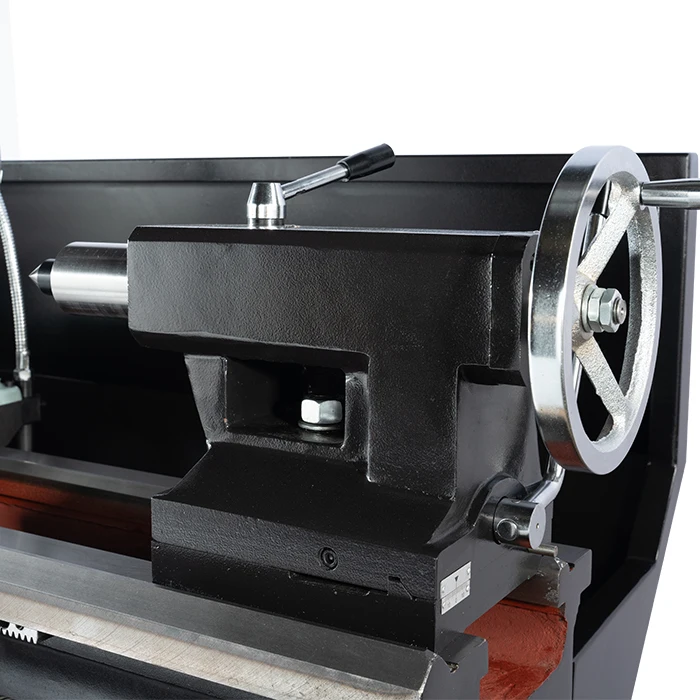

Tailstock Sleeve Travel | 130mm | ||||||
Tailstock Taper | MT4 | ||||||
Spindle Speed (Grade) | 25-1600r/min (12) | ||||||
Longitudinal Feeds (Grade) | 0.04-2.16mm/r (138) | ||||||
Lateral Feed (Grade) | 0.02-1.08mm/r (138) | ||||||
Metric Thread (Grade) | 0.45-20mm/r (30) | ||||||
Inch Thread (Grade) | 80-1¾T.P.I (35) | ||||||
Modulus Thread (Grade) | 0.25-10mm (25) | ||||||
Diameter Pitch Thread (Grade) | 160-3½DP (30) | ||||||
Main Motor Power (Double Speed) | YD132M-8/4 3/4.5kw | ||||||
Motor Power Speed | 750/1500r/min | ||||||
Cooling Pump Motor | AYB-20TH 0.115KW | ||||||
N.W. | 1450kg | ||||||
Overall Dimensions | 2200*900*1250mm | ||||||
Main Drive V-belt Model Specifications | A-1950mm | ||||||
FEATURES AT A GLANCE

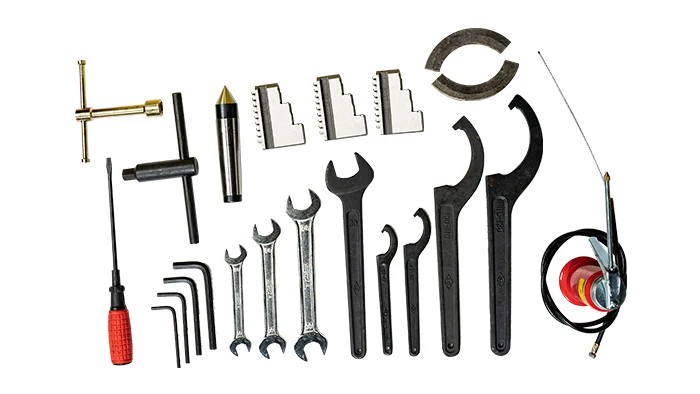

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
