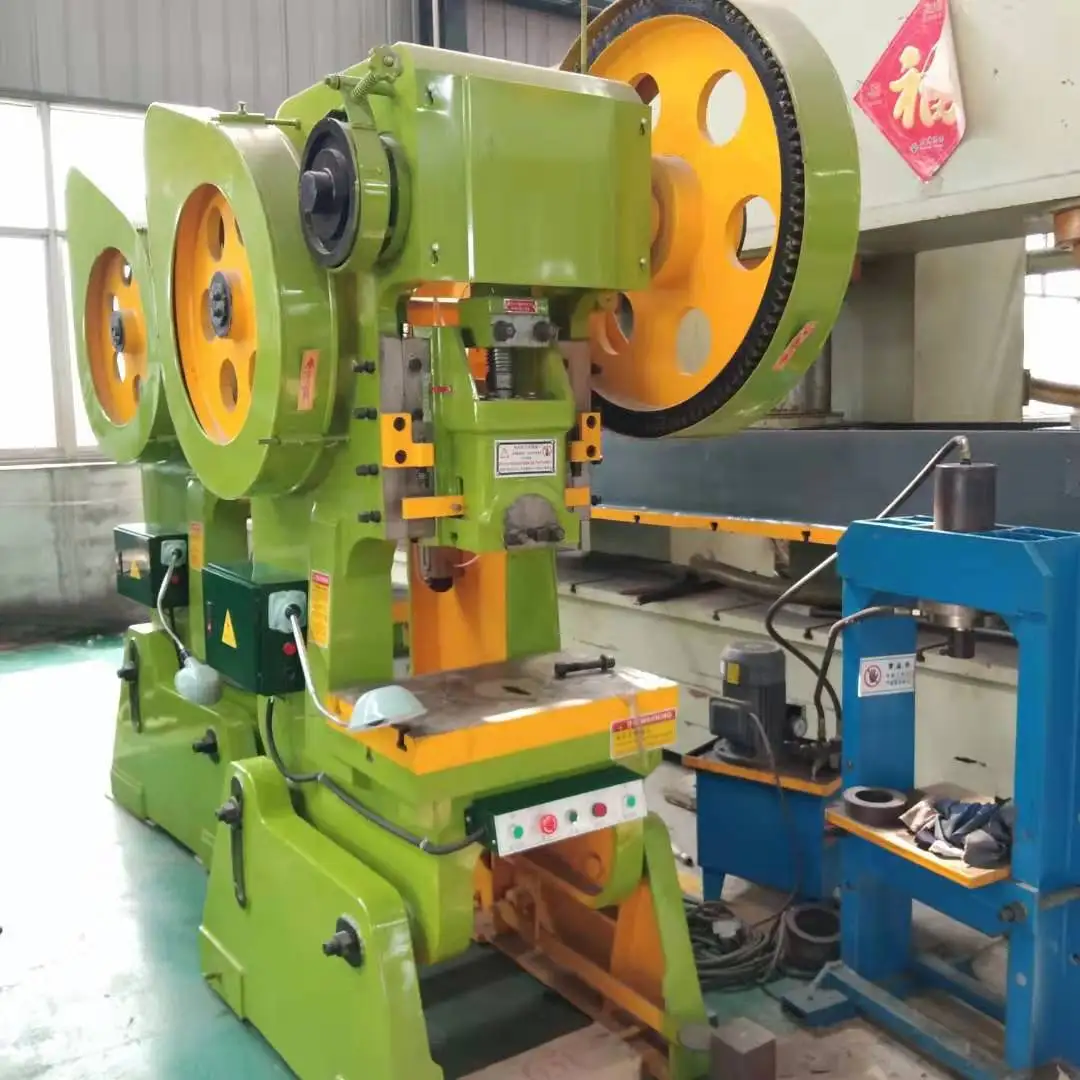

J23 63 ton Good price Mechanical Eccentric Power Press
- Category: >>>
- Supplier: Nadun Machinery Manufacture Co. Ltd.
Share on (1600550816420):
Product Overview
Description
J23 63 ton Good price Mechanical Eccentric Power Press
Product Overview
Punching machine
The press is applicable to compression of plastic materials. For example, powder and plastic products forming and heat/cool metal extruction, stamping, bending, edge-folding, straightening, depressed mounting and etc.
Independent drive structures and electrical devices insure reliable operation with centered control buttons. Adjustment ,manual operation and semi-automatic operation, three modes are provided respectively for your choice.
The working pressure, pressing speed, unload-descending speed and decelecrated pressing speed can be respectively adjusted in requirements. By preset, knock-out and drawing can be taken out with pressure-dependent or distance-dependent of die.
Independent drive structures and electrical devices insure reliable operation with centered control buttons. Adjustment ,manual operation and semi-automatic operation, three modes are provided respectively for your choice.
The working pressure, pressing speed, unload-descending speed and decelecrated pressing speed can be respectively adjusted in requirements. By preset, knock-out and drawing can be taken out with pressure-dependent or distance-dependent of die.

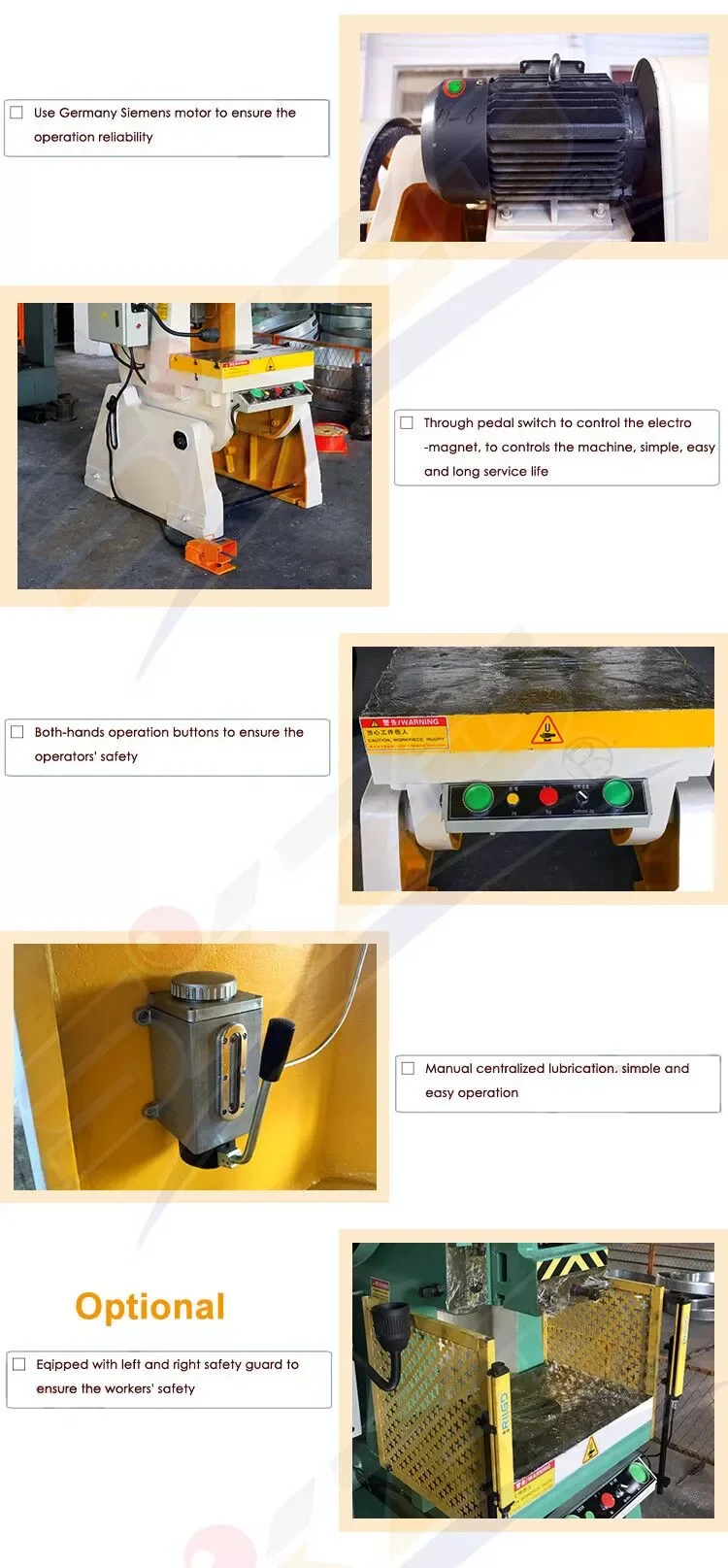

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Item | J23-40T | J23-63T | J23-80T | J23-100T |
Nominal Pressure | 400KN | 630KN | 800KN | 1000KN |
Slide stroke (Times/min) | 55 | 50 | 45 | 45 |
Slide strokes | 100mm | 110mm | 115mm | 130mm |
Max closing height | 300mm | 330mm | 380mm | 380mm |
Die height adjustment | 70mm | 80mm | 80mm | 100mm |
Distance between slider center and machine | 215mm | 230mm | 250mm | 280mm |
Workbench diameter(mm) | 400x650 | 440x700 | 480x750 | 540x840 |
Pole distance | 300mm | 300mm | 300mm | 380mm |
Shank hole diameter | 50mm | 60mm | 60mm | 60mm |
Shank hole depth | 70mm | 70mm | 80mm | 80mm |
Pad thickness | 75mm | 80mm | 95mm | 100mm |
Body tilting angle | 20° | 20° | 20° | 20° |
Motor power | 3KW | 4KW | 7.5KW | 7.5KW |
Weight | 2500KG | 4000KG | 5000KG | 6000KG |

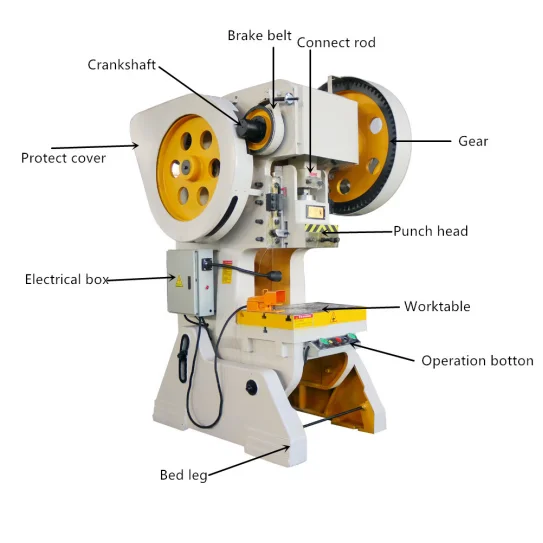

PRODUCT CONFIGURATION
Our Advantages
2.C the fuselage, open can tilt, work space salt pieces and scrap to slide down the good advantage.
3.Rigid turn key clutch, the structure is simple.
4.Band brake, easy to adjust. Type fuse, which assure obtaining the whole machine is not damaged due to overloading.
5.Crankshaft askew, easy maintenance.
6.Simple structure, excellent versatility, convenient maintenance and operation.
Product packaging
Packing details:
Internal plastic moisture-proof
Rust proof packaging,
External wooden packaging,
Exclusive container transportation.
Packed in fumigated wooden cases or cartons, suitable for long-distance sea、 land、air transportation, moisture-proof, shockproof and moisture proof.
In order to better ensure the safety of your goods, we will provide professional,environmental protection, convenient and efficient packaging services.
Packing method: inner plastic moisture-proof and rust proof packaging, outer wood packaging and special counter transportation.
Anti rust treatment is applied to the outside of the product, and plastic packaging is adopted for further protection. Diversified packaging conditions such as thick wood and steel frame protection are adopted for delivery to ensure that the product will not be affected on the way.
Mode of transportation: sea transportation or land transportation. Selection of product packaging materials and protection of products.
Anti rust treatment is applied to the outside of the product, and plastic packaging is adopted for further protection. Diversified packaging conditions such as thick wood and steel frame protection are adopted for delivery to ensure that the product will not be affected on the way.
Mode of transportation: sea transportation or land transportation. Selection of product packaging materials and protection of products.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
