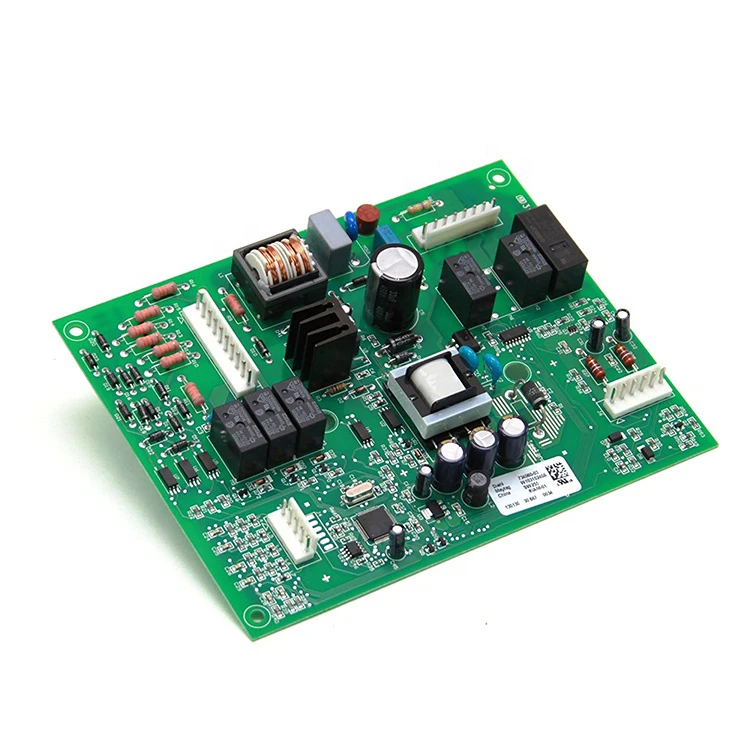

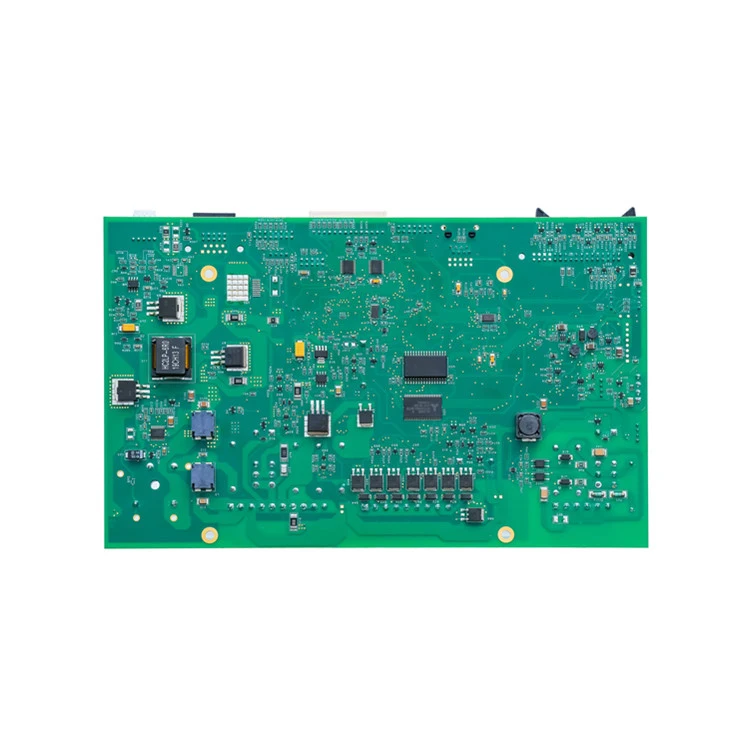

Shenzhen OEM Electronic PCB&PCBA Manufacturer,PCB PCBA Assembly
- Category: >>>
- Supplier: Shenzhen Ruanbo Intelligent Technology Co. Ltd.
Share on (1600550832952):
Product Overview
Description
PCB Production Capacity:
| PCB Item | Standard | Advanced | |
| Layer Counts: | 1L--10L, HDI | 10L-18L,HDI | |
| Base Material: | CAM1,FR4,F4BK,Arlon | | |
| Material Suppliers: | GUOJI(GDM), KINGBOARD(KB), SHENGYI,Arlon | | |
| Material Thickness(mm): | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 | | |
| Max board size(mm): | 1200x400mm | 1200x500mm | |
| Board Outline Tolerance: | ±0.15mm | ±0.01mm | |
| Board Thickness: | 0.4mm--3.2mm | 0.3mm----3.2mm | |
| Thickness Tolerance: | ±8% | ±5% | |
| Minimum line/space: | 0.1mm | | |
| Mini Hole Size(mechanical): | 0.2mm | | |
| Innerlayer Copper Weight: | 0.1mm | | |
| Innerlayer Copper Weight: | 17um--105um | | |
| Outlayer Copper Weight: | 17um--105um | | |
| Mini Solder Mask Bridge: | 0.05mm | | |
| Impedance Control Tolerance: | ±10% | | |
| Contours: | Scored, Routed, Punched | | |
| Surface Finishing: | HAL,lead-free HAL,ENIG,Plated Gold,Immersion Silver,OSP | | |
| 1--2L Lead Time: | 3-7 days | | |
| 4--18L Lead Time: | 7-10 days | | |
| Acceptable File Format: | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 | | |
| Quality Standards: | IPC-A-600H Class2 | | |
| Certificate: | ISO9001:2008,PCB Assembly Capability | | |
PCB Assembly Capability:
| Stencil Size: | 736x736mm |
| Minimum IC Pitch: | 0.2mm |
| Maximum PCB size: | 1200x 500mm |
| Minimum PCB thickness: | 0.25mm |
| Minimum chip size: | 0201 (0.2x0.1)/0603 (0.6 x 0.3mm) |
| Maximum BGA size: | 74x74mm |
| BGA ball pitch: | 1.00mm (minimum), 3.00mm (maximum) |
| BGA ball diameter: | 0.40mm (minimum), 1.00mm (maximum) |
| QFP lead pitch: | 0.38mm (minimum), 2.54mm (maximum) |
| Volume: | One piece to low volume production quantities Low cost first article builds Schedule deliveries |
| Assembly type: | Surface mount(SMT) assembly DIP assembly Mixed(surface mount and through hole) technology Single or double sided placement Cable assembly |
| Components type: | Passive components: As small as 0402 package As small as 0201 with design review Ball Grid Arrays(BGA): As small as .5mm pitch |
| Parts procurements: | Turnkey(we supply the parts) Consigned(you supply the parts) You supply some parts, we do the rest |
| Solder type: | Leaded Lead-free/ROHS compliant |
| Other capabilities: | Repair/rework services Mechanical assembly Box build Mold and plastic injection. |
Our Main Services

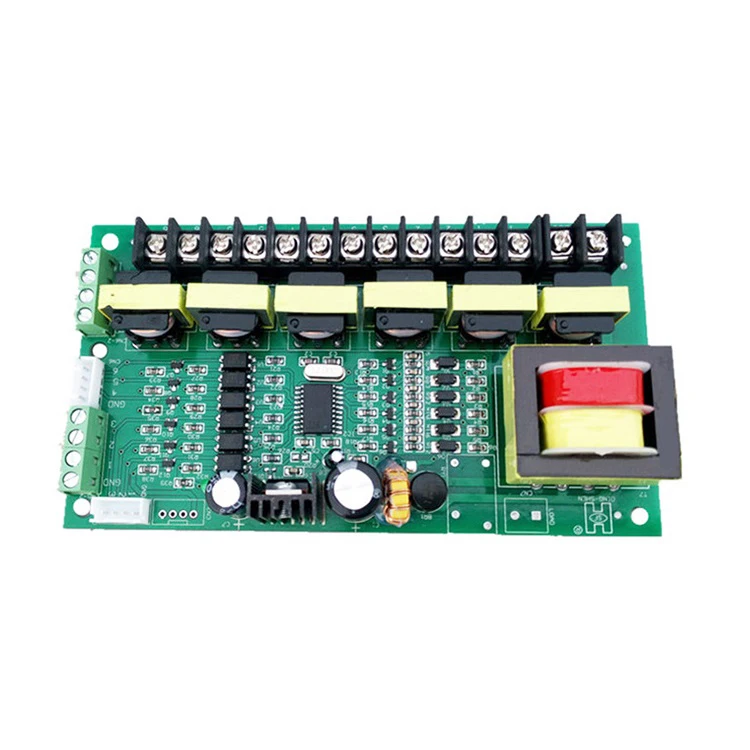

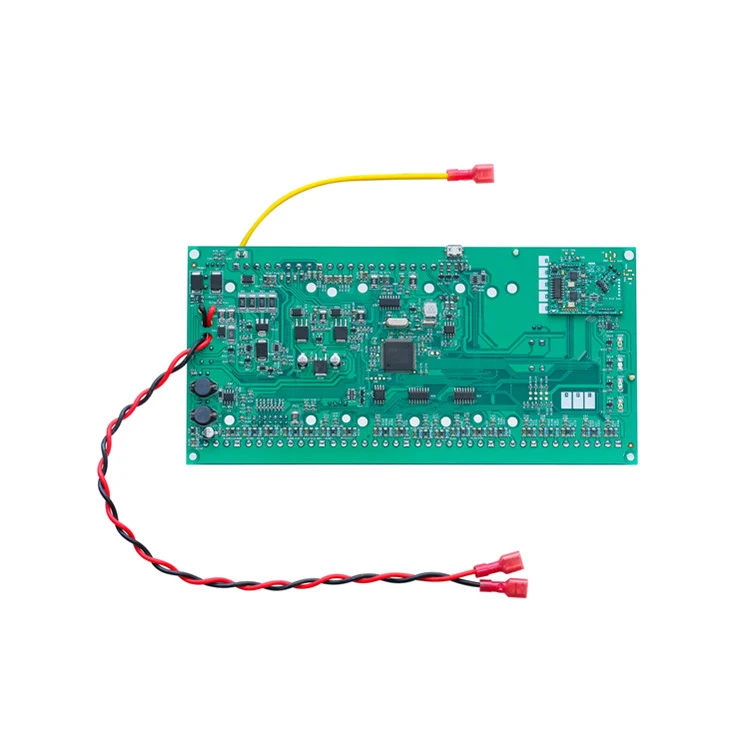

Product Display
Customer Praise
Packaging & Transportation
FAQ
Q1:What service do you have?
A: We provide a turnkey solution including PCB fabrication, SMT/DIP assembly, Wire assembly,plastic injection & metal,final assembly, testing and other value-added service. Q2:How fast can I get a quote from you? A: 1-6H for pcb bare boards RFQ 1-48H for pcba project RFQ Q3:What is needed for PCB & PCBA quotation? A: For PCB: Quantities, PCB drawing file(Gerber and CAM Auto CAD DXF, DWG, Eagle format) and technical requirements (especially the material,board thickness,copper thickness,surface finish treatment,Solder mask color and Silkscreen color).For PCBA: PCB information, BOM list,Programming&Testing documents. Q4:How do you keep your prices low? A: We keep our prices low by constantly implementing more efficient manufacturing processes, developing systems that allow us to quickly change setups, maintaining partnerships with suppliers, and conservatively managing our business. Q5:How do you ensure quality? A:Our high quality standard is achieved with the following. The process is strictly controlled under ISO 9001:2008 and IPC-A600/IPC-A610 standards. Extensive use of software in managing the production process State-of-art testing equipments and tools. E.g. Flying Probe, X-ray Inspection, AOI (Automated Optical Inspector) and ICT (in-circuit testing).Dedicated quality assurance team with failure case analysis process.Continuous staff training and education. Q6:What happens if I have a problem? A: We are committed to your satisfaction and we ask that you contact your salesperson immediately if you have a problem of any kind. If you ever feel that you’ve received a product or service that was below your expectation, please feel free to email us directly. Also, we would like to hear any suggestions you may have for improvements. Q7: What is your Privacy Policy? A: We recognize that privacy is of utmost importance,we can sign an NDA with our customer, and all the Information and data sent to us for the processing or orders must not be disclosed.Also we do't sell or rent any individual personal information to any third party. Q8:What type of payment do you accept? A: We accept all major credit cards, Paypal, Western union and wire transfer. All prices are quoted in US dollars. Note:If you have additional questions, or are ready to discuss your next project, we're here to help.Contact us today for your PCB and PCBA needs.
