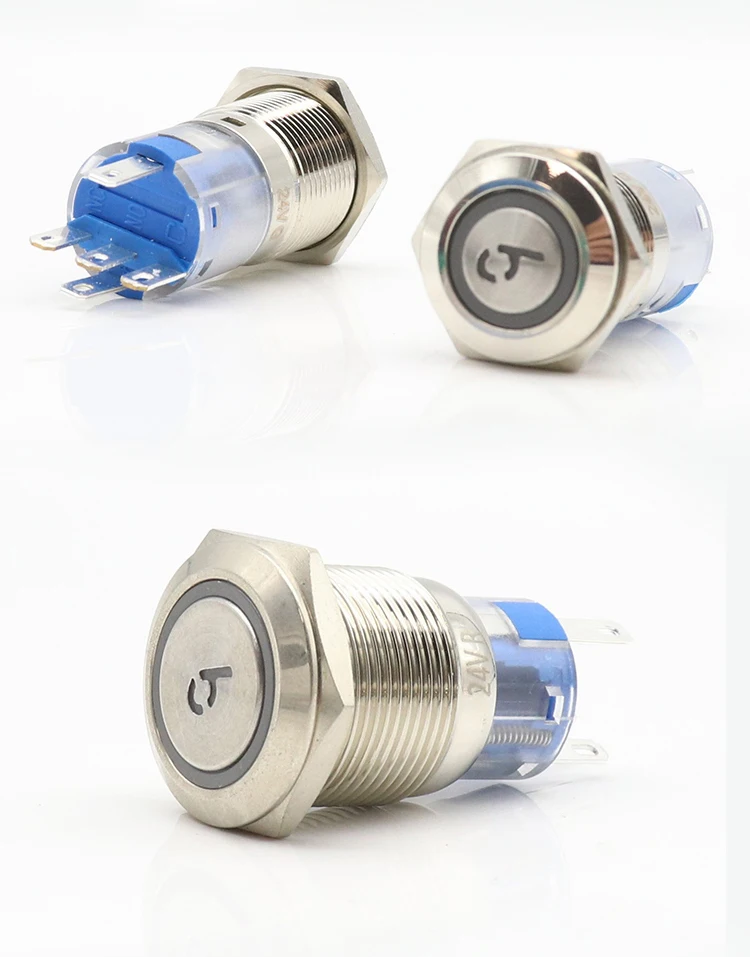

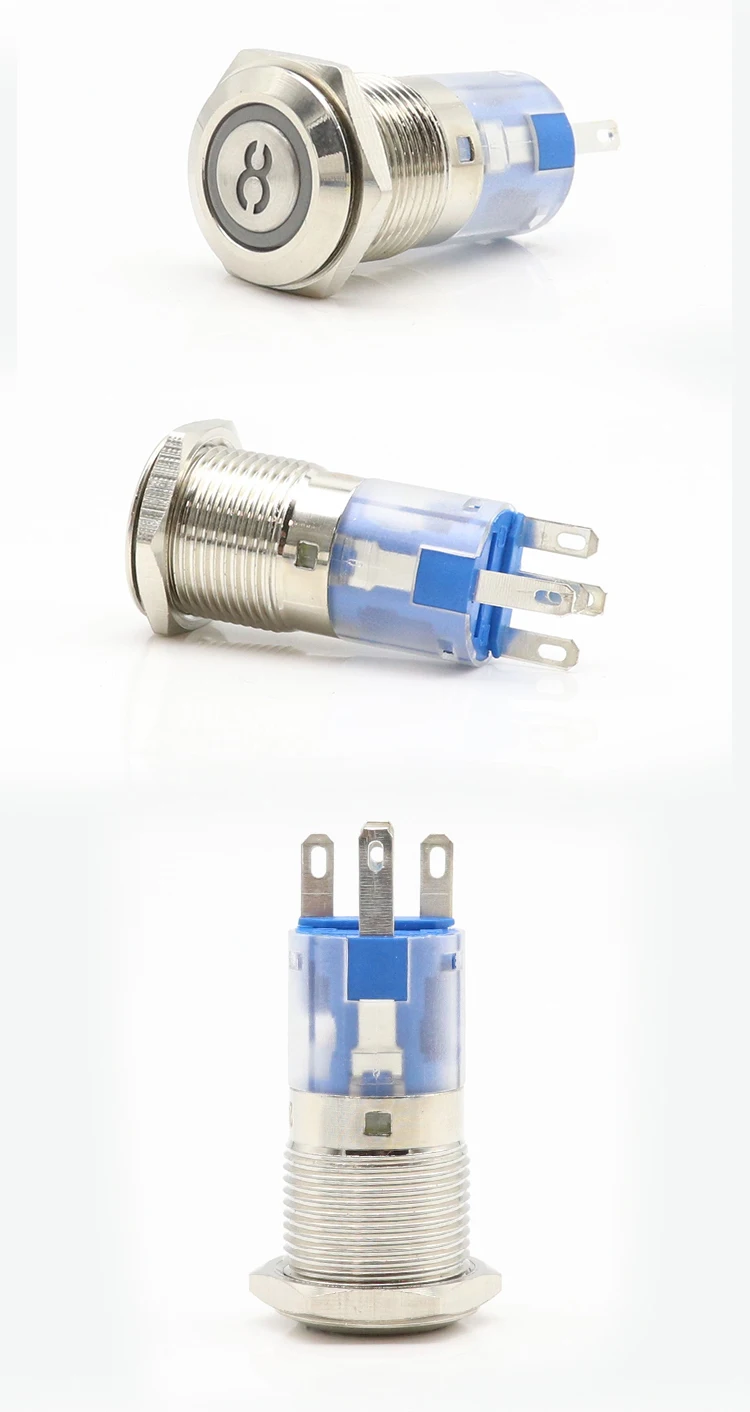

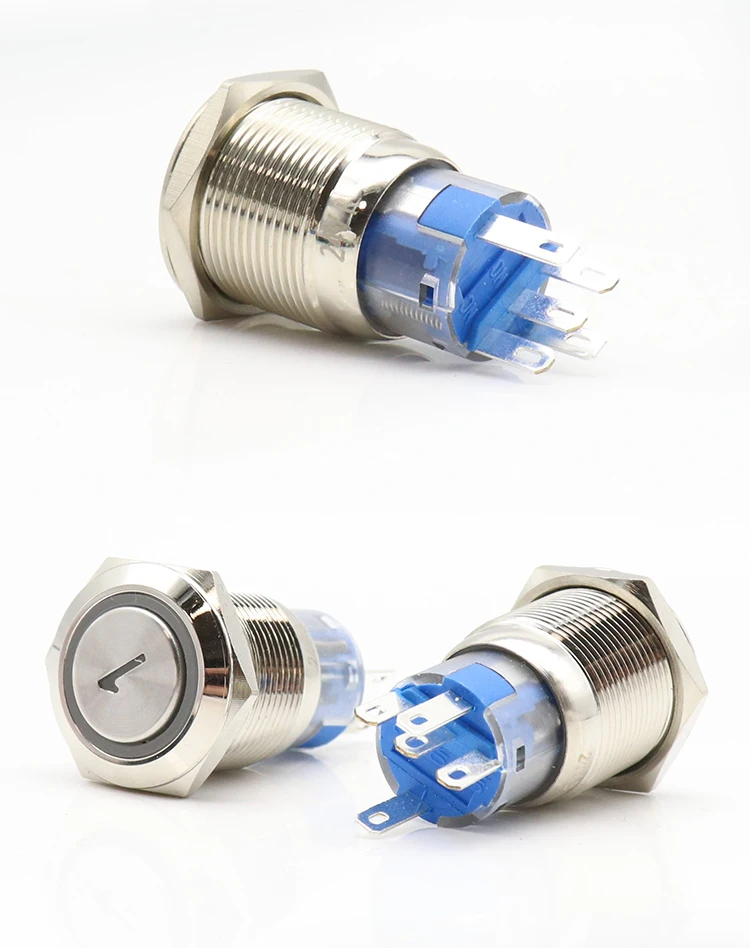

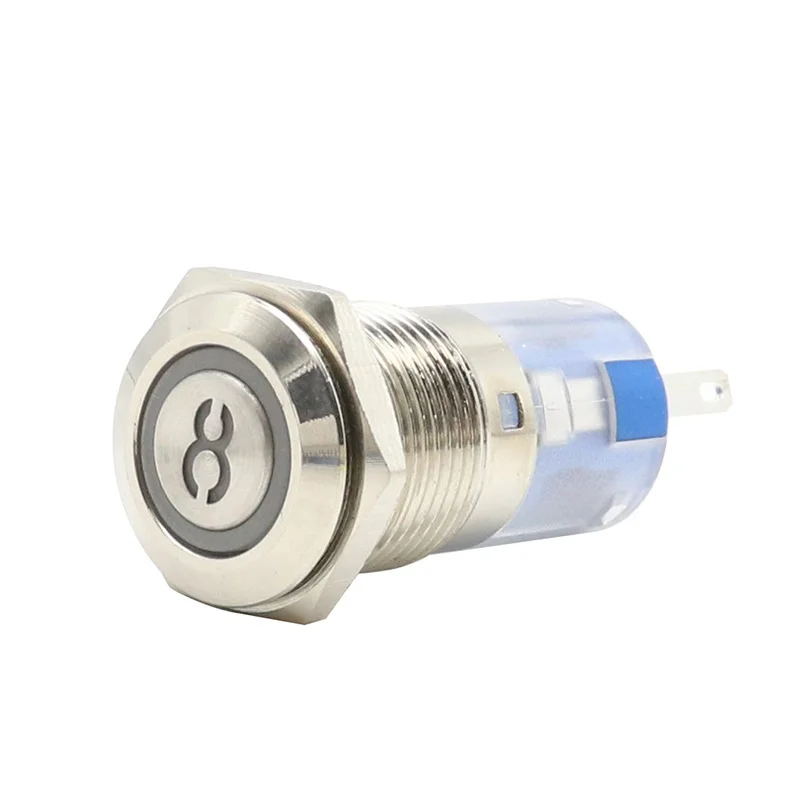

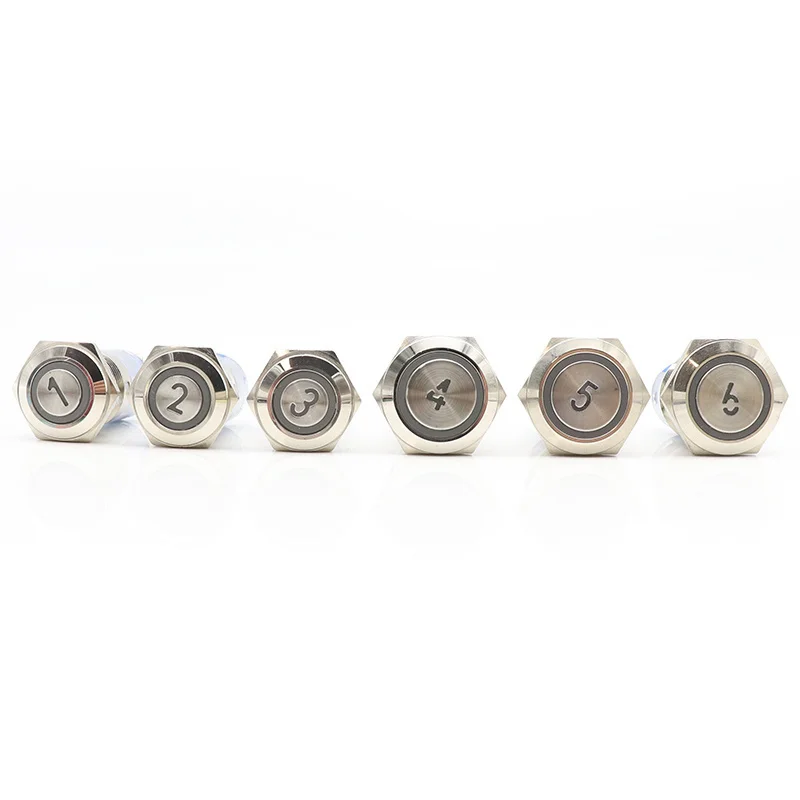

16/19mm Reset Latching Lock Metal Button Switch LED With Light Number Symbol 1234567890 Elevator Waterproof DIY Buttons

Operation Type: Reset or Latching

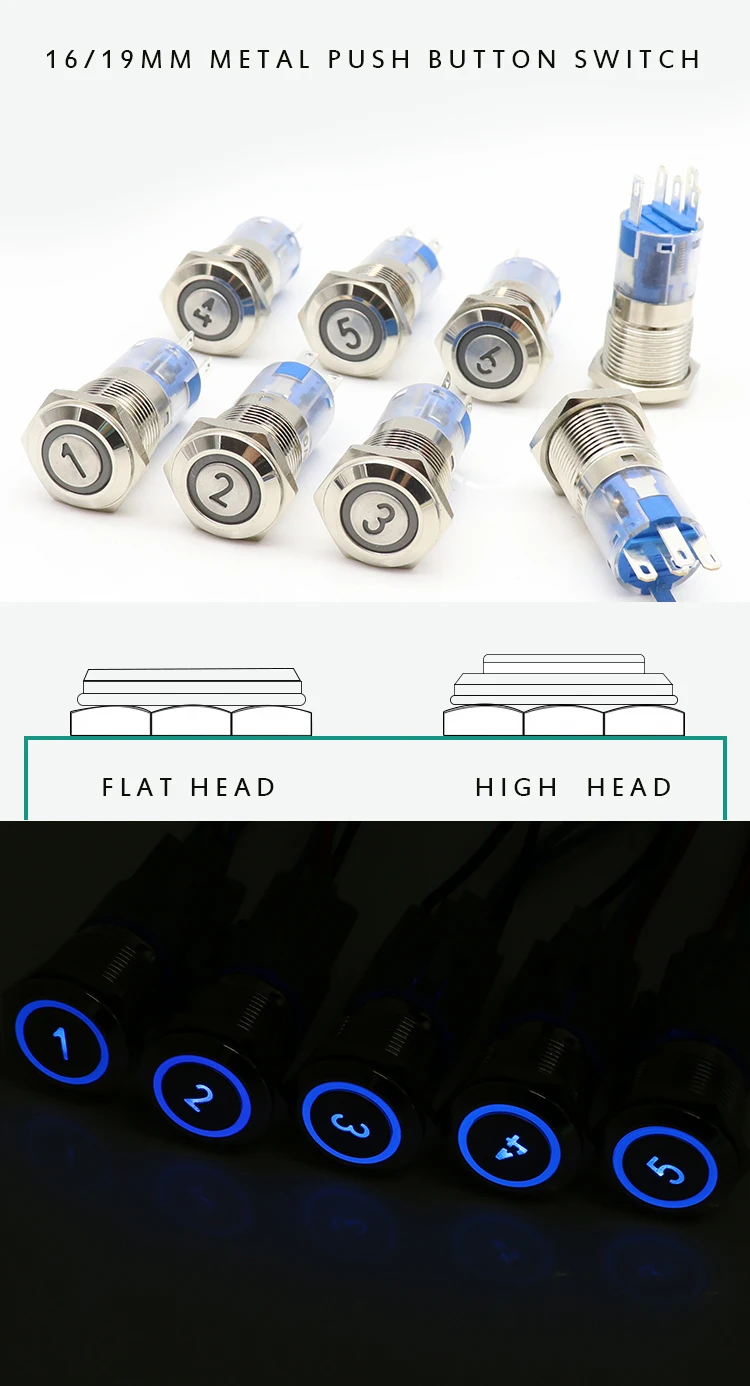

Button Head Shape: Flat

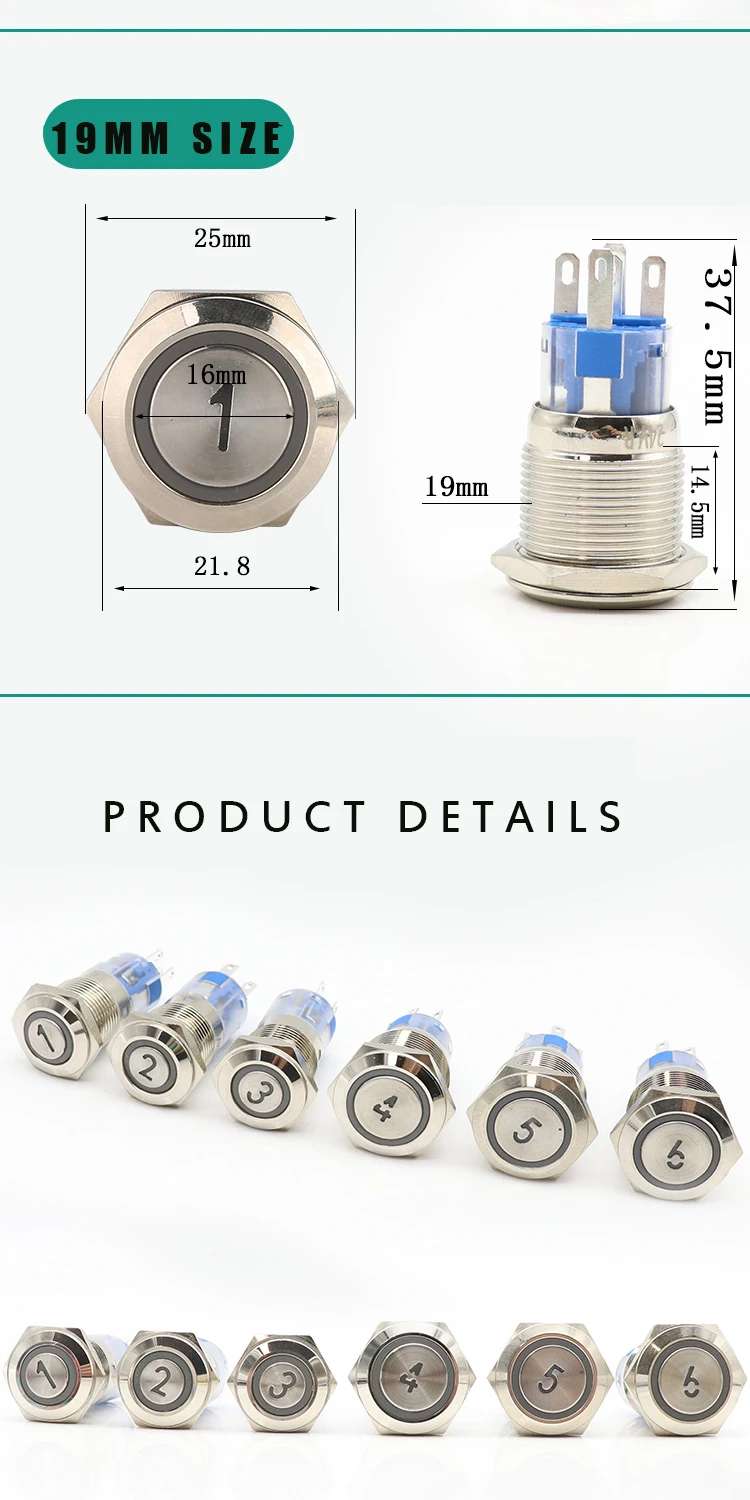

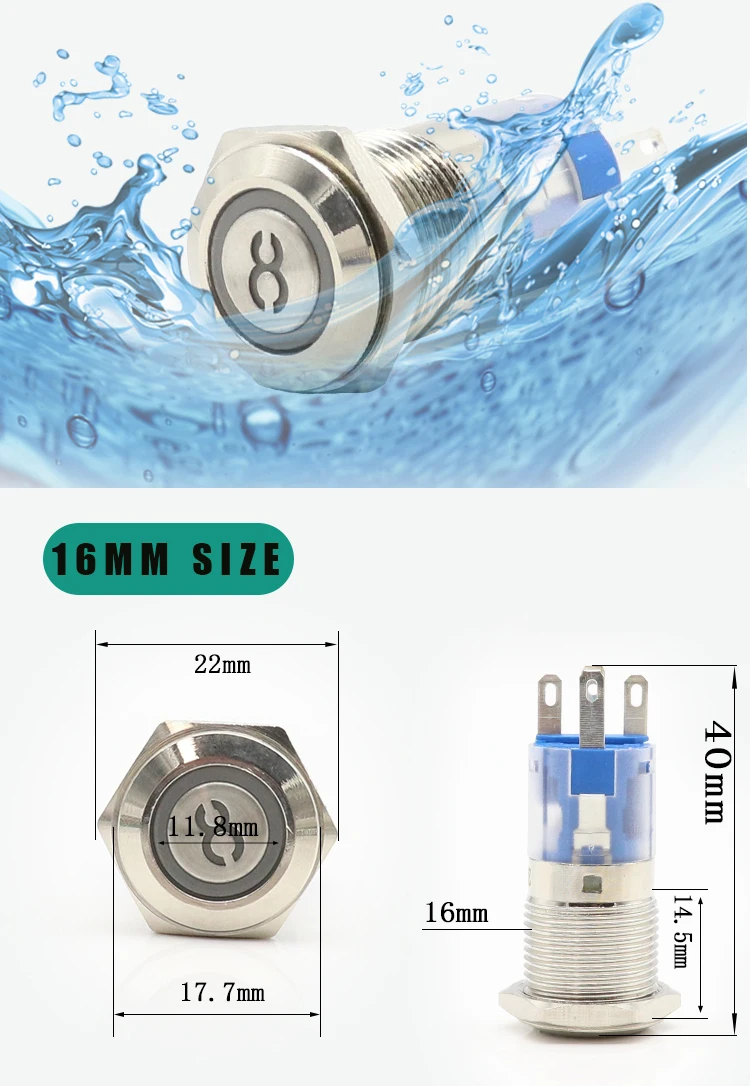

Mounting Hole Size: 16mm (We also have 19mm, if you need, please contact me.)

Contact Material: Silver Contact

Contact Type: 1NO1NC

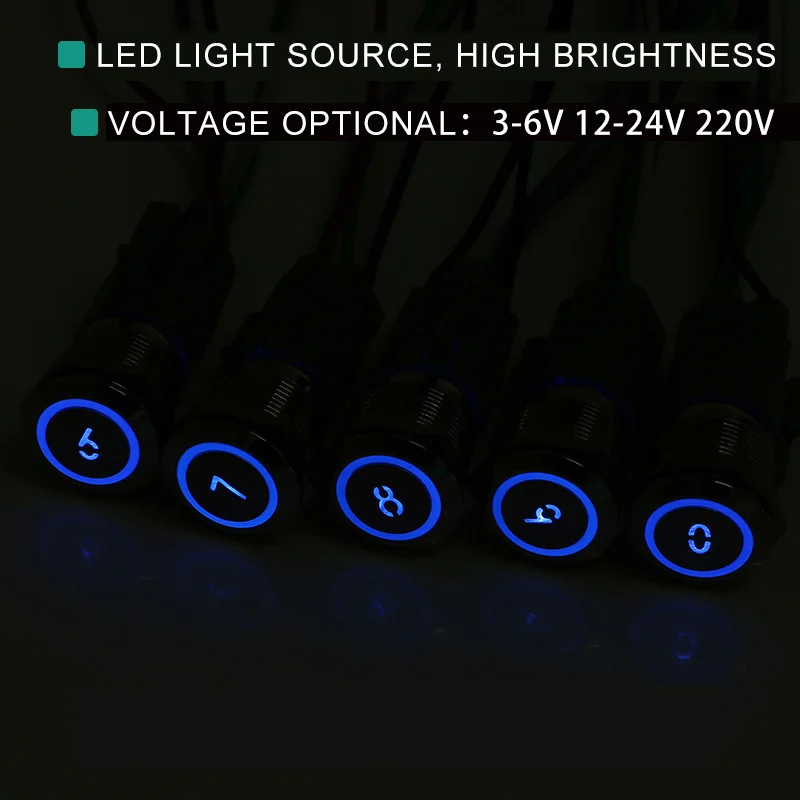

Rated Voltage: 3-220V

Max. Current: 3A

Waterproof Level: IP65

Welding Method: Welding (Or you can use connector)

Tips: What's the difference between Reset and Latcing type?

Reset(Momentary):

Press the switch, the button is recessed, the LED light of the switch is on, and the device is powered on at the same time.

When the finger is released, the button springs back, the LED light of the switch is off, and the device is powered off.

Latching(Self-locking):

Press the switch, the key is locked, the LED light of the switch is on, and the device is powered on at the same time.

When the finger is released, the button does not bounce back, and then press the switch button to bounce back,

the device is powered off, and the LED light of the switch is off

About Connector(no welding required, convenient and fast):

wire length is 150mm, if you need customize, please contact me.

Noted: connector sells separately. if you need, please click the picture or contact me.

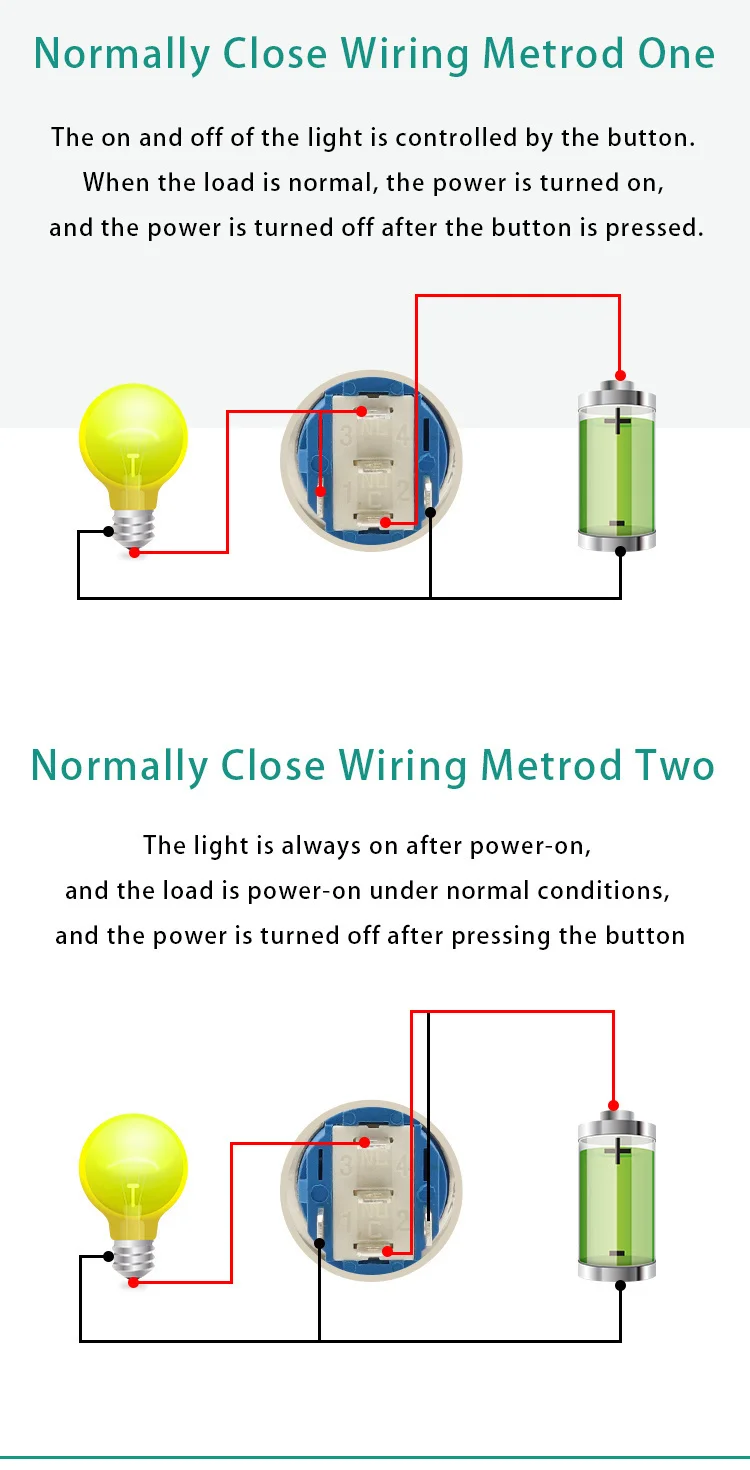

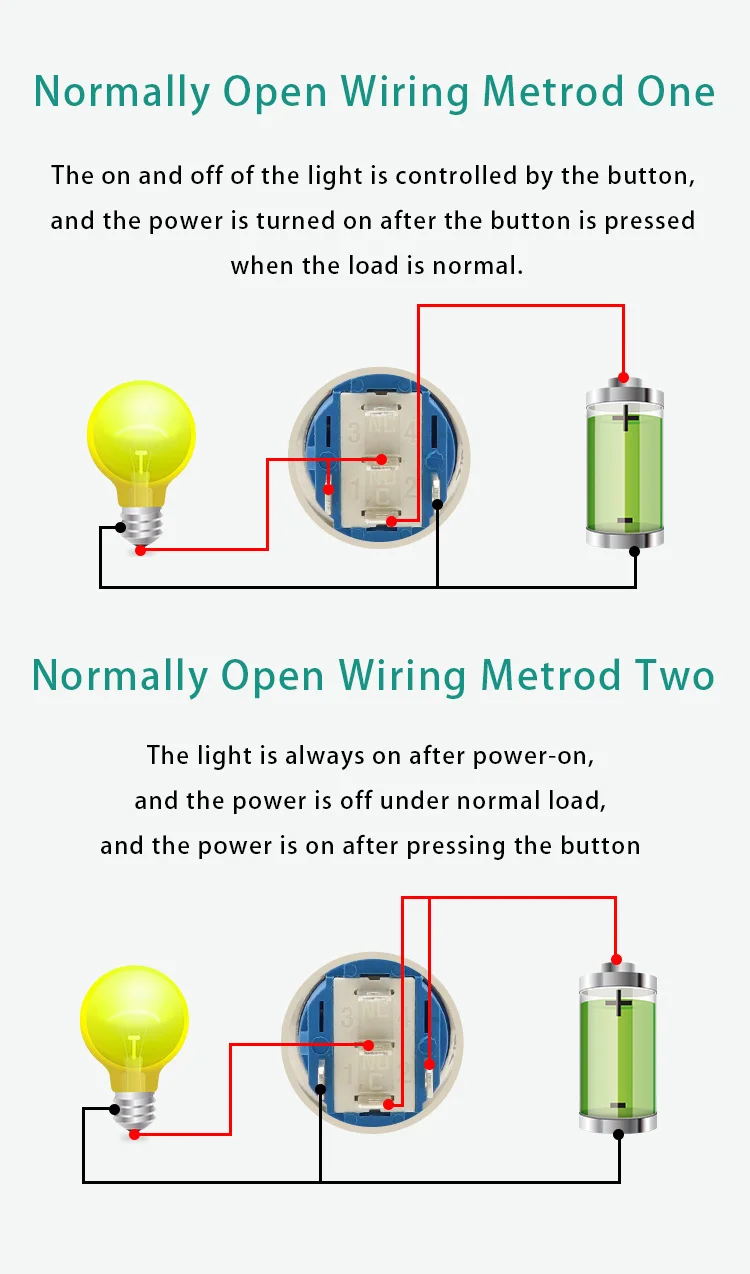

About Button:

NC: NORMALLY CLOSE

NOl NORMALLY OPEN

C: COMMON

Left and right are lamp pins, regardless of positive or negative

Press power on to connect C and NO, press power off to connect C and NC

The LED light can be always on by an external power supply, or the switch foot can be controlled by a button
