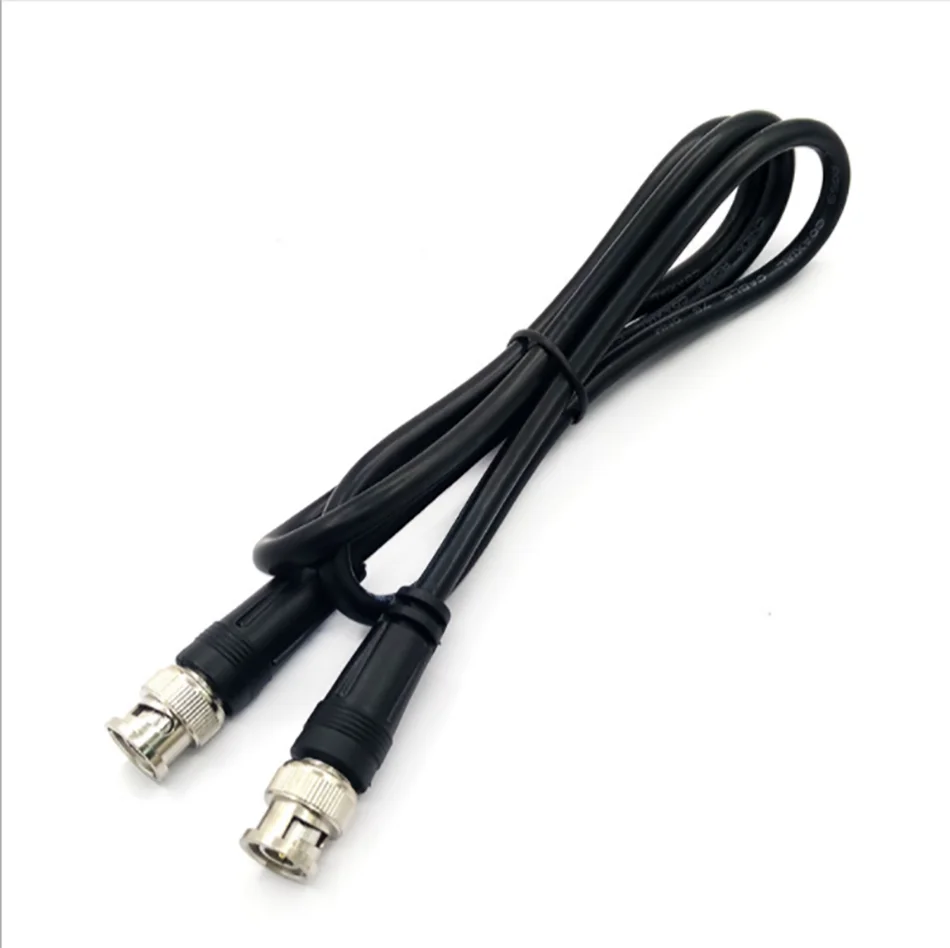

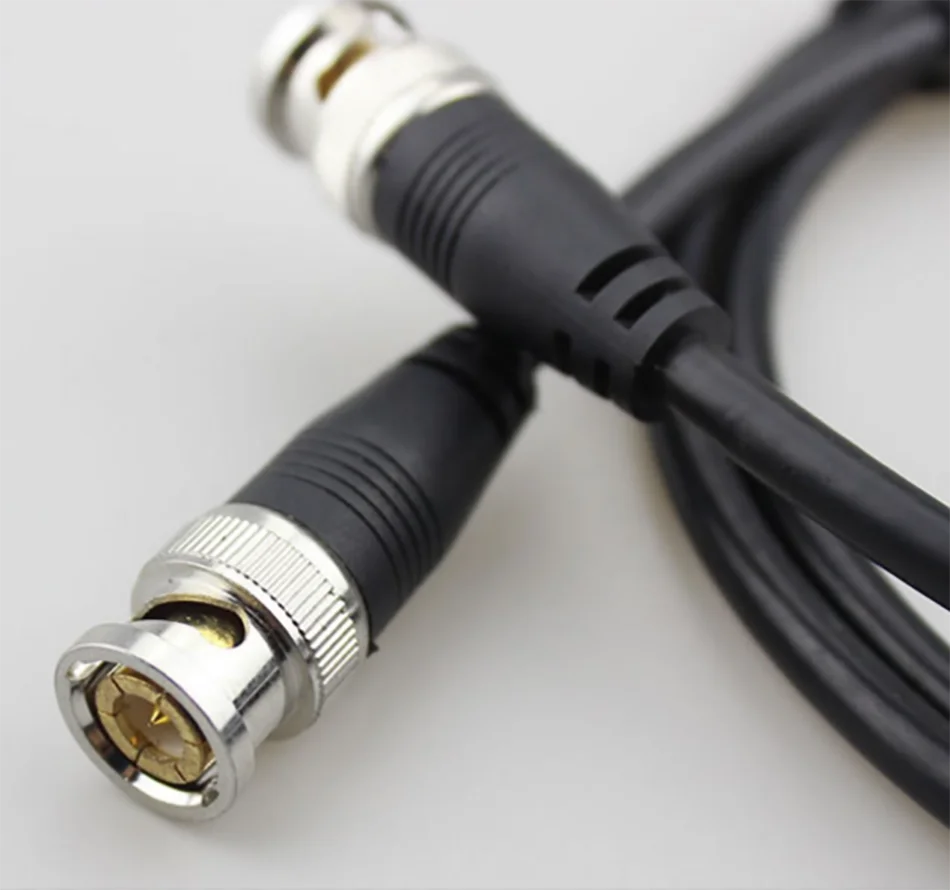

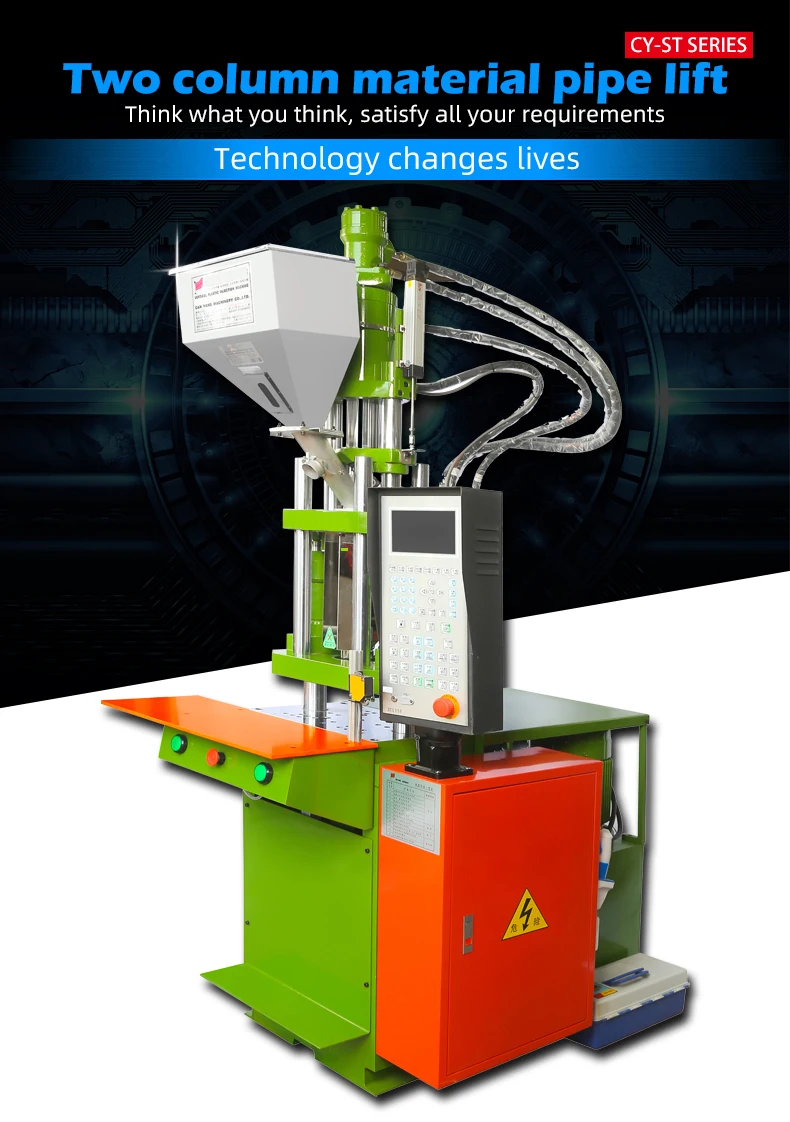

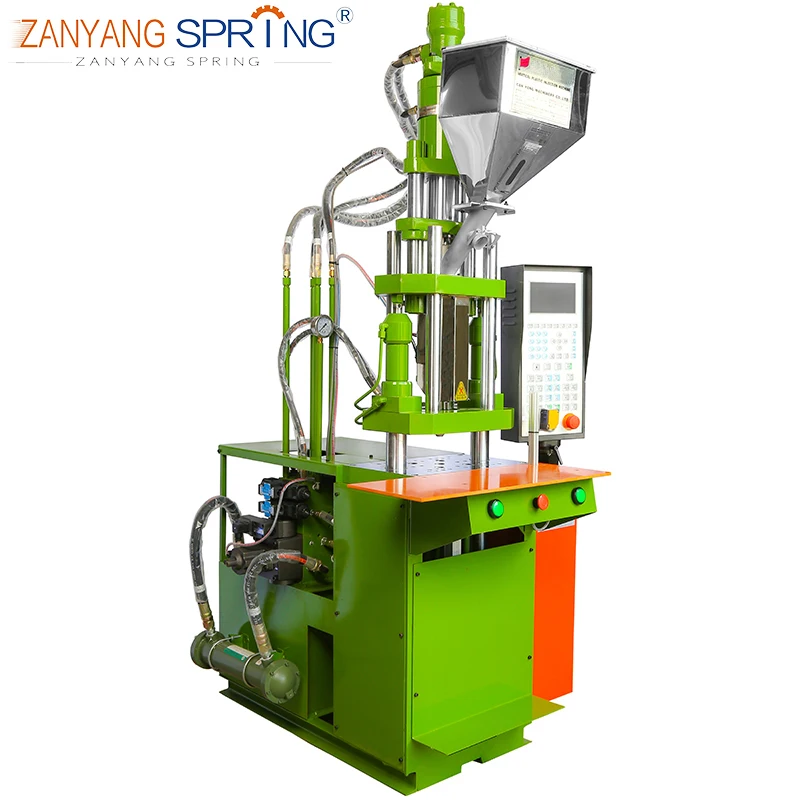

Security camera BNC connector manufacturing machine Vertical injection molding machine

Product Overview

Description

1.In-line screw type injection device.

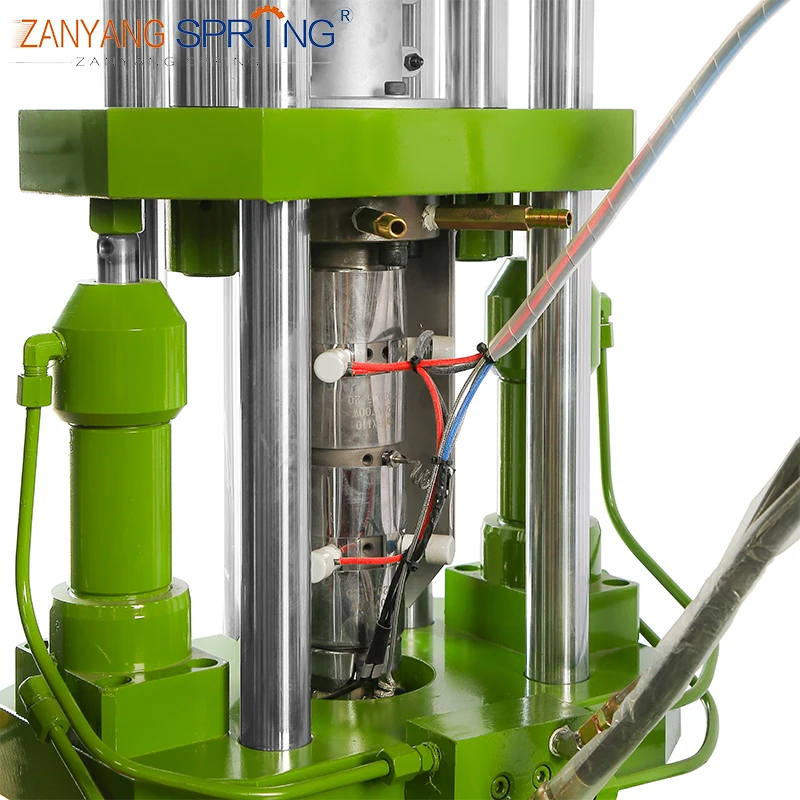

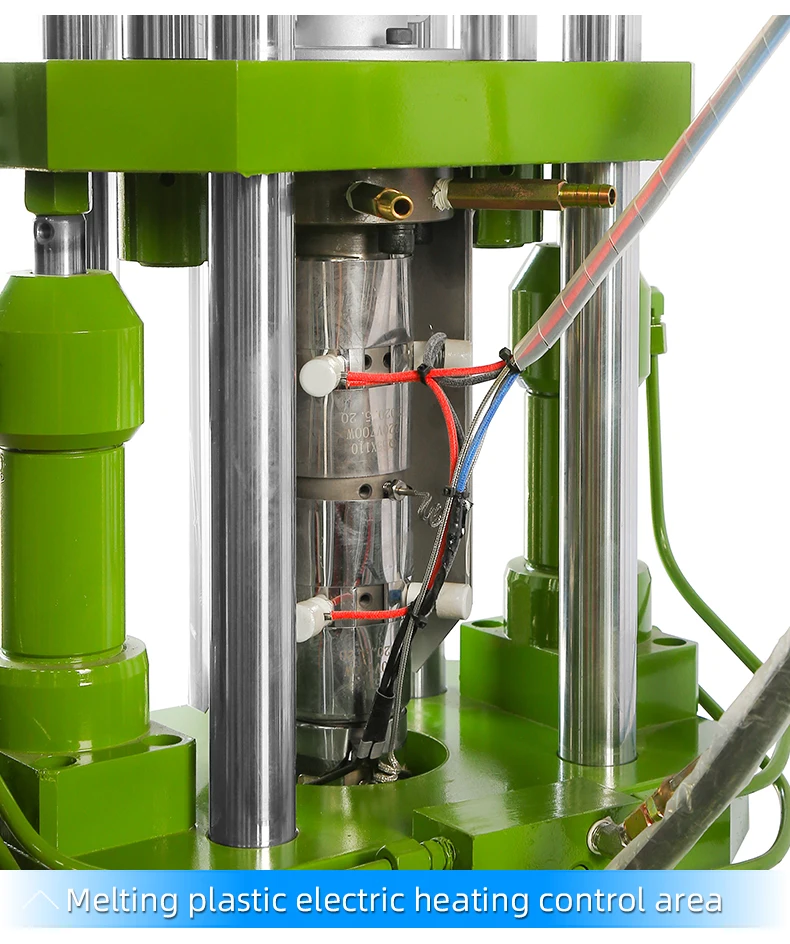

2. Two (three) stage temperature control, injection speed, back pressure, screw speed without stage adjustment suitable for various precision plastic parts forming.

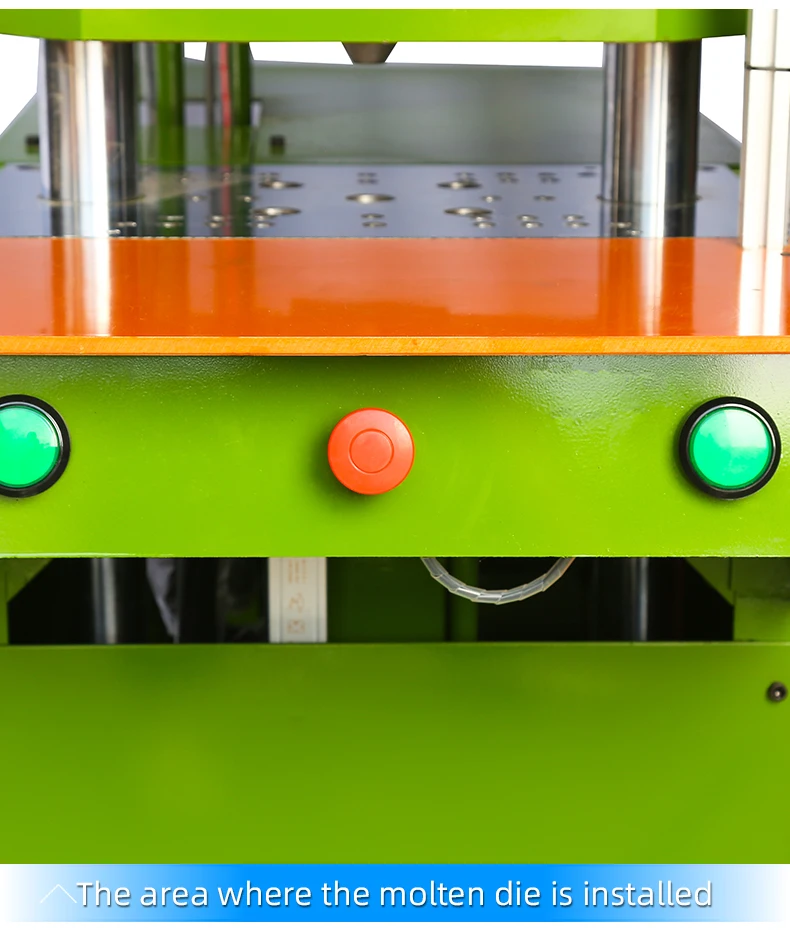

3. Lower mould fixed upper mould movable type, good positioning for inserted items, and finished product ejector device.

4. Low pressure mould closing device to protect the mould safety.

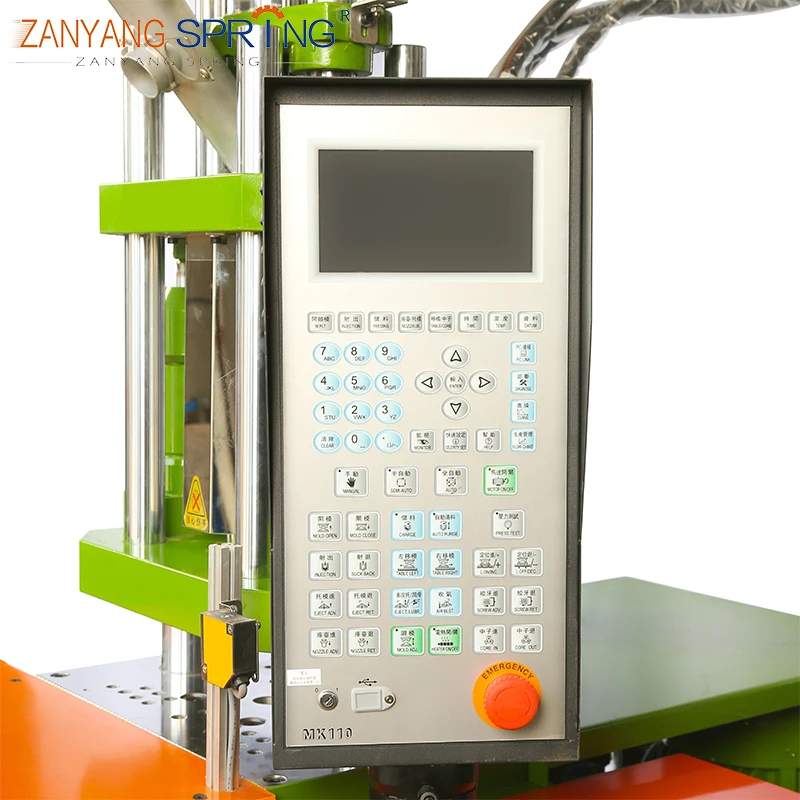

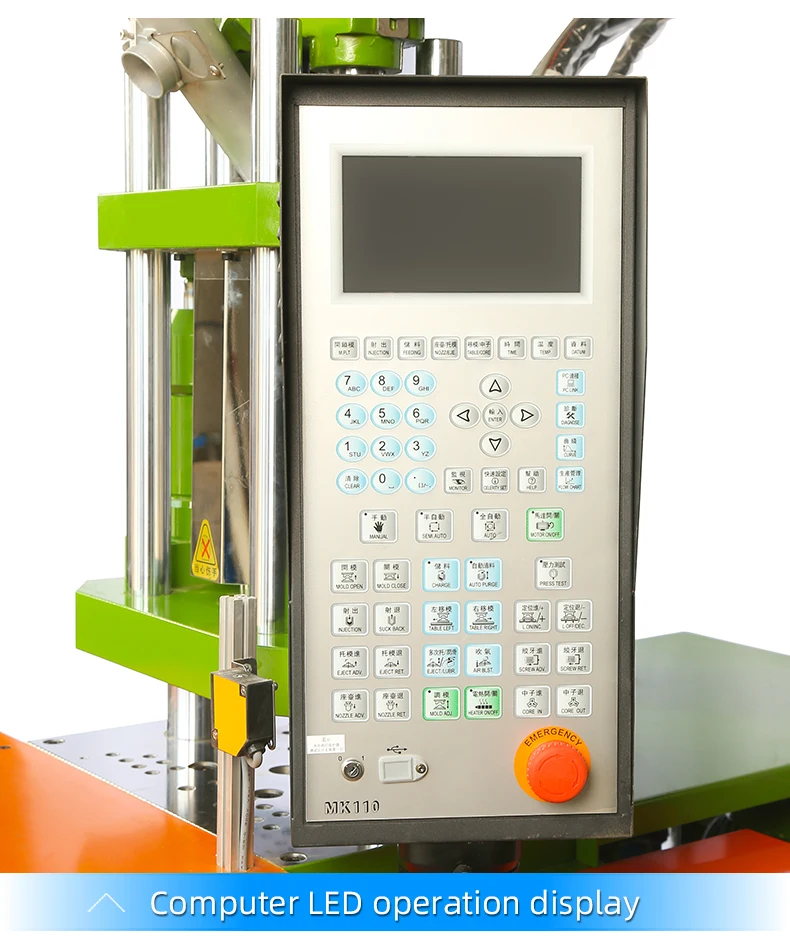

5. LCD display is adopted.



	MODEL	UNIT	CY-160ST-PP
INJECTION UNIT	Screw Diameter	mm	26	28
	lnjection Pressure	kg/cm²	1183	1019
	Theoretical Shot Volume	cm³	55.7	64.6
	Max.Shot Weight(Ps)	g	50	58
	Safe Shot Weight(Ps)	oz	1.7	2.0
	Injection Rate	cm³/sec	34.6	40
	Screw Stroke	mm	105
	Screw Speed Max.	rpm	0-215
	Nozzle Comtact Force	tons	4.45
	Nozzle Retraction Stroke	mm	130
	Number of Temperature Control		2
CLAMPING UNIT	Clamping Force	tons KN	15 150
	Platen Size	mm	450×280
	Distance Between Tie Bere	mm	265
	Min.Mold Height	mm	100/25
	Opening Stroke	mm	190
	Max.Open daylight	mm	290/215
	Ejetor Force	tons	1.3
	Ejetor Stoke	mm	35
POWER/HEADING UNIT	Max.Hydaulic Pressure	kg/cm²	140
	Pump Output	l/min	17.5
	Oil Resservoir Capacity	l	80
	Cooling Waer Consumption	l/hr	400~600
	Pump Motor Power	kW/HP	2.2/3HP
	Berrel Heating Power	kW	1.8
	Total electricity usage	kW	4.2
OTHER	Machine Weight	tons	0.95
	Machine Dimensions(LxWxH)	m	1.25 x 0.85 x 2.3
	Shipping weight	tons	1
	Shipping Measurements(LxWxH)	m	1.6 × 1.0 × 2.23

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service and low price.



Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 1 year warranty .



Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.
