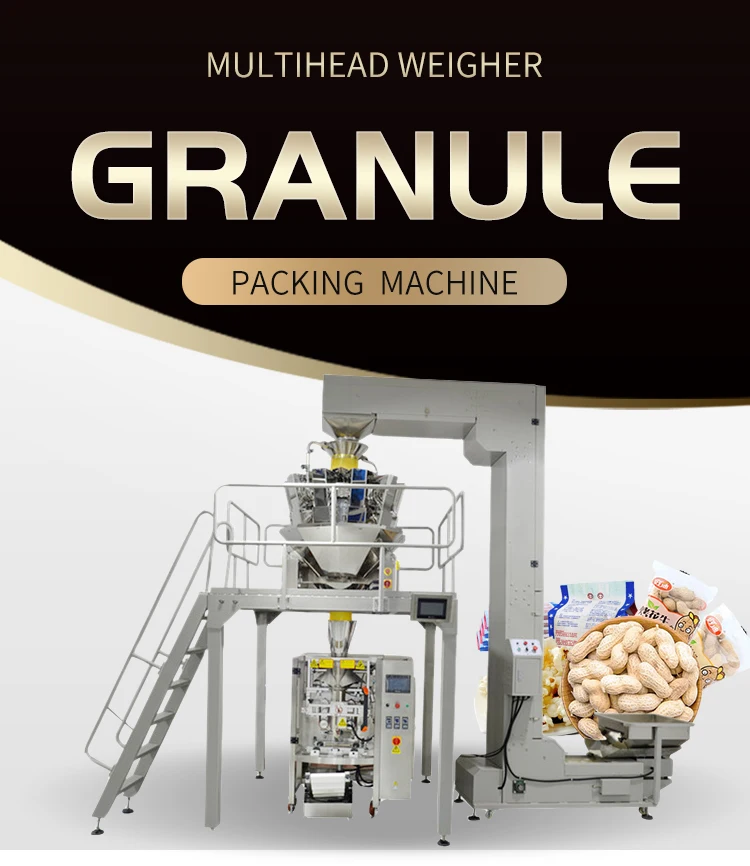

KEFAI Full Automatic Muti Head VFFS Weighing Grain Food Packing Machine Manufacturer High Quality
- Category: >>>
- Supplier: Wuhan Kefai Innovation Machinery Co. Ltd.
Share on (1600550855839):
Product Overview
Description
Product Description
Features

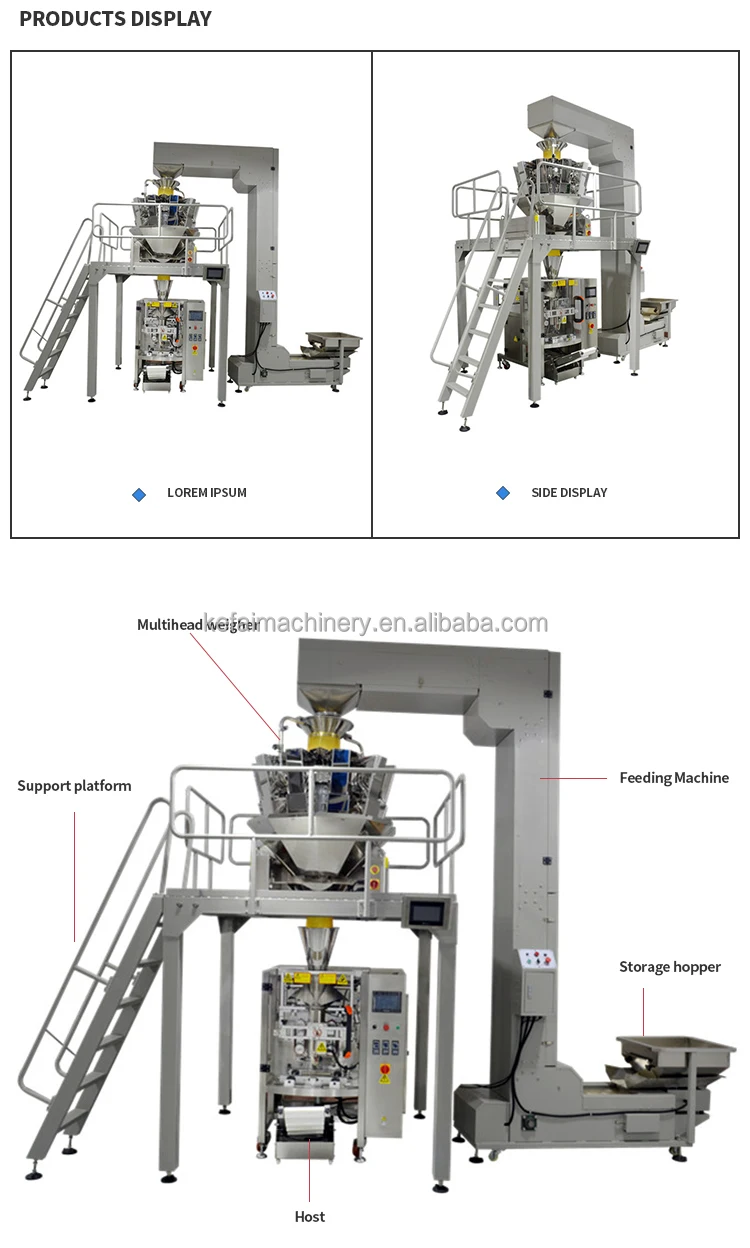

1. This machine can automatically complete following work: material lifting--multi-head weighter measuring--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products--sorting finished products.
2. Imported PLC servo and pneumatic control system and super touch screen to form the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.

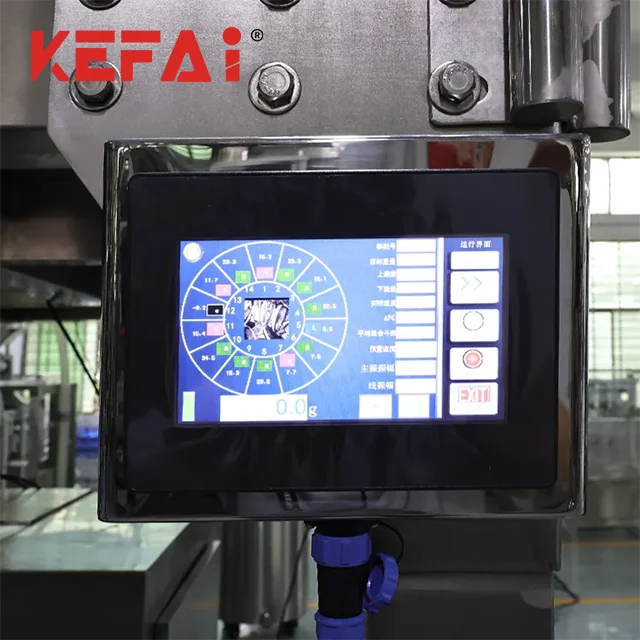

3. Touch screen can store a variety of different product packaging process parameters, when replacement product can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.
5. Can make hole punching device after customer’s request.
6. All the contact materials parts are stainless steel 304.
2. Imported PLC servo and pneumatic control system and super touch screen to form the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, when replacement product can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.
5. Can make hole punching device after customer’s request.
6. All the contact materials parts are stainless steel 304.
Application

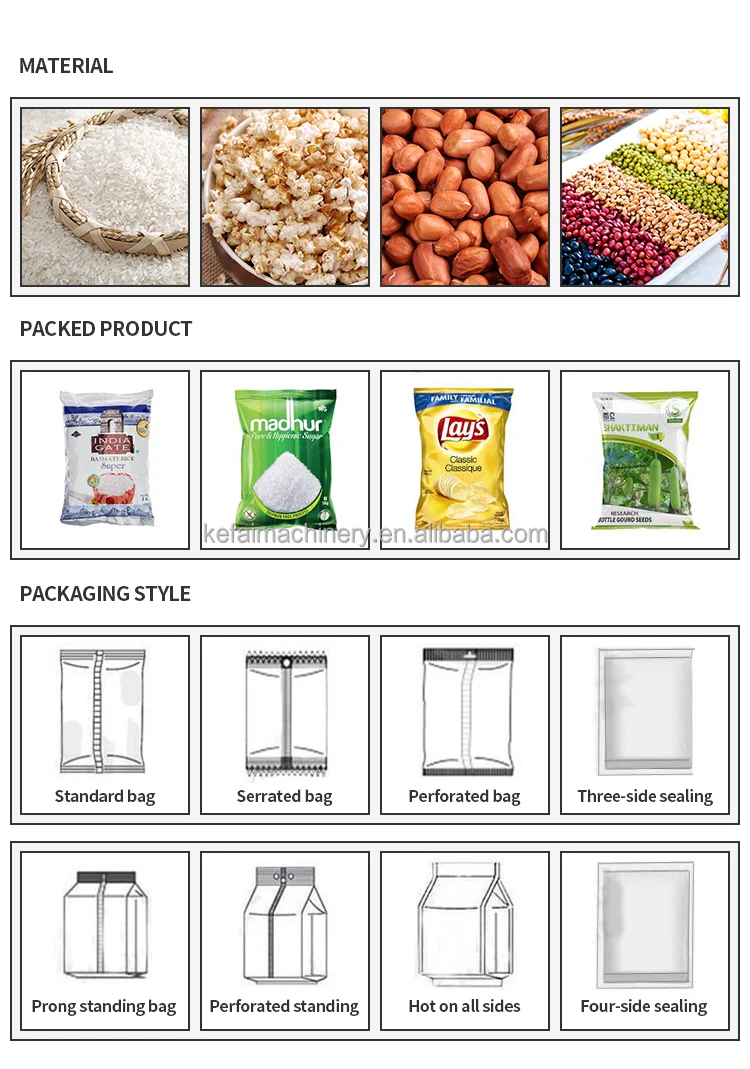

This machine is suitable for all kinds of granules such as grain, meatball, popcorn, biscuit, rice, candy, nut, dumpling, chocolate, frozen food, chicken leg, hardware etc.
Specification
TYPE | KF02-G V420 | KF02-G V520 | KF02-G V620 | KF02-G V720 | KF02-G V820 | ||||
Bag length | 80-300mm | 80-350mm | 80-400mm | 80-450mm | 80-500mm | ||||
Bag width | 50-200mm | 50-250mm | 50-300mm | 50-350mm | 50-400mm | ||||
Max width of roll film | 420mm | 520mm | 620mm | 720mm | 820mm | ||||
Packing speed | 1-25bag/min | 1-20bag/min | 1-15bag/min | 1-10 bag/min | 1-8bag/min | ||||
Measuring range | 100-2000 ml | 100-3000 ml | 100-4000 ml | 1000-5000 ml | 1000-6000 ml | ||||
Air consumption | 0.65mpa | ||||||||
Gas consumption | 0.8M*2/min | ||||||||
Power voltage | 220V/50HZ（can be customized 110V） | ||||||||
Power | 3 phase 4 wire 3.5KW | ||||||||

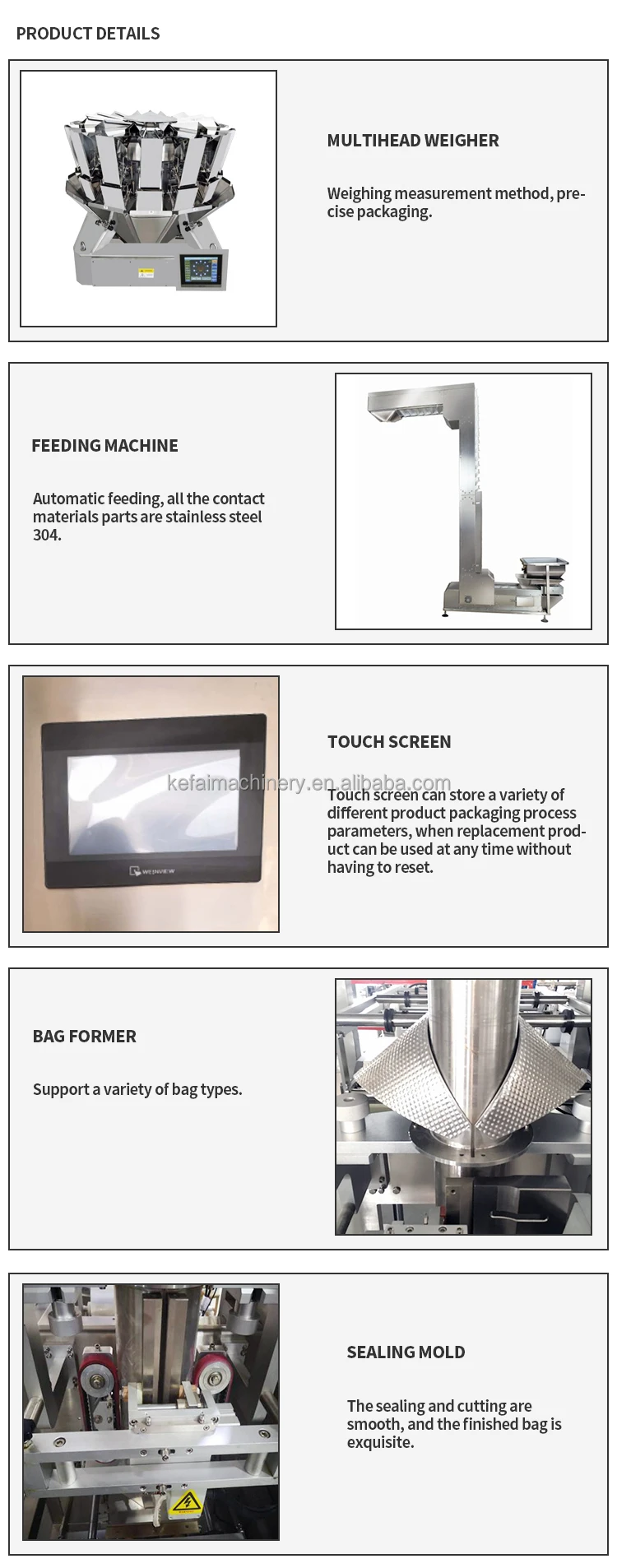

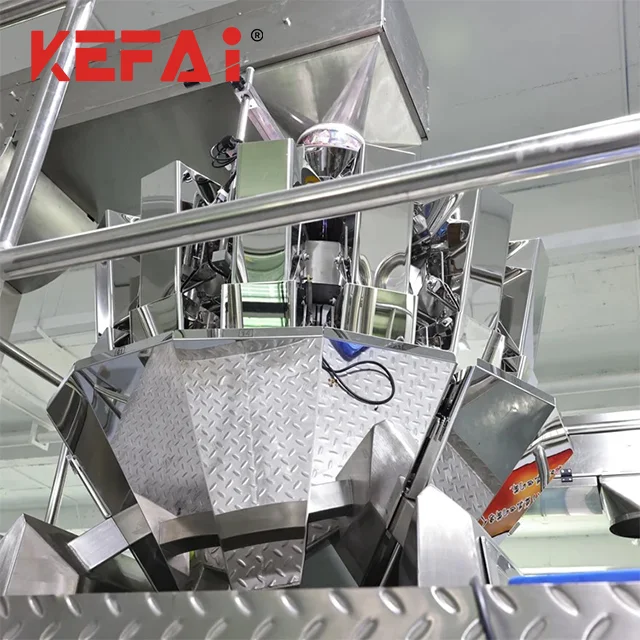

Details of machine

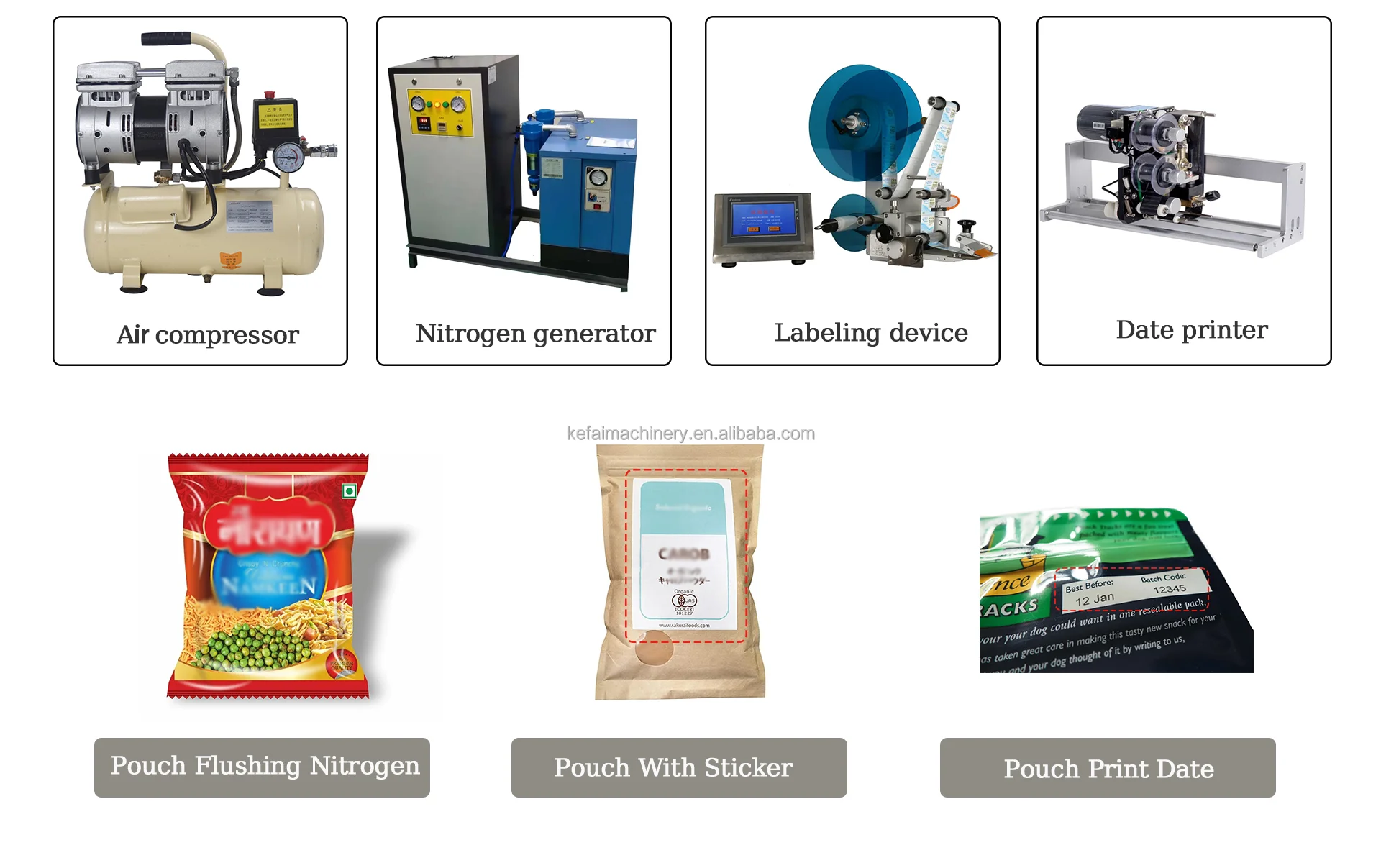

Optional device
For More Details,
Please Send An Inquiry To Get It
Certifications
Packing & Delivery
Company Profile
FAQ
1.Are you a factory or trading company?
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
