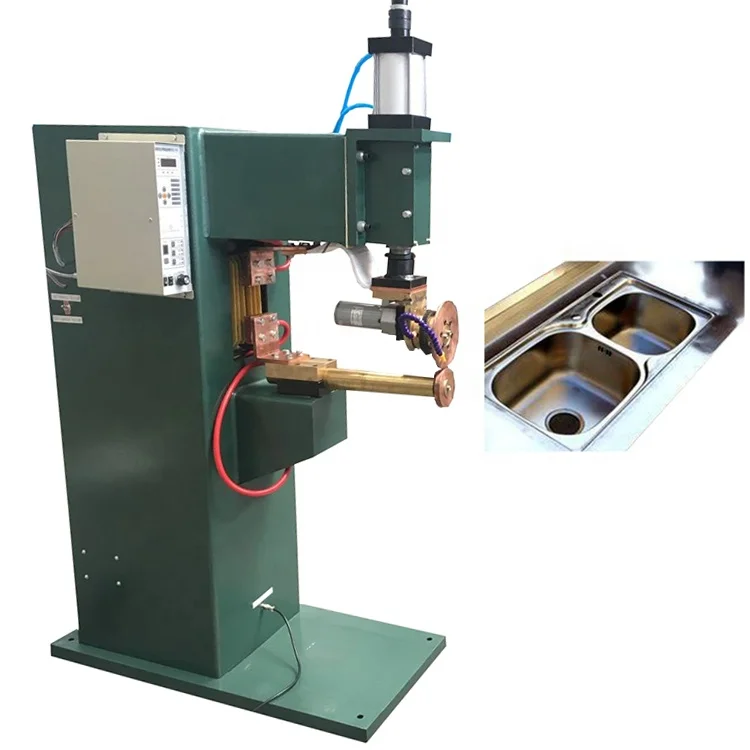

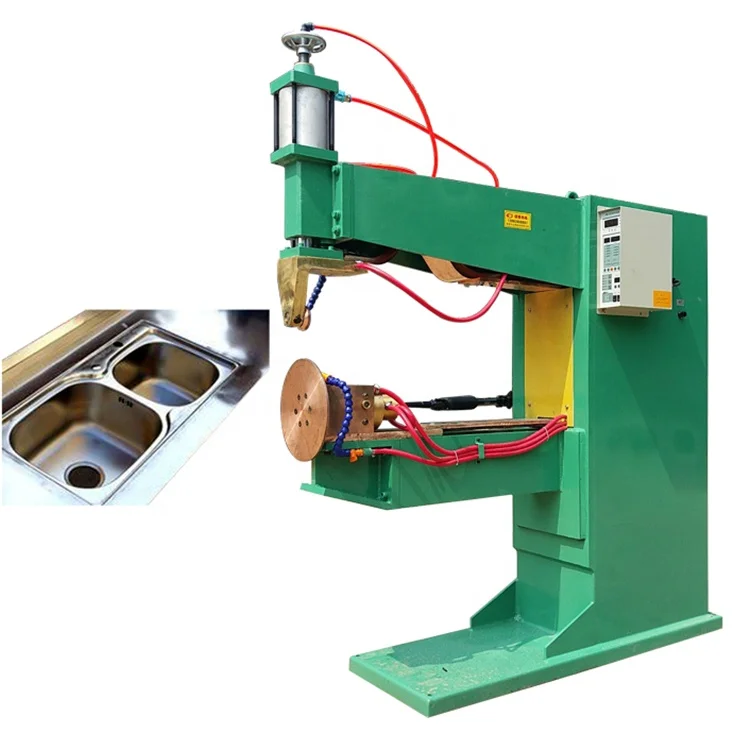

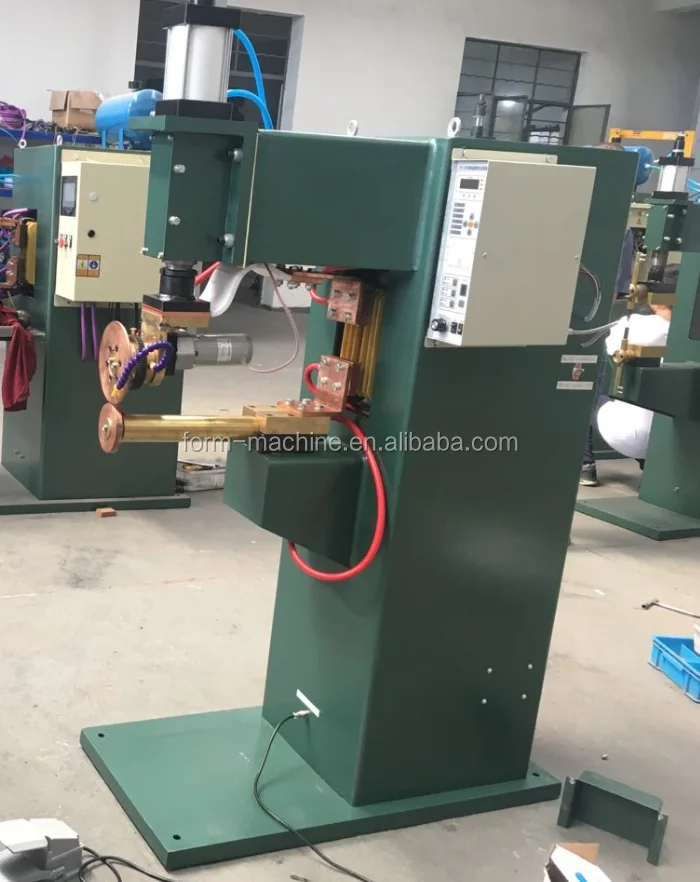

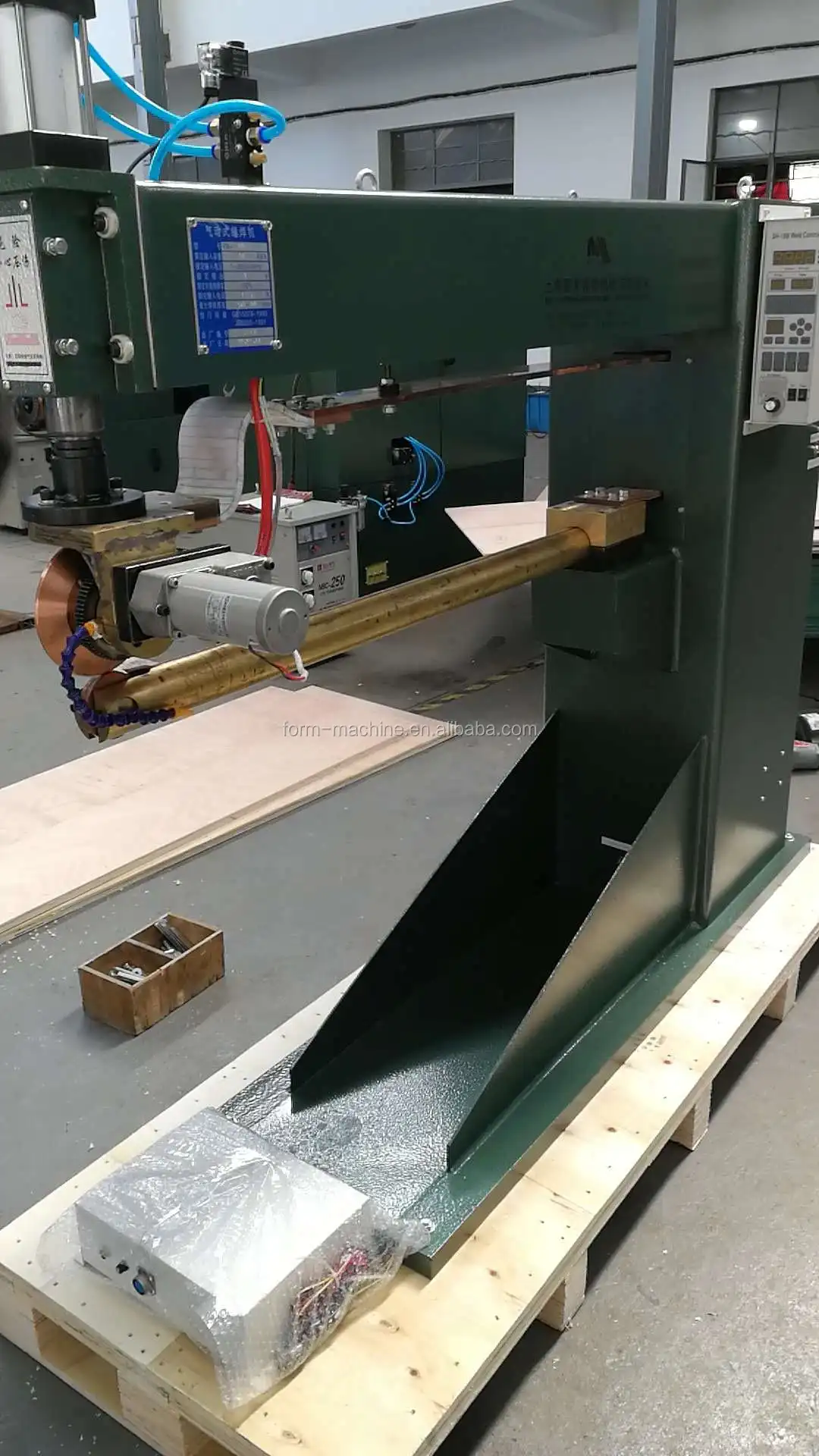

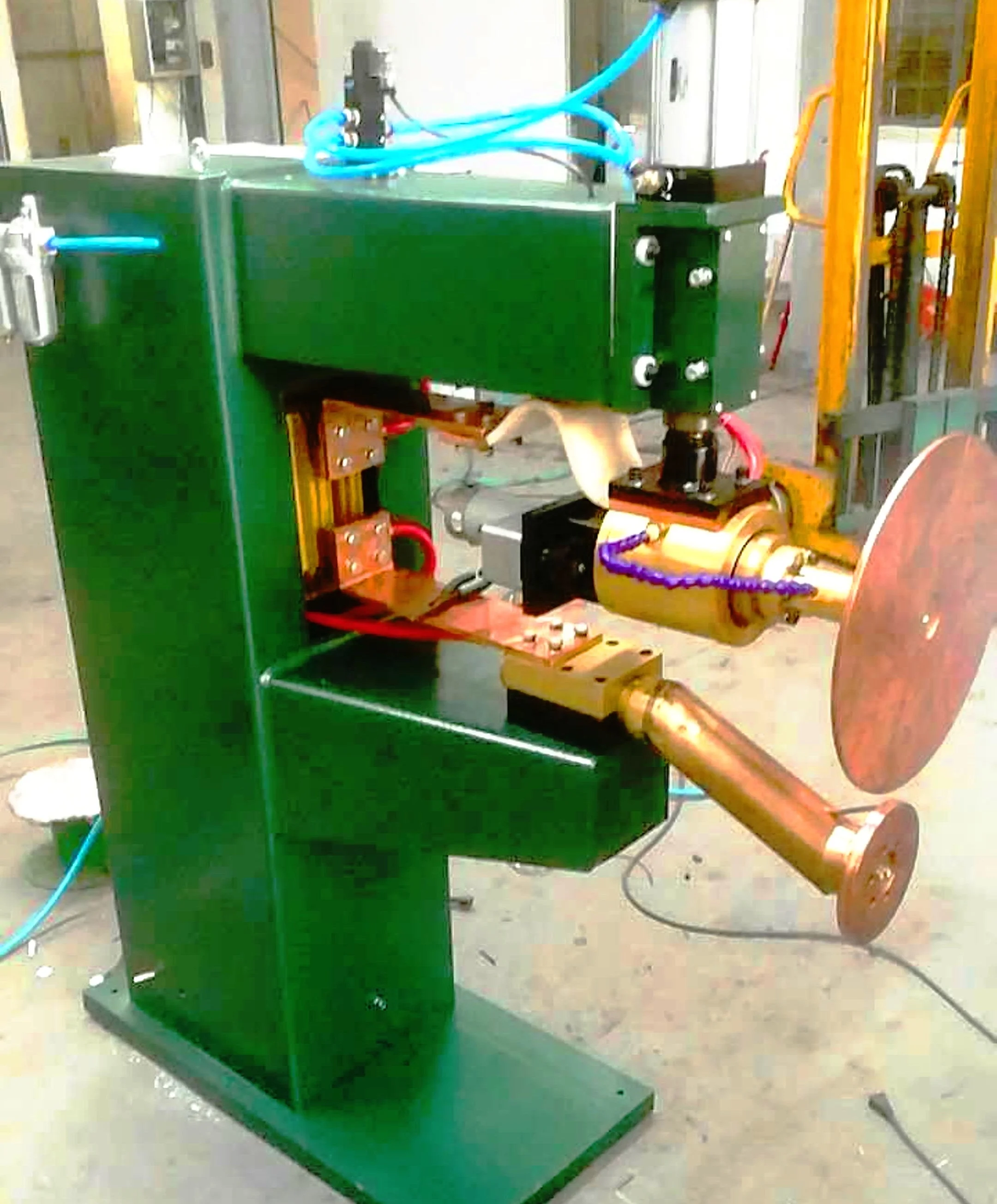

Cheap price top quality Resistance Seam Welder straight line seam welding machine for radiator
Product Description

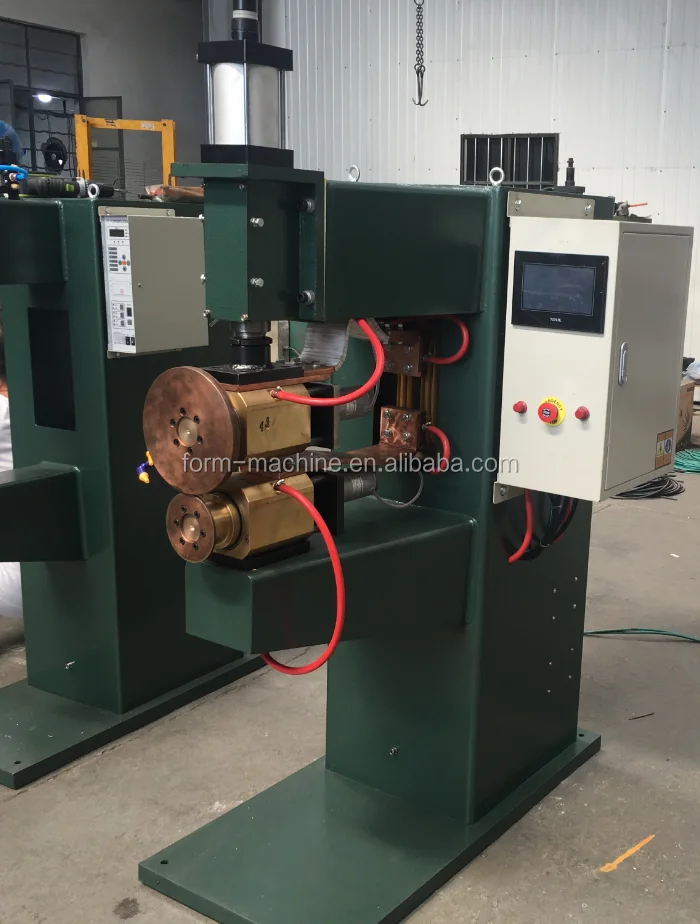

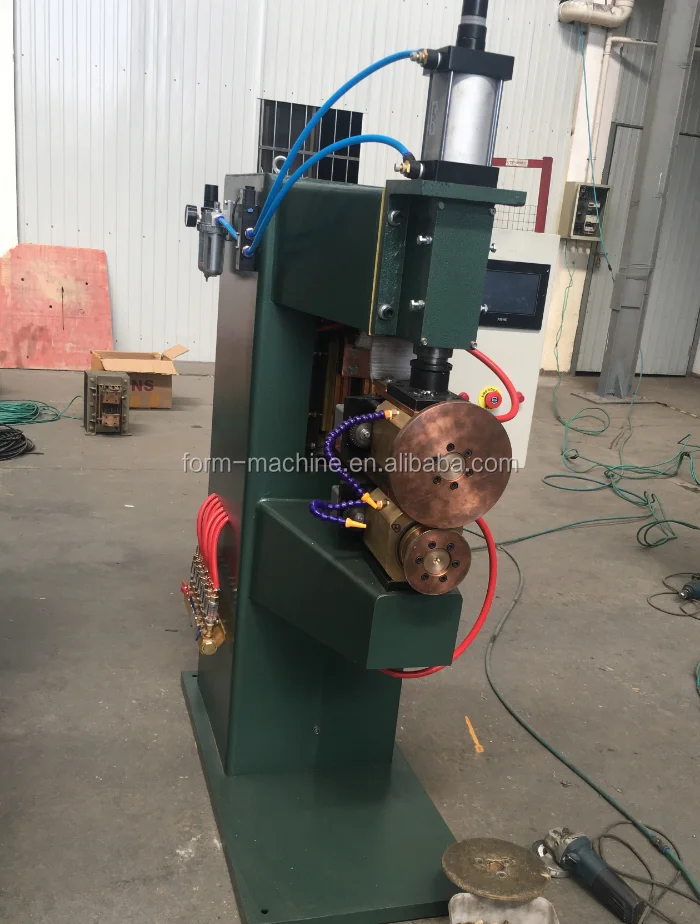

Metform machinery longitudinal seam welders provide a solution to these problems. They optimize the welding process, reduce welding costs and improve theweldingquality They are designed for the straight line welding of all weldable materials in thicknesses varying from 0.1 mm to 10 mm. Thicker materials can be accommodated using Metform 's unique mandrel adjustment capability.Adopt key pressure structure. Equal stable clamping and cooling effect. Crossbeam and welding cart supply precise welding. Used for high quality
and low deformation longitudinal beam welding. In most cases, butt joint design welding seam.
Rated input capacity 50KVA
Rated input voltage 1-380V/50HZ
Rated load cycle 50%
Max.input capacity 50KVA
Max.short circuit current 93A
Max.pressure of electrode 600kgf
The flow of cooling water 6L/min
Arm length 350mm(can be customized)
max. Thickness of metal sheet: 1.2+1.2mm
Model NO. | FN-35 | FN-50 | FN-75 | FN-100 | FN-150 |
Rated primary voltage | 380V | 380V | 380V | 380V | 380V |
Rated capacity | 35KVA | 50KVA | 75KVA | 100KVA | 150KVA |
Rated primary current | 95A | 135A | 200A | 265A | 400A |
Secondary no load voltage | 5.3V | 6.0V | 6.3V | 7.0V | 7.5V |
Adjust method | electrodeless adjust | ||||
Duty cycle | 50% | 50% | 50% | 50% | 50% |
Max. welding thickness(mm) | 0.5+0.5 | 1.5+1.5 | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 |
Max. force electrodes | 3000N | 3000N | 4700N | 6100N | 10000N |
Throat depth | Negotiation | ||||
The distance of the electrodes | Negotiation | ||||
Welding speed | 2m/min | 2m/min | 1.5 m/min | 1.5 m/min | 1.5 m/min |

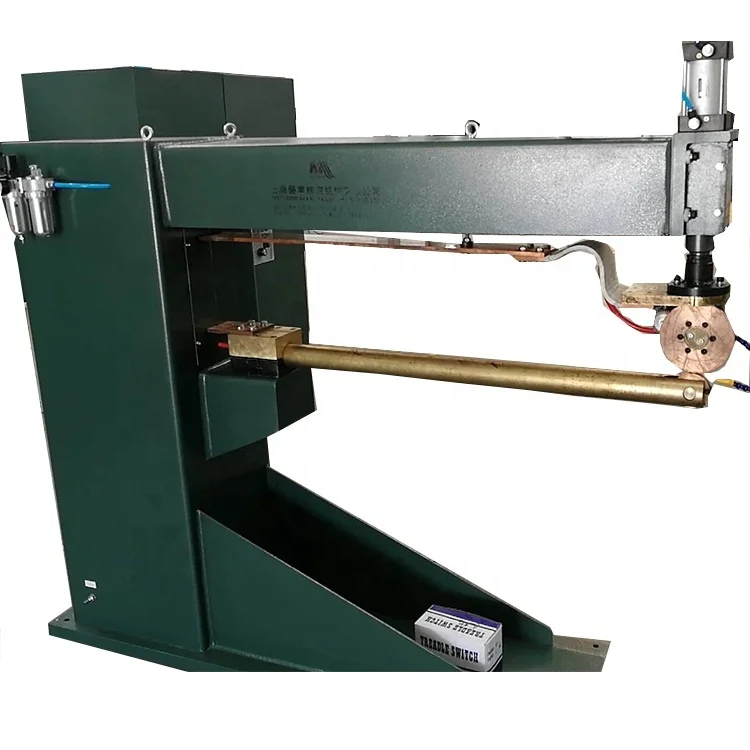

standard arm length 350mm(other length can be customized)

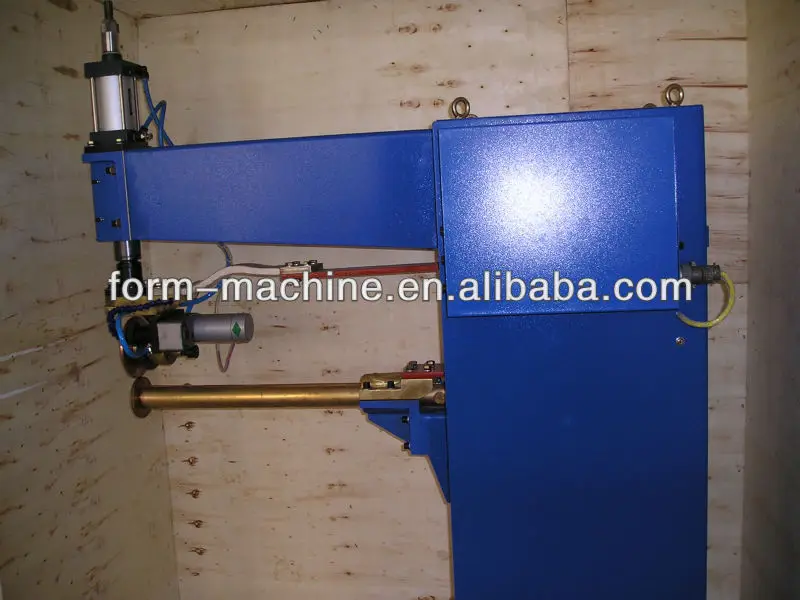

Long arm
m
Upper and lower conductive box(optional)

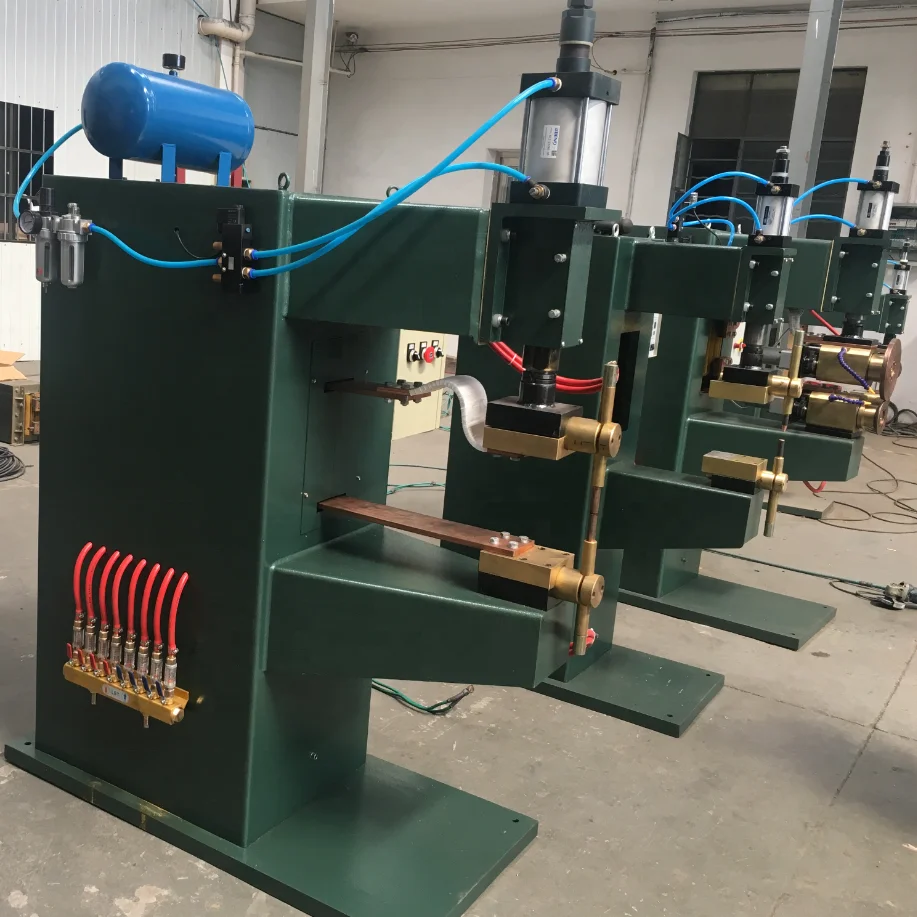

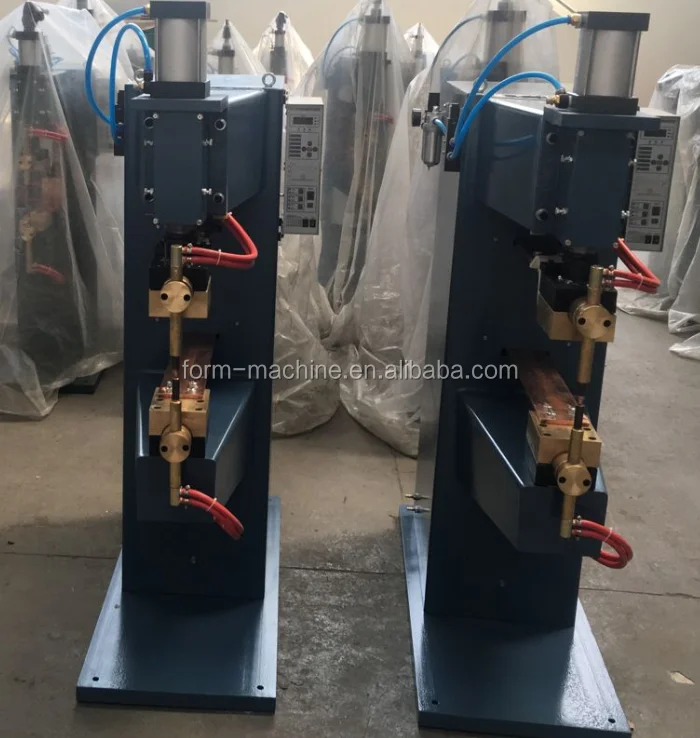

spot welding machine is available too
Company Information

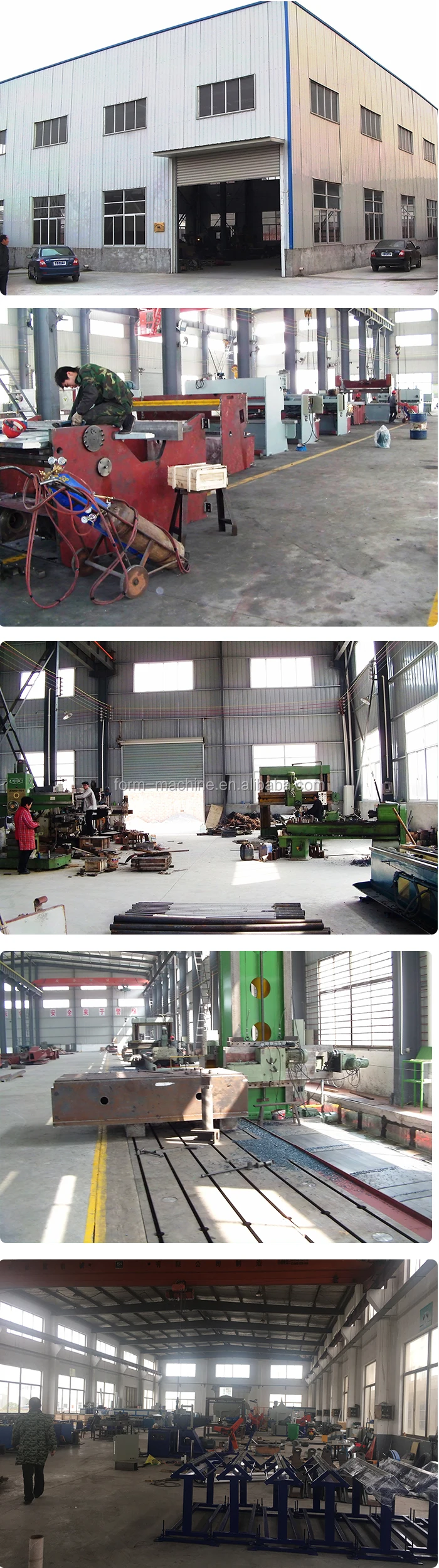

Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering.
The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too.
The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
training abroad
our service team
Packaging & Shipping
FAQ
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
