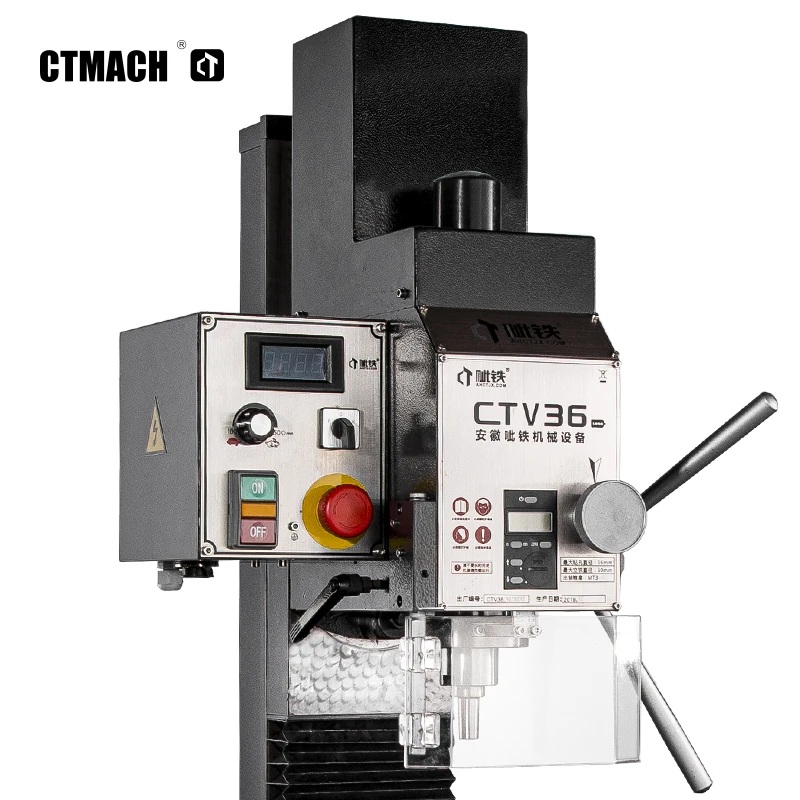

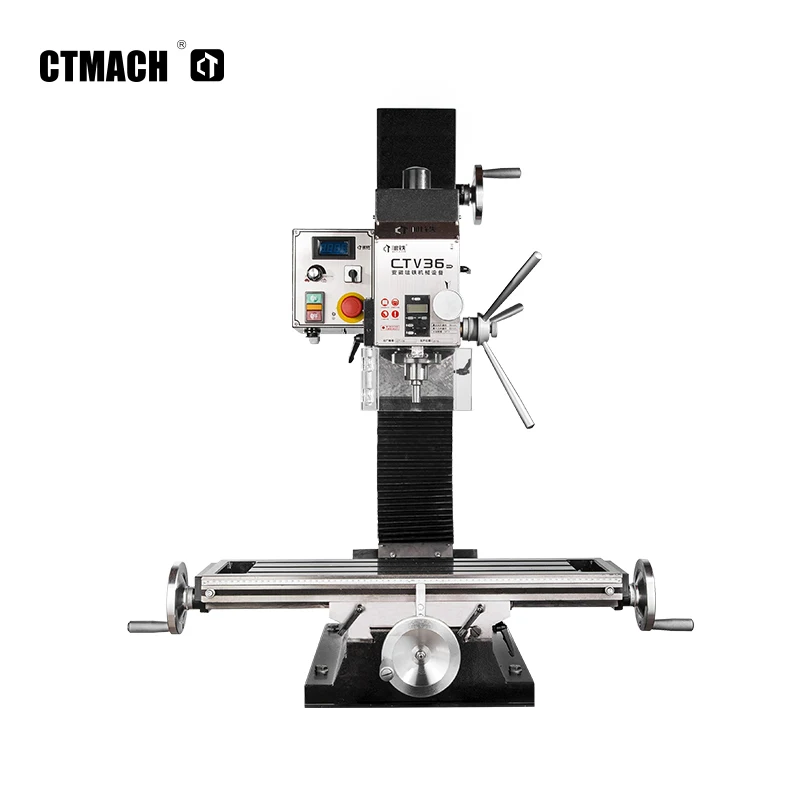

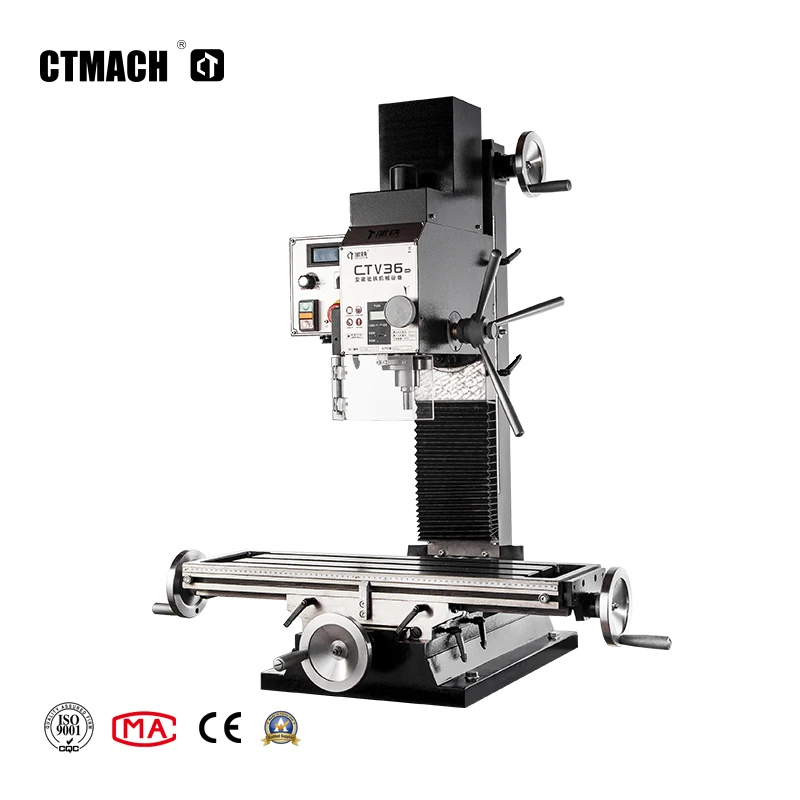

CTV36 variable speed drilling and milling machine for metal working
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd
Share on (1600550856794):
Product Overview
Description
SIMILAR PRODUCTS
CTV36 Milling Drill, The Most Popular Milling Drill
Stepless speed regulation can make processing more convenient.
Spindle bearing adopts high precision tapered roller bearing.
The single-speed belt drive is quieter and easier to operate.

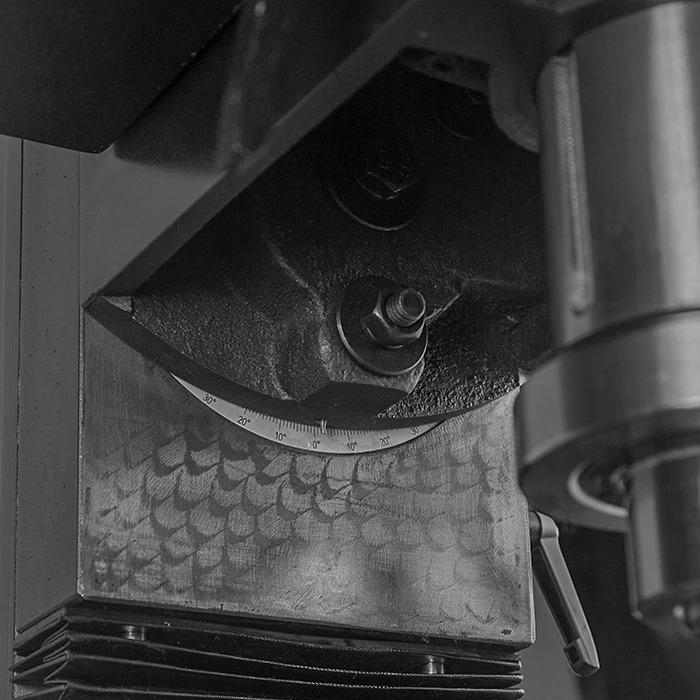

Headstock can be tilted ±90 degrees.
Precision inching spindle feed.

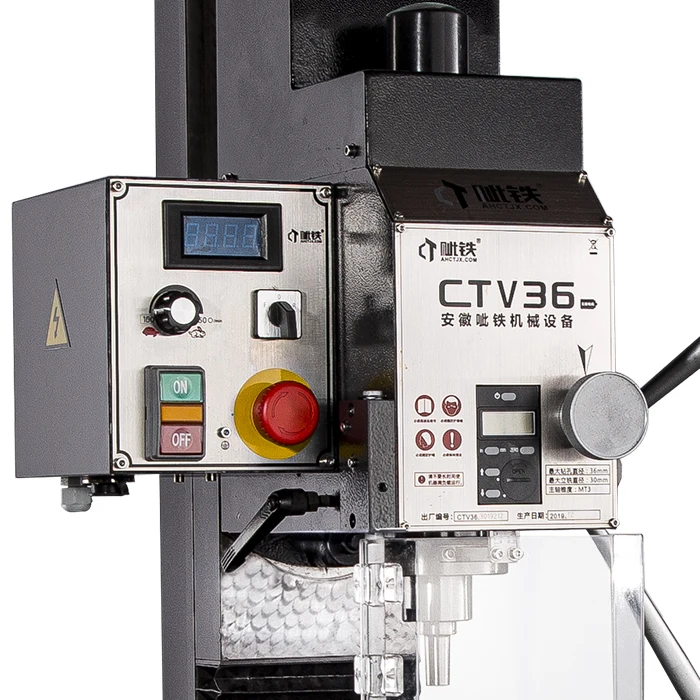

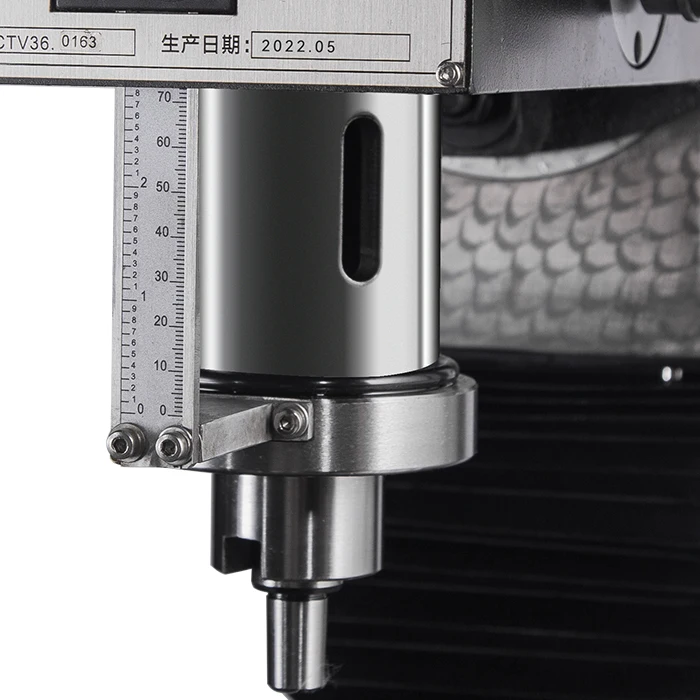

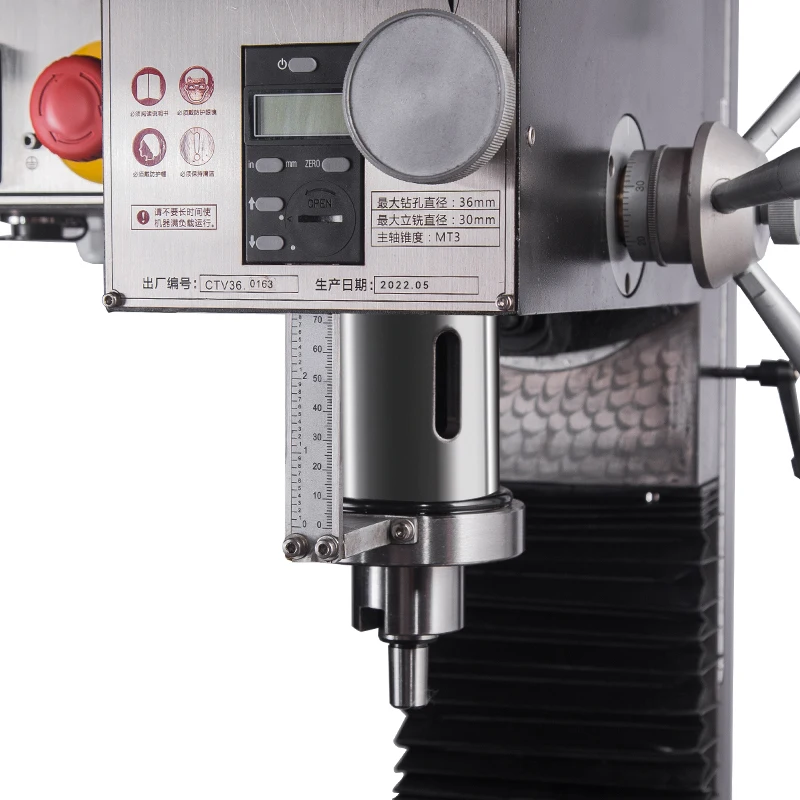

Spindle depth electronic ruler, more accurate display of drilling depth.
Optional larger table provides greater production capacity.

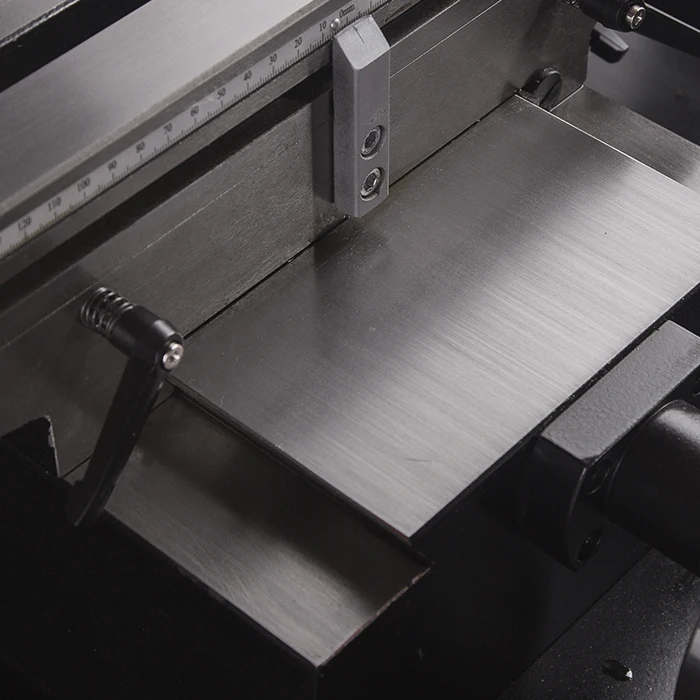

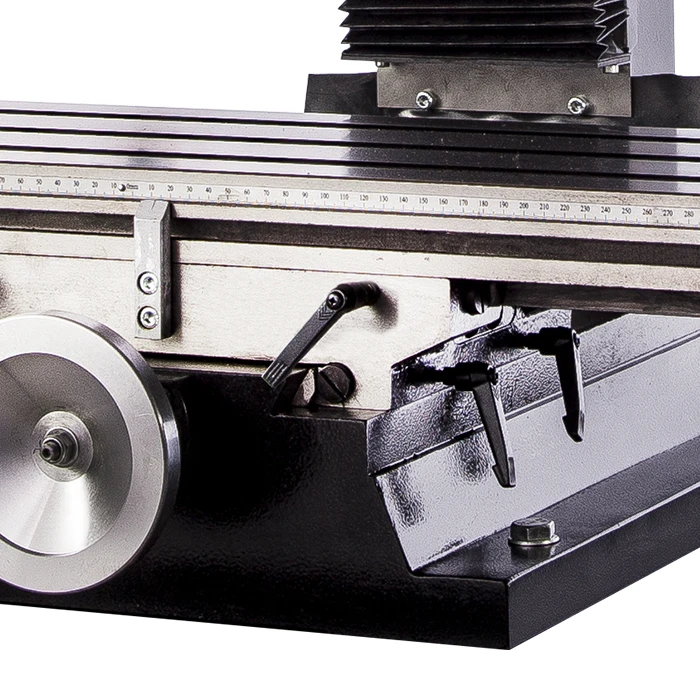

Dovetail guide with adjustable taper inserts, wear-resistant and heavy-duty.
Spindle bearing adopts high precision tapered roller bearing.
The single-speed belt drive is quieter and easier to operate.
Headstock can be tilted ±90 degrees.
Precision inching spindle feed.
Spindle depth electronic ruler, more accurate display of drilling depth.
Optional larger table provides greater production capacity.
Dovetail guide with adjustable taper inserts, wear-resistant and heavy-duty.
PRODUCT SPECIFICATIONS
Max. Drilling Diamter | 36mm | ||||||
Max. Face Milling Capacity | 76mm | ||||||
Max. Vertical Milling Capacity | 30mm | ||||||

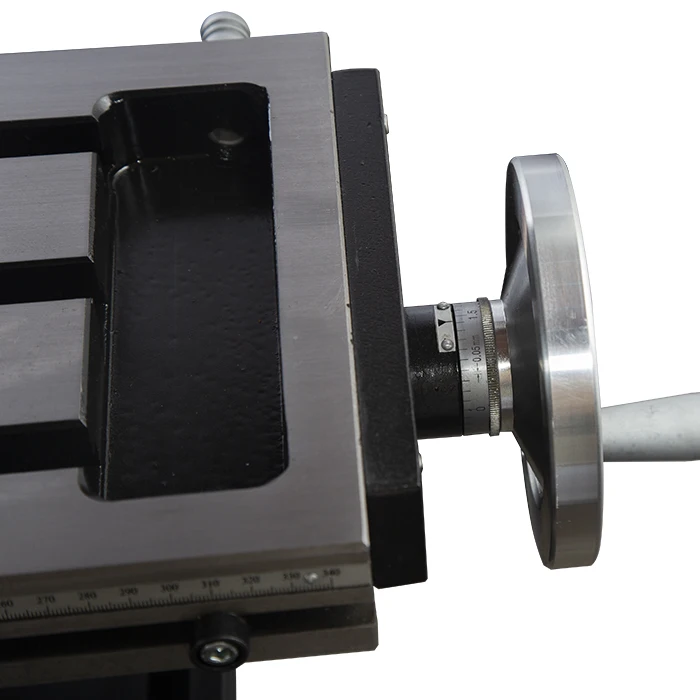

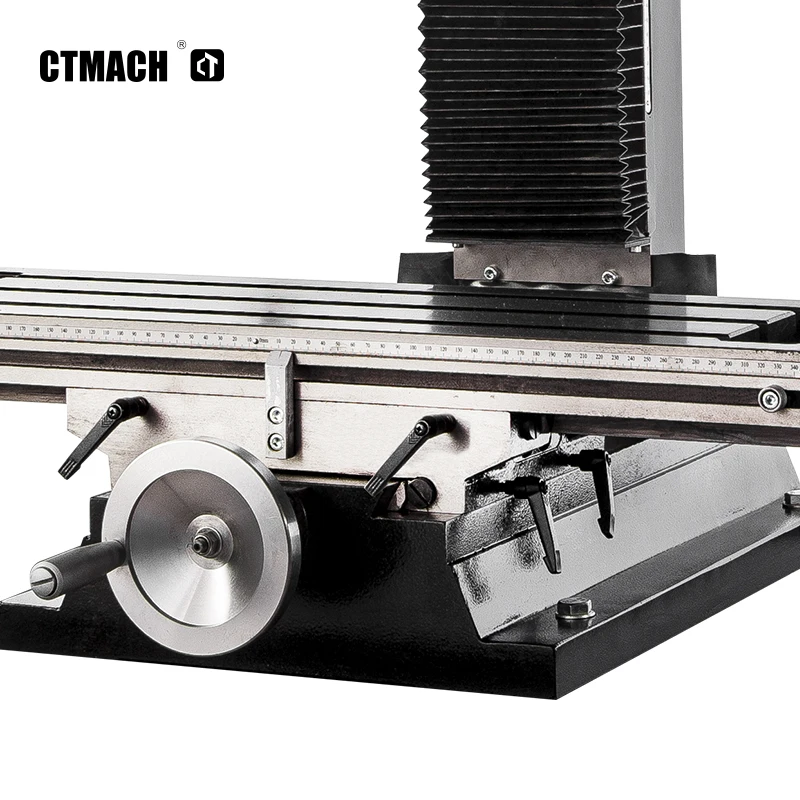

Worktable Size | 700*210mm | ||||||
T-slots Size | 14mm | ||||||
X-Axis Travel | 440mm | ||||||
Y-Axis Travel | 200mm | ||||||
Z-Axis Travel | 400mm | ||||||
Spindle Taper | MT3 | ||||||
Spindle Travel | 70mm | ||||||
Distance From Spindle Axis to Column Guide Rail | 190mm | ||||||
Distance From Spindle to Table | 470mm | ||||||
Spindle Incline Angle | ±45° | ||||||
Spindle Speed (Variable Speed) | 100-2250rpm | ||||||
Motor Power | 1.5kw | ||||||
N.W. | 220kg | ||||||
Overall Dimensions | 1000*700*1000mm | ||||||
FEATURES AT A GLANCE

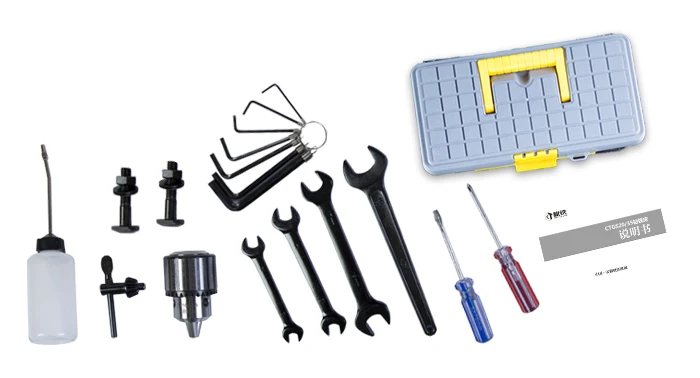

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
