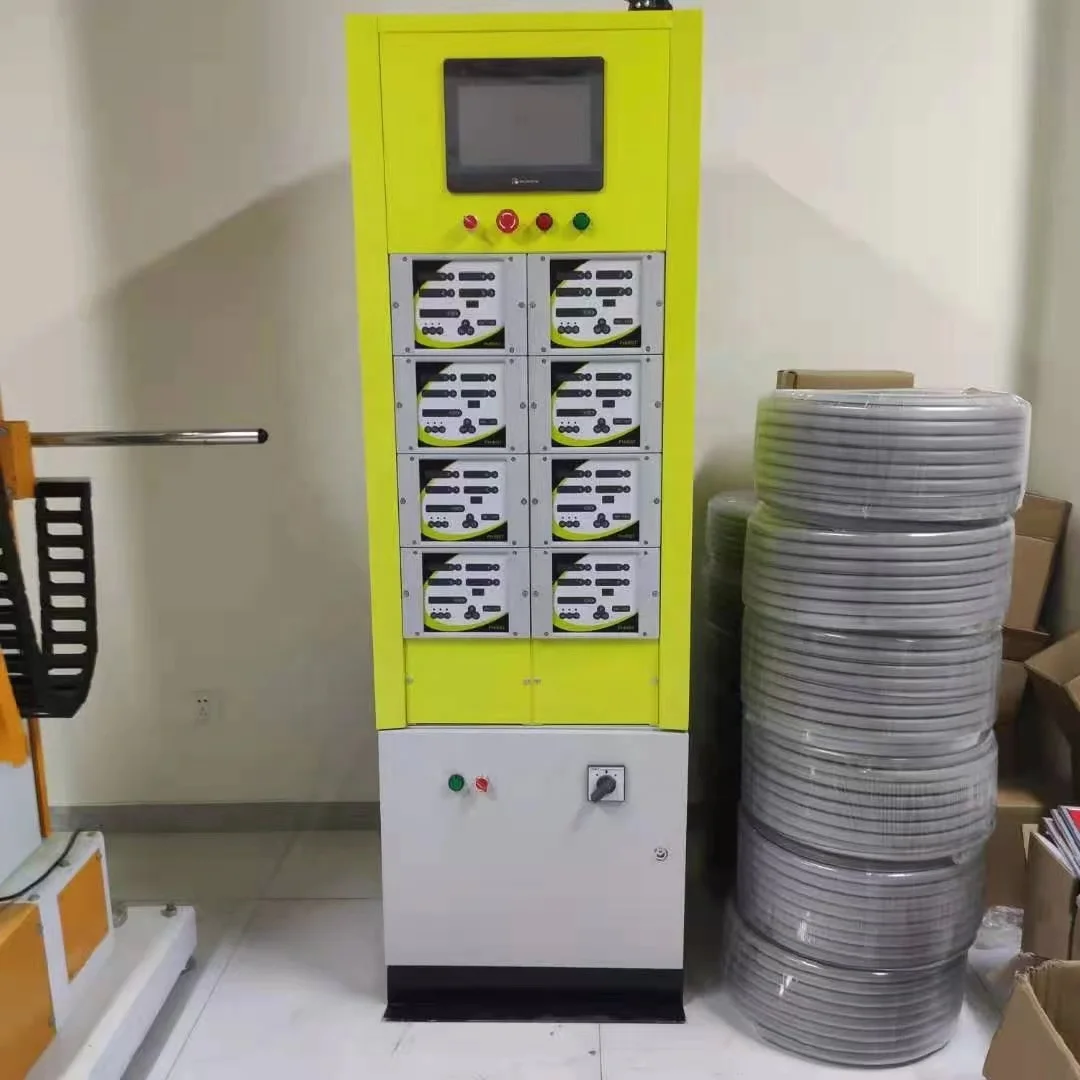

Hot sale PLC Automatic Electronic powder coating machine for complex workpieces Litone Phirst
- Category: >>>
- Supplier: Weifang Litone Machinery Co. Ltd.
Share on (1600550863685):
Product Overview
Description
Products Description
2. Designed for complex parts and more users who have high quality requirement on powder coating with various colors.
3. Suitable for epoxy powder,metal powder,Teflon powder,etc.
4. Its powder charge rate can reach up to 85%-95%.

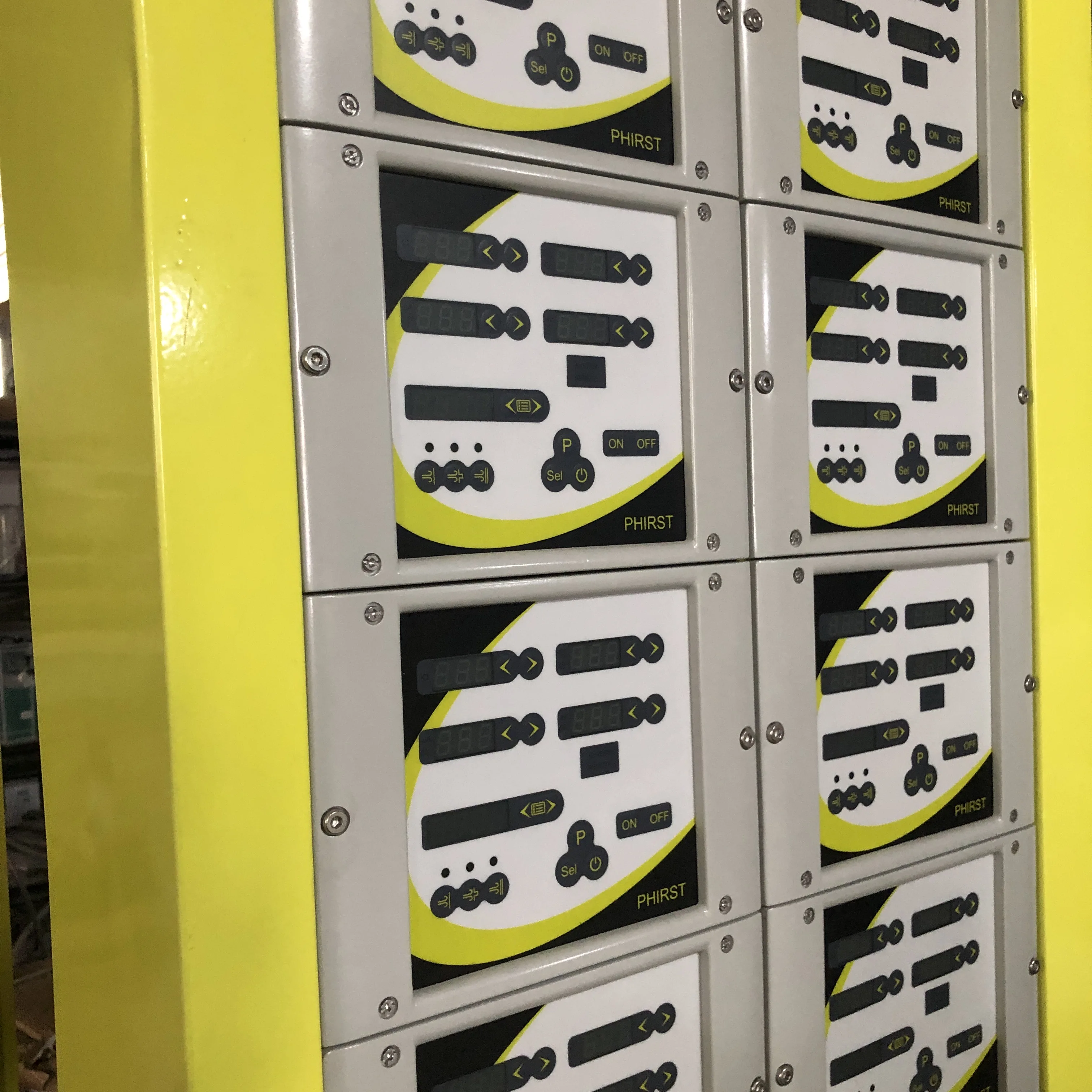

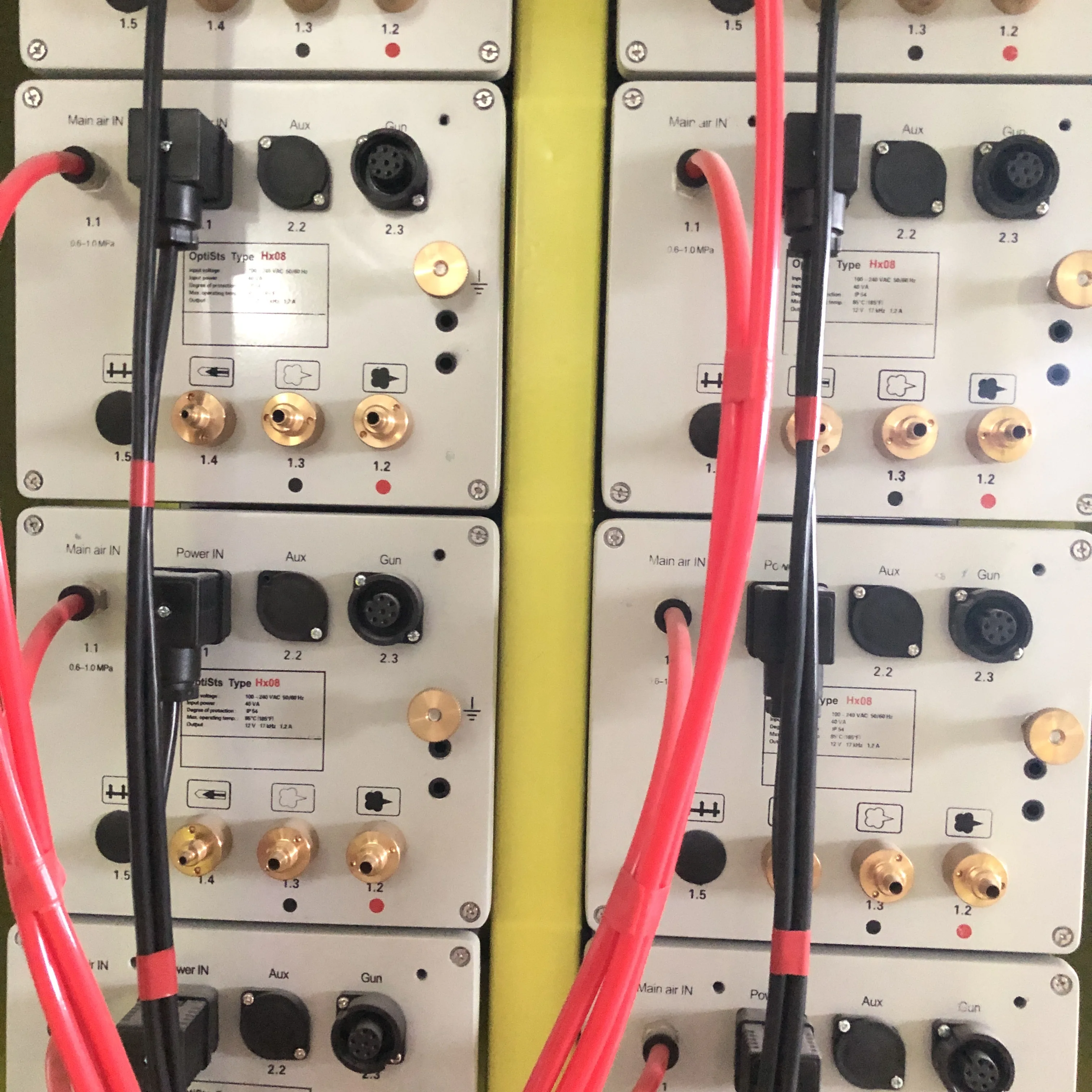

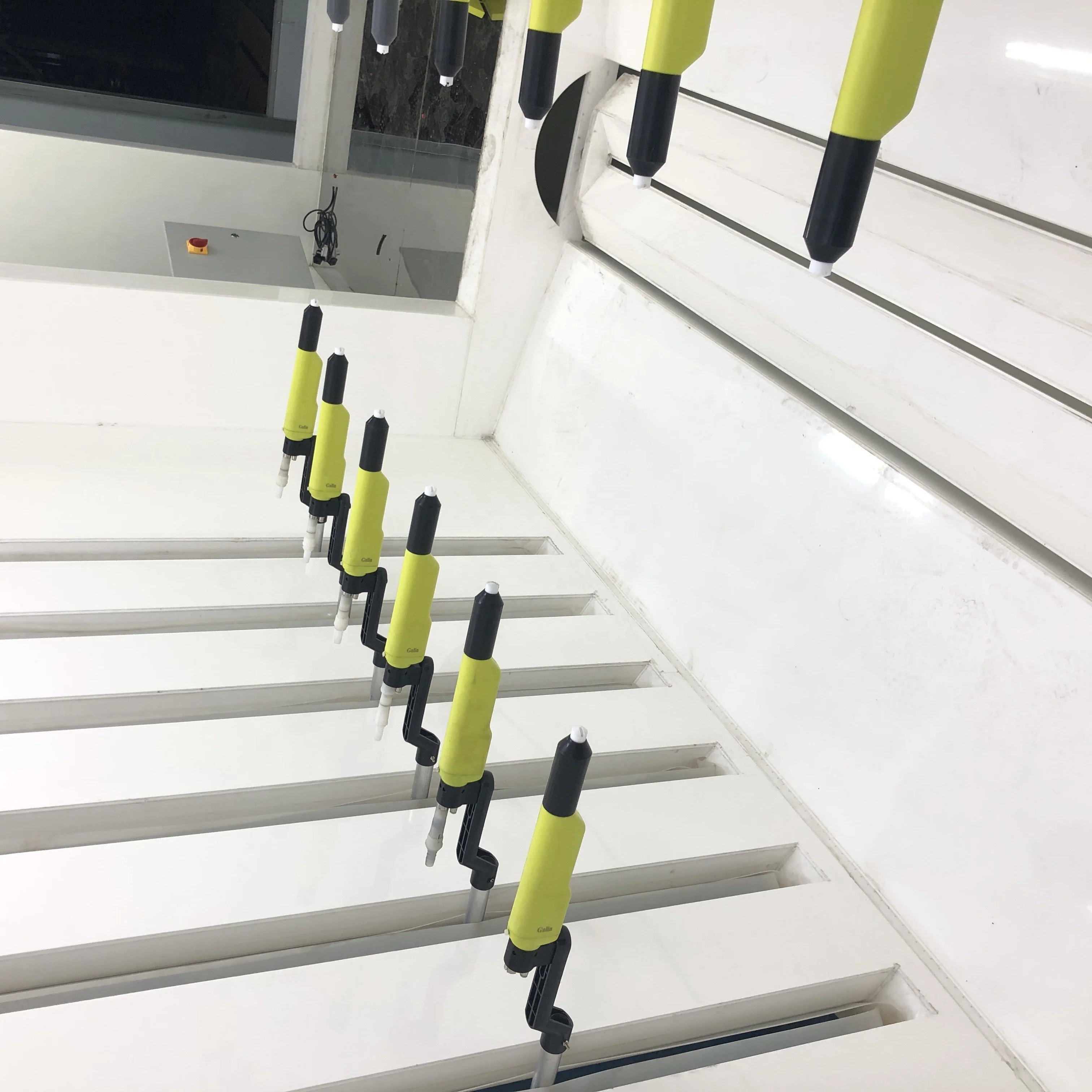

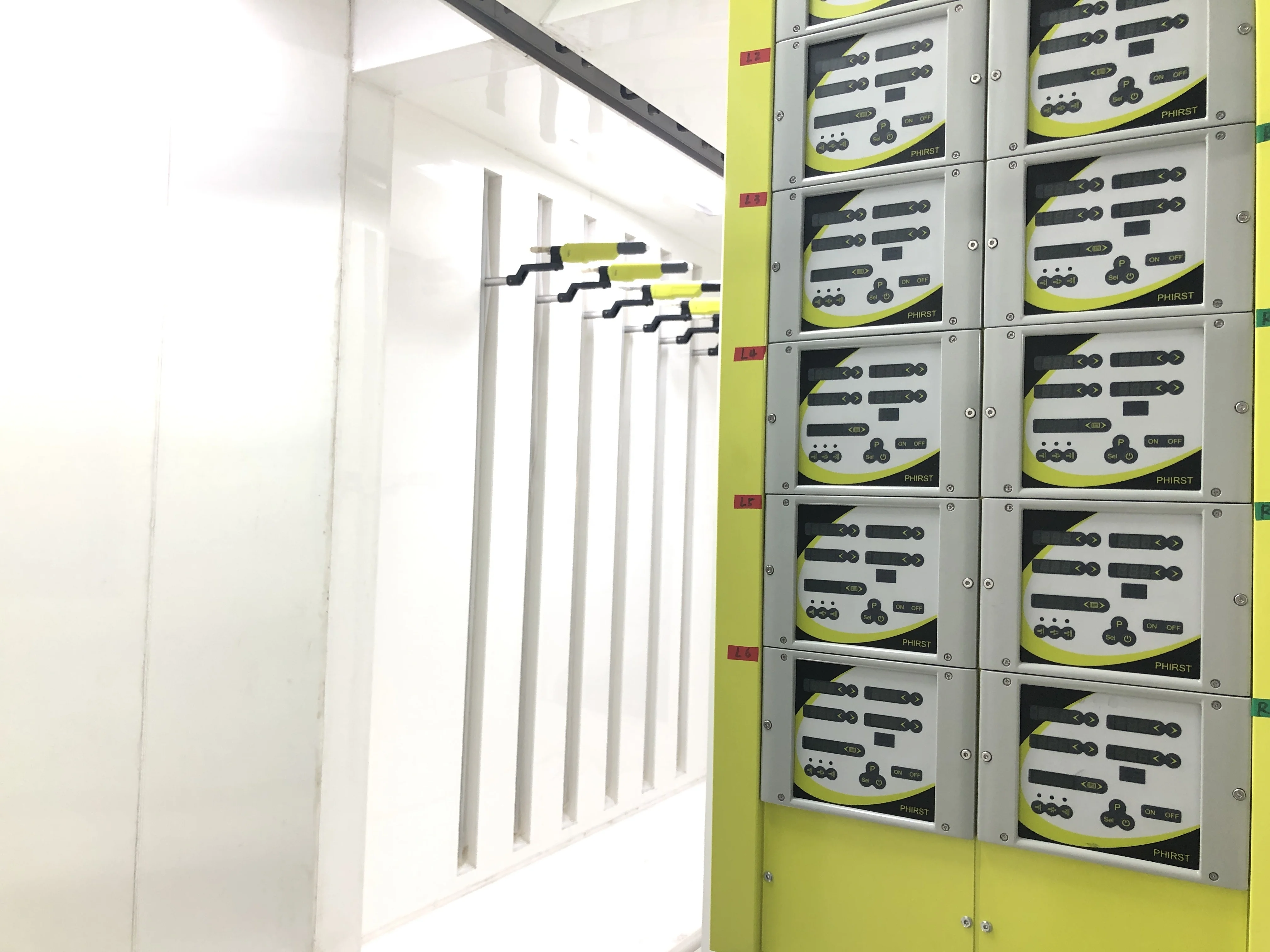

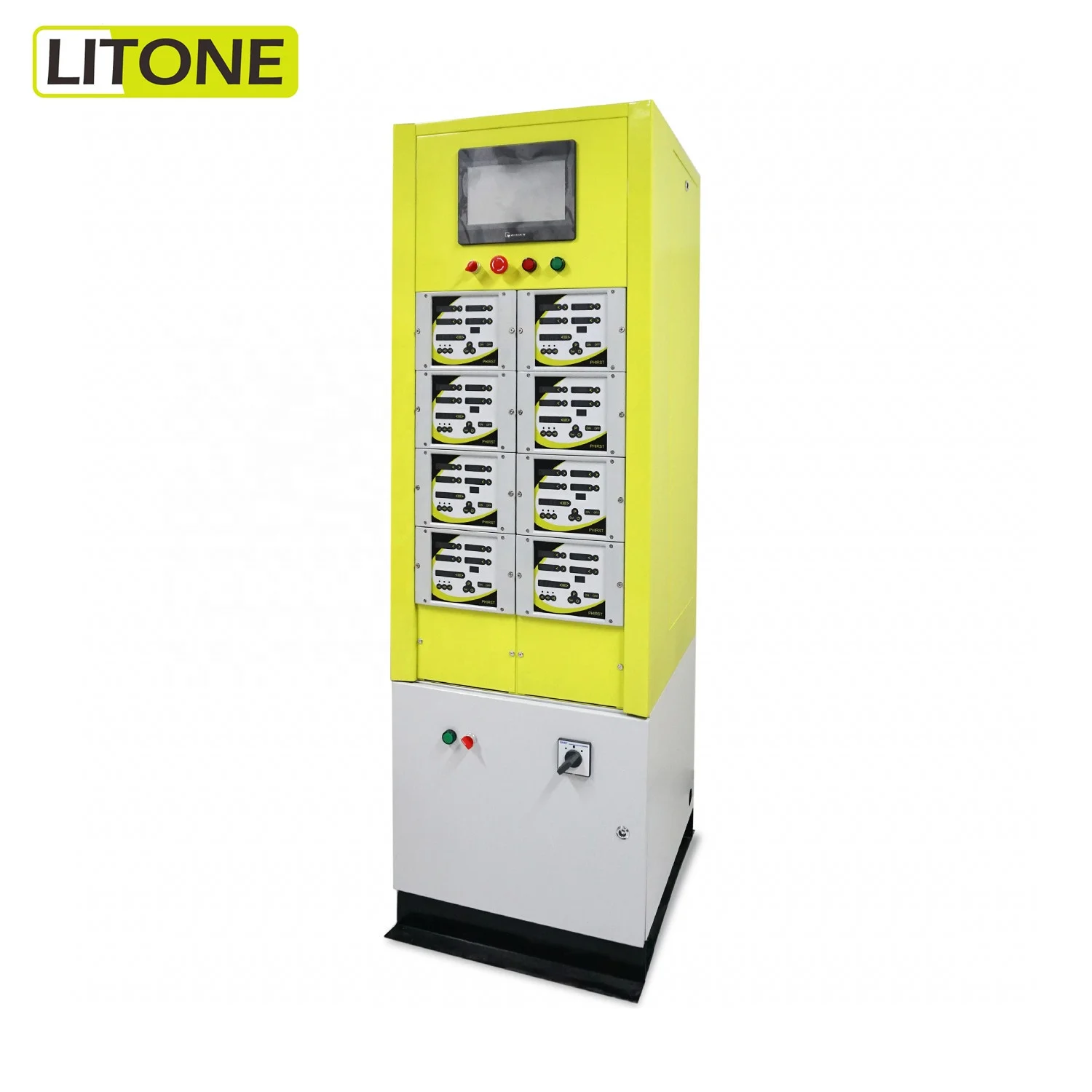

Product Photo

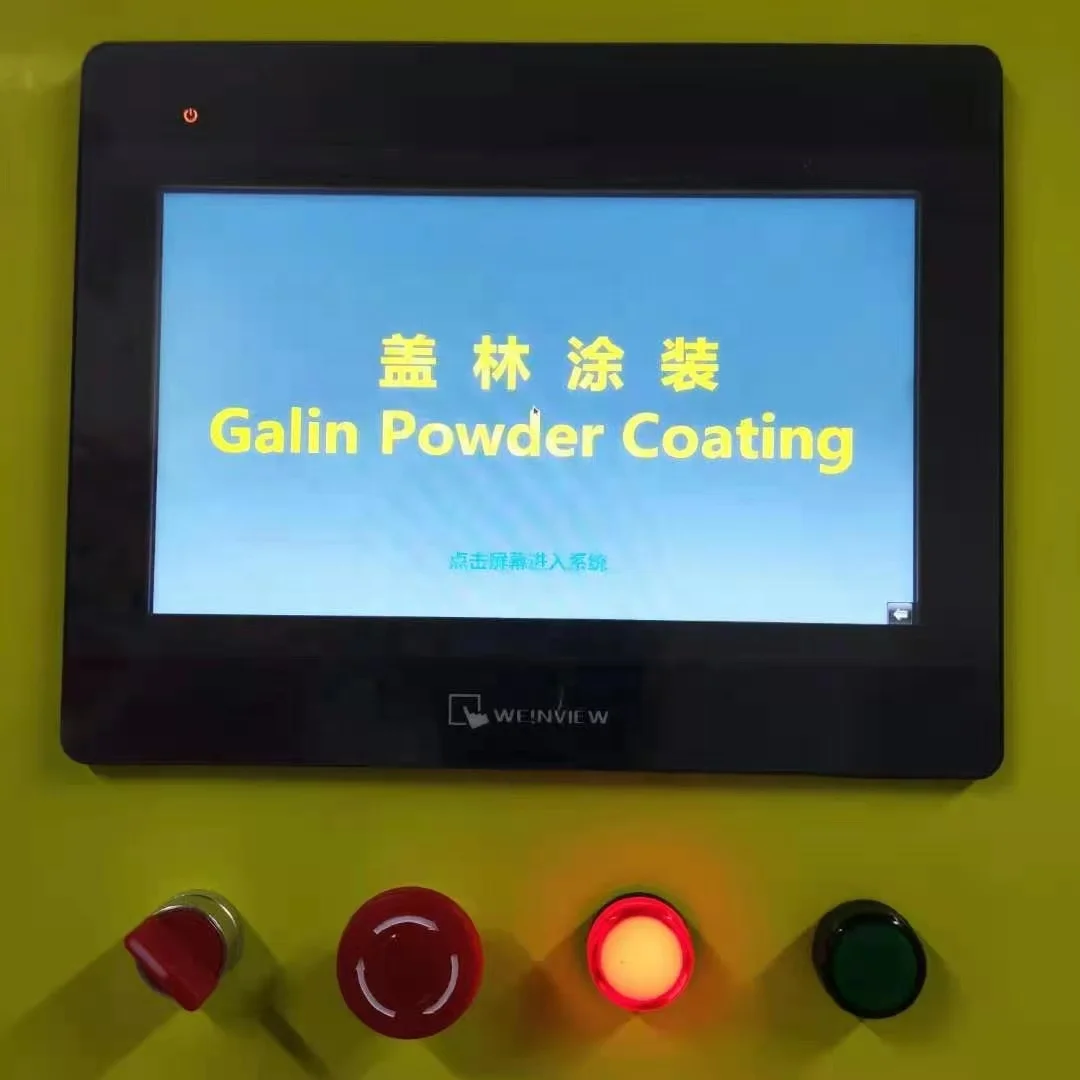

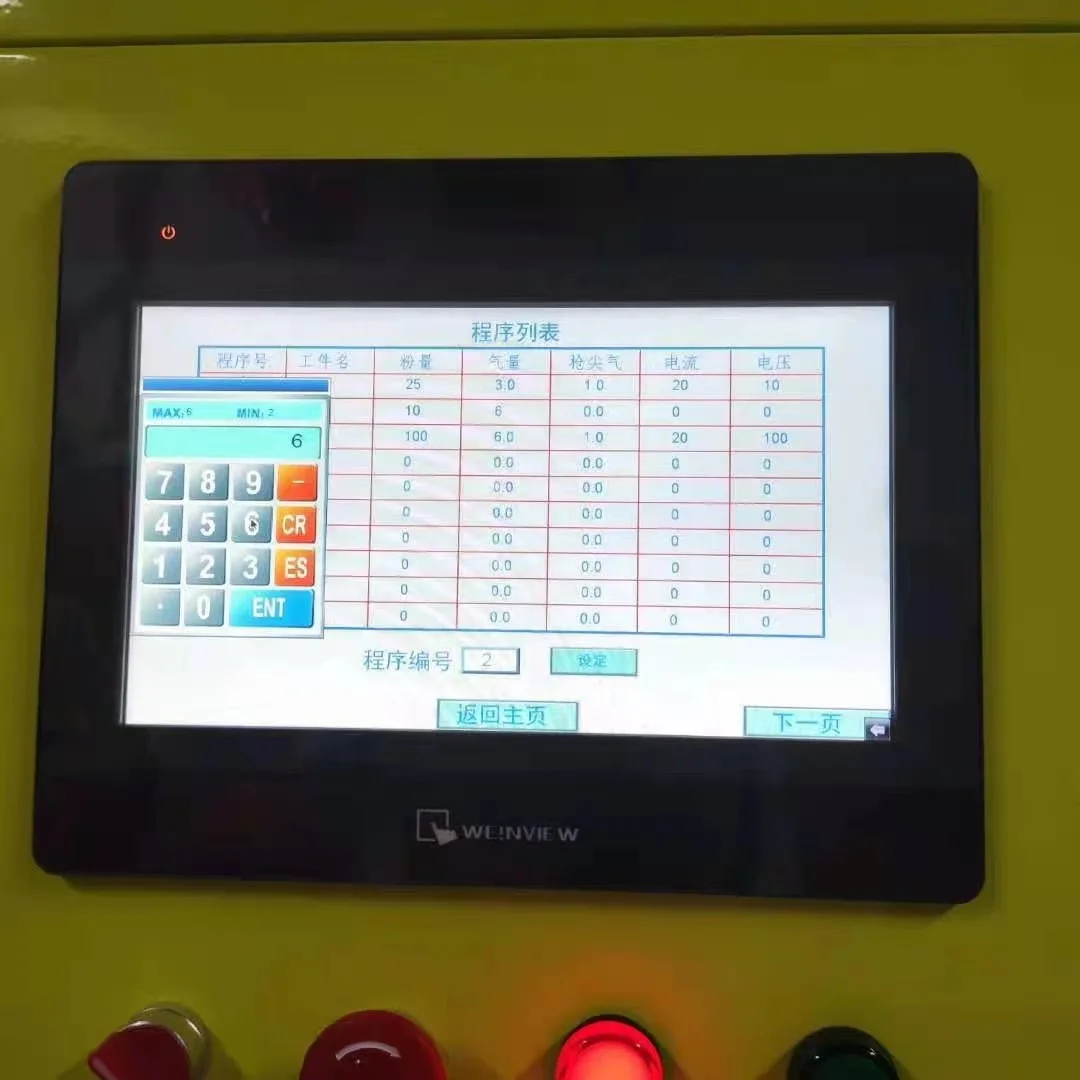

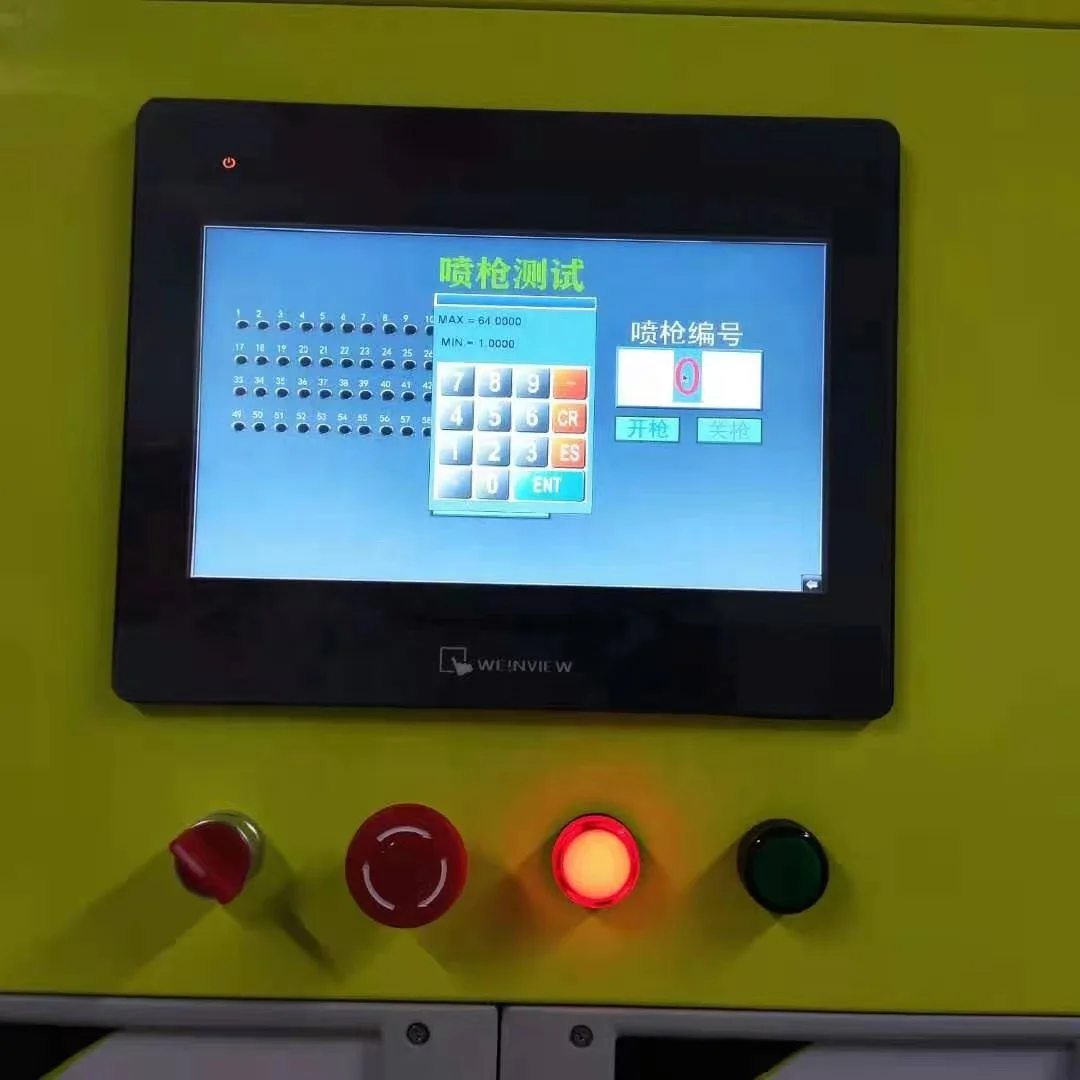

Variety of programs are available
There prest modes of flat plate,angle and re-coating.20 kinds of editing programs in manual coating mode and 250 kinds in automatic coating mode.
Reduce high voltage loss
The special formulation of gun shell and cascade material can reduce the loss of high-voltage static electricity,when the high-voltage electricity reaches the nozzle,it is still full load.
Large powder output
Special insert design increases powder output
Wear resistant and powder free material
Te flon material is standard .
Product Paramenters
Electrical data | Nominal input voltage | 220V (100V-240VAC) |
Frequency | 50/60 Hz | |
Nominal output voltage (to gun) | eff.10 V | |
Nominal output current(to gun) | max. 1.2 A | |
Connection and output for vibrator (on Aux output) | 110/230 VAC max. 100W | |
Connected load (without vibrator) | 140VA | |
Connection for rinsing function (valve) | 24VDC max.3 W | |
Gun output voltage | 0-100KVDC | |
Gun output current | 0-100μA | |
Pneumatical data | MAX.input pressure | 10 bar |
MIN.input pressure | 6 bar | |
Input pressure | 5.5 bar/80 psi | |
Max.water vapor content of the compressed air | 1.3g/m³ | |
Max.oil vapor content | 0.1mg/m³ | |
Max.compressed air consumption | 8 Nm³/h | |
Gun paramter | Input | 0-15VDC |
Voltage Frequency | Around 20KHZ | |
Input Current | <0.5A | |
Output Voltage | 15~100KV negative | |
Max.Output powder volume | Around 600G/MIN | |
Gun cable | 4 M | |
Gun weight | 425g |
DIMENSIONS | ||
Size | 460mm*862mm*1105mm | |
Weight | 42kg | |
Certifications
FAQ
1.Application: used for the powder coating and line, plant
2.Shipping: can ship to any port by sea, air or courier.3.Payment methods: T/T, L/C, Western Union,PayPal, escrow.
4.Packing: proper packing suitable for container loading

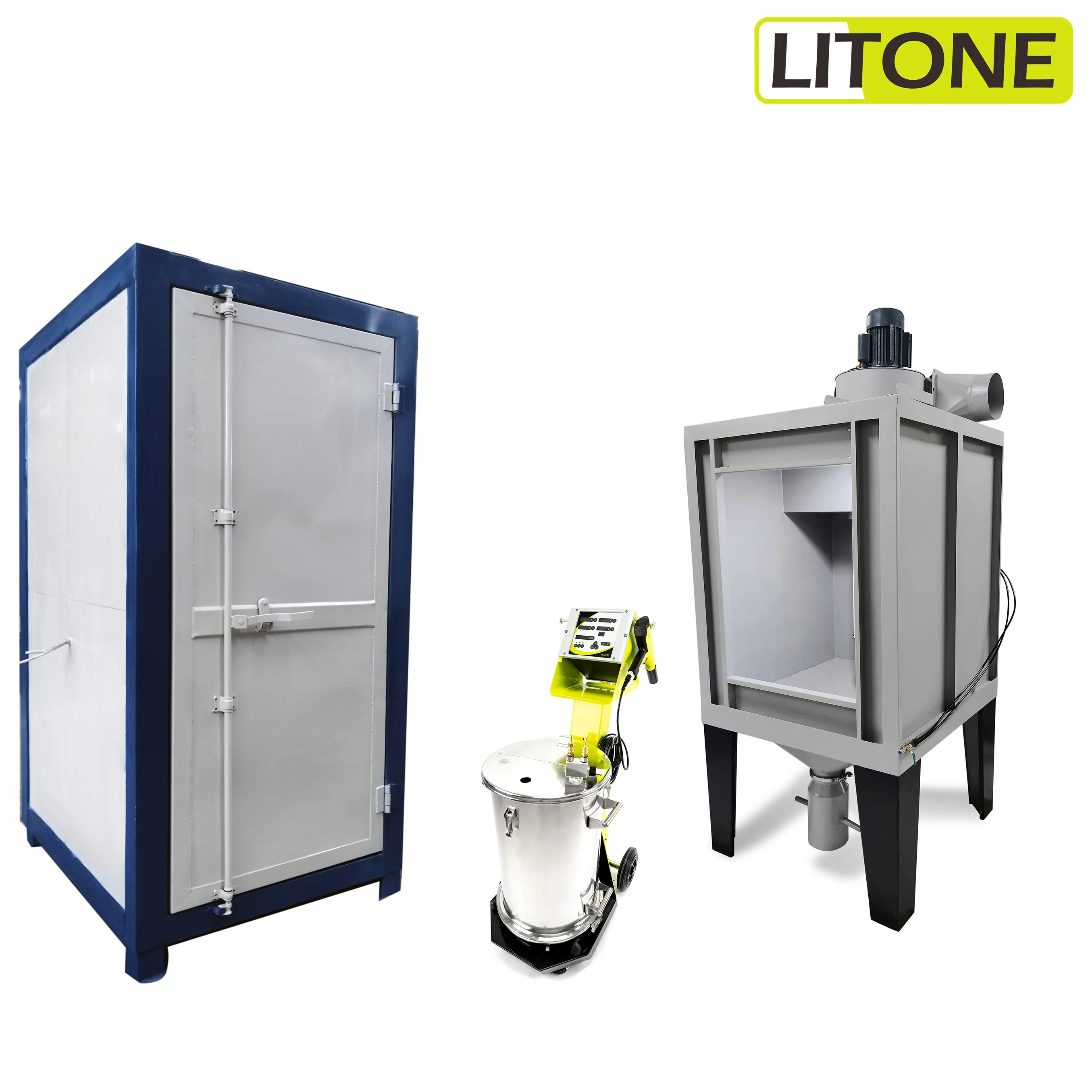

5.Services: we supply all kinds of euipments about the powder coating,such as booth,hopper,powder coating machine/unit,electrostatic spray gun ,panel controller,HV cascade,PCB,powder injector pump ,powder hose,filter and other parts and so on.
Product packaging
Shipping

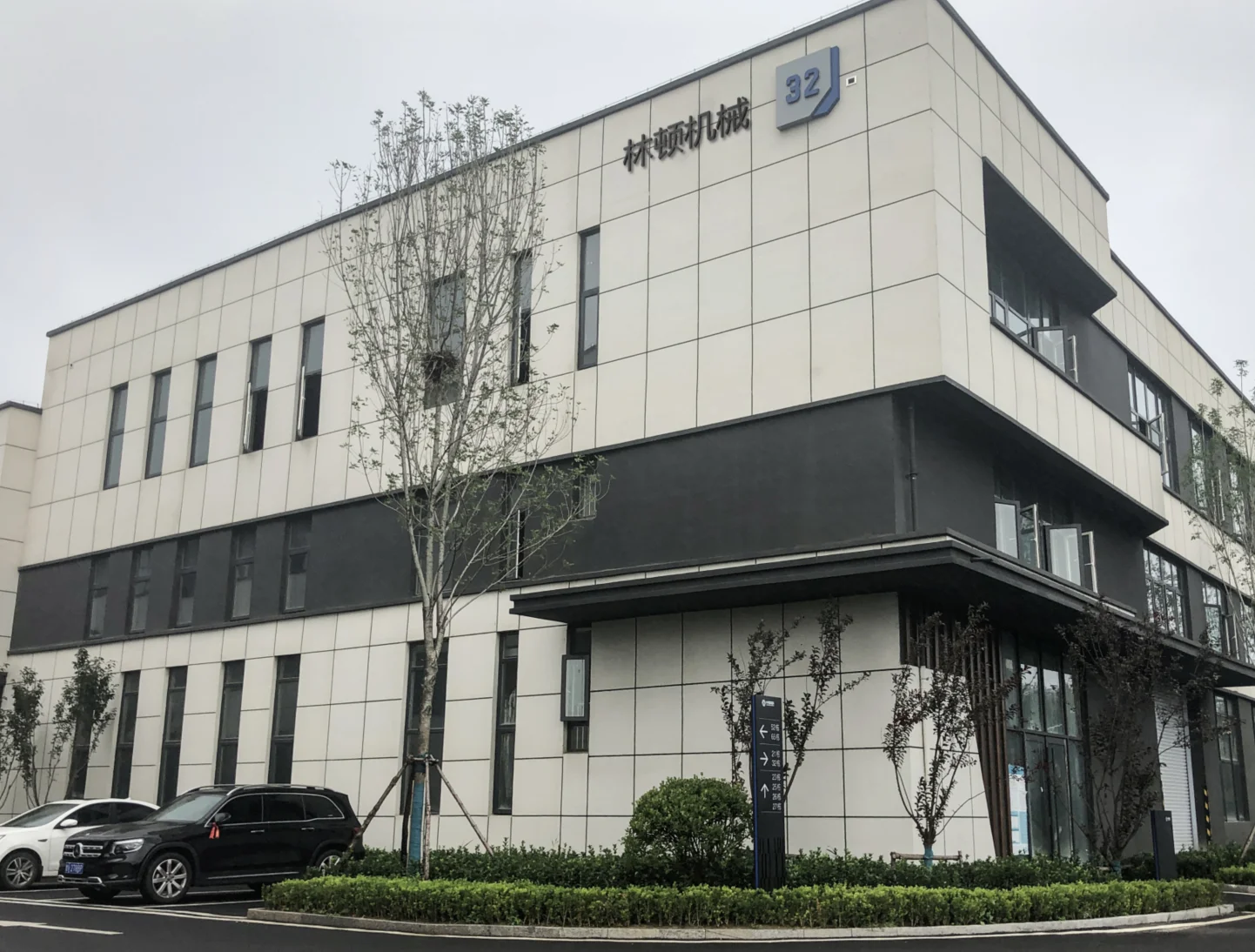

Company Profile
Weifang Litone Machinery Co., Ltd.
Located in Shandong,China,specilizes in production and sells high-quality powder coating equipment with CE certification.
Main Market:North Ameriac,South Amercia,Europe,Africa,Southeast Asia,the Middle East,Australia,etc.
Applicant area:car,furniture,aviation,hardware,etc.
Litone will continue to adhere to the principle of quality first and provide the best service for customers.
Our company is a self-produced and self-sold company, which integrates R&D, production, sales, and after-sales. We can provide you with a series of spraying equipment and parts that are suitable for you. There is always one suitable for you. In the field of spraying equipment, our company is committed to the pursuit of high quality and low price, and to provide customers with the best
service.
If you need ,PLS contact me .I will provide a best quotation and the best service.
