Battery recycling plant equipment electric car waste lithium battery recycle machine
- Category: >>>
- Supplier: Gongyi Baoyuan Machinery Co. Ltd.
Share on (1600550874830):
Product Overview
Description
Products Description
Brief Introduction
Waste photovoltaic panel recycling equipment, through physical crushing and sorting, extracts silicon powder, copper powder and plastics with high market value. There are generally three main steps in the recycling of photovoltaic modules: first, dismantle the modules by machine or manually, remove the backplane, wires and aluminum frame; second, crush the modules, and remove the tempered glass; The battery panels are crushed and sorted to extract metals and plastics.
The main components of photovoltaic modules are aluminum frame, glass, battery sheet, EVA film and back plate. Among them, the main component of glass is silicon dioxide, and the secondary components are soda ash, limestone, magnesia, alumina, Glauber's salt, carbon; EVA is mainly ethylene-vinyl acetate copolymer; the core component of the cell is mainly monocrystalline silicon and Polysilicon; the main material of the frame is metal aluminum; the back plate is composed of two layers of PVF film and one layer of PET film. More than 90% of these materials can be recycled.
The main components of photovoltaic modules are aluminum frame, glass, battery sheet, EVA film and back plate. Among them, the main component of glass is silicon dioxide, and the secondary components are soda ash, limestone, magnesia, alumina, Glauber's salt, carbon; EVA is mainly ethylene-vinyl acetate copolymer; the core component of the cell is mainly monocrystalline silicon and Polysilicon; the main material of the frame is metal aluminum; the back plate is composed of two layers of PVF film and one layer of PET film. More than 90% of these materials can be recycled.
Product Features
Process flow:

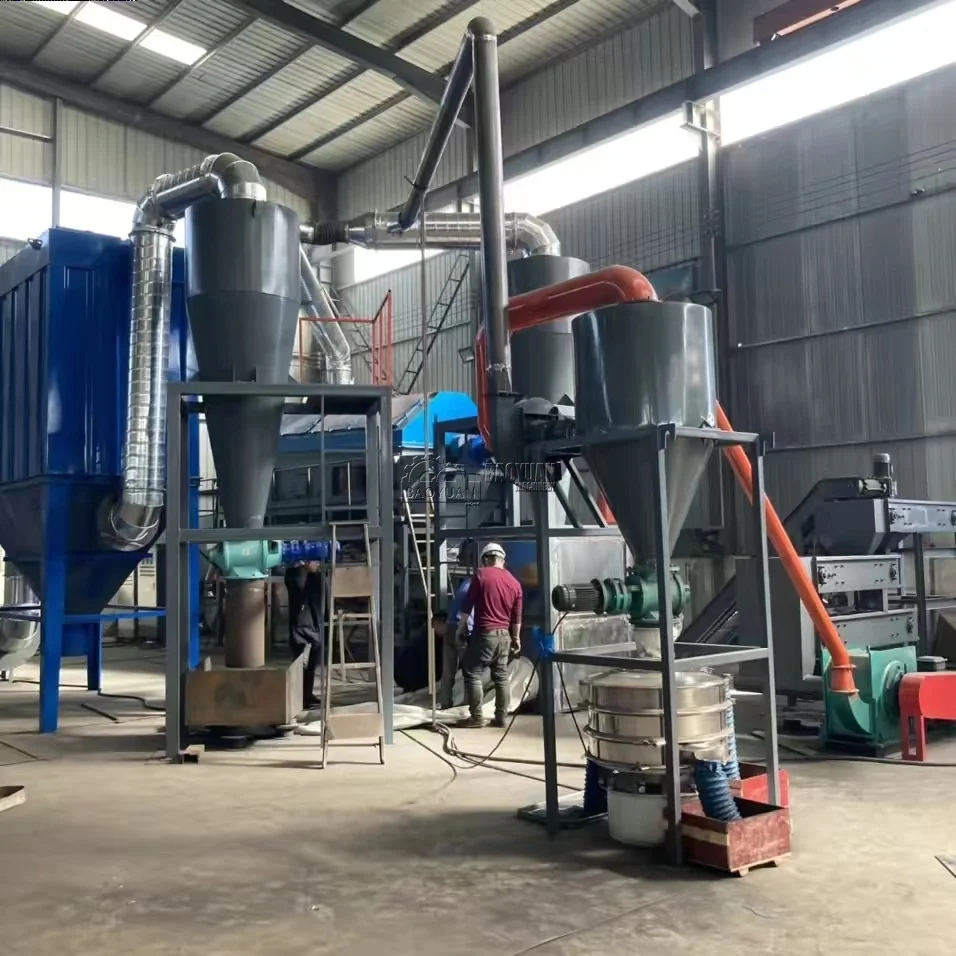

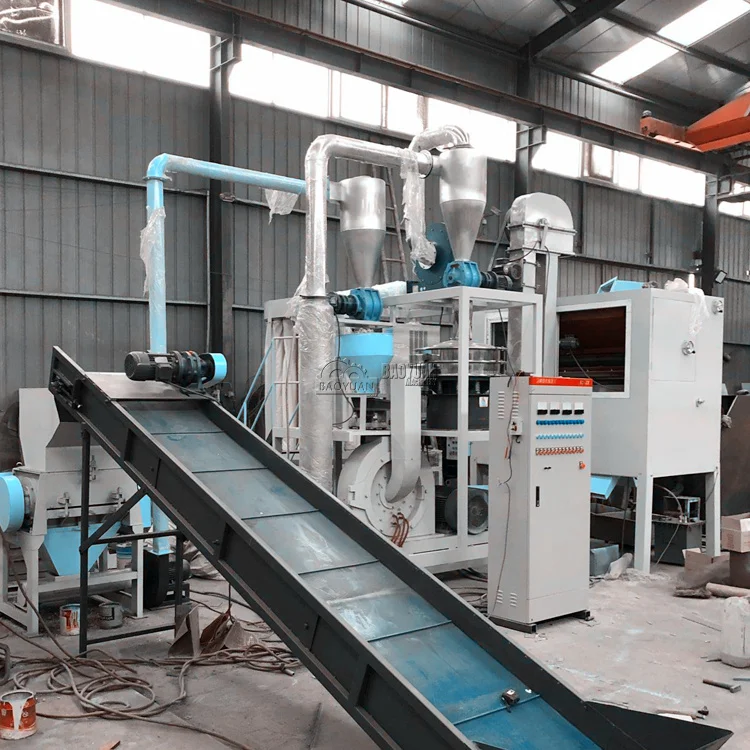

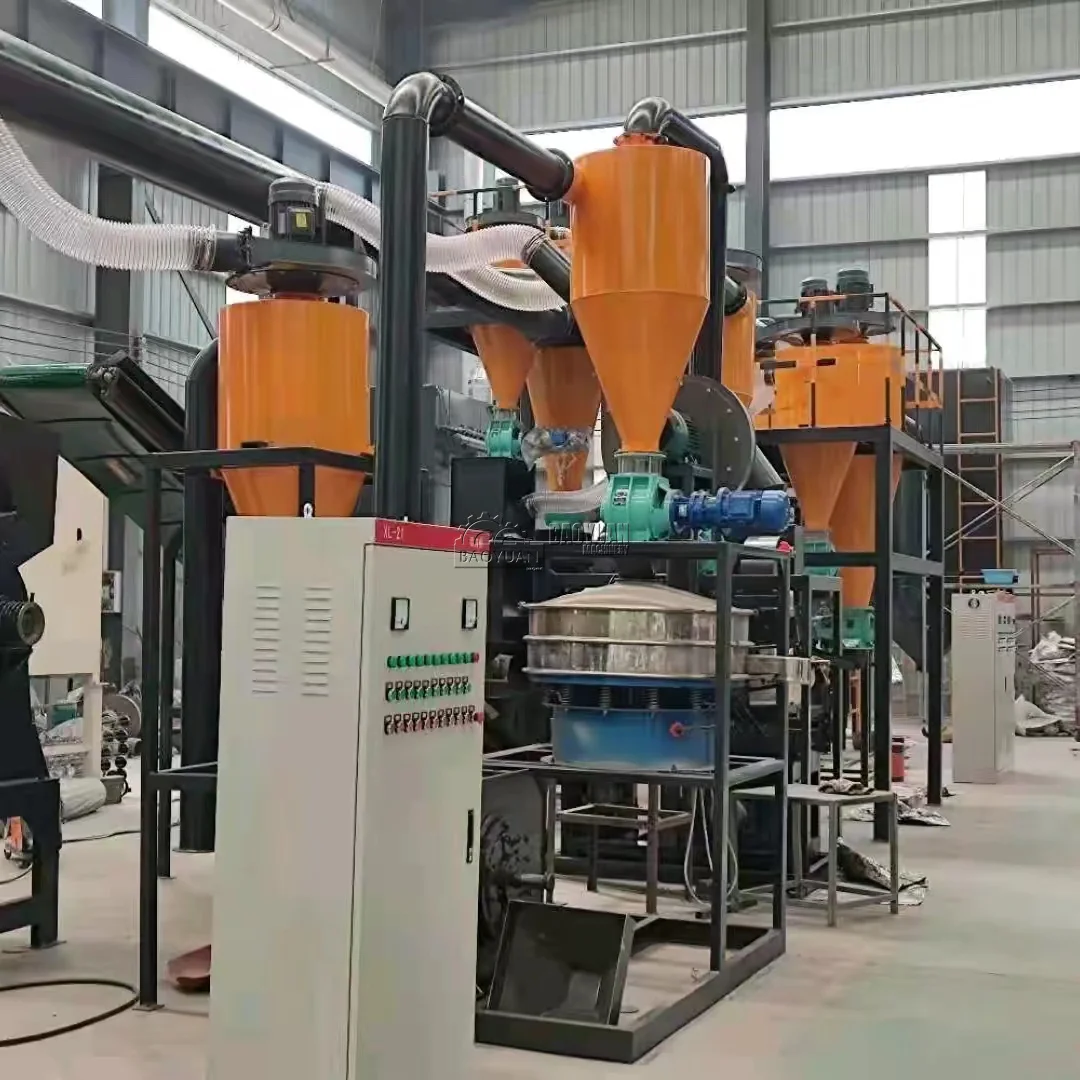

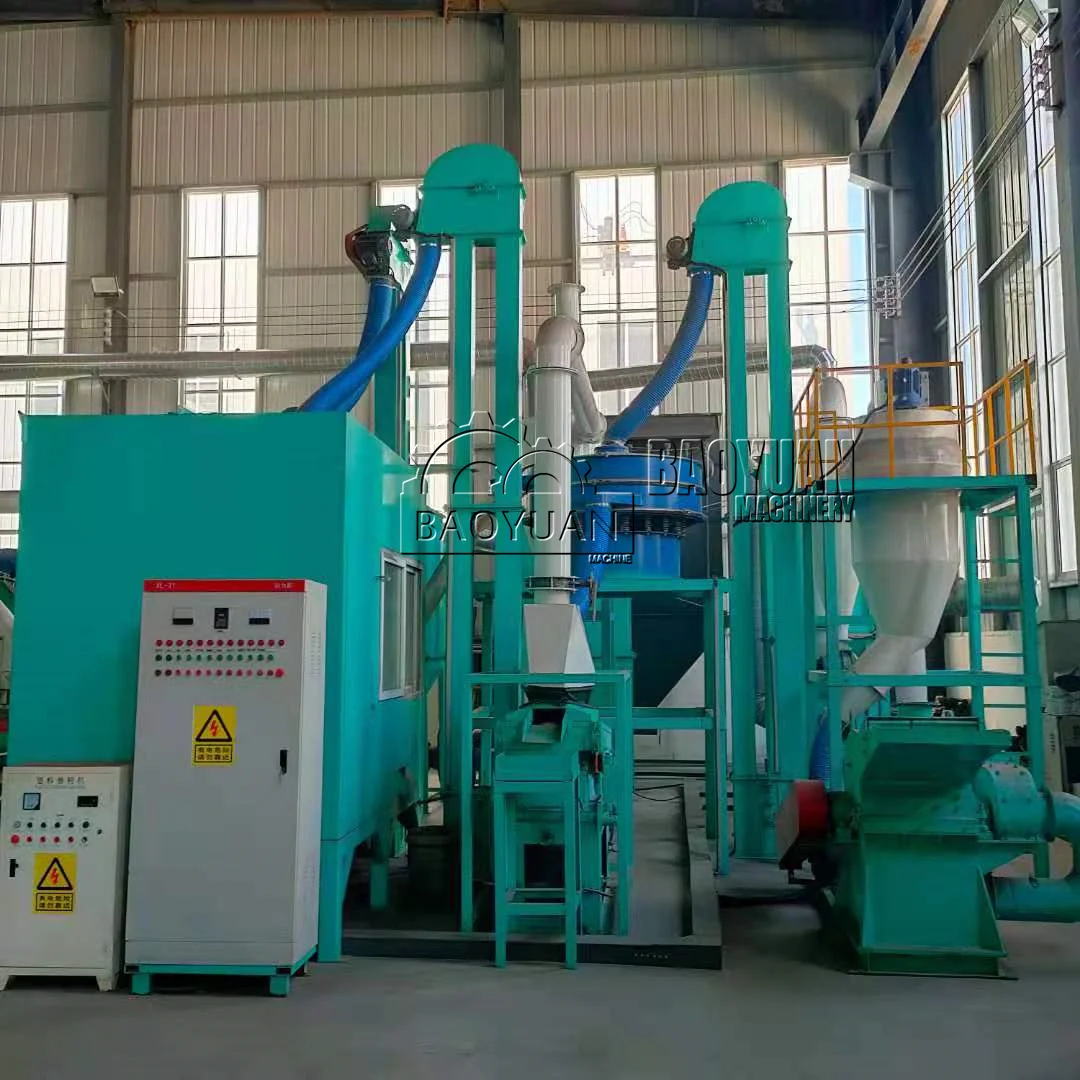

The scrapped photovoltaic panels enter the shredder for shredding, and the shredded materials enter the shredder for crushing. The EVA film and monocrystalline silicon wafers are broken up. The broken materials enter the collector through the induced draft fan, and then are sorted. , sort out the silicon, and the remaining mixed material enters the pulverizer, and then enters the airflow sorting screen through the air locker, and the positive metal and plastic are collected through the airflow plus vibration, and the dust generated by the airflow sorter is collected at the same time .
Technical Parameters
Model | Power (Kw) | Capacity (Kg/H) | Dimension (m) |
BY300 | 102 | 200-300 | 20*5*5 |
BY500 | 134 | 400-500 | 25*6*5 |
BY800 | 194 | 600-800 | 30*6*5 |
BY1000 | 238 | 800-1000 | 35*8*5 |
Features:
1. Using crushing and sorting technology to realize the reuse of solar panels.
2. Compact structure, reasonable layout, stable performance and low noise.
3. The waste photovoltaic panel recycling and processing equipment adopts PLC to control the entire production line to feed materials evenly and coordinate operation.
4. The efficiency of the pulse dust removal equipment is as high as 99%, and the dust can be volatilized effectively, which fully meets the environmental protection requirements "Comprehensive Emission Standard of Air Pollutants" GB16297-1996, and has no secondary pollution.
1. Using crushing and sorting technology to realize the reuse of solar panels.
2. Compact structure, reasonable layout, stable performance and low noise.
3. The waste photovoltaic panel recycling and processing equipment adopts PLC to control the entire production line to feed materials evenly and coordinate operation.
4. The efficiency of the pulse dust removal equipment is as high as 99%, and the dust can be volatilized effectively, which fully meets the environmental protection requirements "Comprehensive Emission Standard of Air Pollutants" GB16297-1996, and has no secondary pollution.
Our Advantages
Processable raw materials: used to process various waste solar photovoltaic panels, photovoltaic modules, etc., extract the metals
inside, and reuse resources. The equipment can recycle 95% of the material in crystalline silicon photovoltaic panels, and it is specially designed to deal with "crystalline silicon" photovoltaic panels that have reached the end of their life. A typical crystalline silicon solar panel is made of 65-75% glass, 10-15% aluminum frame, 10% plastic and 3-5% silicon. The photovoltaic panel recycling equipment produced by Resec can dismantle, sort, process and recycle 98% of its materials.
inside, and reuse resources. The equipment can recycle 95% of the material in crystalline silicon photovoltaic panels, and it is specially designed to deal with "crystalline silicon" photovoltaic panels that have reached the end of their life. A typical crystalline silicon solar panel is made of 65-75% glass, 10-15% aluminum frame, 10% plastic and 3-5% silicon. The photovoltaic panel recycling equipment produced by Resec can dismantle, sort, process and recycle 98% of its materials.
Finished products that can be processed: After the sorted materials are processed and packaged, they will be sent to different
industries for reuse. Two-thirds of glass is recycled as cullet, which is sent to the glass manufacturing industry; aluminum frames are sent to aluminum refineries; waste plastics can be used as fuel in cement plants; and recycled silicon can be recycled in the precious metals industry. Utilize; leftover cables and connectors are crushed and sold as copper beads.
industries for reuse. Two-thirds of glass is recycled as cullet, which is sent to the glass manufacturing industry; aluminum frames are sent to aluminum refineries; waste plastics can be used as fuel in cement plants; and recycled silicon can be recycled in the precious metals industry. Utilize; leftover cables and connectors are crushed and sold as copper beads.
Most materials of waste photovoltaic modules can be recycled. Although the silver, aluminum, tin and other metals contained in them are small in content, they have high recycling value. Using waste photovoltaic panel crushers and waste photovoltaic panel
crushing equipment production lines can process the dismantling of power stations Components, dismantling of photovoltaic power generation panels, cells, silicon wafers, monocrystalline skins, monocrystalline silicon, polycrystalline skins, primary polycrystalline, polycrystalline square ingots, re-doped silicon materials, etc. to achieve the sorting process and results.
crushing equipment production lines can process the dismantling of power stations Components, dismantling of photovoltaic power generation panels, cells, silicon wafers, monocrystalline skins, monocrystalline silicon, polycrystalline skins, primary polycrystalline, polycrystalline square ingots, re-doped silicon materials, etc. to achieve the sorting process and results.
