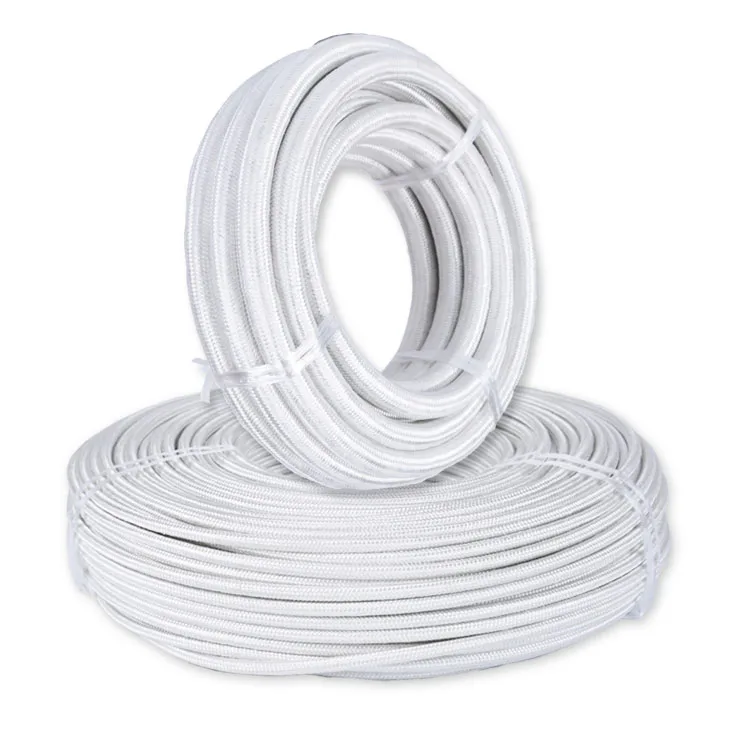

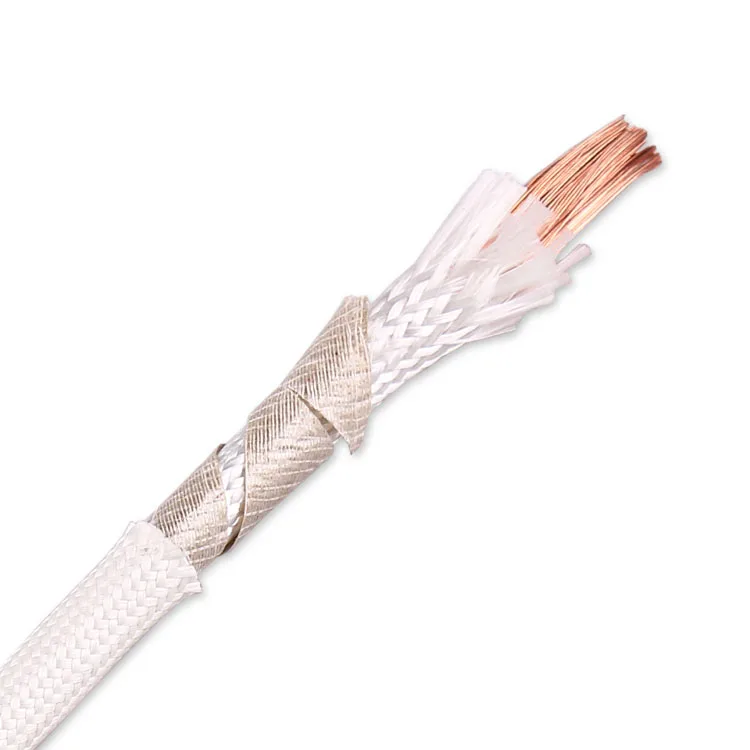

2.5 square 500C Mica Tape High Temperature Cable Fire resistant Electrical Wire
- Category: >>>
- Supplier: Taizhou Yuling Electrical Appliance Co. Ltd.
Share on (1600550876612):
Product Overview
Description
Product Description
2.5 square 500C Mica Tape High Temperature Cable Fire-resistant Electrical Wire
Feature
Mica high temperature wire temperature tolerance of 500 °C and 600°CSpecification: 0.5mm², 0.75mm², 1mm², 1.5mm², 2mm², 2.5mm², 4mm², 6mm².
Operating voltage: 600V or less (AC)
Temperature range: 0-500°C
Long-term allowable use temperature 500 C
Laying conditions: fixed laying
Relative temperature: 65%
Can be bent to use, plus the flame does not burn, no harmful toxic gases.
GN500 C refractory high temperature, anti-aging, wear, flexible bending performance. Can be bent to use, plus flame does not burn, fire retardant, long service life.

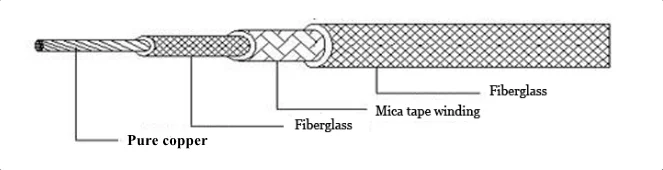

Structure
Conductor: Pure Copper
Insulation: Fiberglass Wrapping
Jacket: Fiberglass Braid
Conductor: Pure Copper
Insulation: Fiberglass Wrapping
Jacket: Fiberglass Braid
Application
Applicable to high-temperature environment AC rated voltage 600V or less electrical circuit installation and connection, widely used in electromagnetic heating coil, metallurgy, petroleum, chemical, oil refining, natural gas and other special environments, various mechanical manufacturing fields, various electrical devices requiring fire performance The required wire and cable, as well as various electric heating equipment, electric heating devices and so on.
Applicable to high-temperature environment AC rated voltage 600V or less electrical circuit installation and connection, widely used in electromagnetic heating coil, metallurgy, petroleum, chemical, oil refining, natural gas and other special environments, various mechanical manufacturing fields, various electrical devices requiring fire performance The required wire and cable, as well as various electric heating equipment, electric heating devices and so on.
Specification
Conductor | Outer Diameter mm | Electrical Properties | Packing | ||
Sectional Area mm2 | Jacket Thickness mm | Max Conductor Resistance DC 20°C | M/coll | ||
0.50 | 7x0.30 | 2.6±0.3 | 39.0 | 200 | |
0.75 | 11x0.30 | 2.7±0.3 | 26.0 | 200 | |
1.0 | 7X0.41 | 2.8±0.3 | 19.5 | 200 | |
1.5 | 21x0.30 | 3.0±0.3 | 13.3 | 100 | |
2.0 | 28x0.30 | 3.3±0.3 | 10.0 | 100 | |
2.5 | 35x0.30 | 3.6±0.5 | 7.98 | 100 | |
4.0 | 56x0.30 | 4.5±0.5 | 4.95 | 100 | |
6.0 | 84x0.30 | 5.5±0.5 | 3.30 | 100 | |
10 | 140x0.30 | 6.6±0.5 | 1.91 | 100 | |
16 | 228x0.30 | 7.8±0.5 | 1.21 | 100 | |
25 | 361x0.30 | 9.5±0.5 | 0.78 | 100 | |
35 | 494x0.30 | 11.2±1.0 | 0.554 | 100 | |
50 | 703x0.30 | 13.2±1.0 | 0.386 | 100 | |
70 | 988x0.30 | 15.4±1.0 | 0.272 | 100 | |
95 | 960x0.40 | 17.4±1.0 | 0.206 | 100 | |
Details Images

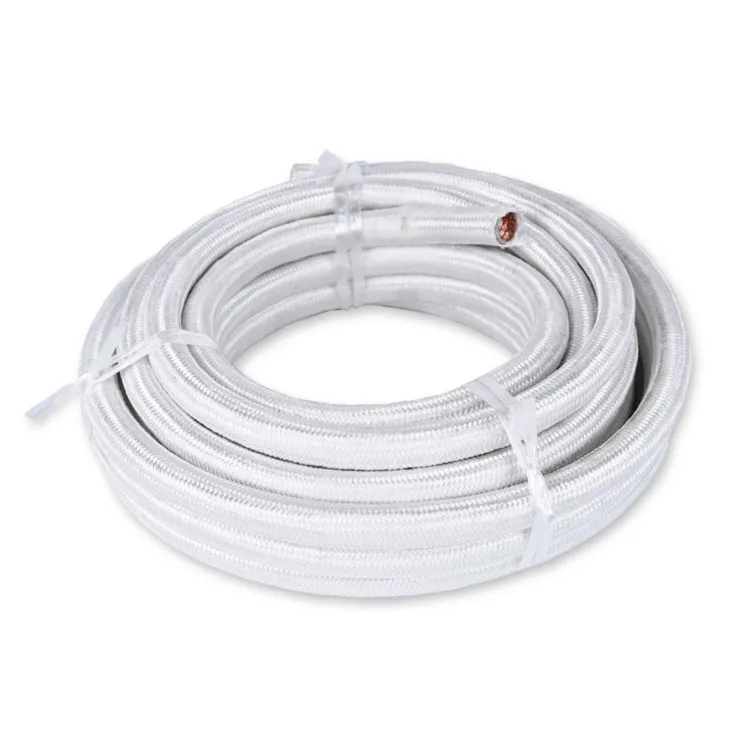

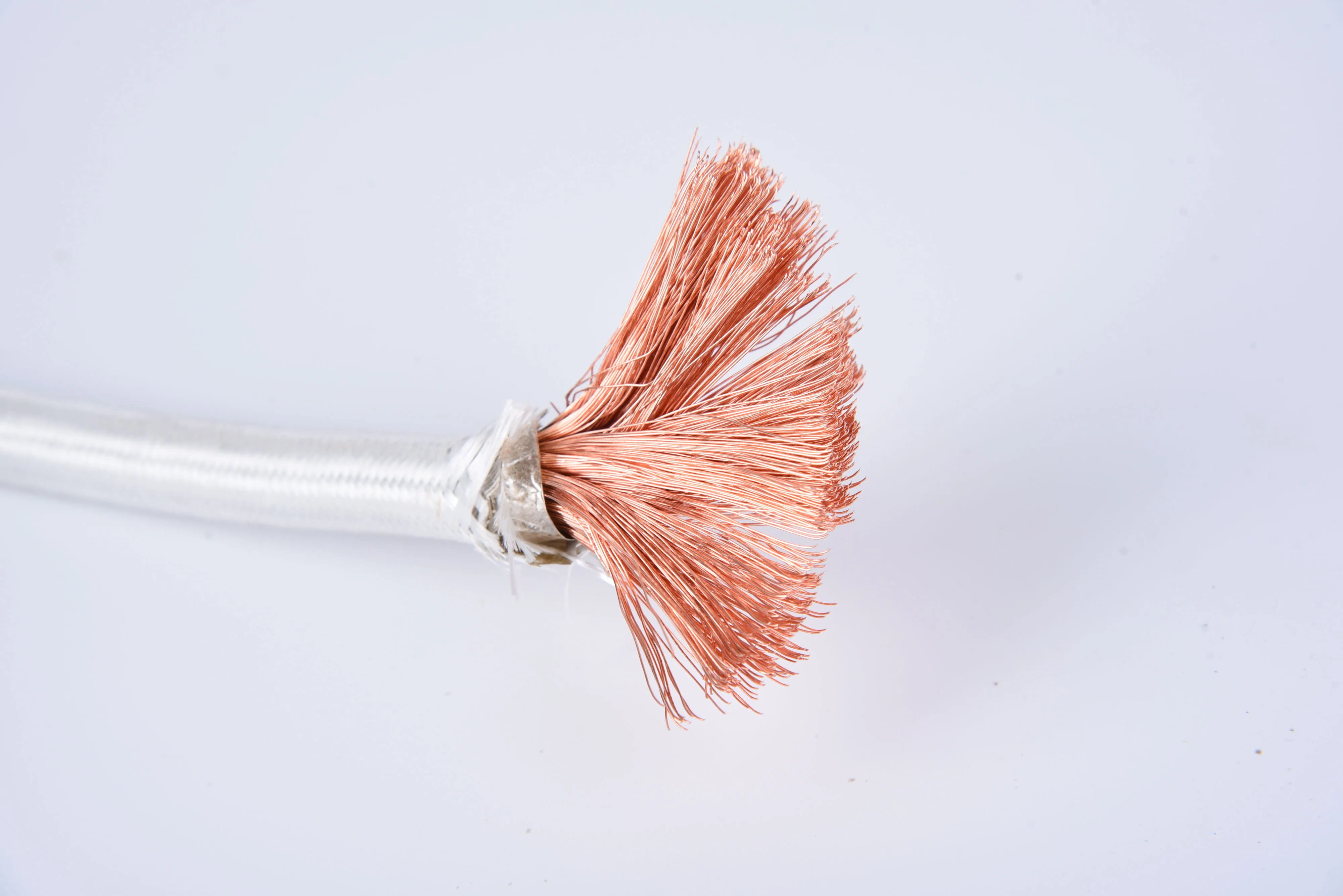

GN500 degree mica high temperature cable

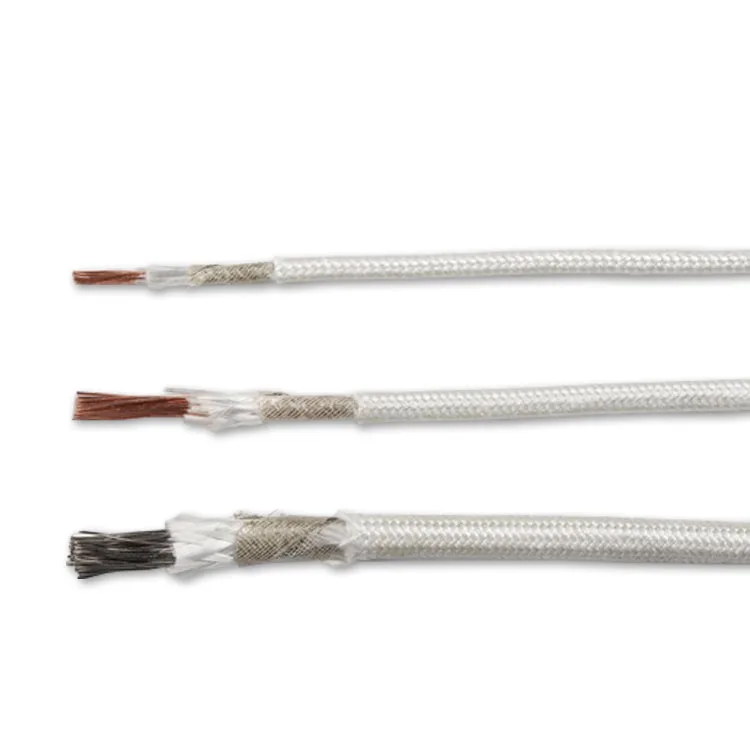

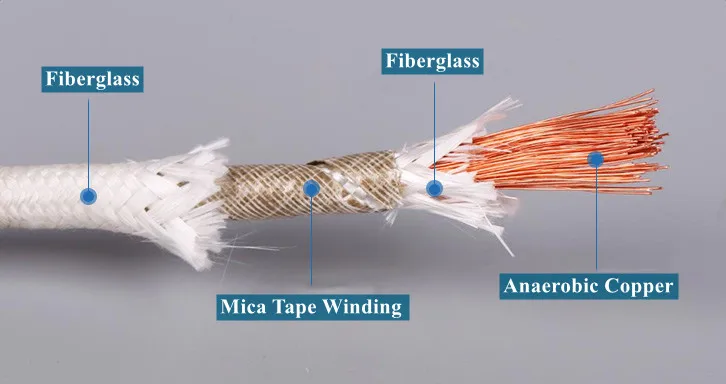

Adopt pure copper wire, high temperature resistant fire retardant braided layer, mica wrapping high temperature resistant

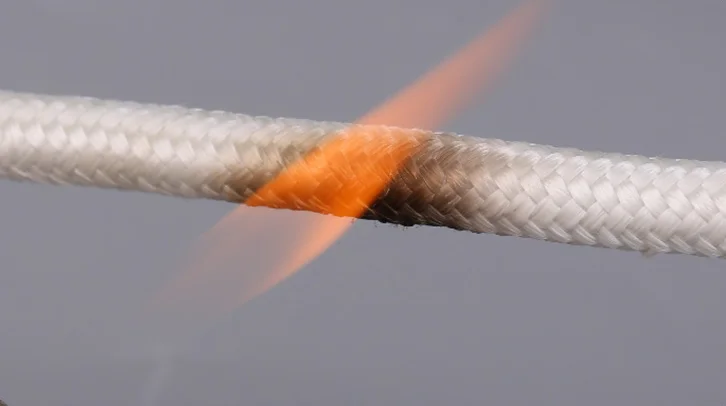

Self - flameout, good flame retardant
High purity alkali - free glass fiber has good flame retardancy and self - extinguishing

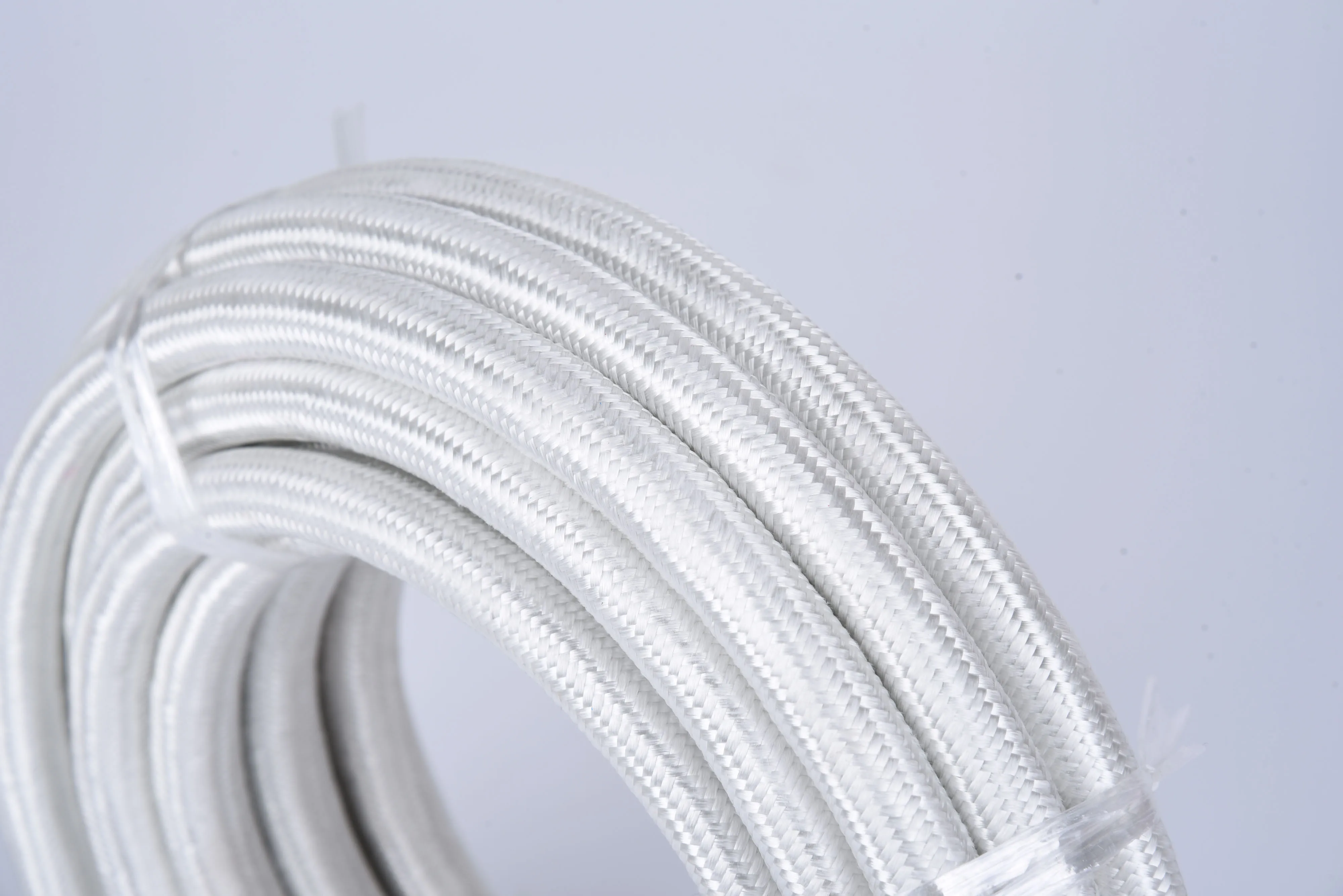

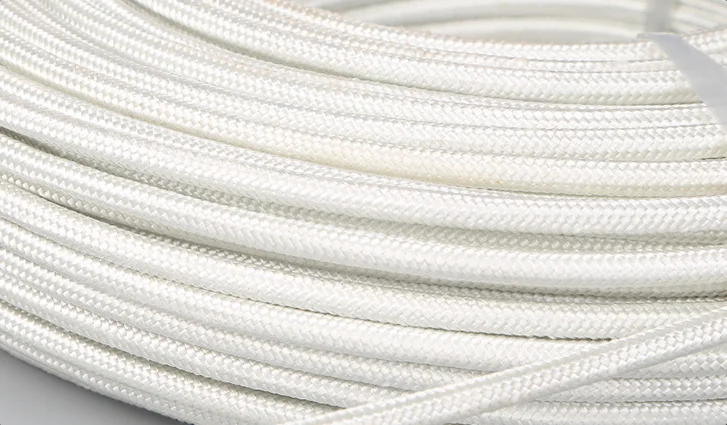

Good flexibility
Refractory mica tape wrapped + two layers of glass fiber temperature -60~500 degrees, fire retardant

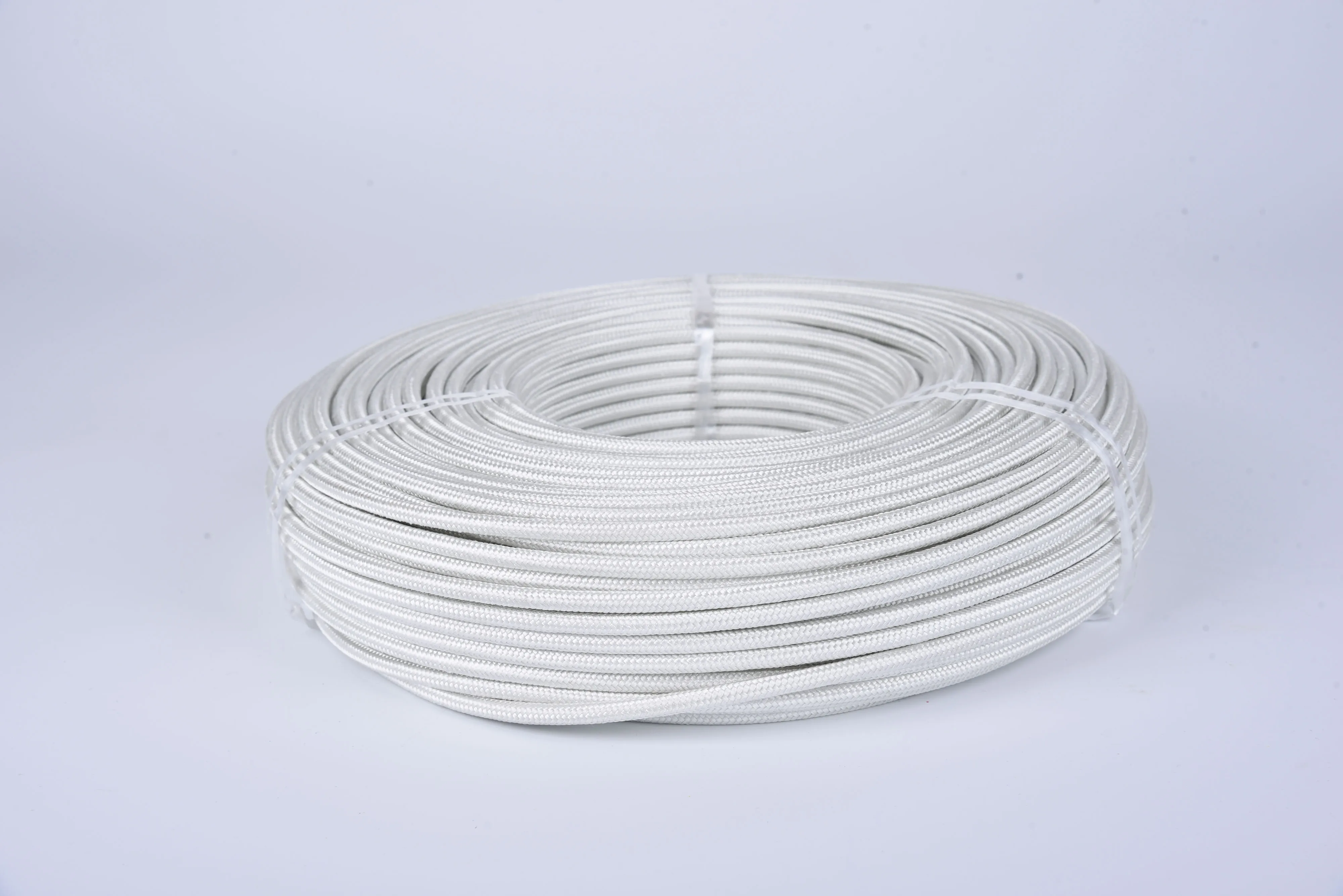

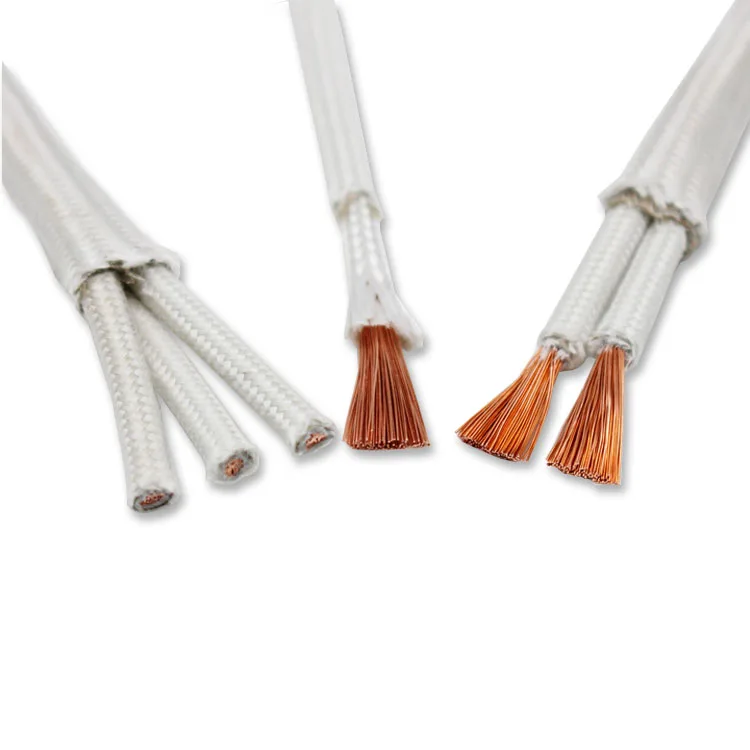

Product show
