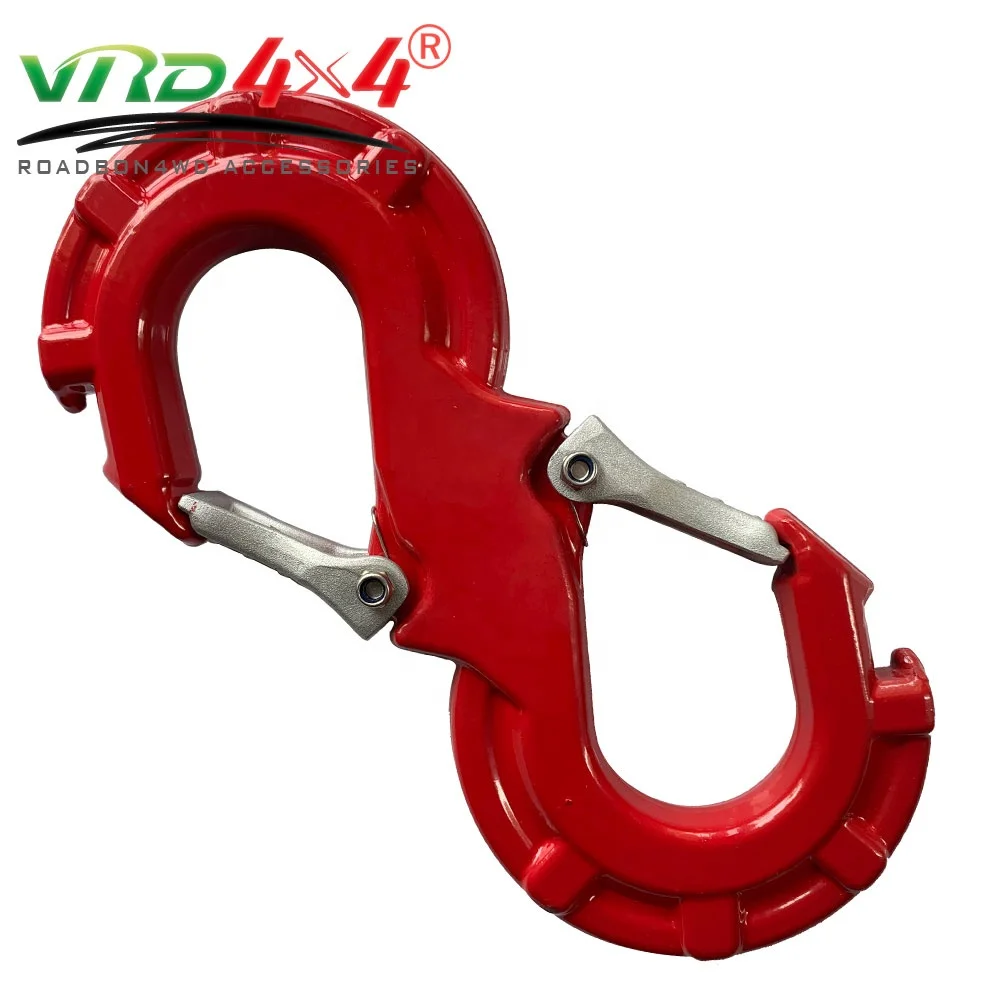

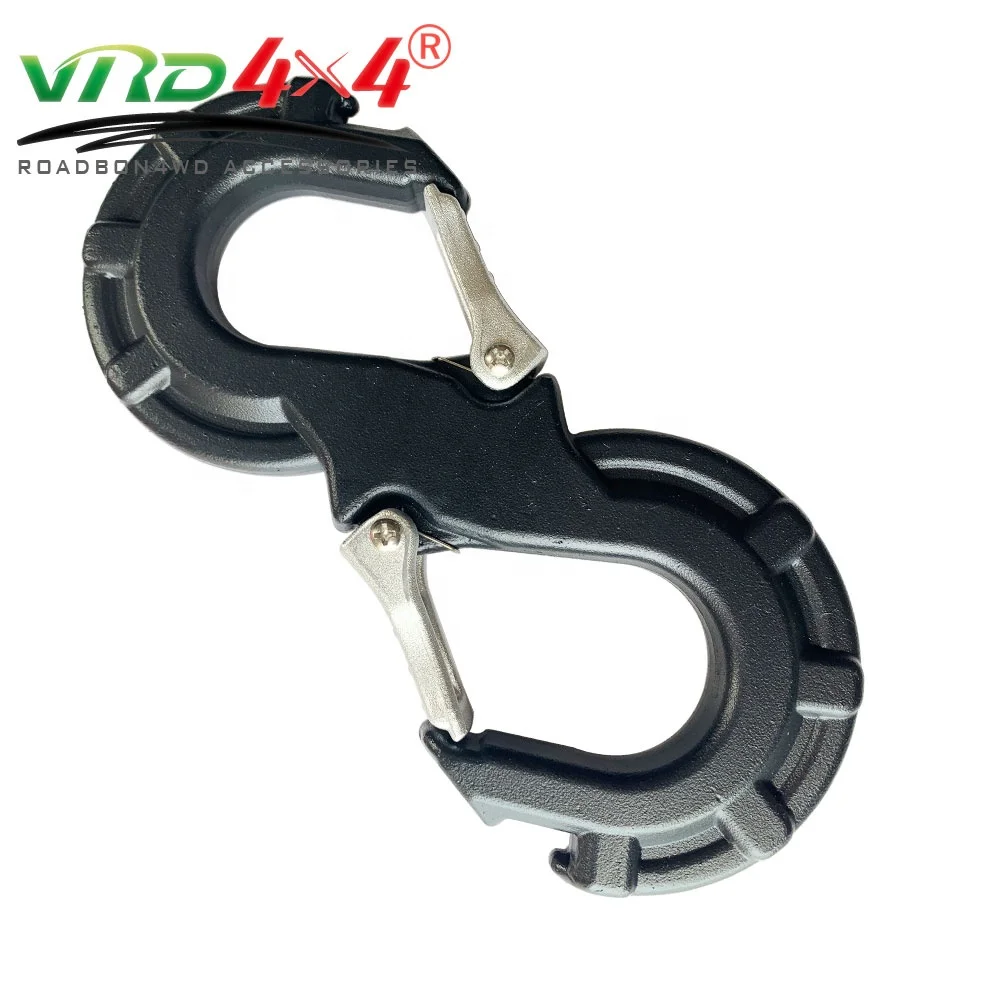

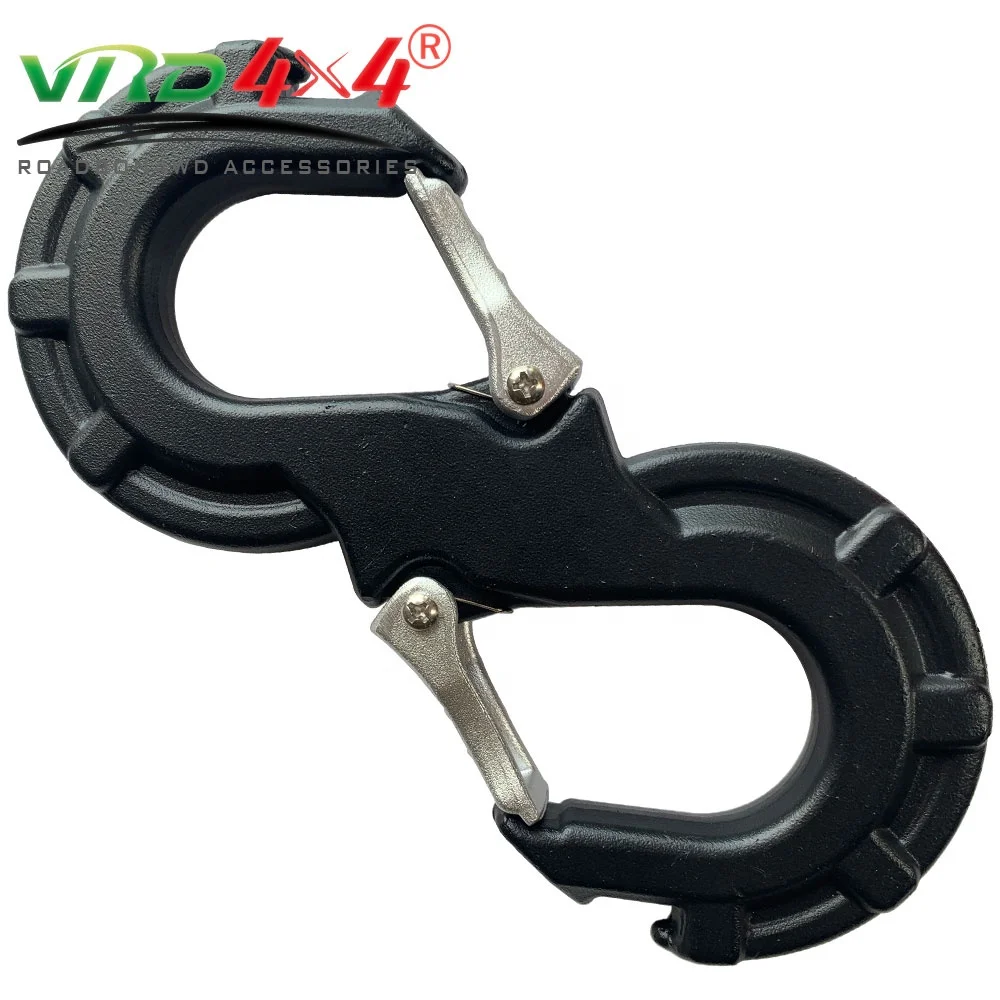

Off Road 4x4 8 Ton Receiver Mounts Trailer Towing Pintle Hook Spare Parts Accessories S hook S shackle
- Category: >>>
- Supplier: VRD4X4 CORPORATION LIMITED
Share on (1600550881655):
Product Overview
Description
Off Road 4x4 8 Ton Receiver Mounts Trailer Towing Pintle Hook Spare Parts Accessories S hook S shackle
Product Description
Specification
item | value |
Warranty | 1 years |
Certification | GS, IECEE |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | VRD4X4 |
Model Number | RB-12000D12-1 |
Power Source | Electric |
Application | AUTO |
Voltage | 24V, 12V |
Application | 4X4 VIHCLES |
Capacity | 12000LB(5443kg) |
Colour | Matt black or customed colour |
Cable | Wire steel cable or Synthetic rope |
Gear Train | 3-stage planetary |
Fairlead | aluminium fairlead |
Motor | 6.0hp/4.5kw 12V |
Gear Reduction Ratio | 216:1 |
Clutch | Up and down 90° |
Drum Size | φ2.51”×8.82”(φ64mm×224mm) |
Duty Cycle | Intermittently |
Mounting Bolt Pattern | 10”x4.5”(254mm x 114.3mm ) |
Overall Dimensions | (L×W×H)20.7”×6.4”×8.1”(527x163x205mm) |
Gross Weight | 61.7lbs(28kg) |
Package | 1pc/box, 600x245x370mm |
Remote Control | Included |

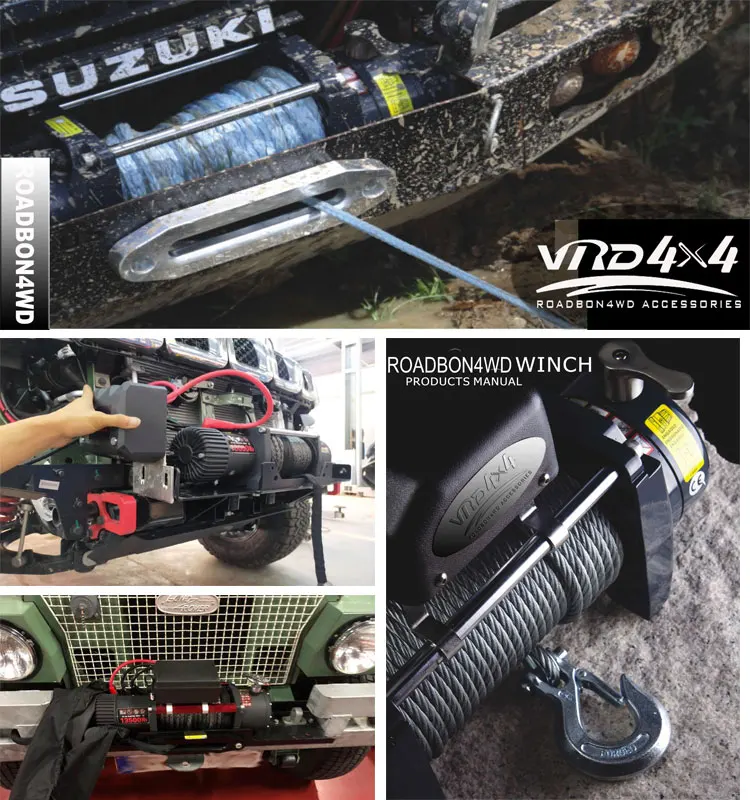

Whole set winch including:
1x winch body with synthetic rope
1x hook with safe strap
1x aluminium fairlead
1x wired control
1x wireless remote control
1x black battery wire
1x hardware bag
1x manual book
1x winch body with synthetic rope
1x hook with safe strap
1x aluminium fairlead
1x wired control
1x wireless remote control
1x black battery wire
1x hardware bag
1x manual book
Features:
1.High performance 12000lb capacity self-recovery winch
2.Heavy duty series wound motor gives high torque and fast line speed .
3.100% steel planetary gear with high precision gear wheels, able to extreme recovery different gear ratio for your option.
4.Sealed transmission system with extreme-duty water resistance.
5.Rugged and quiet planetary gears for maximum mechanical efficiency
6.High quality brake system automatically endures full load without slipping
7.Brake outside the drum" allows rapid heat dispersion,ideally suited for heat sensitive synthetic rope,.
8.Free spooling cluth with rotating ring gear,very easy to operate.
9.Aluminum die-cast housing with steel drum construction,protect gear assembly from abrasion and wear.
10.Wireless remote control allows you to electrically control winch spool in /out or stopping from far distance.
11.100% testing before shipping.
1.High performance 12000lb capacity self-recovery winch
2.Heavy duty series wound motor gives high torque and fast line speed .
3.100% steel planetary gear with high precision gear wheels, able to extreme recovery different gear ratio for your option.
4.Sealed transmission system with extreme-duty water resistance.
5.Rugged and quiet planetary gears for maximum mechanical efficiency
6.High quality brake system automatically endures full load without slipping
7.Brake outside the drum" allows rapid heat dispersion,ideally suited for heat sensitive synthetic rope,.
8.Free spooling cluth with rotating ring gear,very easy to operate.
9.Aluminum die-cast housing with steel drum construction,protect gear assembly from abrasion and wear.
10.Wireless remote control allows you to electrically control winch spool in /out or stopping from far distance.
11.100% testing before shipping.
Winch Class
1) What kind of winch do you need for your cars ?
Formula: vehicle weight (kg) × 1.5 / * 0.8 * 2 / 0.9 = required starting tension pounds of winch.
2) Winch use and precautions
1. Check the drum first. Before starting, make sure that the noose is neatly wound around the drum.
2. If the noose comes out, it should be prevented from swinging back and forth. If the noose breaks, the rope swinging back and forth can be very dangerous. However, this danger can be avoided as long as a bulletproof pad is placed on the tight noose.
3. When the tension is not enough, consider adding a roller skate to increase the tension.
4. Roll up the noose, tighten the noose and send it back carefully. If the noose crosses or twists on the drum, it must be completely untied before rewinding
3) Winch maintenance
The first important thing to check is the winch motor, which has two long bolts passing through the whole motor and fixed to the winch support. You may need to tap gently with a rubber hammer or remove it with the help of a flat screwdriver. Pay attention to the spring inside the cover. It's easy to spring out. Wait for the cable to be removed from the winch: wash it first, and then observe whether it is seriously damaged, so as to replace it in time; For fiber ropes, the fine sand and other impurities in the rope shall be washed clean. Clean the outside of the motor and dip some cleaning agent with a brush. Gently wipe the motor with fine sandpaper to remove rust. Check the operation of the motor bearing. It should rotate freely and smoothly, otherwise it needs to be replaced. The removal method of the gear box cover is the same as that of one end of the motor. The lubricating oil has blackened, indicating that water has entered. There is no other way but to clean it. Take out the gear and gasket in turn, clean them and place them in order. When taking out the gear, ensure that the brake drum is also removed. It is the part that bears too much pressure in the whole winch. Check for damage or cracks, After the gear is thoroughly cleaned, apply an appropriate amount of waterproof and high-temperature lubricating grease on each component, and seal the cover to prevent water and grease from flowing out. Finally, remove the shell of the control box and check the condition of the internal circuit. Ensure that the control box is well sealed and the interior is clean
4) The winch needs the assistance of accessories in use
1. Thickened gloves prevent hand injury during operation
2. The pulley increases the tension
3. Shackle to fix winch and towed object
1) What kind of winch do you need for your cars ?
Formula: vehicle weight (kg) × 1.5 / * 0.8 * 2 / 0.9 = required starting tension pounds of winch.
2) Winch use and precautions
1. Check the drum first. Before starting, make sure that the noose is neatly wound around the drum.
2. If the noose comes out, it should be prevented from swinging back and forth. If the noose breaks, the rope swinging back and forth can be very dangerous. However, this danger can be avoided as long as a bulletproof pad is placed on the tight noose.
3. When the tension is not enough, consider adding a roller skate to increase the tension.
4. Roll up the noose, tighten the noose and send it back carefully. If the noose crosses or twists on the drum, it must be completely untied before rewinding
3) Winch maintenance
The first important thing to check is the winch motor, which has two long bolts passing through the whole motor and fixed to the winch support. You may need to tap gently with a rubber hammer or remove it with the help of a flat screwdriver. Pay attention to the spring inside the cover. It's easy to spring out. Wait for the cable to be removed from the winch: wash it first, and then observe whether it is seriously damaged, so as to replace it in time; For fiber ropes, the fine sand and other impurities in the rope shall be washed clean. Clean the outside of the motor and dip some cleaning agent with a brush. Gently wipe the motor with fine sandpaper to remove rust. Check the operation of the motor bearing. It should rotate freely and smoothly, otherwise it needs to be replaced. The removal method of the gear box cover is the same as that of one end of the motor. The lubricating oil has blackened, indicating that water has entered. There is no other way but to clean it. Take out the gear and gasket in turn, clean them and place them in order. When taking out the gear, ensure that the brake drum is also removed. It is the part that bears too much pressure in the whole winch. Check for damage or cracks, After the gear is thoroughly cleaned, apply an appropriate amount of waterproof and high-temperature lubricating grease on each component, and seal the cover to prevent water and grease from flowing out. Finally, remove the shell of the control box and check the condition of the internal circuit. Ensure that the control box is well sealed and the interior is clean
4) The winch needs the assistance of accessories in use
1. Thickened gloves prevent hand injury during operation
2. The pulley increases the tension
3. Shackle to fix winch and towed object

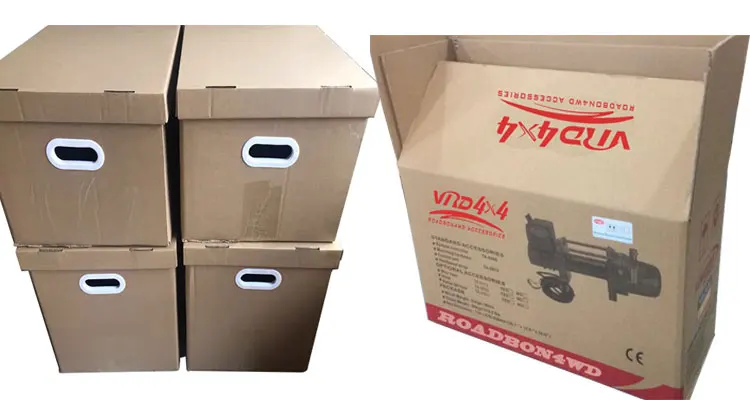

Packing & Delivery
Installation Instructions

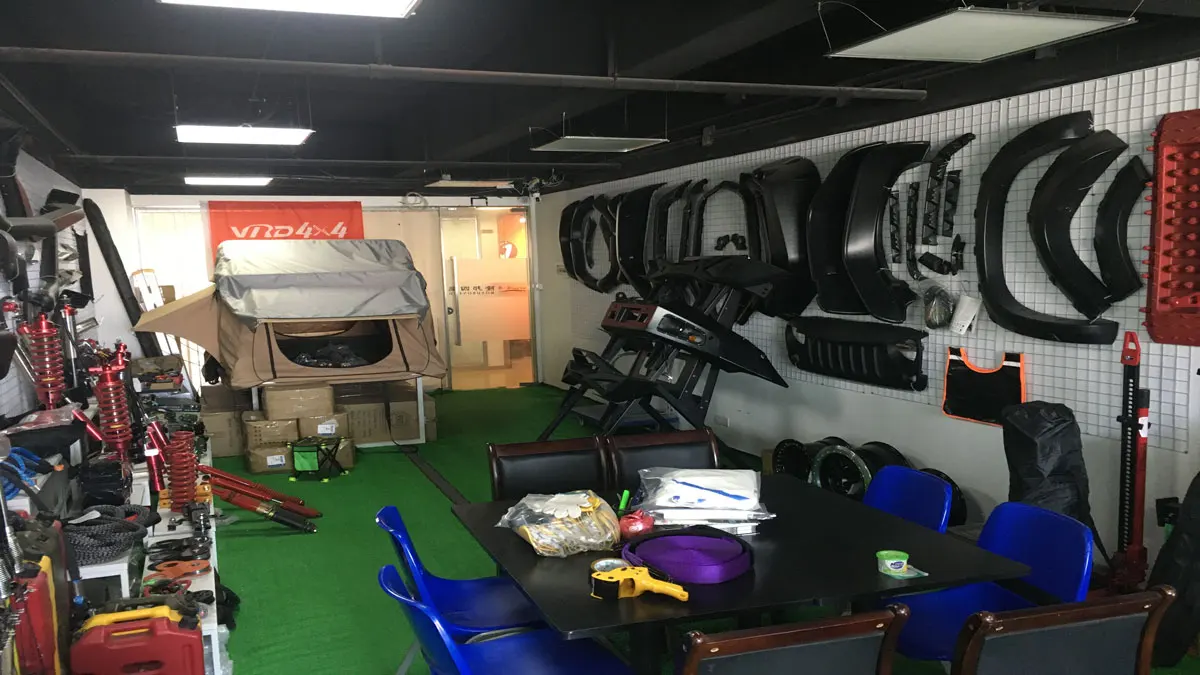

Company Profile
Guangzhou Roadbon4wd Auto Accessories Co. Limited (Roadbon4wd or VRD4x4) is a company that integrates R&D, production and operation of various kinds of off-road vehicle refitting products. We are committed to creating an independent brand of off-road vehicle products in the industry, serving all domestic and foreign off-road vehicle enthusiasts professionally and escorting users' car.
For different vehicle models, we develop, design and produce various Shock Absorbers, Modular Storage Drawers,etc. in line with the high-quality production concept, we have been recognized and trusted by the customer group;Which the storage drawer with top quality has won high praise from customers, so far there is no quality complaint.We Also have established long-term cooperative relationship with some Shocks customers and improve and develop series products together. We are looking forward to further cooperation with more customers,welcome to do OEM & ODM.
Adhering to the quality and responsibility, We will, as always, strictly control the quality of our products and provide better service.
For different vehicle models, we develop, design and produce various Shock Absorbers, Modular Storage Drawers,etc. in line with the high-quality production concept, we have been recognized and trusted by the customer group;Which the storage drawer with top quality has won high praise from customers, so far there is no quality complaint.We Also have established long-term cooperative relationship with some Shocks customers and improve and develop series products together. We are looking forward to further cooperation with more customers,welcome to do OEM & ODM.
Adhering to the quality and responsibility, We will, as always, strictly control the quality of our products and provide better service.
FAQ
Q1. How can I get the price?
A.- We usually quote within 24 hours after we get your inquiry.
-For Emergency please E-mail ：4x4@roadbon4wd.com ;
- or ways on Vchat/WAPP : 86 135 700 249 67 .
Q2. What is your terms of packing?
A.1.Generally, we pack our goods in honeycomb carton and foam carton.
2.If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.;Western Union, MoneyGram, and Paypal need to negotiable
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. How about your delivery time?
A: Generally, Stock items 3-7 days ,Producing it will take 30 to 40 days after receiving your deposit. The specific delivery time depends on the items and the quantity of the order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, customers pay cost of sample & freight cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. OEM /ODM available ,we would like to build local agent or distributor for long term cooperation and development.
Q10. How can we guarantee quality?
A.Always a pre-production sample before mass production;
Always final Inspection before shipment;
Provide after-sales consultation and solutions for the whole life；
Q11.What can you buy from us?

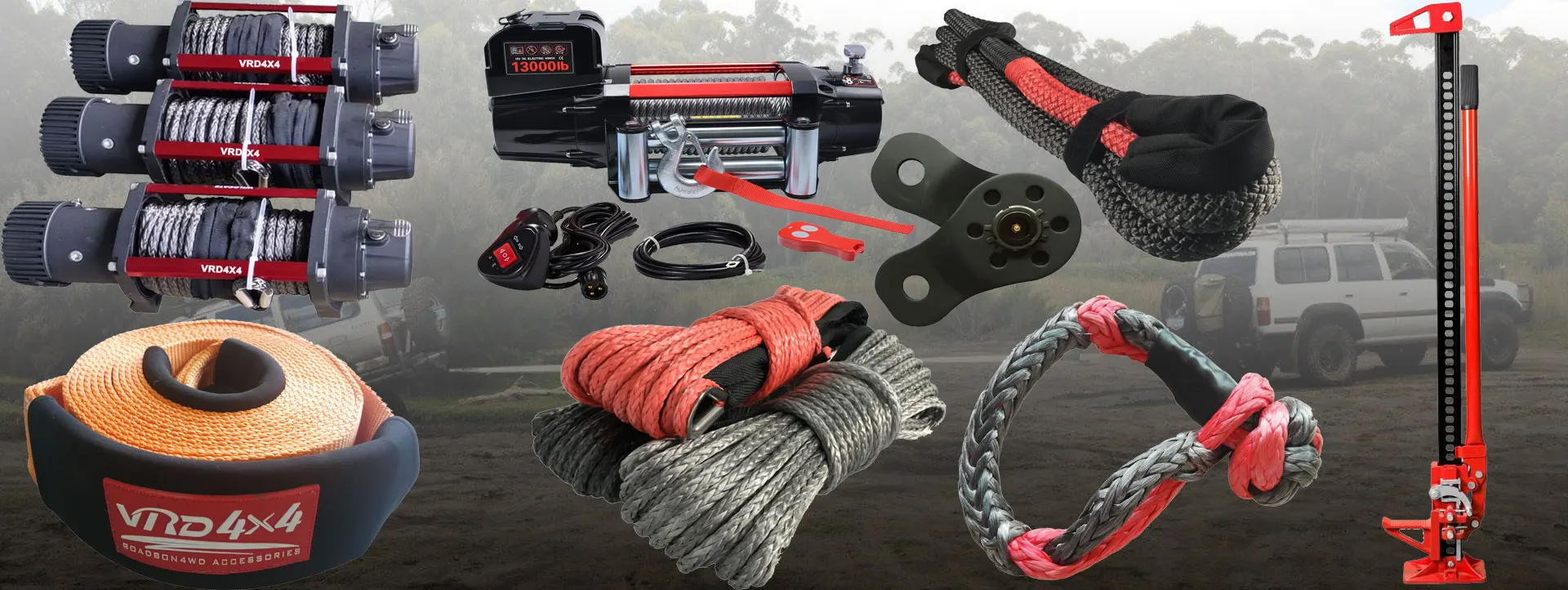

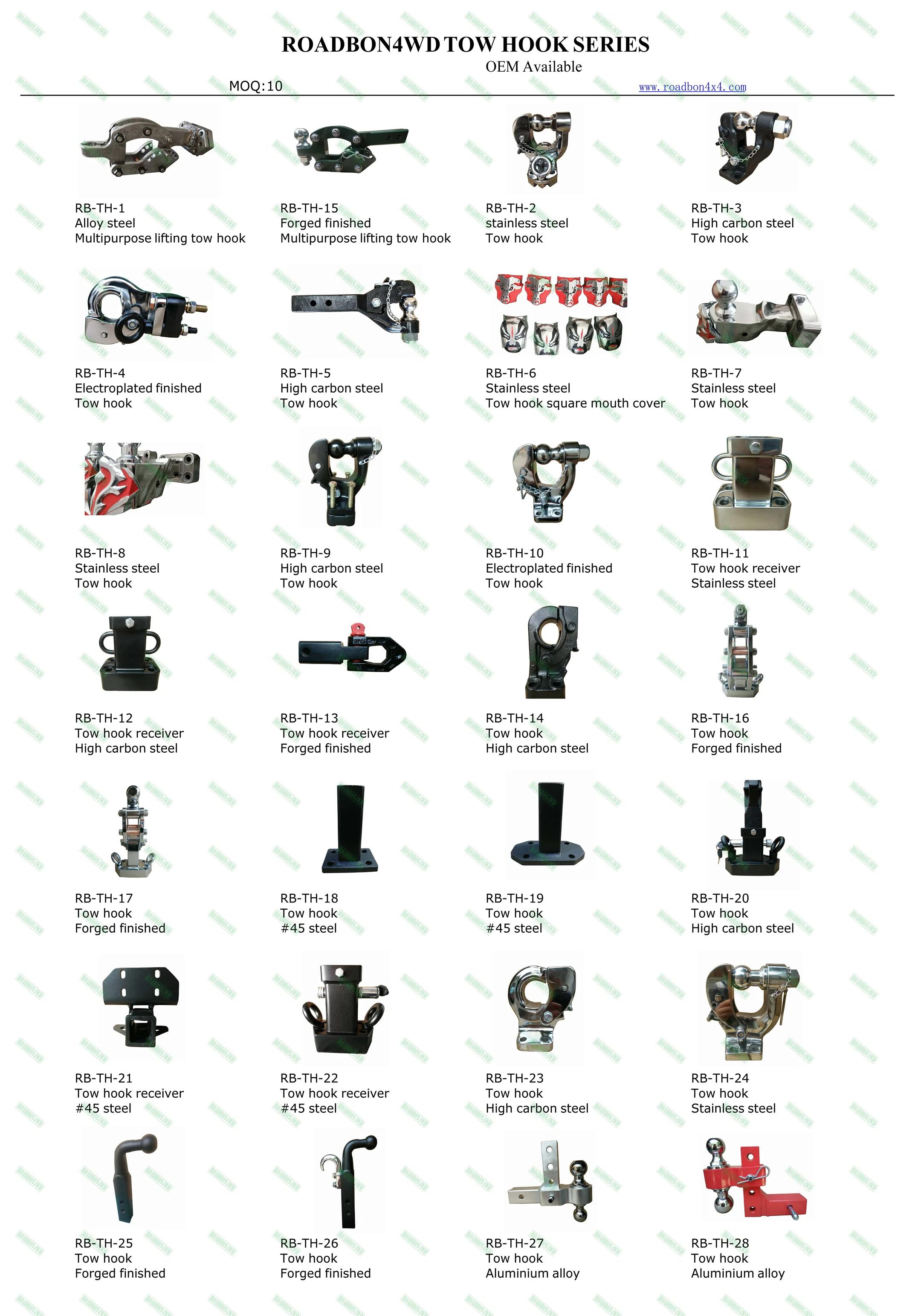

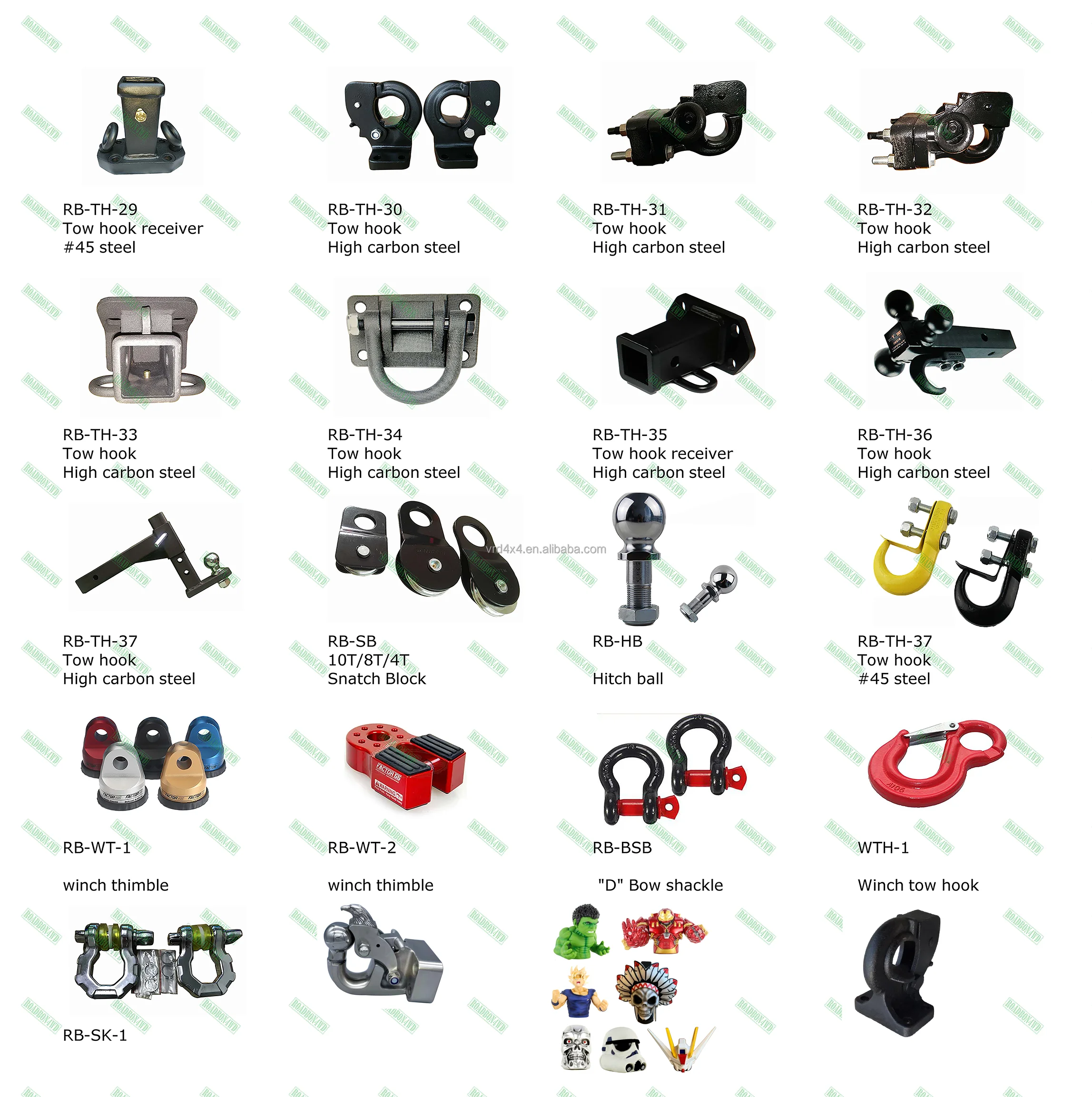

A.Shock Absorber,Storage Drawer,4x4 spare parts,4x4 recovery equipment,Off road equipment
Q12. Why should you buy from us not from other suppliers?
A.Guangzhou Roadbon4wd Auto Accessories Co.,LTD (Roadbon4wd or VRD4x4) is a company which 4x4 Off-Road Parts Professional Supplier & OEM Manufacturer,Our team is professional / pragmatic / honest. Let's work together to the future, learn from each other, cooperate and win-win, establish a long-term partnership and provide better products and services to our customers.
-For Emergency please E-mail ：4x4@roadbon4wd.com ;
- or ways on Vchat/WAPP : 86 135 700 249 67 .
Q2. What is your terms of packing?
A.1.Generally, we pack our goods in honeycomb carton and foam carton.
2.If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.;Western Union, MoneyGram, and Paypal need to negotiable
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. How about your delivery time?
A: Generally, Stock items 3-7 days ,Producing it will take 30 to 40 days after receiving your deposit. The specific delivery time depends on the items and the quantity of the order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, customers pay cost of sample & freight cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. OEM /ODM available ,we would like to build local agent or distributor for long term cooperation and development.
Q10. How can we guarantee quality?
A.Always a pre-production sample before mass production;
Always final Inspection before shipment;
Provide after-sales consultation and solutions for the whole life；
Q11.What can you buy from us?
A.Shock Absorber,Storage Drawer,4x4 spare parts,4x4 recovery equipment,Off road equipment
Q12. Why should you buy from us not from other suppliers?
A.Guangzhou Roadbon4wd Auto Accessories Co.,LTD (Roadbon4wd or VRD4x4) is a company which 4x4 Off-Road Parts Professional Supplier & OEM Manufacturer,Our team is professional / pragmatic / honest. Let's work together to the future, learn from each other, cooperate and win-win, establish a long-term partnership and provide better products and services to our customers.
