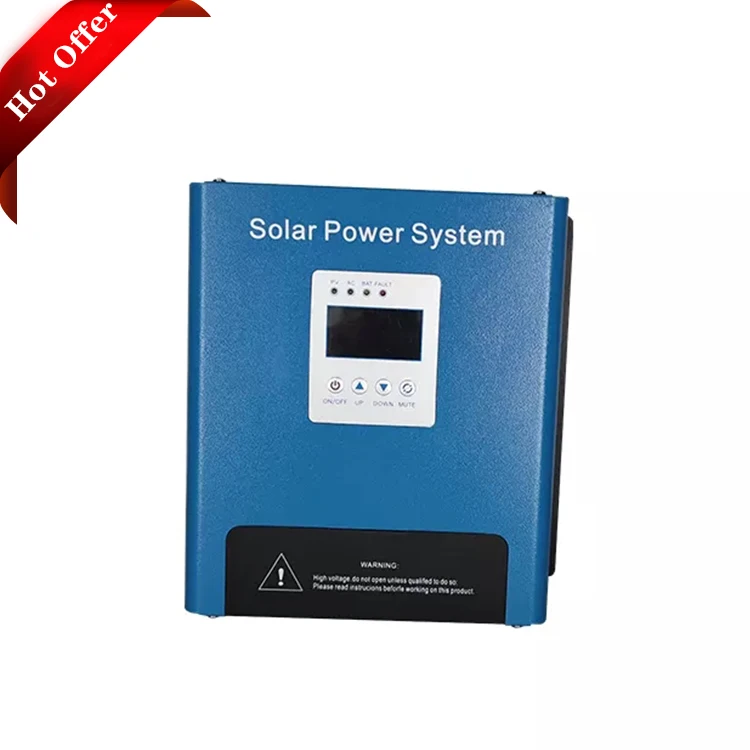

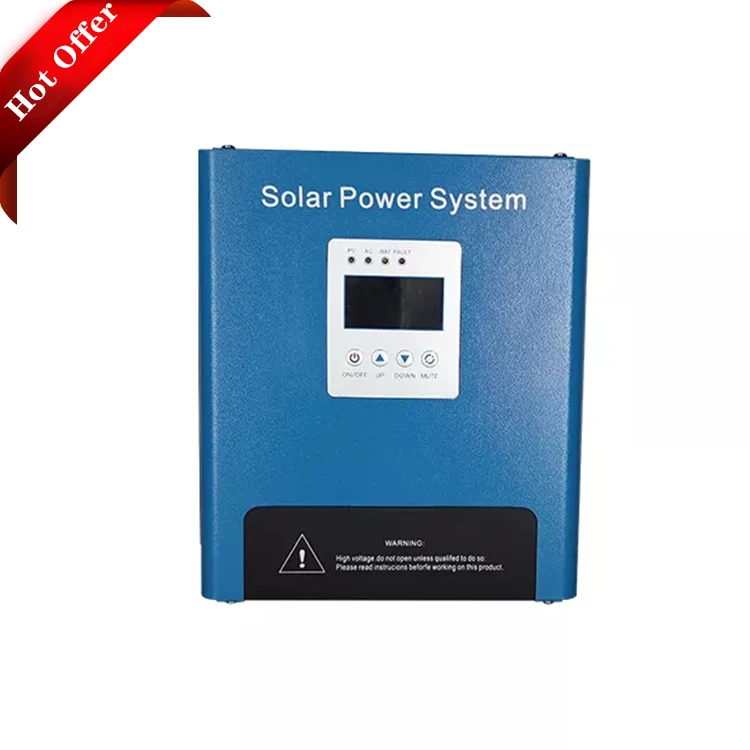

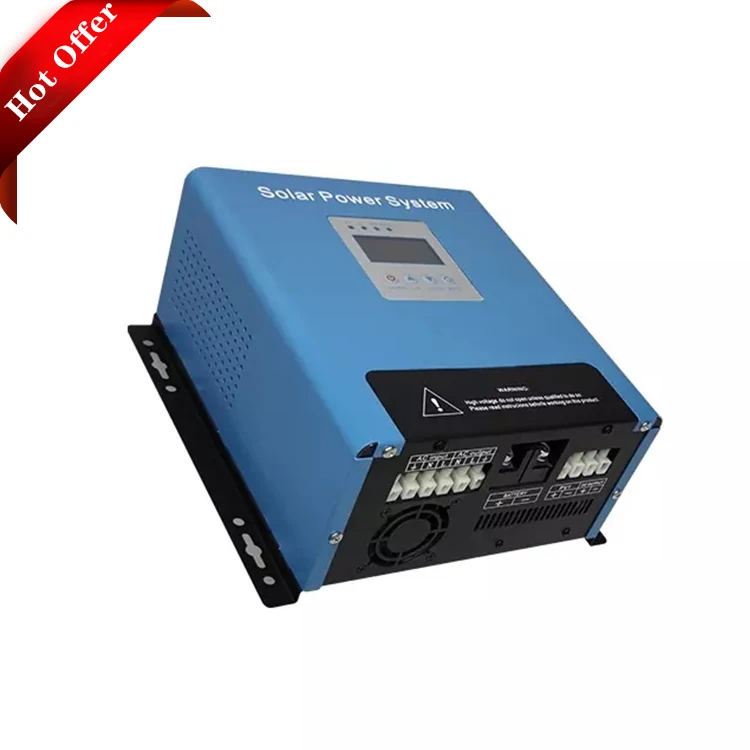

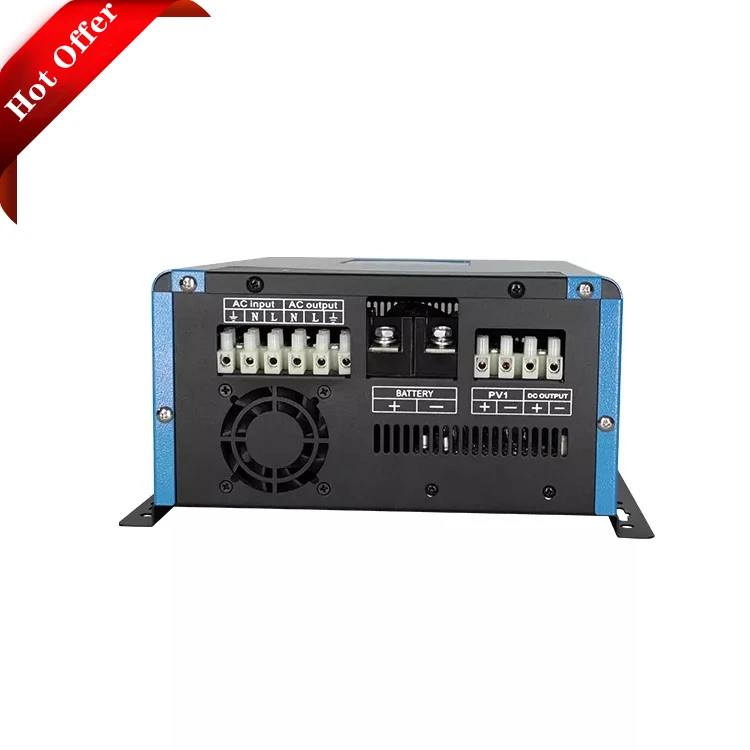

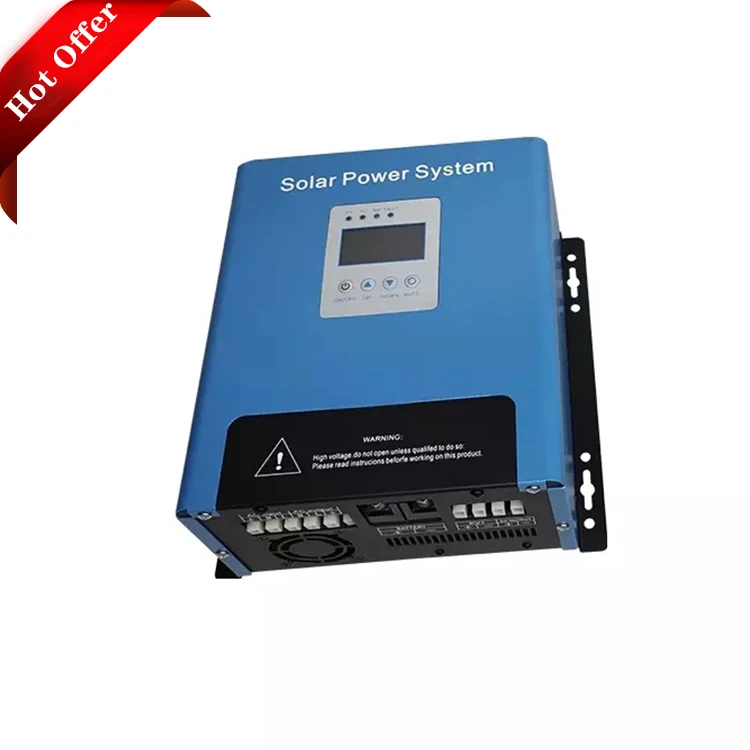

Power generation system outdoor three phase On grid String Inverter 1500W 700W
- Category: >>>
- Supplier: Guangdong Diwani New Energy Technology Co. Ltd.
Share on (1600550897147):

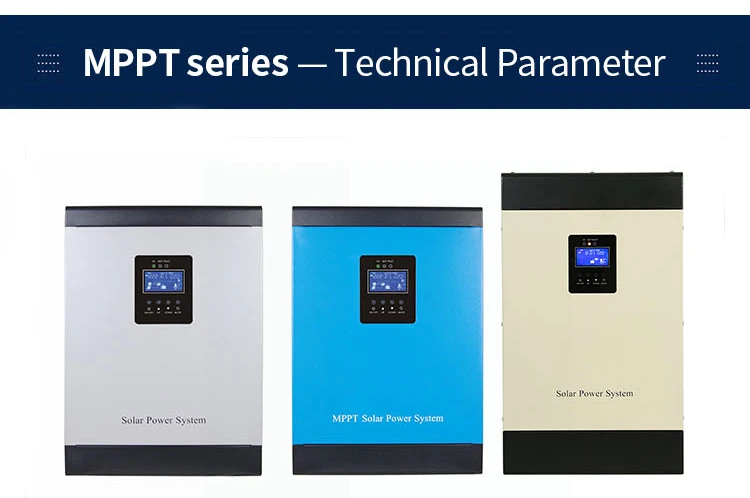

Product Overview
Description
MPPT Models | MI-1.5KVA | MI-2KVA | MI-3KVA | MI-4KVA | MI-6KVA | MI-7KVA | MI-8KVA | |||||
Rated power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||
Battery voltage | 12V/24V/48V | 24/48V | ||||||||||
Net weight | 14KG | 16KG | 17KG | 20KG | 25KG | 28KG | 30KG | |||||
Dimension L×W×H（mm） | 440×310×132（mm） | 485×350×182（mm） | ||||||||||
Package size L×W×H（mm） | 495×360×190（mm） | 540×400×240（mm） | ||||||||||
AC Input voltage range(VAC) | 170-275VAC（220V) 85-138VAC(110V) | ||||
Input frequency | 45-65HZ | ||||
Battery voltage range | 10.5-15VDC (Single battery voltage） | ||||
Output voltage range(VAC) | Inverter mode 110V/220V/230V/240V±2% | ||||
Output voltage range(VAC) | L1-L2 200V/220V/240V L1-N 100V/110V/120V L2-N 100V/110V/120V ±2% | ||||
Utility output frequency range | 50Hz 60Hz±1% automatic tracking | ||||
Output waveform | Pure sine wave | ||||
Efficiency | 85% | 90% | |||
THD | ≤3% | ||||
Transfer time(ms) | ≤4ms | ||||
AC Charging type | U0-U7 | ||||
AC charging current | C0=0A,C1=5A,C2=10A,C3=15,C4=20A,C5=25A,C6=30A | ||||
Battery Lack-voltage alarm/protection | 24V(21V/20V) | 48V(42V/40V) | 96V(84V/80V) | ||
Battery over-voltage alarm/ protection | 24V(30V/33.4V) | 48V(60V/66.8V) | 96V(120V/133.6V) | ||
Overload protection | rated power≥110％，60S power off；≥130％，10S power off；≥150％，0.6S power off。. | ||||
Temperature protection | ≥85℃ alarm，≥90℃ shutdown the machine | ||||

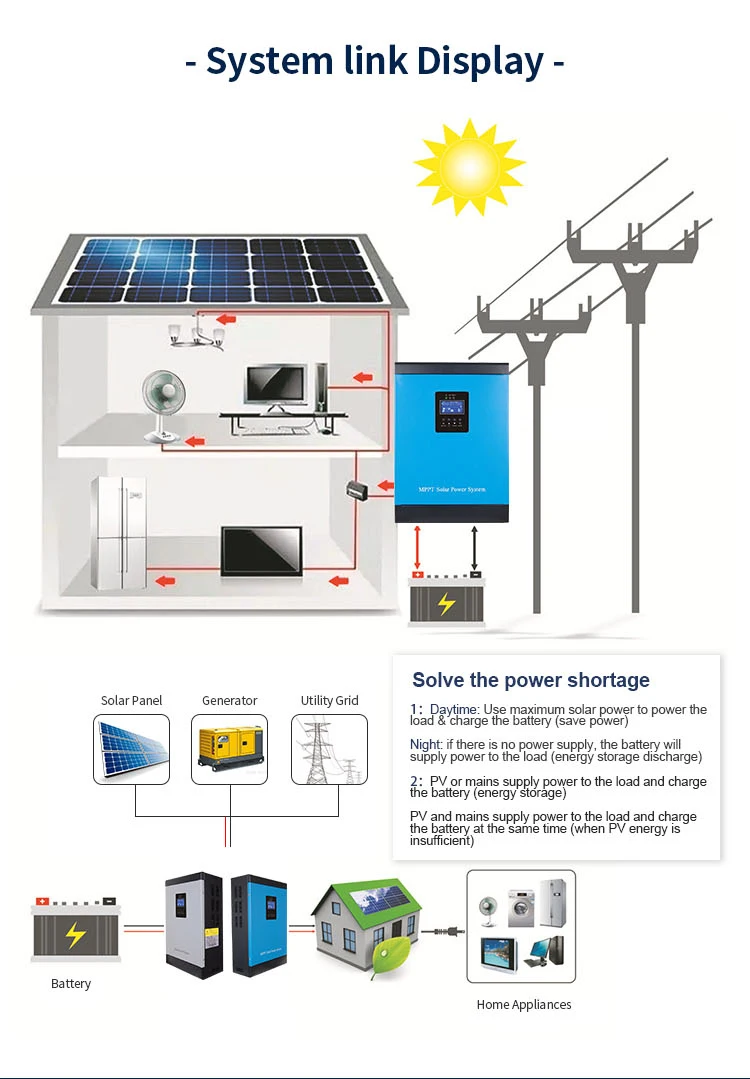

Working mode | Solar inverter is preferred,Utility is not charging,charging:battery voltage≥13V switch to inverter mode;Inverter:battery voltage≤10.5V, switch to utility mode | ||||
Solar rated voltage | 36V | 72V | 144V（MPPT） | ||
Maximum input voltage | 42V/105V（PWM/MPPT） | 84V/160V（PWM/MPPT） | 190V（MPPT） | ||
（DC）Charging voltage | 27V/28.6V（PWM/MPPT） | 54V /57.2V（PWM/MPPT） | 114.4V（MPPT） | ||
Charging current | 30A/40A/ 50A /60A /80A/100A Optional | ||||
Protection type | Solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection | ||||
System voltage automatic recognition | 18V-29V | 40V-60V | 80V-120V | ||
Max efficiency | ≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) | ||||
Cooling method | Auto detective cooling fan ≤42℃ Fan slow turning heat dissipation，≥45℃ Fan high turning heat dissipation | ||||

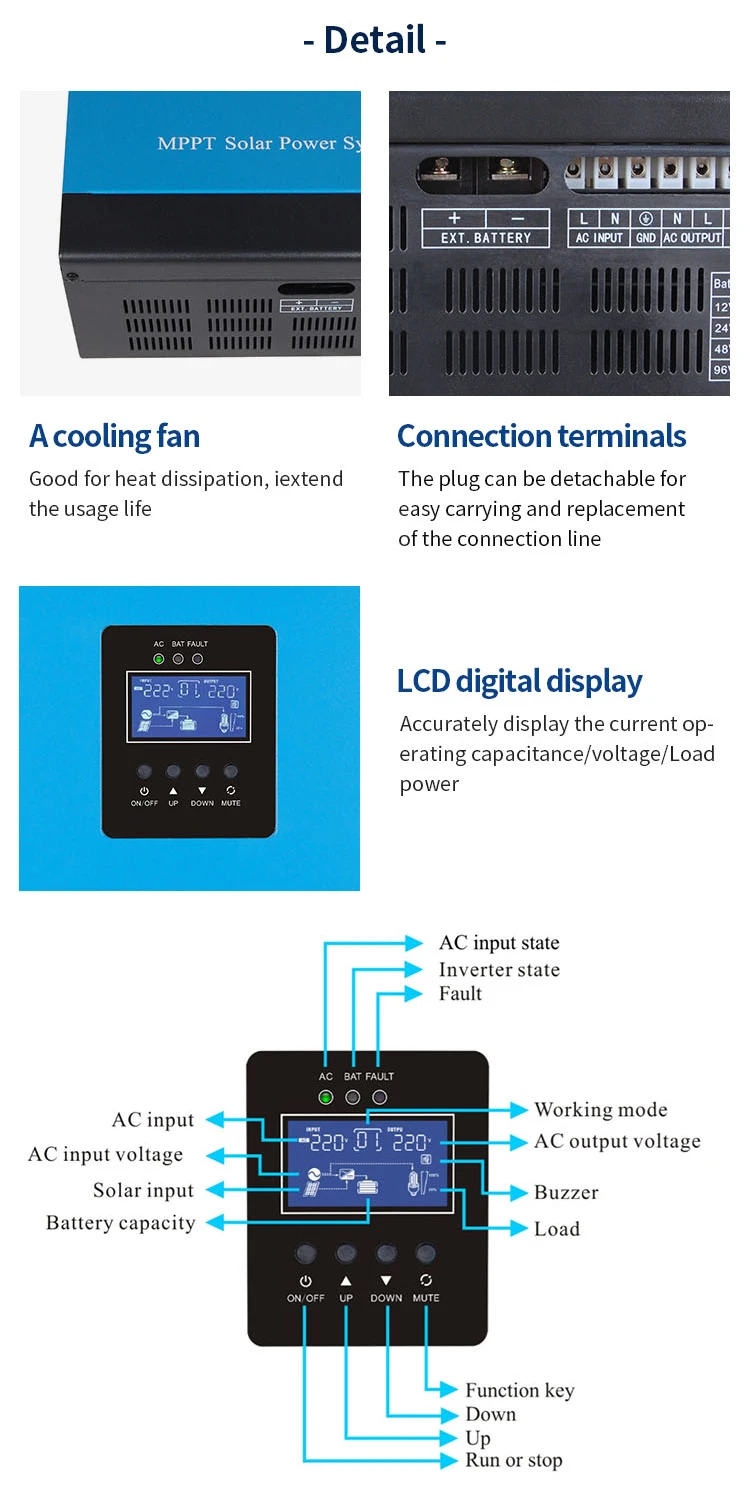

Display | inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage, Solar input voltage,generating capacity，Solar charge current, etc...） | ||||
Q1. Who are we?
A1. We are an enterprise integrating R&D and production. We can also accept OEM orders.
Q2. Where is our main market?
A2. Our sold very well in Southeast Asia, Middle East, Africa,americas...
Q3. What can you buy from us?
A3. Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine ave inverter, Modified sine wave inverter, MPPT/PWM solar controller.
Q4. What is our advantage ?
A4. We have professional R&D team, can customized the products you want.
Q5. How can we guarantee quality?
A5. Always a pre-production sample before mass production;Always final Inspection before packing.
Q6. How to select a suitable products?
A6. Tell us your demand, we can recommend a suitable inverter to you.
Q7. How long can we offer a sample?
A7. Most products are in stock, you can buy sample and be shipped at any time.
Q8. What is the warranty ?
A8. One year warranty on products.
Q9. How to solve the technical problem ?
A9. 24 hours on-line after-service consultancy to make your problem solve easily.
