Hydrophilic PVDF 30nm Ultra filtration Tubular Membrane / External Tubular Ultra filtration for landfill leachate treatment
- Category: >>>
- Supplier: Ningbo Haishu Ecofine Purification Equipment Factory
Share on (1600550918775):
Product Overview
Description
Product Description

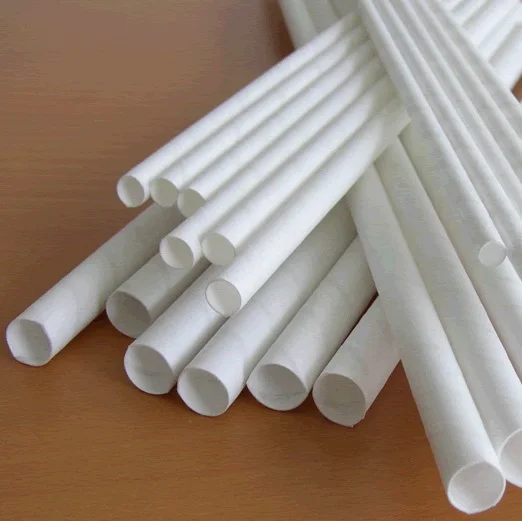

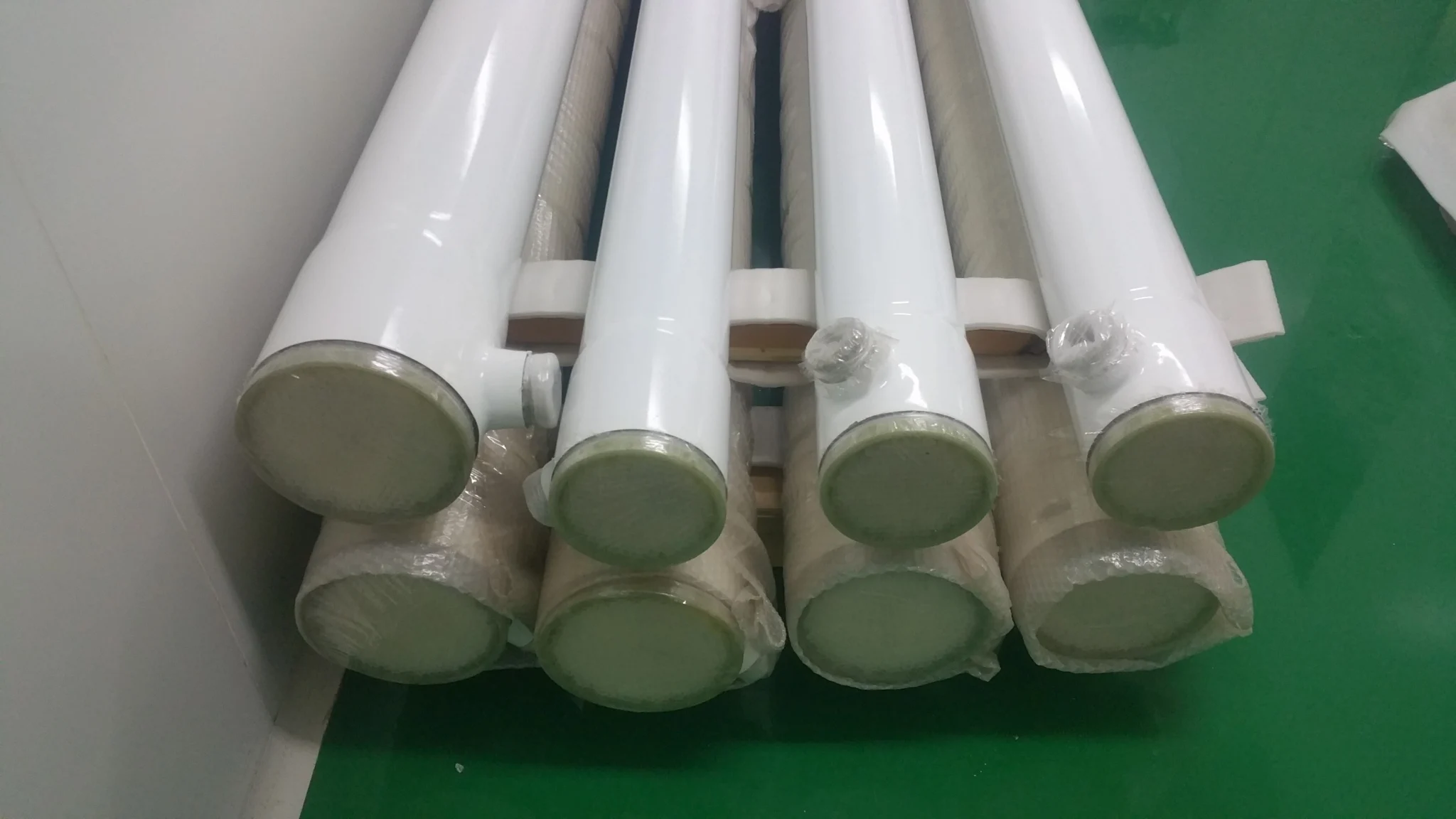

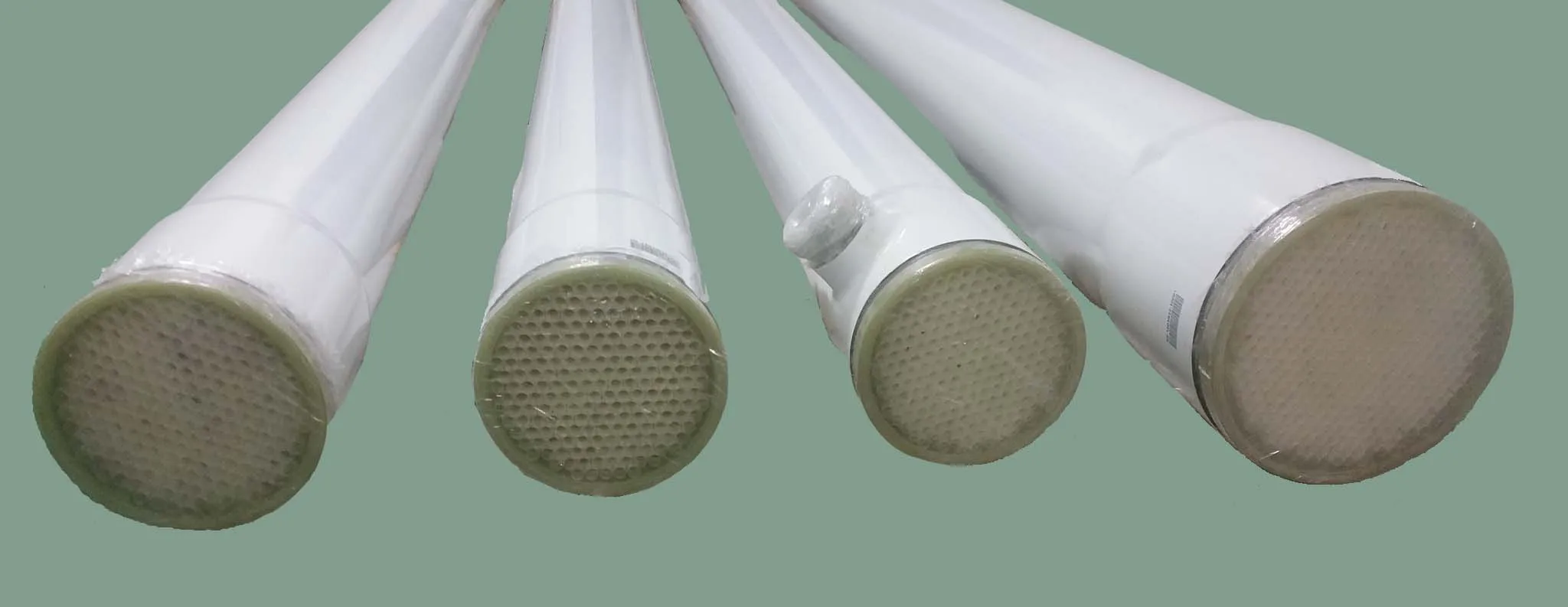

Hydrophilc PVDF 30nm Ultra-filtration Tubular Membrane

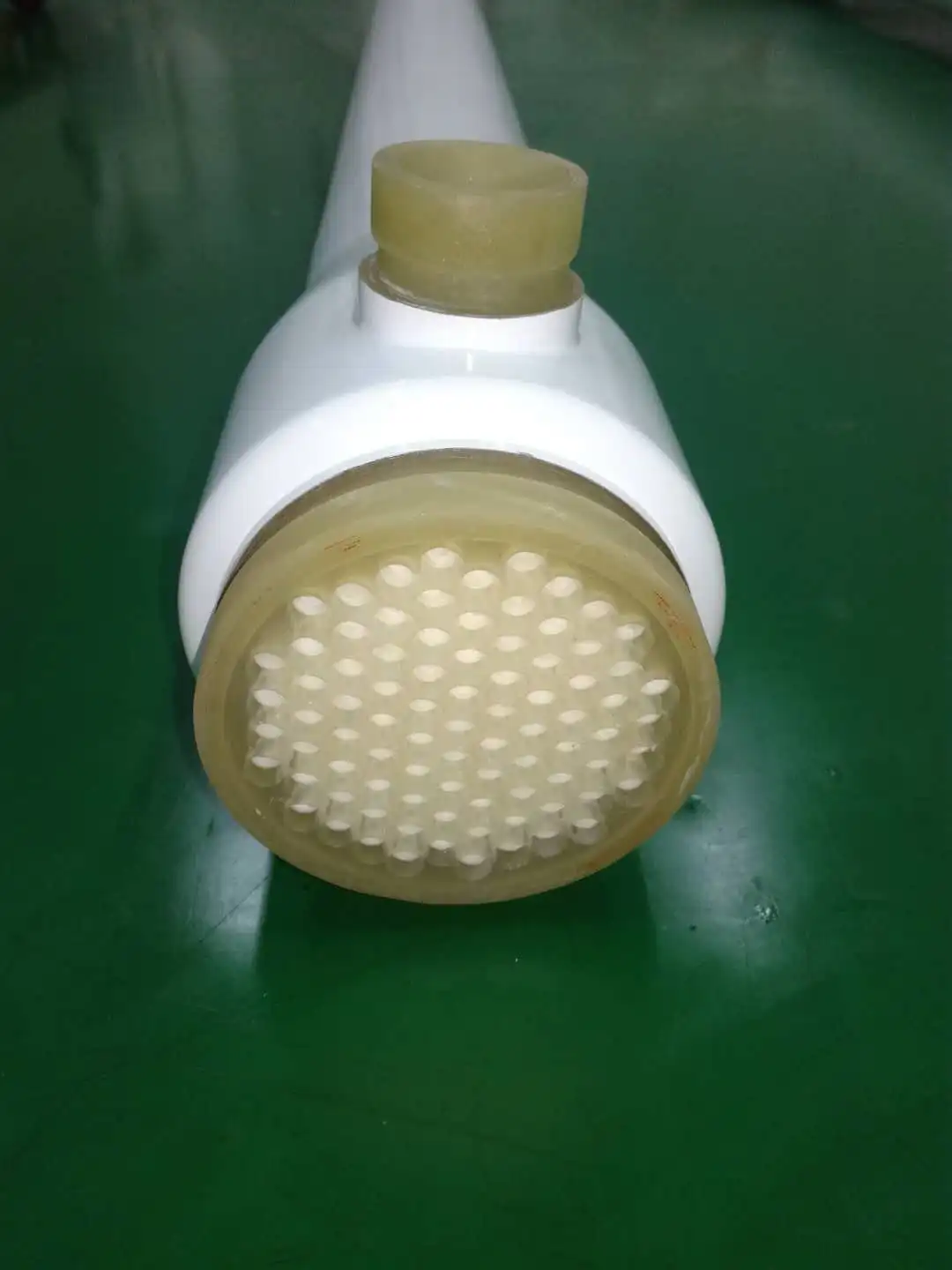

Hydrophilic PVDF Ultra-filtration Tubular membrane modules are Multi-tubes structures with porous walls. Hydrophilic PVDF Ultra-filtration Tubular modules work principle through cross-flow and are generally used to process high dissolved solids, high suspended solids. Their inner tubes typically have OD 6mm, 8mm, &12.5mm that are packed individually into a long Reinforced FRP housing to suffer the higher working pressure.
Description of Ultra-filtration Tubular Membrane:
item | value |
Condition | New |
Warranty | 6 Months |
Applicable Industries | Manufacturing Plant, Other |
Weight (KG) | 17 |
Showroom Location | Turkey, United States, Brazil, Mexico, Argentina |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Pressure vessel |
Place of Origin | China |
Zhejiang | |
Membrane material | hydrophilic pvdf |
Shell | Reinforced FRP housing |
Module Length | 3000mm |
Diameter | 225mm |
Pore size | 30nm |
Filtration Area | 30 Sq. meter |
Inner tube | 6mm |
Velocity of membrane surface | 3-5 m/s |
Circulation Flow | 210 M3/H |
Working principle | Cross flow |
