Anytone AT 588 VHF Mobile radio transceiver with High power 35W 66 88Mhz 2 way radio for car
- Category: >>>
- Supplier: Qixiang Electron Science & Technology Co. Ltd.
Share on (1600550925473):
Product Overview
Description
Product Description
MODEL NO.: AT-588 Single Band
Frequency:
66~88MHz, 136~173.995MHz, 220~260MHz,
340~400MHz, 400~490MHz(Normal), 440~512MHz etc.
27~43MHz(ODM Project)
340~400MHz, 400~490MHz(Normal), 440~512MHz etc.
27~43MHz(ODM Project)
1. Working Mode: Amateur Transceiver or Professional Transceiver
2. 200 programmable memorized channels, the channels can be marked with letter and digits
3. Output Power : 70W(VHF),40W(UHF)/25W/10W.
4. CTCSS/DCS/DTMF/2Tone/5Tone decode and encode.
(50 groups CTCSS Tone Frequency(Hz) / 1024 groups DCS Code)
5. Four different tone-pluse frequencies.
6. Compander function for decrease the background noise and enhance audio clarity, it can set compander ON/OFF per channel.
6. Compander function for decrease the background noise and enhance audio clarity, it can set compander ON/OFF per channel.
7. Theft alarm provides extra safety
8. ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID.

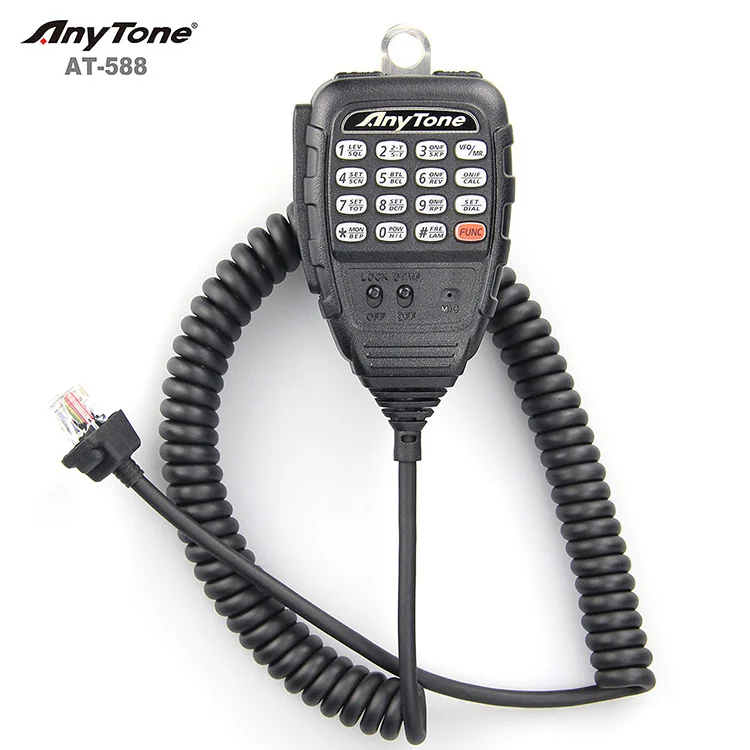

9. QHM-03 multifunctional microphone with DTMF.
8. ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID.
9. QHM-03 multifunctional microphone with DTMF.
10. Display on a large LCD with adjustable brightness, convenient for nighttime use.
11. Different band width per channel, 25K for wide band, 20K for middle band, or 12.5K for narrow band.
12. Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
13. Squelch Off/Squelch Off Momentary, Squelch Level Setup
14. Frequency/Channel Scan
14. Frequency/Channel Scan
15. High/Mid/Low Power Switch, Current Voltage Enquiry
16. Keypad Lockout
17. Busy Channel Lockout.
17. Busy Channel Lockout.
18. Scrambler Setup (Encryption).
19. Voice Prompt
20. TOT (Time-out timer)
20. TOT (Time-out timer)
21. APO (Auto power off)
22. DTMF Transmitting Time setup
22. DTMF Transmitting Time setup
23. Scramble function (option).
24. 12V/24V for truck which no need extra DC power supply(option)
24. 12V/24V for truck which no need extra DC power supply(option)
Specification
GENERAL | ||||||
Frequency Range | VHF: 66-88MHz, 136-174MHz 245-245.9875MHz (220~260MHz) UHF: 400~490MHz | |||||
Number of Channels | 200 channels | |||||
Channel Spacing | 25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) | |||||
Phase-locked Step | 5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz | |||||
Operating Voltage | 13.8V DC ±15% | |||||
Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | |||||
Frequency Stability | ±2.5ppm | |||||

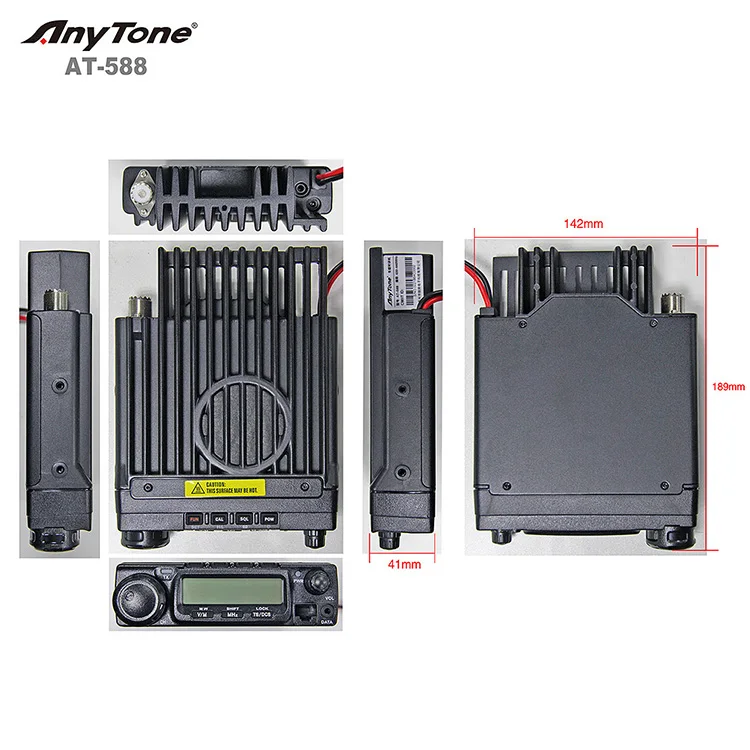

Dimensions | 145 (W) x 47 (H) x 190 (L)mm | |||||
Weight | about 1.2Kg | |||||
Operating Temperature Range | -20℃ to +60℃ | |||||
**Specifications are subject to change without notice due to advancements in technology. | ||||||
Receiver (ETSI EN 300 086 standard testing ) | ||||
Wide band | Narrow band | |||
Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV | ||
Adjacent Channel Selectivity | ≥70dB | ≥60dB | ||
Intermodulation | ≥65dB | ≥60dB | ||
Spurious Rejection | ≥70dB | ≥70dB | ||
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | ||
Hum & Noise | ≥45dB | ≥40dB | ||
Audio distortion | ≤5% | |||
Audio power output | ＞2W@10% | |||
Transmitter (ETSI EN 300 086 standard testing ) | ||||
Wide band | Narrow band | |||
Power Output | 60W/25W/10W(136-174MHz) 60W/25W/10W(220-260MHz) 35W/25W/10W(66-88MHz) | 45W/25W/10W(UHF) | ||
Modulation | 16KΦF3E | 11KΦF3E | ||
Adjacent Channel Power | ≥70dB | ≥60dB | ||
Hum & Noise | ≥40dB | ≥36dB | ||
Spurious Emission | ≥60dB | ≥60dB | ||
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | ||
Audio Distortion | ≤5% | |||
Details Images
Recommend Products
Packing & Delivery
Package Includes:
AT-588 Radio
Microphone
AT-588 Radio
Microphone

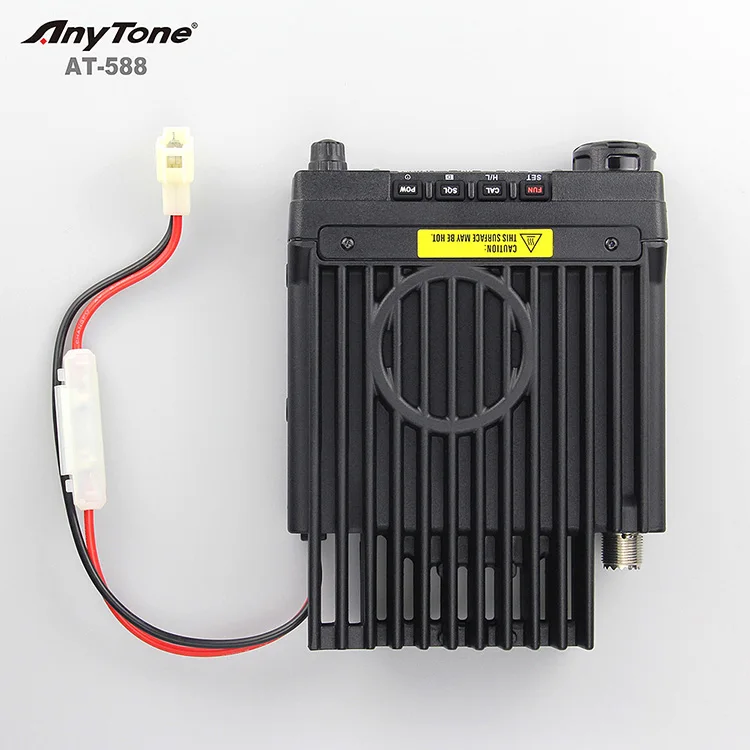

DC Power cable

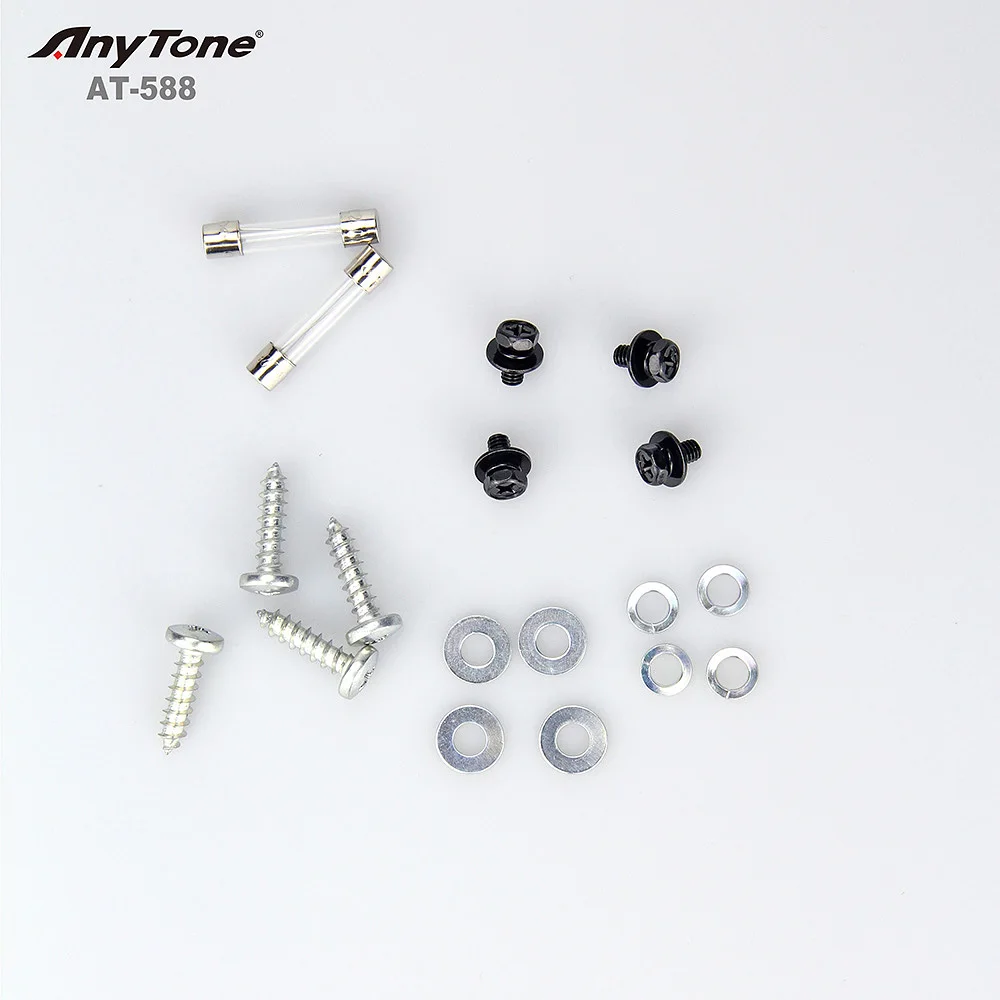

Bracket and accessories
Downloadable software
User manual
Downloadable software
User manual
