laboratory scale straight flat blade disc rushton turbine mixing impeller
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600550933061):
Product Overview
Description
Product Description

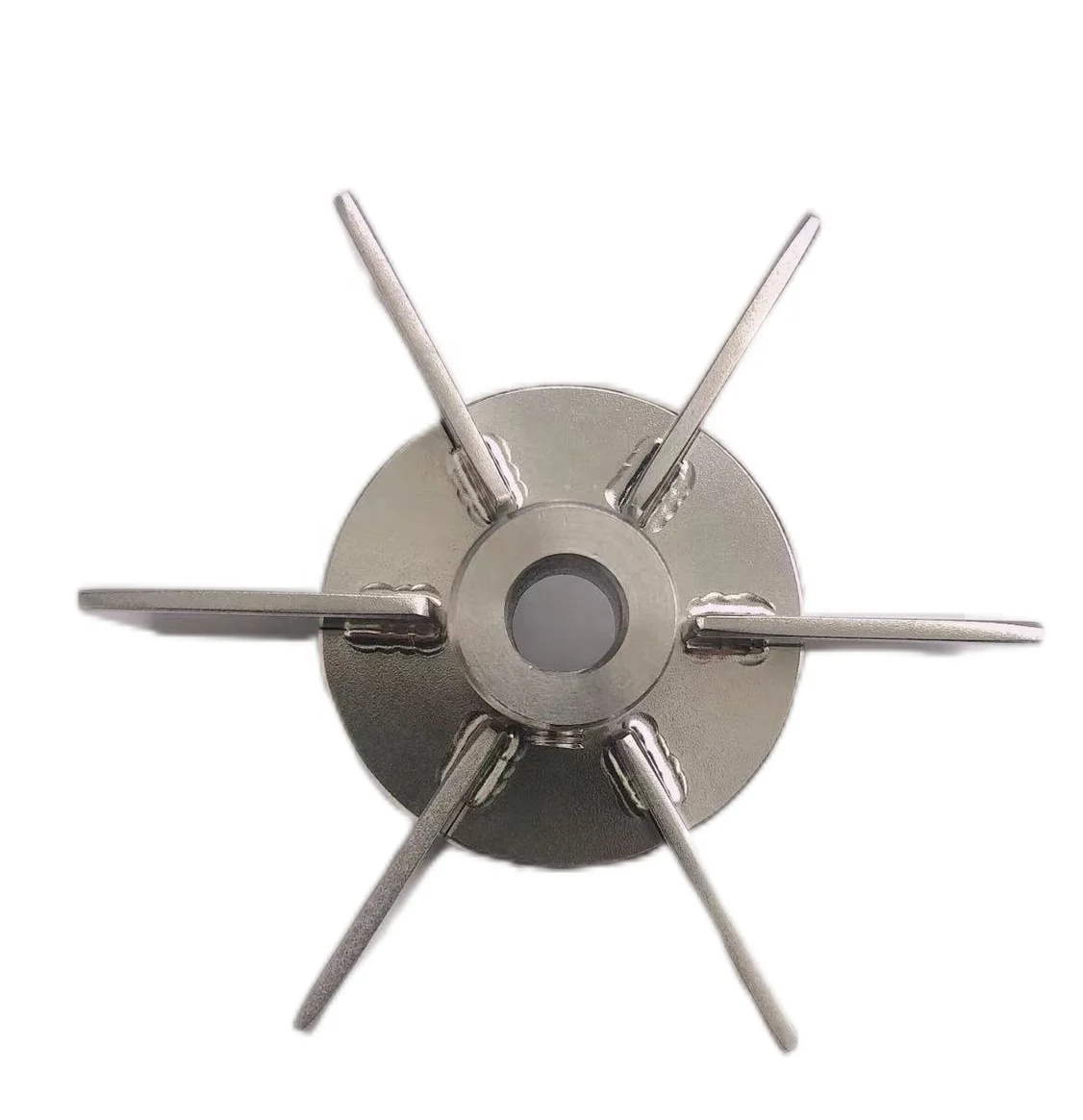

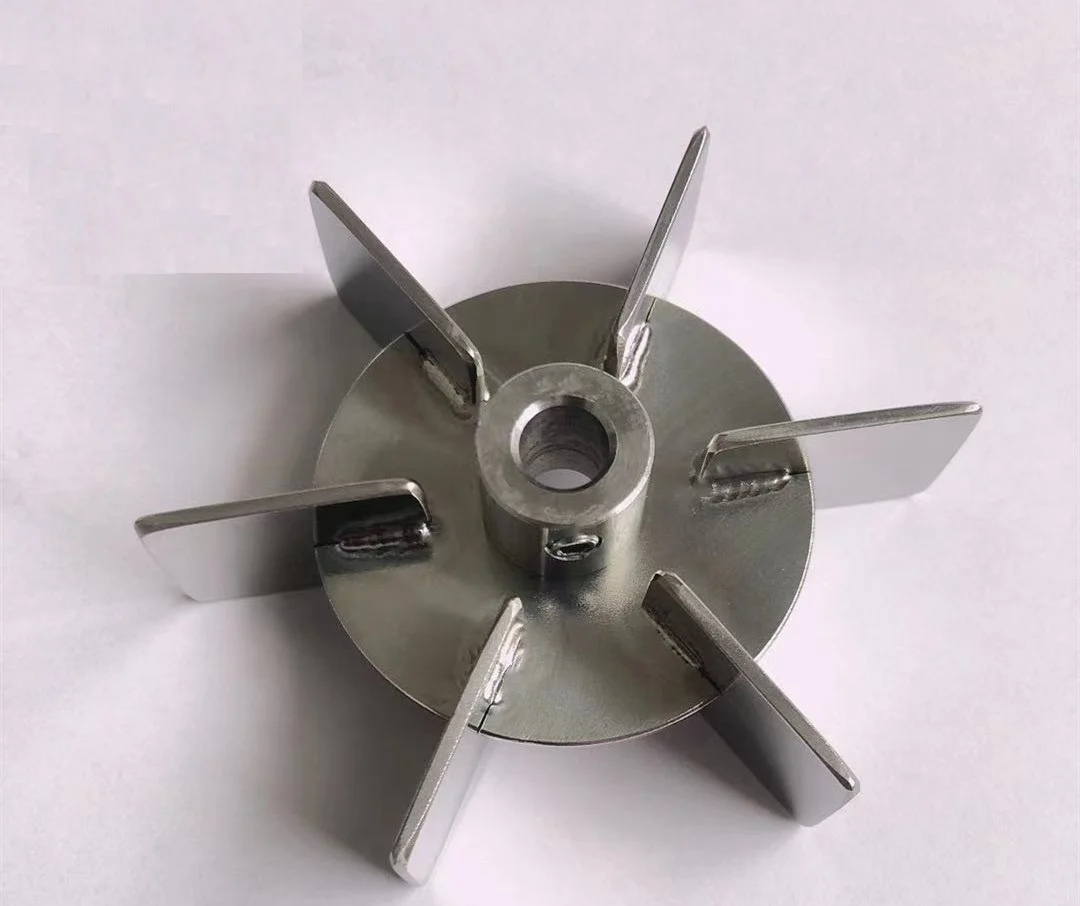

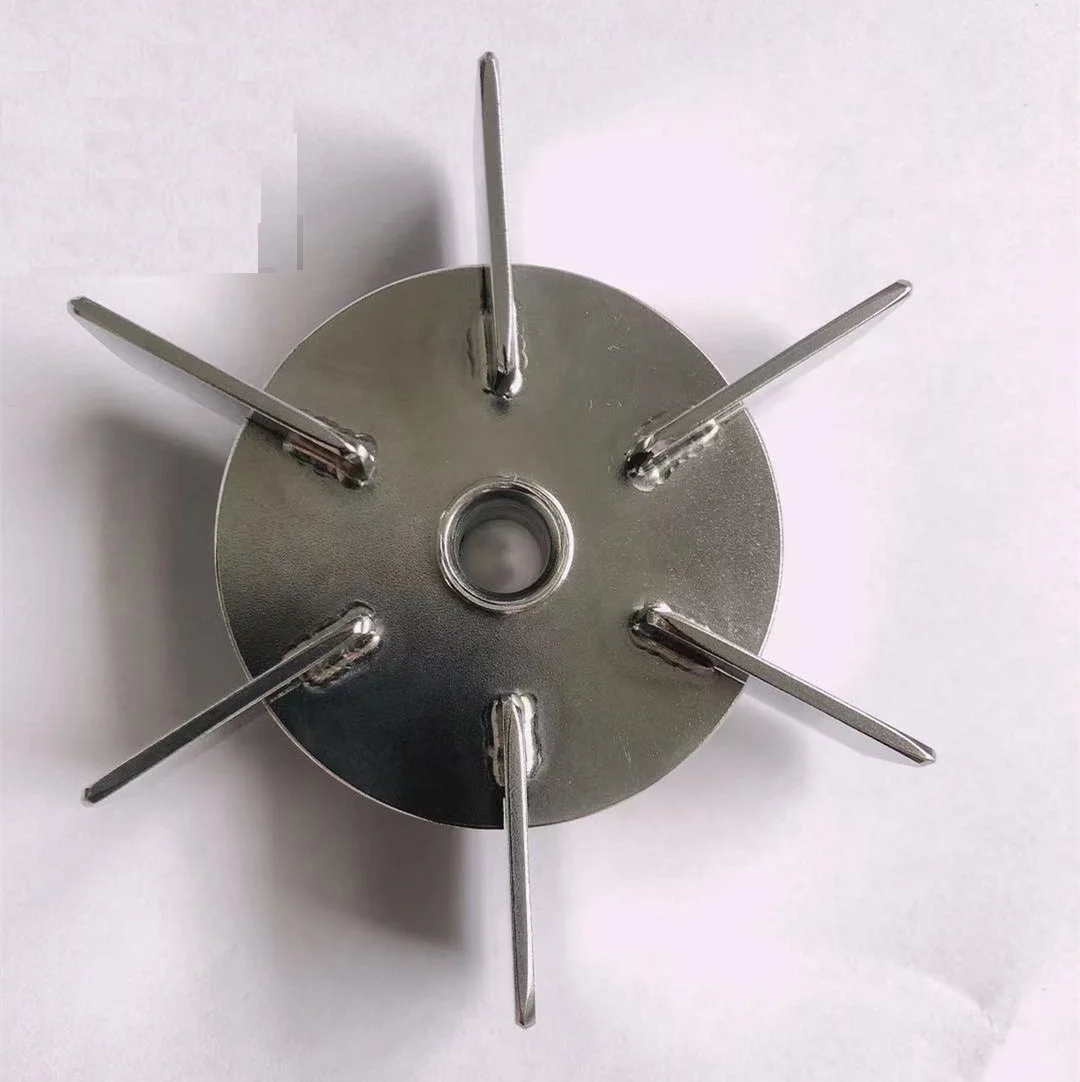

laboratory scale straight flat blade disc rushton turbine
mixing impeller
Straight Flat Blade Disc Rushton Turbine impeller agitator is also called rushton turbines, has 6 flat vertical blades, which is a commoly used type of radial pumping impeller. They have a horizontal support plate to which are attached several (usually six)perpendicular rectangular blades arranged symmetrically around the circumference. Rushton turbines is maily used for gassing applications. Disadvantages are their relatively low flooding limit as well as a high performance drop under gassing conditions. The actural mixing effect of this impeller lies primarily in the shear zone of the radial outflow.
Lab scale agitator impeller

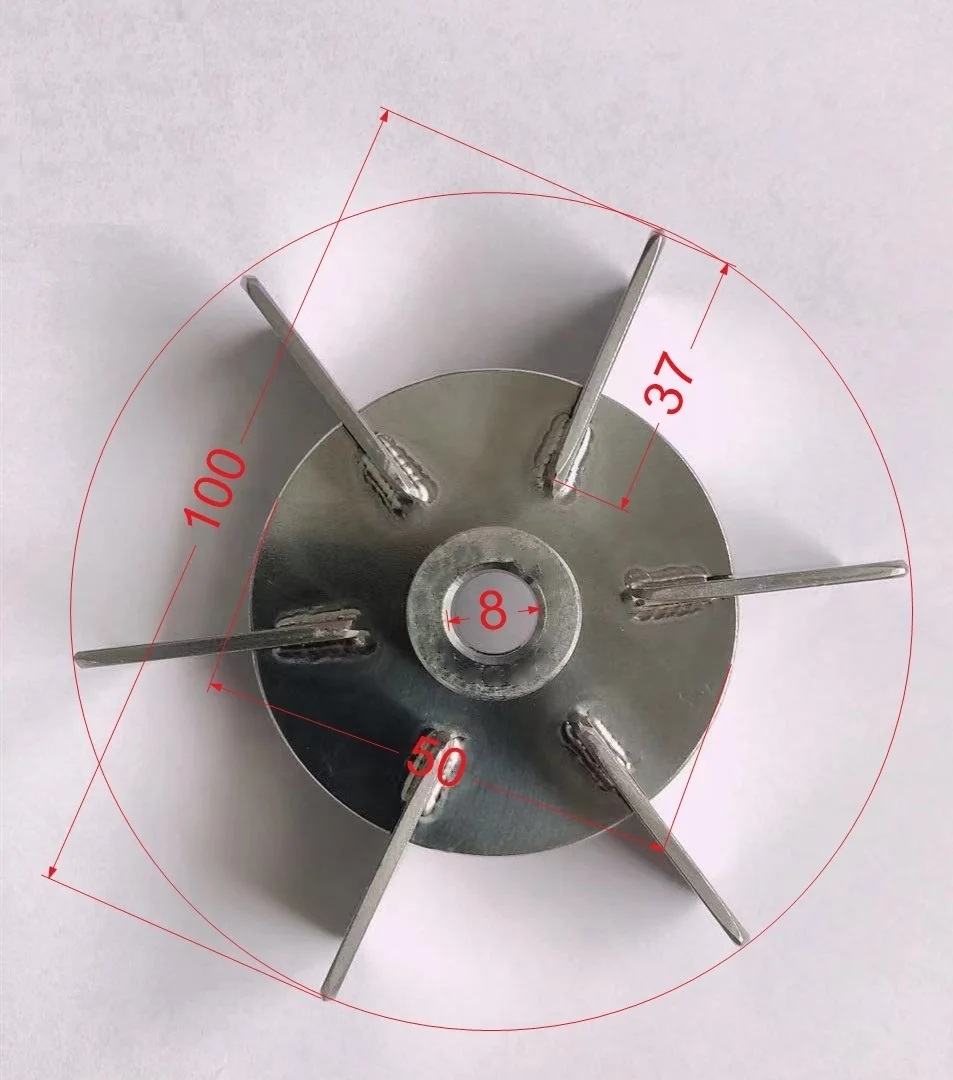

Max Diameter：50mm-400mm
Shaft diameter: 8mm-50mm
Material: SS304 or SS316
Customize as client requirement
Details Images

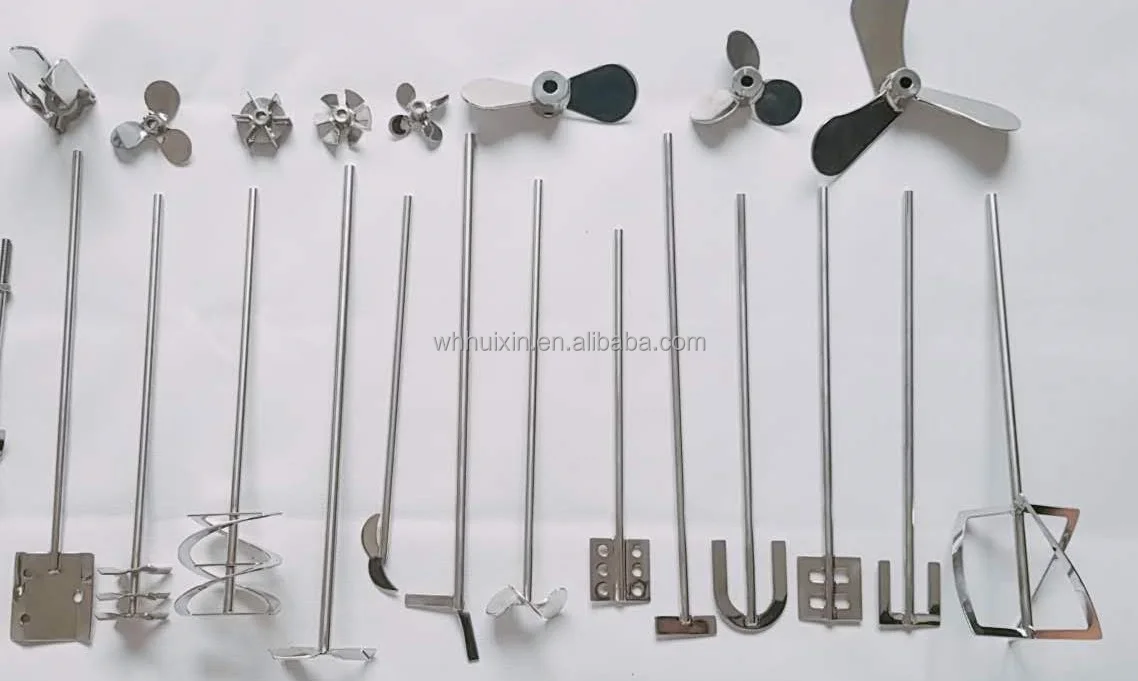

Quick Selection
Type | Mixing speed | Application | Feature |
Marine propeller Broad blade Propeller | 100-500r/min | Low viscosity | Low shear, low energy consumption Strong circulation High-speed operation |
Paddle type * Straight blade * Pitched blade * Curved blade | 50-200r/min | Medium viscosity | Close to the tank wall Heavy duty, slow operation High energy consumption Inefficient mixing |
Turbine type * Straight blade * Pitched blade * Curved blade | 50-350 r/min | Low viscosity Medium viscosity | Medium shear and cyclic Medium speed operation Suitable for medium equipment |
Disk turbine (Flat blade, pinched blade, curved blade, ) | 100-350 r/min | Low viscosity Medium viscosity | Strong shear, gas dispersion Medium speed operation High energy consumption |
Frame type Anchor type Helical Blade | 20-150 r/min | High viscosity | Low shear and speed Strong cycle ability High energy consumption |
Self inducing type Gas inducing type | 200-500 r/min | Liquid-gas mixing | Strong self-inducing capacity High gas consumption High speed operation |
Recommend Products
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Lift or tilt function?（For lab & pilot application）
9. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Lift or tilt function?（For lab & pilot application）
9. Your other requests
......Contact us！
We like to help you to accomplish your plans.
