Model | TS-POE-3616VG | ||||||
System | Operating System | Embedded Linux | |||||
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||||||
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | |||||
Preview | 1/2/4/6/8/9/16 | ||||||
Video | Video input (IP) | 16*4K | |||||
Video compression | H.265AI/H.265+(compatible H.265/H.264) | ||||||
Display quality | Max:4K | ||||||
Playback quality | 4K/5M/4M/3M/1080P | ||||||
Decode | 4K(1)/5M(1+1)/4M(2+1)/3M(2+2)/1080P(4+1) | ||||||
VR | Unsupport | ||||||
human shape / Face | Support(depend on camera) | ||||||
Audio | Audio compression | G.711A | |||||
Intercom | Support | ||||||
Record& Playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing | |||||
Local payback | 4K(1)/5M(1+1)/4M(2+1)/3M(2+2)/1080P(4+1) | ||||||
Search mode | Search by Time/Calendar/Event/Channel/Face | ||||||
Record storage | HDD、Network、Cloud | ||||||
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | ||||||

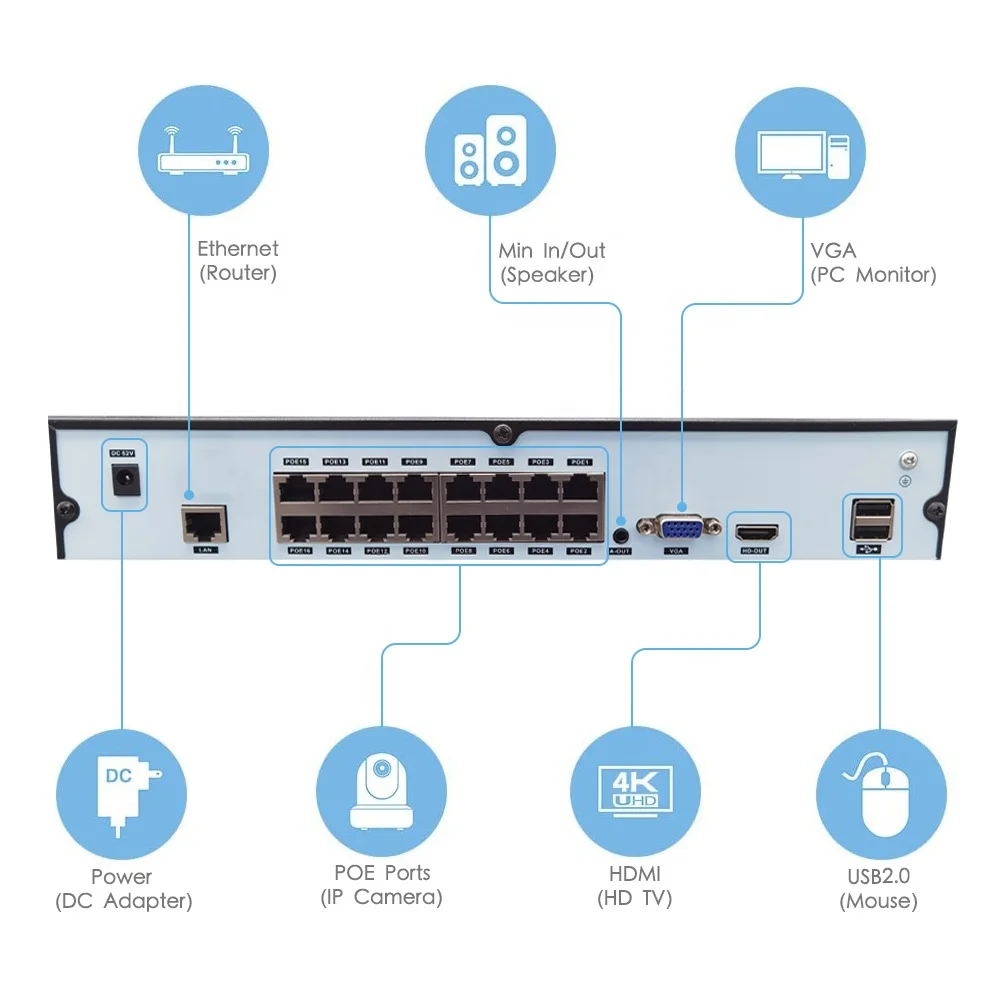

External interface | Video output | 1ch VGA,1ch HDMI HD output | |||||
Audio I/O | 1/1(3.5mm) | ||||||
Alarm I/O | None | ||||||
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | ||||||
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | ||||||
HDD | 1* SATA(Up to 14TB for each disk) | ||||||

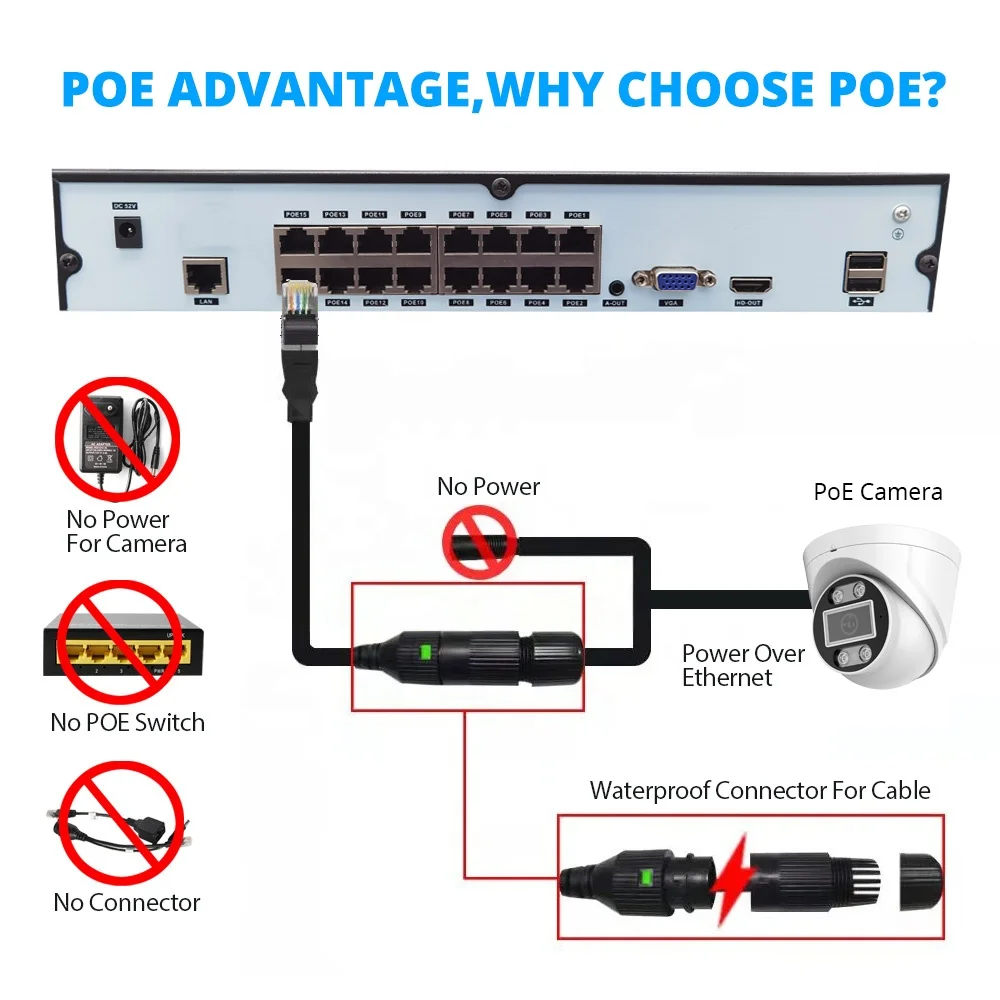

POE | Interface | 16 independent 100 Mbps PoE network interfaces | |||||
Max Power | Max 30W for single port Max 216W in total (13.5W for each) | ||||||
Supported | Standard IEEE 802.3at, IEEE 802.3af | ||||||
General | ONVIF | Support | |||||
Power supply | 52V DC | ||||||
Power Consumption | <10W(Without HDD,only for NVR) | ||||||
Work environment | Temperature:0℃ -55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp | ||||||

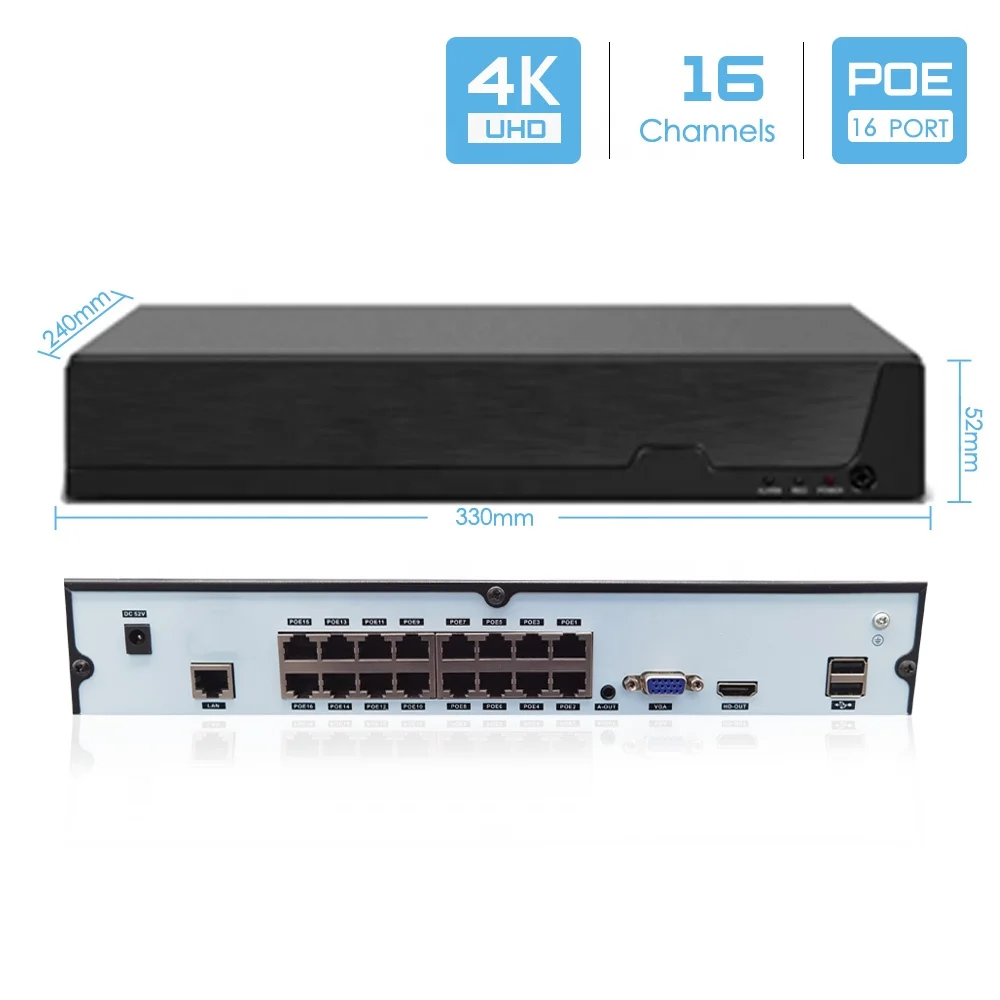

Dimension | 330*240*52mm | ||||||
