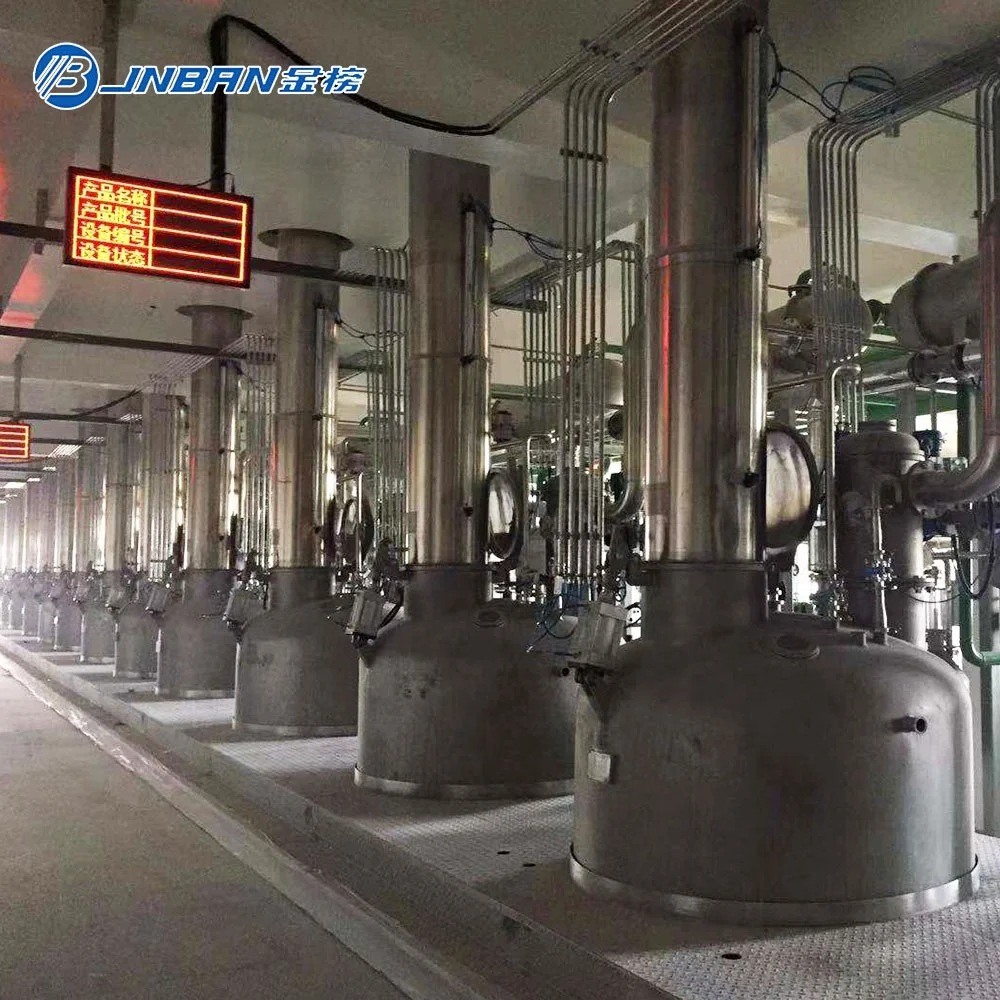

Sanitary Stainless steel Low temperature vacuum essential oil extractor machines
- Category: Oil Pressers >>>
- Supplier: Wenzhou Jinbang Light Ind Machinery Co. Ltd.
Share on (1600550952157):
Product Overview
Description
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Application
Sanitary Stainless steel Low temperature vacuum essential oil extractor machines
Essential oils can be extracted from several plants with different parts by various extraction methods. The manufacturing of essential oils, and the method used for essential oil extraction are normally dependent on botanical material used. State and form of material is another factor used for consideration. Extraction method is one of prime factors that determine the quality of essential oil. Inappropriate extraction procedure can lead to the damage or alter action of chemical signature of essential oil.This results in the loss in bioactivity and natural characteristics. For severe case, discoloration, off-odor/flavor as well as physical change such as the increased viscosity can occur. Those changes in extracted essential oil must be avoided.

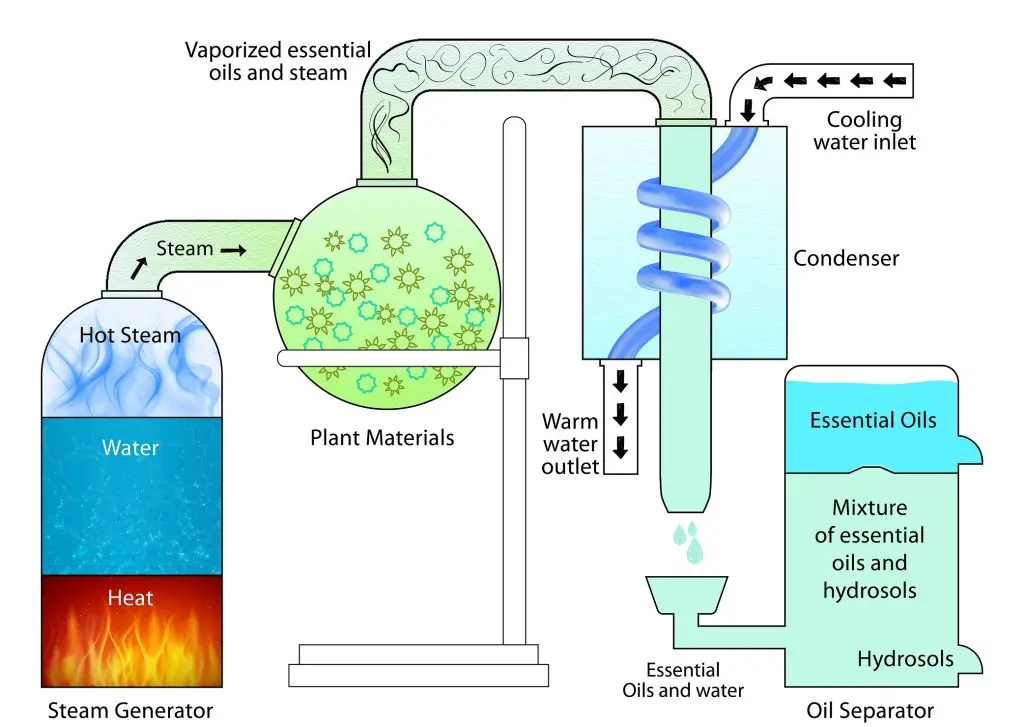

Steam distillation is the most widely used method for plant essential oil extraction. The proportion of essential oils extracted by steam distillation is 93% and the remaining 7% can be further extracted by other methods . Basically, the plant sample is placed in boiling water or heated by steam. The heat applied is the main cause of burst and break down of cell structure of plant material. As a consequence, the aromatic compounds or essential oils from plant material are released. The temperature of heating must be enough to break down the plant material and release aromatic compound or essential oil.
Steam distillation is the most widely used method for plant essential oil extraction. The proportion of essential oils extracted by steam distillation is 93% and the remaining 7% can be further extracted by other methods . Basically, the plant sample is placed in boiling water or heated by steam. The heat applied is the main cause of burst and break down of cell structure of plant material. As a consequence, the aromatic compounds or essential oils from plant material are released. The temperature of heating must be enough to break down the plant material and release aromatic compound or essential oil.
Products Description

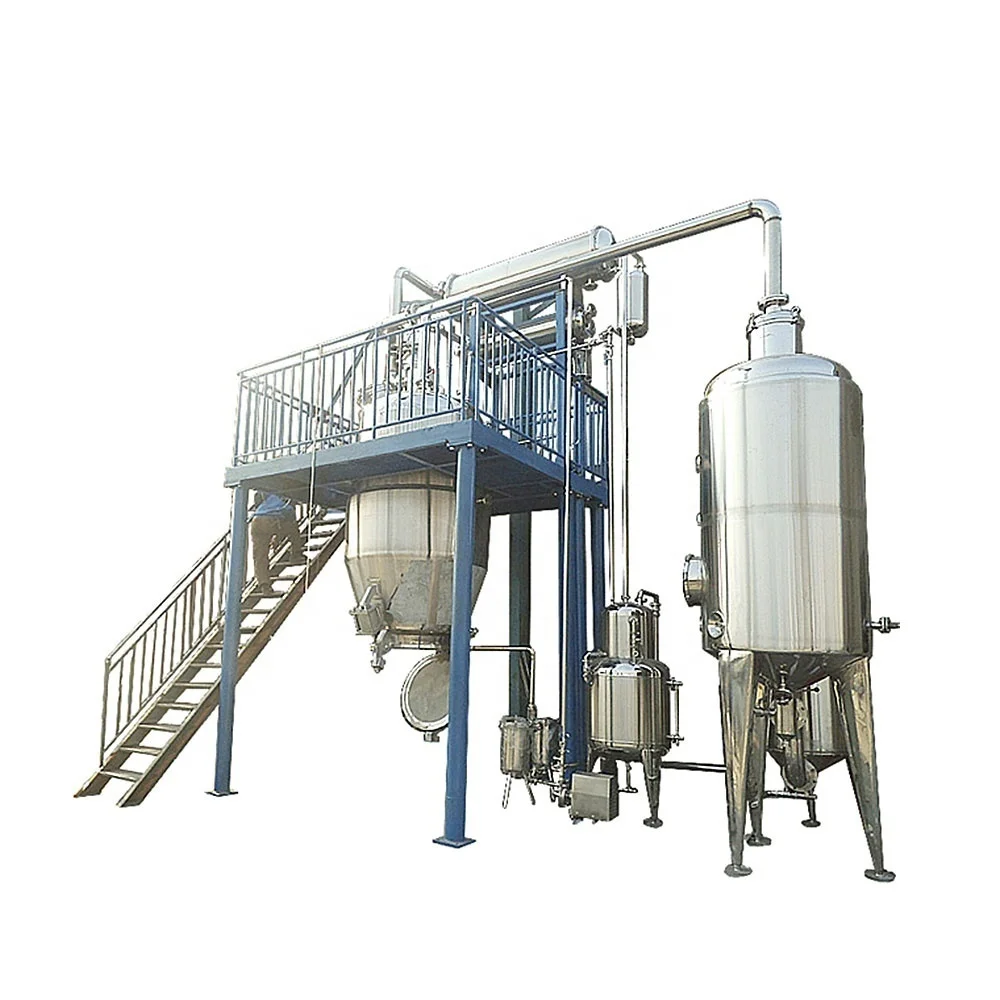

essential oil distiller extracting machine steam distillation equipment
The essential oil extracting machine uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants,flowers,leaves,wood, such asrose,lavender,eucalyptus leaves,lemongrass citronella,sandalwood,etc. By steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser.After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
Product Structure:
1. The device consists of solvent extraction tank, demister, condensing tower, oil-water separator, double filter,
supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition.
2. Equipment internal surface is polished to Ra≤0.6μm,and outer surface is matted to Ra≤0.8μm,which ensure no health dead ends and in line with GMP requirements.
supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition.
2. Equipment internal surface is polished to Ra≤0.6μm,and outer surface is matted to Ra≤0.8μm,which ensure no health dead ends and in line with GMP requirements.
Main Features :
* Extraction Loading Capacity: 100– 5000 kg
* Completly 304 Sanitary Stainless Steel construction.
* Mirror-finish interior to fully comply with GMP and ASME requirements.
* Heating Method: Electric or Steam
* The main components of the essential oil extracting system include:
* Completly 304 Sanitary Stainless Steel construction.
* Mirror-finish interior to fully comply with GMP and ASME requirements.
* Heating Method: Electric or Steam
* The main components of the essential oil extracting system include:
*Heating Element
* Main Storage Vessel
* Stainless Steel Condenser
* Oil / Water Separator
* Glass Essential Oil Collection
* Control Panel
* Main Storage Vessel
* Stainless Steel Condenser
* Oil / Water Separator
* Glass Essential Oil Collection
* Control Panel
Application
Extraction Machine Range of Application:
This commercial-scale Electric or Steam Distillation Extraction effectively captures and extracts volatile oil components out of plant material and collects various volatile fragrance compositions from the following plants:
* Conventional plant flowers and leaves such as rose, osmanthus, wild chrysanthemum, lavender, wormwood, rosemary, wintersweet,sophora japonica, primrose, mint, thyme, lemon balsam, chamomile, vetiver, lemongrass, agarwood, eucalyptus, thyme.
* Plant rhizome: aloes, ginger, aloe, clove.
* Fruits: passion fruit, prickly ash, castor bean, star anise, grape seeds, lemon.
* Conventional plant flowers and leaves such as rose, osmanthus, wild chrysanthemum, lavender, wormwood, rosemary, wintersweet,sophora japonica, primrose, mint, thyme, lemon balsam, chamomile, vetiver, lemongrass, agarwood, eucalyptus, thyme.
* Plant rhizome: aloes, ginger, aloe, clove.
* Fruits: passion fruit, prickly ash, castor bean, star anise, grape seeds, lemon.
Product Paramenters
Volume of distillation still | 1500L |
Heat transfer area of condenser | ≥5㎡ |
Volume of distillation basket | 1000L |
Volume of distilled liquid storage tank | 50L |
Power of aqua astricta set | 18KW |
Capacity | 3000L |
Series technical parametes | TQ-1 | TQ-2 | TQ-3 | TQ-4 | TQ-5 | TQ-6 |
Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Tank design pressure (MPA) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Compressed air pressure (MPA) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Feed port diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area (m²) | 3.0 | 4.7 | 6.0 | 7.5 | 9.5 | 12 |
Condensation area (m²) | 4 | 4 | 5 | 5 | 8 | 10 |
Coling area (m²) | 1 | 1 | 1 | 2 | 2 | 3 |
Filtration area (m²) | 3 | 3 | 3 | 5 | 5 | 6 |
Slag gate area (m²) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
Energy consumption (kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
Successful Project
Herbal Project
Herbal Project
Essential Oil Project
Essential Oil Project
Herbal Project
CBD Oil Project
FAQ
Q1：What Factors Affect The Quality Of Plant Extract From Plant Extraction Machine?
The quality of the plant extract may directly or indirectly be proportional to the following factors:
●Raw material; Pay specific attention to the variety of the plant because even the slightest variation could shift the extract
quality.Even the particular plant variety would be affected by climatic conditions, geographical locations, cultivations, and so on.Most important of all, finding the balance between the specific needs is quite challenging.As such, we are guaranteeing quality with the raw materials is struct.
●Quality of the solvent; Having the best choice solvent would result in high-quality extract and vice versa.
The quality of the plant extract may directly or indirectly be proportional to the following factors:
●Raw material; Pay specific attention to the variety of the plant because even the slightest variation could shift the extract
quality.Even the particular plant variety would be affected by climatic conditions, geographical locations, cultivations, and so on.Most important of all, finding the balance between the specific needs is quite challenging.As such, we are guaranteeing quality with the raw materials is struct.
●Quality of the solvent; Having the best choice solvent would result in high-quality extract and vice versa.
●Selected plant extraction machine; The operating principle and operation hugely determine the quality level of the extract.
So you have to pay attention to the machine specification.
It is prudent to buy from a reputable seller with years of experience and quality.
Q2:What Heat Sources can you Employ for your Belt dryer?
● Steam
● Hot water
● Hot oil
Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.
Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.
So you have to pay attention to the machine specification.
It is prudent to buy from a reputable seller with years of experience and quality.
Q2:What Heat Sources can you Employ for your Belt dryer?
● Steam
● Hot water
● Hot oil
Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.
Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.
