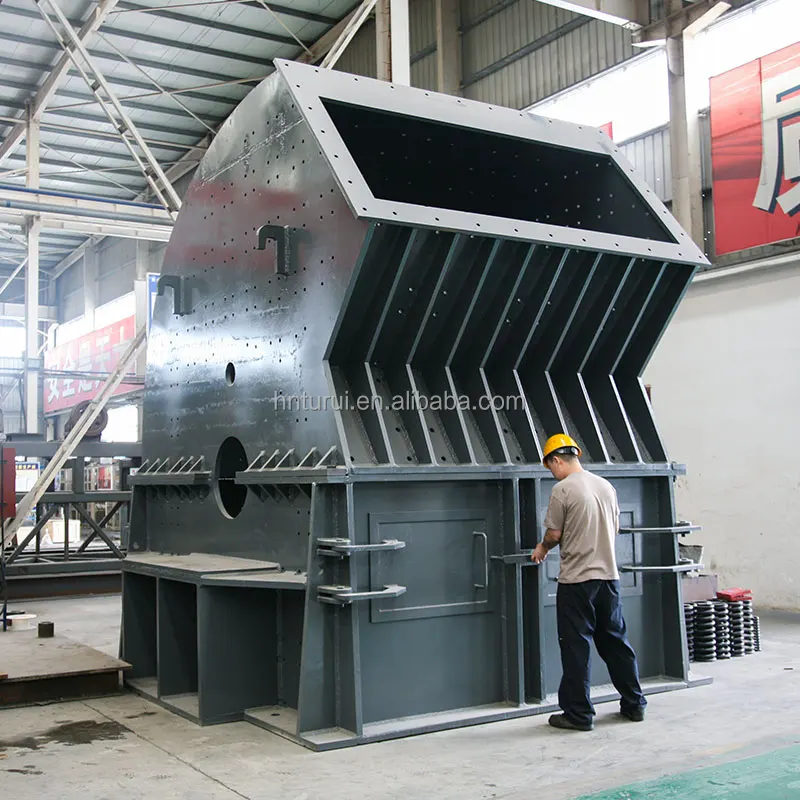

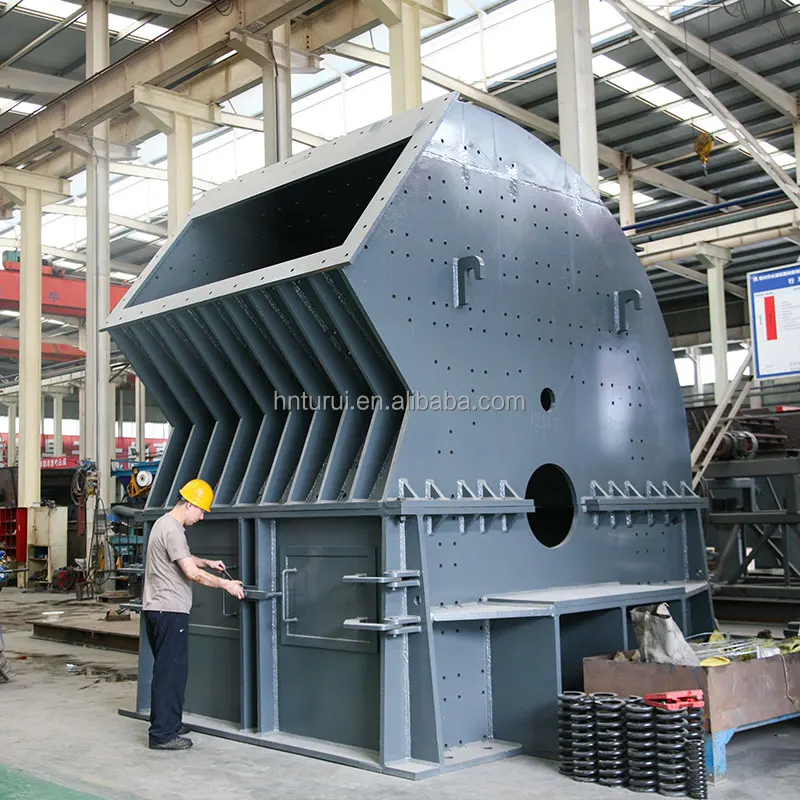

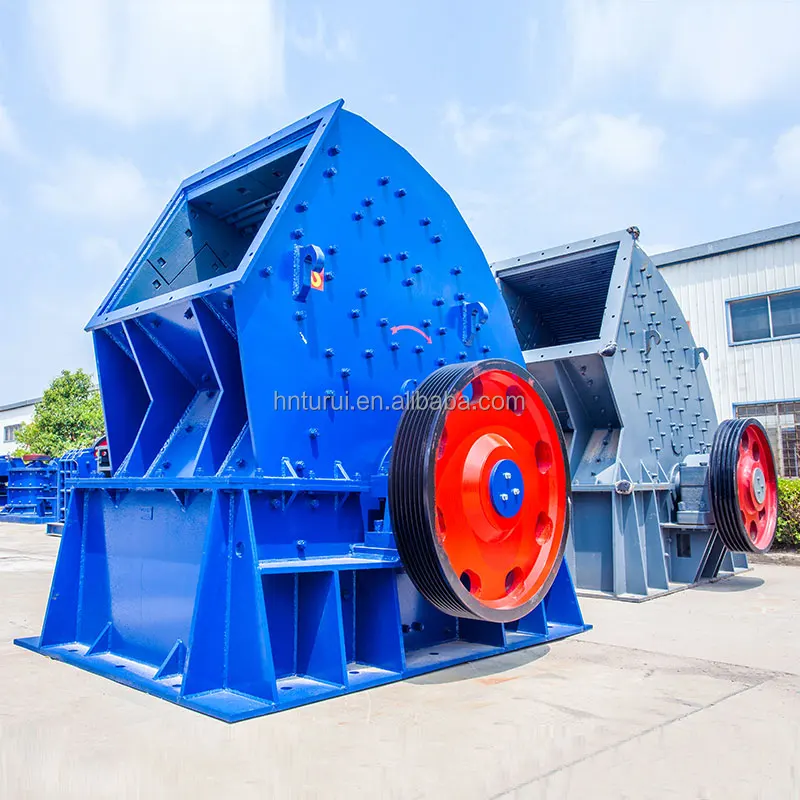

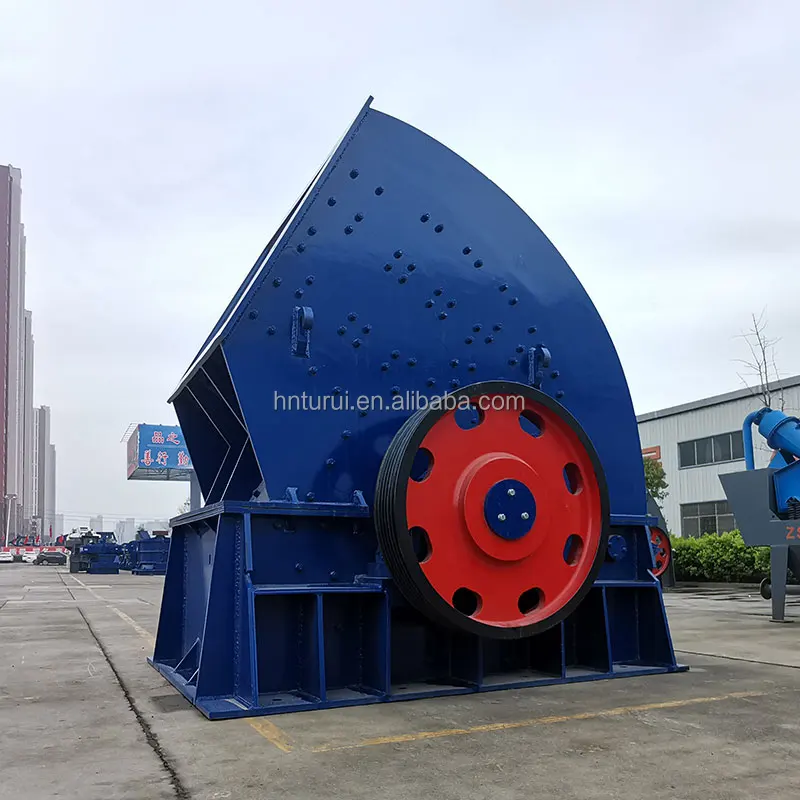

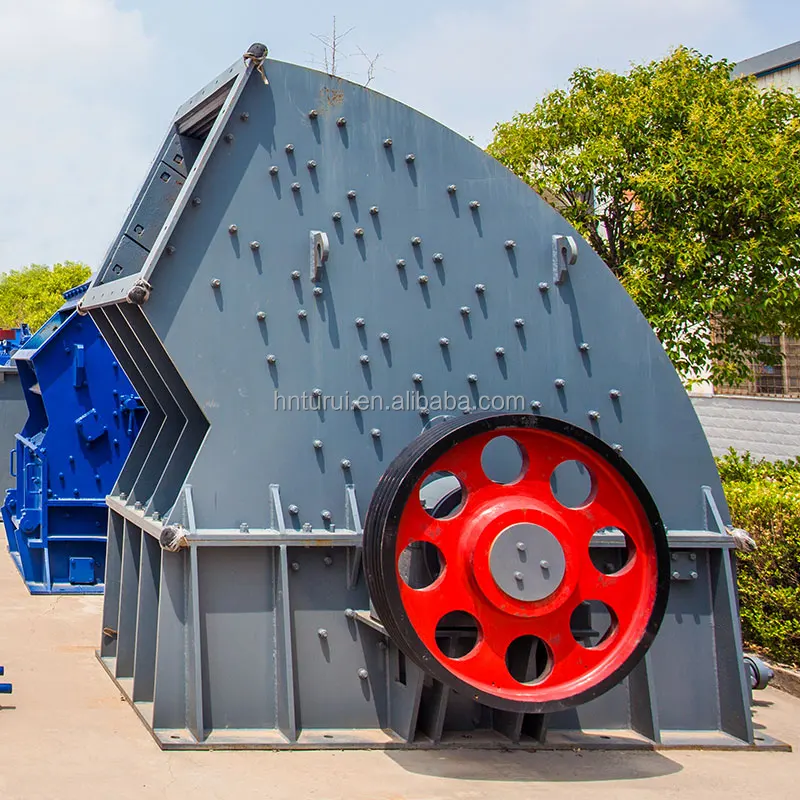

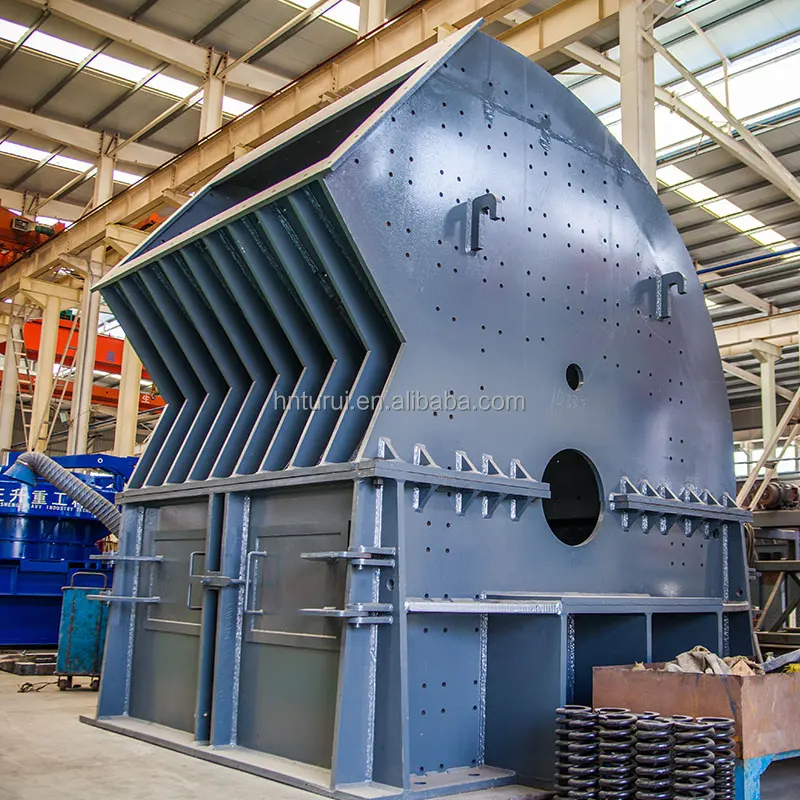

PC Hammer Rock Crusher Manufacture Impact Stone hammer Crushing machine Plant
- Category: >>>
- Supplier: Henan Turui Machinery Co. Ltd.
Share on (1600551661409):
Product Overview
Description
Products Description
Description
1. It has large crushing ratio (normally is 10-25, or up to 50), high production capacity, even particles size, less over crushing phenomenon, simple structure, high weight and easy operation.
2. It can break material with size of 600-1800mm directly into size of 25mm or below.
2. It can break material with size of 600-1800mm directly into size of 25mm or below.
Working Principle
Working Principle

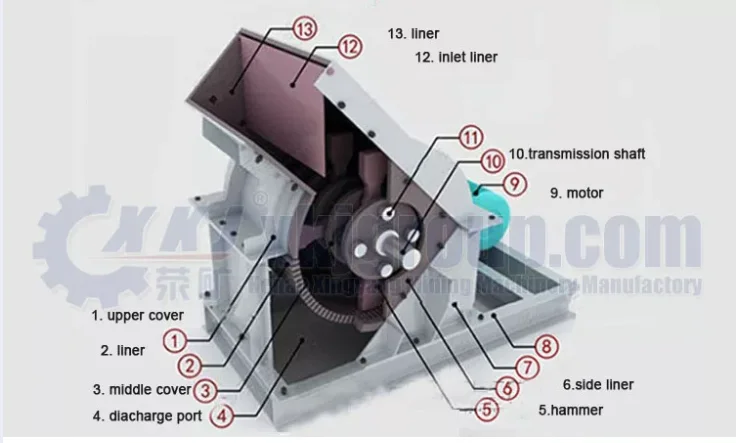

Hammer Crusher is a kind of impact and rotor crusher with ring hammers. When the material enters into the crusher, it will be crushed by the high speed ring hammer firstly. Crushed materials obtain kinetic energy from ring hammer at the same time, rush to the breaking plate with high speed, by the second break, then fell on the screen plate, materials are crushed further by cutting, pressure, grinding from ring hammer and interaction each other, discharged from screen. The sundries cannot be crushed come into the metal collector, cleaning regularly.
Application
Hammer Crusher is used to crush brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The
compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.
compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.
Technical Parameter
Model | Feed size(mm) | Discharge size(mm) | capacity(m³/h) | Motor power （kw） | weight(t) | Dimensions(L×W×H)(mm) |
PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |
PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600×1390×1575 |
PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800×1590×1775 |
PCΦ1200×1200 | ≤350 | ≤35 | 50-80 | 132-160 | 19.2 | 2060×1600×1890 |
PCΦ1400×1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365×1870×2220 |
PCΦ1600×1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050×2850×2800 |
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research, production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as insouth-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as insouth-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Production Strength
All of the products have passed the international quality system certifications of ISO900, CE and GHOST. With the distinctive design, professional team, strict management and top-quality equipment, we are devoted to producing advanced high-quality products, to meet the demands of domestic and international market. The products have been sold to twenty provinces and exported to more than one hundred counties and areas.
Our Services
PRE-SALE SERVICE
We provide professional technical consultancy as per customers’ actual situation, like the production capacity, site condition, materials characteristics, etc.;then give the reasonabledesign, and competitive quotation.
SALE SERVICE
With professional technical team, we provide door-to-door installation instruction services and commissioning, and
personnel-training, ensuringthe successful efficient operation of all equipment.
personnel-training, ensuringthe successful efficient operation of all equipment.
AFTER-SALE SERVICE
To help customers optimizing the equipment,we provide regular return visit service, and instruct the maintenance of equipment. Listening to the feedback from customers, to make more progress.
