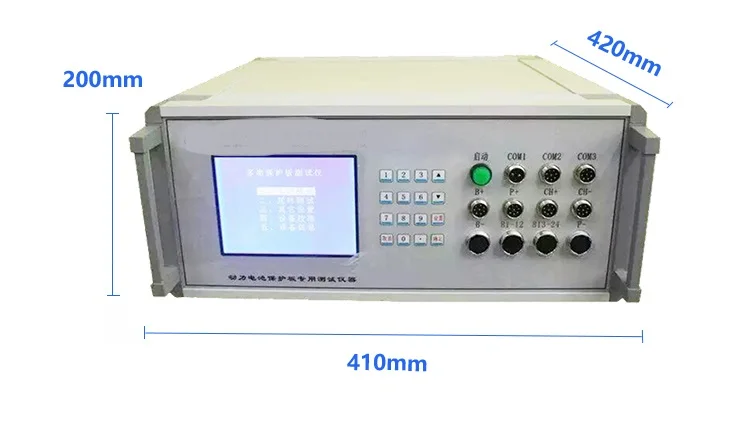

High Accuracy 24 32 Series Li Ion Lithium Battery Pack BMS Tester Testing Machine for Protecting Board Laboratory test

Product Overview

Description

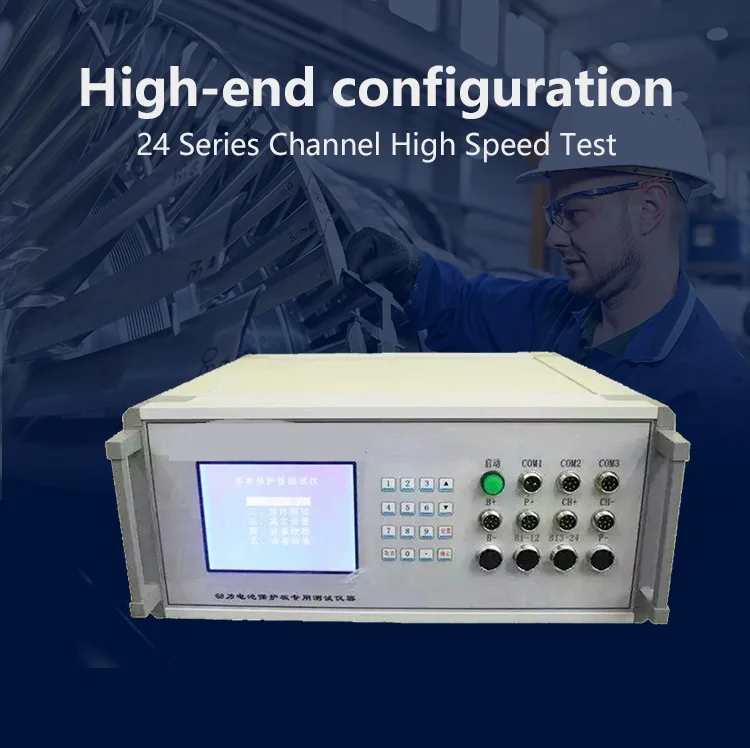

Lithium Battery Pack Bms Pcb Tester 24  Series Bms Testing System 18650 Lithium Battery Tester


Machine features

The PBTS series multi-function BMS board testing machine is mainly used to testing the BMS board specifications is within the parameters

which declared by the BMS board supplier, so as to provide a set of testing standards for the staff.

It is suitable for power battery BMS board manufacturers and power battery pack manufacturers.



Technical parameter

No.	Item	Parameter	Accuracy
1	Power supply	AC220V/50Hz
2	Power	800W
3	Max overcurrent	60A or 120A optional
4	Test series	1-24 series configurable
5	Voltage reference	Ternary Battery:3.8V
		LFP Battery: 3V
6	Overcharge/Overdischarge protection voltage	0.5-5V	±5mV
7	Overcharge/Overdischarge voltage	0.5-5V	±5mV
8	Overcharge protection current	0-40A	±0.1A
9	Overdischarge protection current	0-120A	±0.1A
10	Equilibrium open voltage	0.5-5V	±5mV
11	Equilibrium real-time current	0-200mA	±1mA
12	Overcurrent protection delay	0-15S	±1mS
13	Overcharge/Overdischarge protection delay	0-20S	±1mS
14	Single section self consuming power	0-500uA	±1uA
15	Internal loop resistance	0-500mΩ	±1mΩ
16	Short circuit protection (above 6 series)	0-9999us	±1us
17	Size	450W*440L*230Hmm
18	Weight	20kg



The test functions are:
1) overcharge protection voltage
2) overcharge recovery voltage
3) over discharge protection voltage
4) over discharge recovery voltage
5) over discharge current protection
6) short circuit protection performance test
7) charging current protection
9) equalization opening voltage
10) equalization real-time current
11) BMS board total consumption
12) single section self consumption current
13) overcharge protection delay
14) over discharge protection delay
15) overcurrent protection delay
16) internal resistance

For more details pls contact :
Jenny (Manager)
sales.jxcgroup(@)gmail.com
WhatsApp/WeChat/phone number is +8618098919495

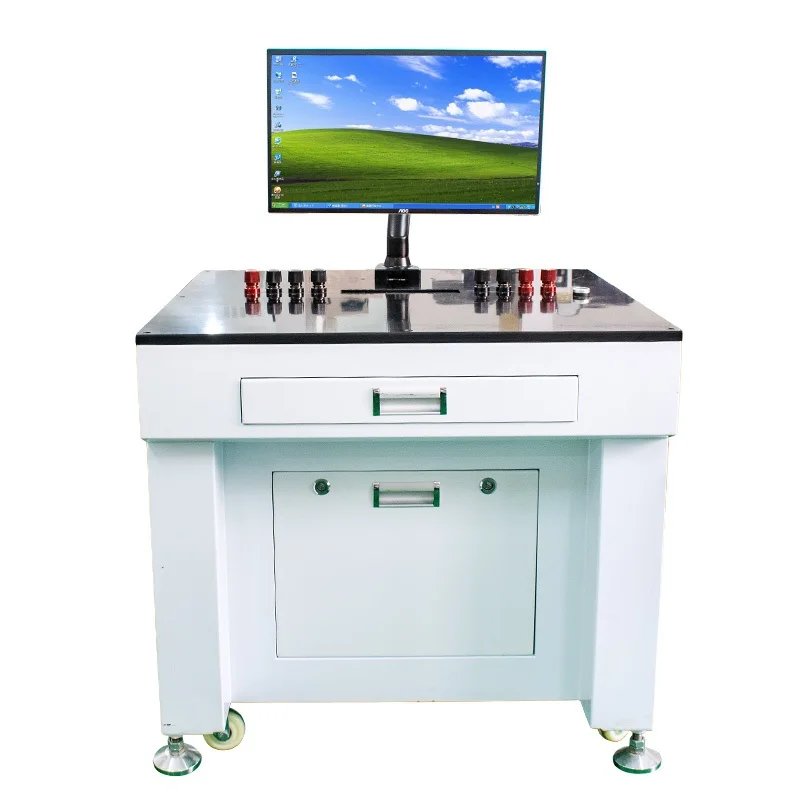

32s Lithium Battery Pack Bms Pcb Tester 32 Series Bms Testing System 18650 Lithium Battery Tester

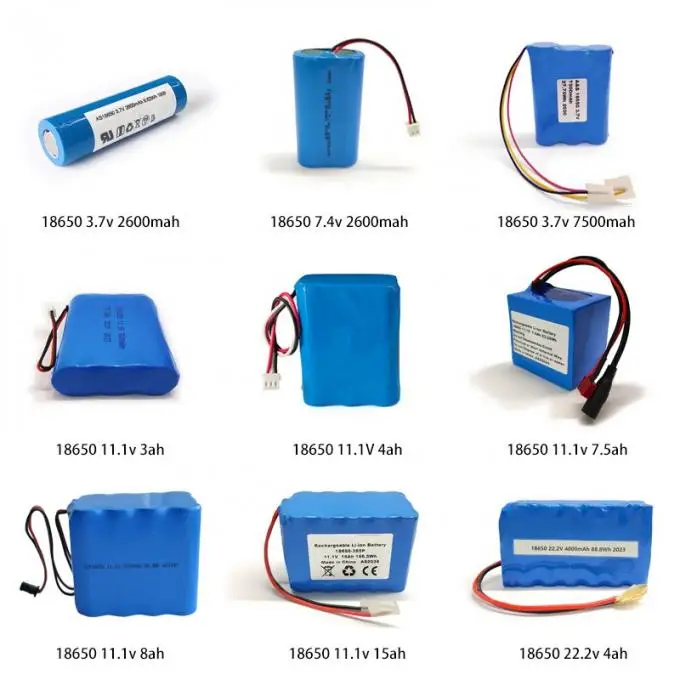

Battery Pack solution
