Manufacturer TFT LCD screen 7 inch RGB interface 1024*600 color screen capacitive touch screen TFT
- Category: >>>
- Supplier: Shenzhen Mingfa Xingke Electronics Co. Ltd.
Share on (1600551942003):
Product Overview
Description

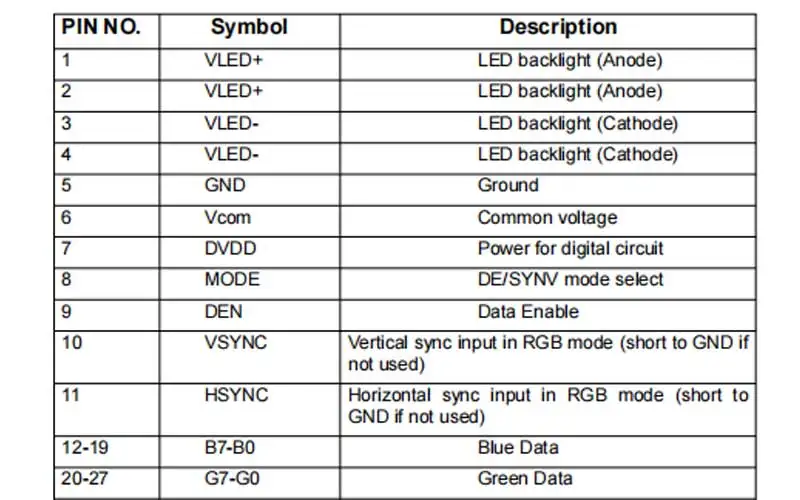

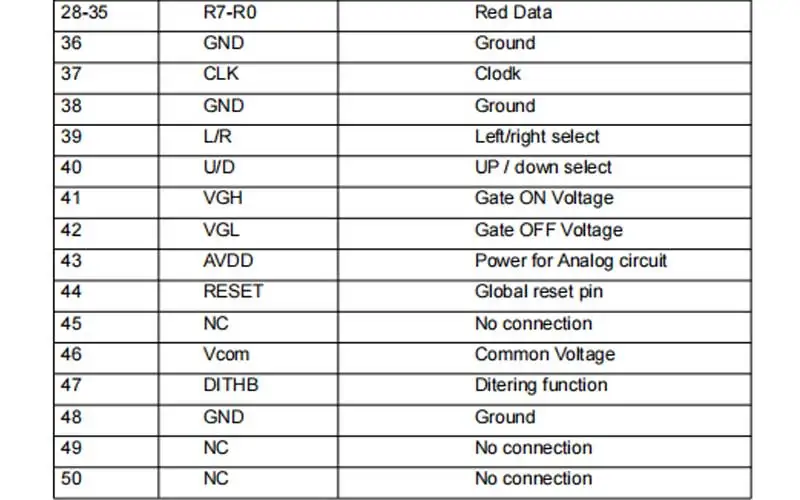

7 inch TFT LCD screen 24 bit RGB interface TN type display 1024*600 50PIN LCD Modules
Specification
ITEM | Sandard value | Unit |
Model Number | （7inch）ENH-TH07010D50 | -- |
Size | 7 | Inch |
LCD Type | TFT TRANSMISSIVE | -- |
Interface Type | 24 bit RGB interface | -- |
Viewing Direction | 6 O'clck | -- |
BlackLight | 7 *3 chips white LED | |

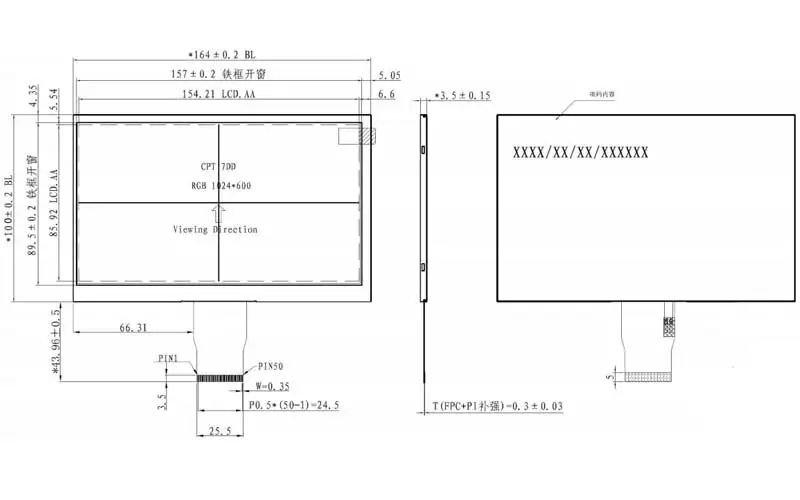

Dimensional outline | 164(W)*100(H)*3.5(D) exclude FPC | mm |
Resolution | 1024RGB*600 | Pixel |
Active area | 154.21(H)*85.92(V) | mm |
ASSY.TYPE | COG+FPC | -- |
Weight | TBD | g |
LCM Surface brightness Luminance | 180 | Cd/㎡ |
Operating Temperature | -20~+70 | ℃ |
Storage Temperature | -30~+80 | ℃ |
Recommend Products
Size and Feature | Model No | Resolution | Interface | Driver | Brightness | Viewing angle | |
2.0" | 320*240 | 3-SPI+Serial RGB mode | ILI9342C | 280 | 6 O'clock | ||
2.0" IPS TFT | 240*320 | 4-line Serial interface | ST7789V2 | 450 | All | with TP | |
2.0" IPS TFT | 240*320 | 4-line Serial interface | ST7789V2 | 450 | All | ||
2.3" | 320*240 | 3-SPI+6 bits Serial RGB mode | ILI9342C | 300 | All | ||
2.7" | 320*240 | Support 8-bit RGB,8-bit Dummy RGB, CCIR601 and CCIR656 input | ILI8961 | 220 | 6 O'clock | ||
3.0" | 480*854 | MIPI Video Mode&RGB+3line SPI | ST7701S | 400 | All | ||
3.0" IPS TFT | 480*854 | MIPI Video Mode&RGB+3line SPI | ST7701S | 360 | All | with TP | |
3.5" | 480*800 | MIPI Video Mode&RGB16+3line SPI | ST7701S | 500 | All | ||
3.5" | 480*800 | MIPI Video Mode&RGB16+3line SPI | ST7701S | 500 | All | with TP | |
3.5" | 320*480 | Support MCU80808,16,18bits;RGB16,18bits;SPI3,4Line | ILI9488 | 360 | All | ||
3.92" | 320*320 | 4-line SPI& 8bits MCU & 16bits MCU interface | 280 | All | with TP | ||
3.95'' IPS TFT | 480*480 | 18bits RGB interface | ST7701S | 300 | All | ||
3.95'' IPS TFT | 480*480 | 18bits RGB interface | LCD-ST7701S CTP-FT5316 | 350 | All | with TP | |
3.97" IPS TFT | 480*800 | 8080MCU 16bit | R61408 | 400 | All | ||
4.3'' IPS TFT | 480*800 | MIPI Video Mode | ST7701S | 450 | All | ||
5.0'' IPS TFT | 800*480 | 24Bit RGB mode | ST7262 | 500 | All | ||
5.0'' IPS TFT | 800*480 | 24Bit RGB mode | ST7262 | 400 | All | with TP | |
5.0'' IPS TFT | 800*480 | 24Bit RGB mode | ST7262 | 380 | All | ||
5.0'' IPS TFT | 480*954 | 24Bit RGB mode | ST7701S | 400 | All | with TP | |
7.0" | 800*480 | 24Bit RGB mode | 350 | 6 O'Clock |
More other size tft can contact us for details
Application

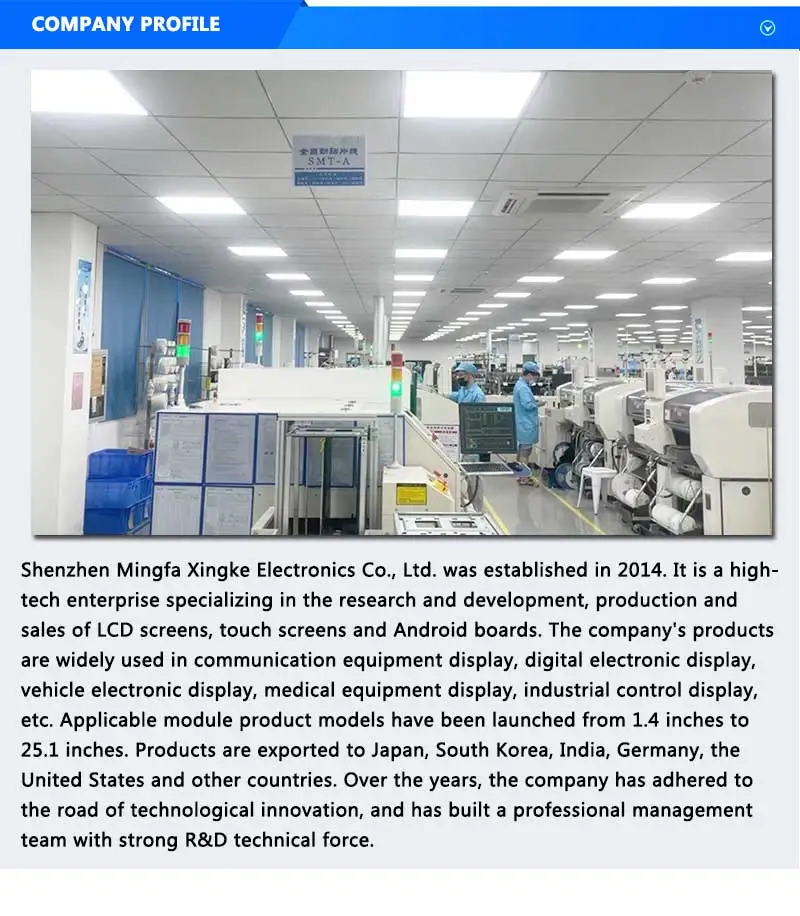

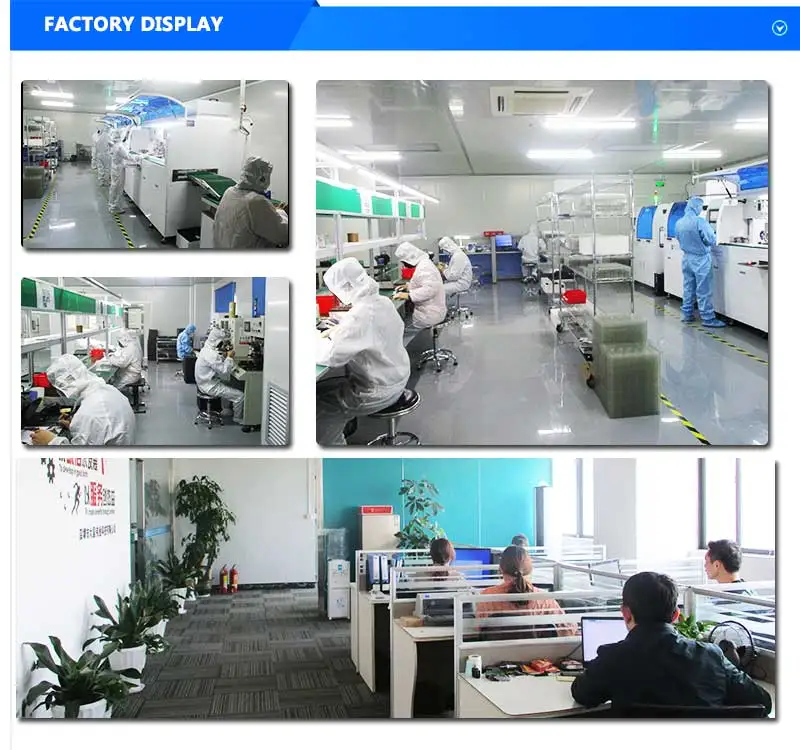

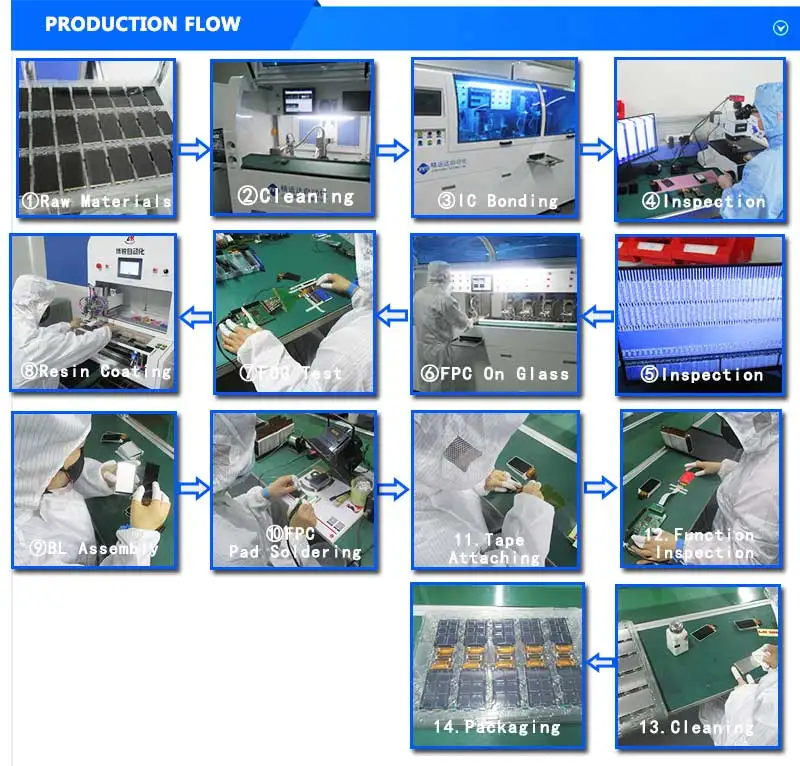

Company Profile

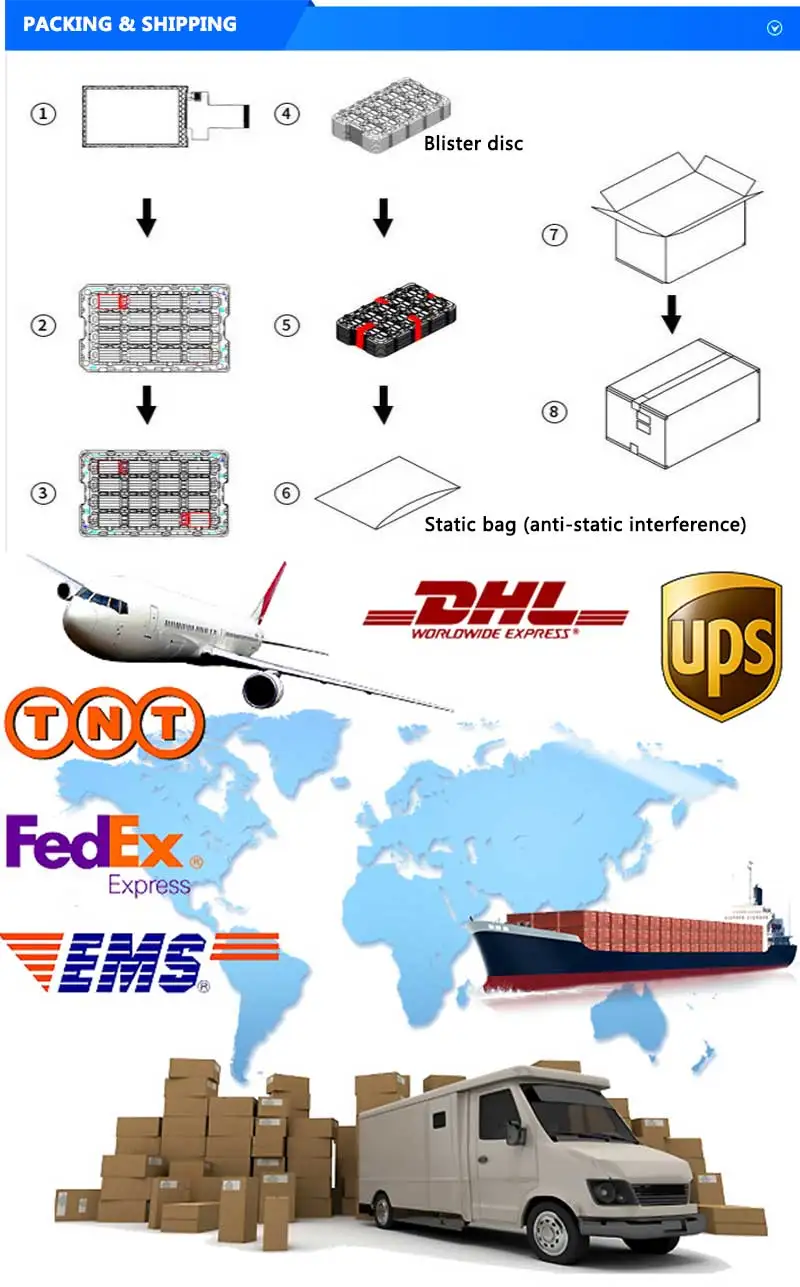

Packing & Delivery
