Product Overview

Description





PRODUCT CATEGORIES








PARAMETER INFORMATION

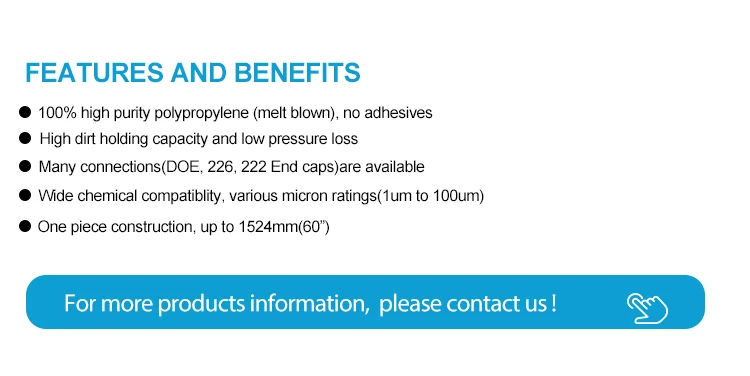

100% polypropylene
High dirt holding capacity
Depth filtration, high dirt holding capacity
Many connections are
available
Cut Ends; 226/FIN; 222/FIN
Wide Chemical compatability
Can be used in the solvent which PH value is from 1 to 13
Effective Filtration Area
0.40M2 per 10"
Materials
Filter Media: Polypropylene / Cotton/Glass fiber
Inner core: Polypropylene or Stainless Steel

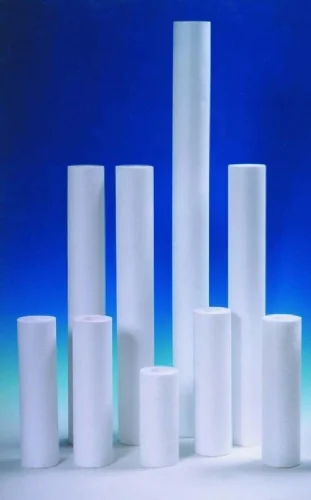

Cartridge Dimensions
(Nominal)
Outer Diameter: 63mm (2.5") / 114mm (4.5")
Inner Diameter: 28mm (1.10")
Length: 10"- 254mm
20"- 508mm
30"-762 mm
40"- 1016mm
* (Length is based on Cut Ends)
Cartridge Purity
Free of surfactants, resins, binders and adhesives
Typical Applications
Prefiltration in process water treatment industry;
Clarification for waste water treatment;
Prefiltration before R O system in electronics process water;
Organic solvents, inks, plating solution, metal cutting fluids,
photoresist filtration
Operating Conditions
Normal Operating Temperature: Up to 50℃ (122℉)
Max.Operating TeCPerature:
80℃ (149℉)at P≤1.0 bar (14psi)
Max. Differential Pressure:
Normal Flow direction 4.0 bar (58 psi) at 25℃ (77℉);
Reverse flow direction 2.0 bar (29 psi) at 25℃ (77℉).
PH Value coCPatibility: 1-13
Sterilization
Not recommended


APPLICATION






RELATED PRODUCTS






COMPANY PROFILE




EXHBITION




WHY CHOOSE US




PACKING AND SHIPPING




1. How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....

2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.

3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment


Email:tomas(at)tsjmlc.com
Best wishes!
