china swimming pool solar water heater flat plate solar thermal panel
- Category: Solar Collectors >>>
- Supplier: Dezhou,Bte,Solar,Co.,Ltd.
Share on:
Product Overview
Description
VR

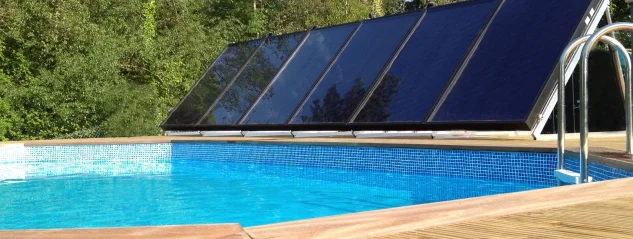

Solar pool heating systems can significantly reduce swimming pool heating costs. The cost is competitive with both electric and gas pool heaters, and they have very low yearly operating costs. Actually, solar pool heating is the most cost-effective use of solar energy in many climates.
Related products
Specification
Specification | BTEB-I/0.6-L-2.0 | BTEF-I/0.6-L-2.0 | BTEG-I/0.6-L-2.0 | ||
Film | Black Film | Blue Film | Germany imported Blue Film | ||
Overall size(mm) | 1000x2000x80/95 | 1000x2000x80/95 | 1000x2000x80/95 | ||
Frame | 1.0mm Aluminum | 1.0mmAluminum | 1.0mm Aluminum | ||
Absorption area(m2) | 1.89 | 1.89 | 1.89 | ||
Header pipe | CopperTP2 Φ22x0.6 | CopperTP2 Φ22x0.6 | CopperTP2 Φ22x0.6 | ||
Grid pipe | CopperTP2 Φ10x0.5 | CopperTP2 Φ10x0.5 | CopperTP2 Φ10x0.5 | ||
Cover material | 3.2Low-iron tempered -glass | 3.2Low-iron tempered -glass | 3.2Low-iron tempered -glass | ||
Transmittance | ≥92% | ≥92% | ≥92% | ||
Bottom cover | 0.50mm Hot galvanized plate | 0.50mm Hot galvanized plate | 0.50mm Hot galvanized plate | ||
Insulation | Bottom: glass fiber frame: polyester fiber | Bottom: glass fiber frame: polyester fiber | Bottom: glass fiber frame: polyester fiber | ||
Working Pressure | 0.8MP | 0.8MP | 0.8MP | ||
Remark | 1.Frame: Aluminum 6063-T5; 2.Our full automatic production line can produce different specification products according to your own requirements; We can supply Self-cleaning Glass for all collectors. | ||||

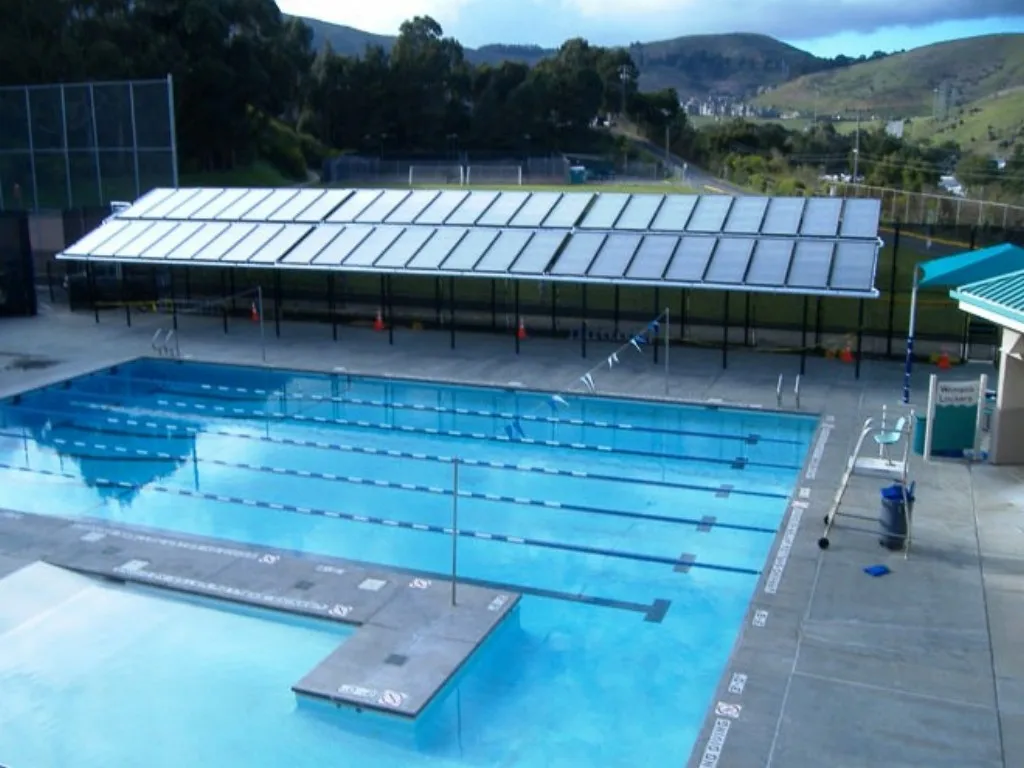

HOW THEY WORK
The typical solar pool heating system includes the following:
* Solar collector — the collector transfers the heat from the sun to the pool water as it is being circulated
* Filter — removes any foreign debris before water is circulated through the collector
* Pump — circulates the pool water through the filter and collector and back to the pool
* Flow control valve — there are two types, automatic or manual, which divert pool water through the solar collector.
The pool water passes through the filter followed by th the solar collector(s) by the pump. As the water passes through the collectors it is heated by the sun and then returned to the pool. During the peak of summer, the system can be used to cool the pool by circulating the water at night.
Some systems are automated through the use of sensors and an automatic valve which diverts water through the solar collector when its temperature is greater than that of the pool. If the collector temperature is the same or less than the pool temperature, pool water simply bypasses the collector(s).
* Solar collector — the collector transfers the heat from the sun to the pool water as it is being circulated
* Filter — removes any foreign debris before water is circulated through the collector
* Pump — circulates the pool water through the filter and collector and back to the pool
* Flow control valve — there are two types, automatic or manual, which divert pool water through the solar collector.
The pool water passes through the filter followed by th the solar collector(s) by the pump. As the water passes through the collectors it is heated by the sun and then returned to the pool. During the peak of summer, the system can be used to cool the pool by circulating the water at night.
Some systems are automated through the use of sensors and an automatic valve which diverts water through the solar collector when its temperature is greater than that of the pool. If the collector temperature is the same or less than the pool temperature, pool water simply bypasses the collector(s).
Products Advantages
Short delivery time within
2 weeks.
2 weeks.
All products tested 3 times before delivery and can offer 5 years warranty.
BTE has CE, Solar KeyMark and ISO9001 certification. Ranked the TOP 3 in the solar thermal world.
We can accept OEM & ODM orders. Solar Collectors have high efficiency and long working life.
Product Compared

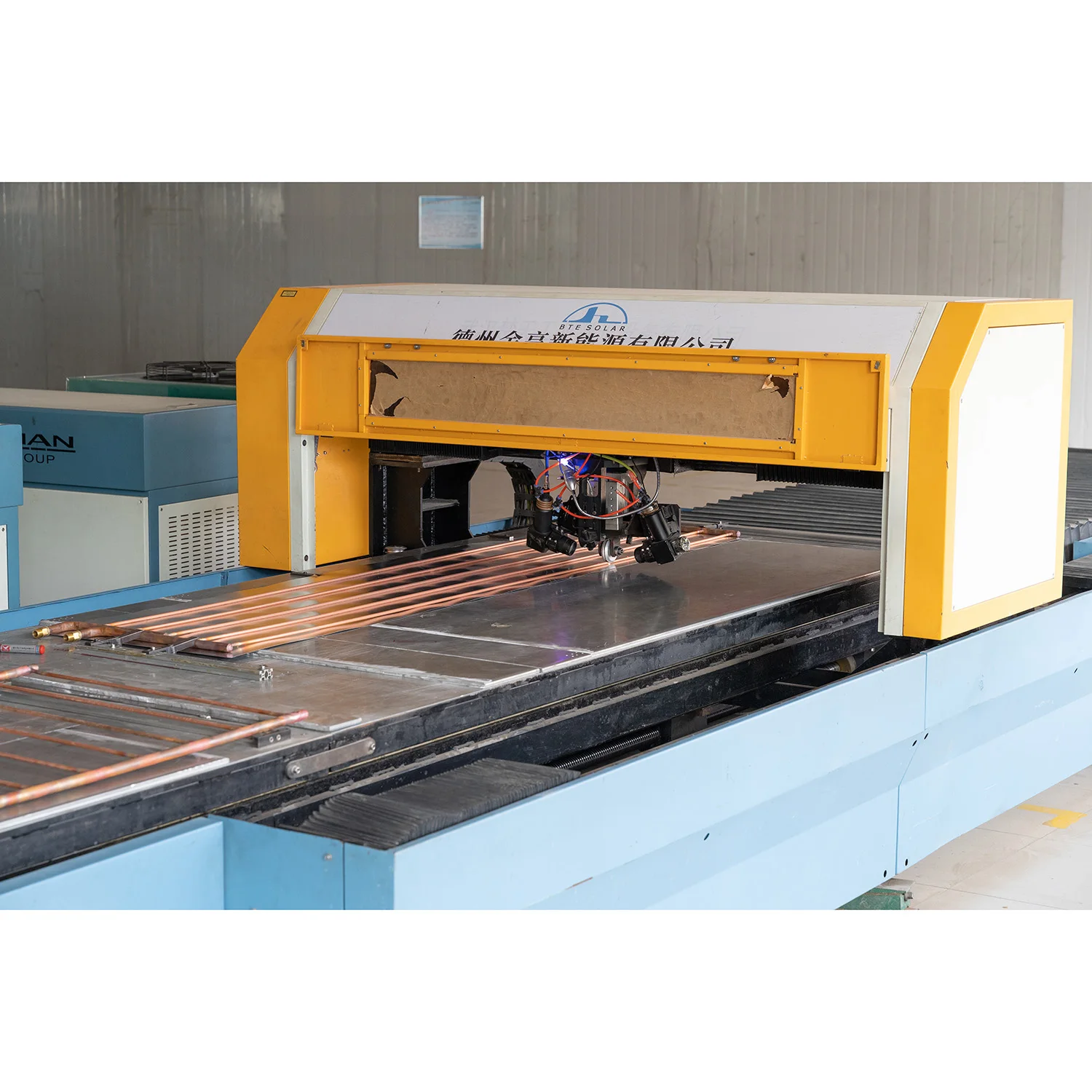

Production process
Company Profile
Dezhou BTE Solar Co.,ltd was founded in 2009,located in sun city-Dezhou, which is an innovative company focused on the field of solar thermal applications and has a number of independently intellectual property rights of core technology.Relying on strong technical strength, the company has independently developed the high intelligent automatic production lines,and production efficiency has reached the international leading level.Based on the idea of industrial 4.0,it has built a global professional production line of flat plate solar collector and solar water heater,the efficiency of the whole production line can achieve on average speed of 55s/pc,reaching the international leading level.
Packing & Delivery
Packing: LCL: Plywood wooden pallet/case
FCL: Export carton packing
FCL: Export carton packing
1. Is your company a trading company or factory?
We have own factory,Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case.
Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
We have own factory,Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case.
Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
