Product Overview
Description
ZR2000 series 3G/4G wireless router is a kind of Internet of Things wireless communication router, supporting international standard FDD-LTE, TDD-LTE, WCDMA (HSPA+), CDMA2000 (EVDO), TD-SCDMAThe 3G/4G mobile broadband network standard provides users with convenient and fast high-speed network transmission functions.
| 4G Parameters | * Wireless Modules: | Industrial cellular module |
| * Theoretical broadband: | Max 150Mbps(DL)/50Mbps(UL) | |
| * Transmit power: | < 23dBm | |
| * Receiving sensitivity: | < -108dBm | |
| WiFi Parameters | * Standard: | Support IEEE802.11b/g/n standard |
| * Theoretical broadband: | 54Mbps(b/g);150Mbps(n) | |
| * Security Encryption: | It supports a variety of encryption WEP, WPA, WPA2, etc. | |
| * Transmit power: | About 15dBm(11n);16-17dBm(11g);18-20dBm(11b) | |
| * Receiving sensitivity: | <[email protected] | |
| Interface Type | * WAN: | 1 10/100M Ethernet port (RJ45 socket), adaptive MDI/MDIX,can be switched to LAN |
| * LAN: | 1 10/100M Ethernet port (RJ45 socket), adaptive MDI/MDIX | |
| * Serial: | 1 RS232 or Rs485 port,baud rate 2400~115200 bps | |
| * Indicator Light: | With “PWR”, “WAN”, “LAN”, “NET” indicator lights | |
| * Antenna: | 2 standard SMA female antenna interfaces, namely cellular and WiFi | |
| * SIM/USIM: | Standard 1.8V/3V card interface | |
| * Power: | Standard 3-PIN power jack,reverse-voltage and over-voltage protection | |
| * Reset: | Restore the router to its original factory default settings | |
| Power | * Standard Power: | DC 12V/1A |
| * Power Range: | DC 7.5~32V | |
| * Consumption: | <[email protected] DC | |
| Physical Dimension | * Shell: | Sheet metal cold rolled steel |
| * Size: | About 95 x 70 x 25 mm(Does not include accessories such as antennas) | |
| * Bare Machine Weight: | About 210g(Does not include accessories such as antennas) | |
| Hardware | * CPU: | Industrial 32bits CPU,Qualcomm QCA9531,650MHz |
| * FLASH/RAM: | 16MB/128MB | |
| Use Environment | * Operating Temperature: | -30~70℃ |
| * Storage Temperature: | -40~85℃ | |
| * Relative Humidity: | <95% non-condensing |

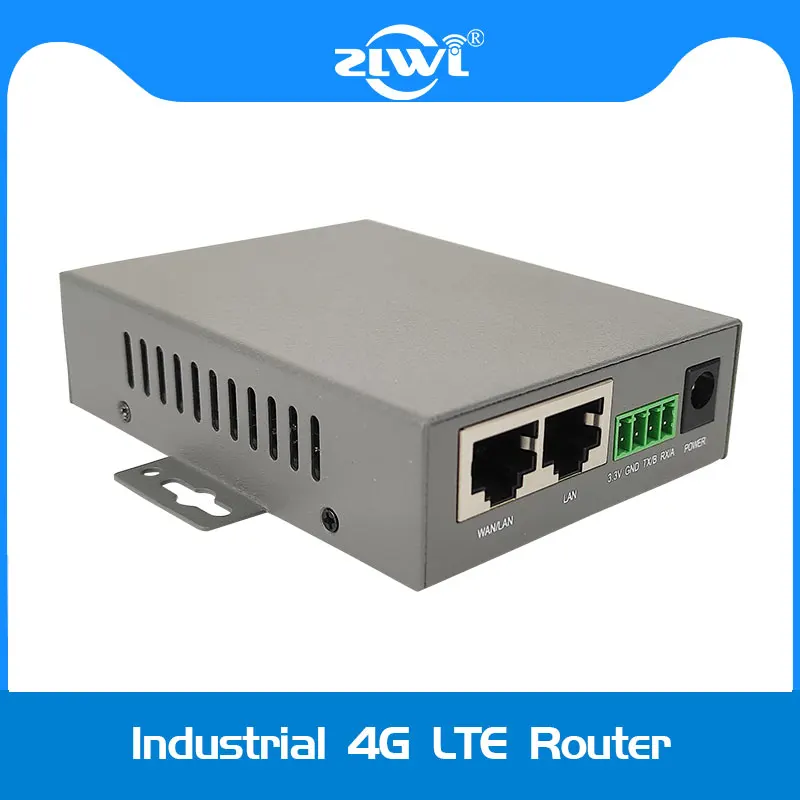

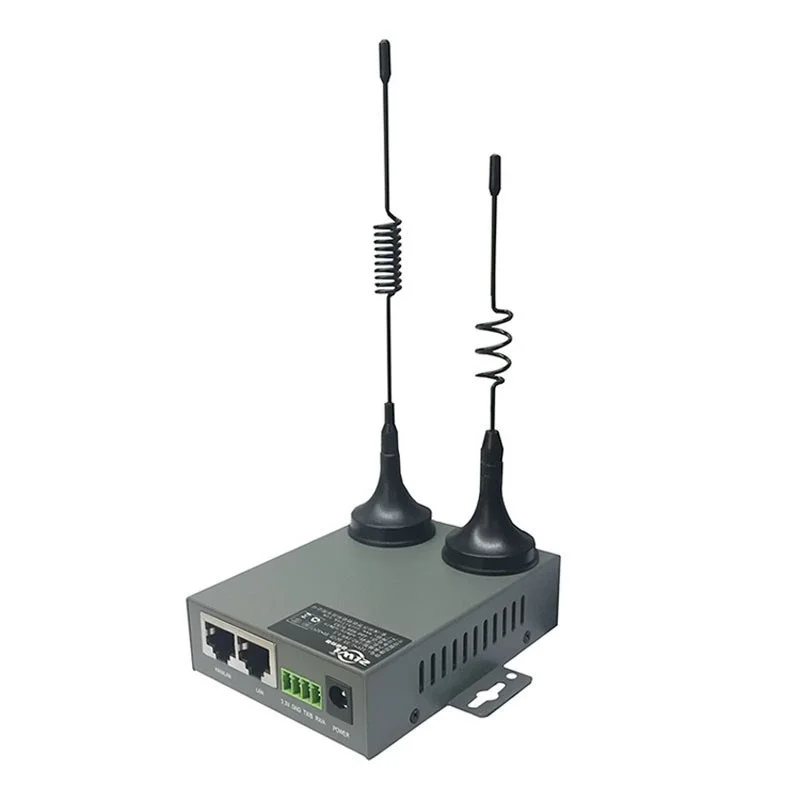

// ZR2000 is an all-time bestseller industrial 4G LTE Wi-Fi router for professional M2M & IoT applications.
// It delivers high performance for mission-critical cellular communication in rigorous environments.
// ZR2000 is widely used for 4G backup, Remote Connection, Advanced VPN, SNMP, and tunneling services in IoT networking solutions.
// WAN failover ensures automatic switch to alternative backup connection in case of any connectivity issues.
// The Wi-Fi is functional in both: Access point and Station mode at the same time.
ZR2000 (Europe, the Middle East, Africa, Korea, Thailand, US version.)
HSPA+ WCDMA LTD wireless router
ZR2000 is a compact, cost-effective and powerful industrial router for professional applications.
Router delivers high performance for mission-critical cellular communication.
Equipped with external SIM holder and signal strength status LEDs, it ensures easy network management. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
LTE support
Enjoy the LTE internet connection all around whether it is a camping spot, your home, or office, with no worries – ZR2000 has you covered. This sleek router supports high-speed LTE CAT4, which provides speeds of up to 40 Mbps for your leisure or business demands.
Wireless network
With built-in WiFi connectivity, you can free yourself from cumbersome Ethernet-based on-site maintenance or simply save some smartphone SIM data for online check-ups and work e-mail attachment downloads.
Input and Output
With configurable inputs you can monitor external events, be it water level threshold crossing or a simple door sensor. Receive alerts remotely either via e-mail.
External SIM slot
External SIM slot lets you insert or change SIM card with relative ease.
2x Ethernet ports
Small and compact device for tight and compact spaces with a limited amount of external devices. If one of the ports remains free, it can be used as either the main internet connection or a backup connection.
ZR2000 Industrial 4G Router is a multifunctional IoT device,integrates industrial routers, DTU, and IoT gateway.
Industrial routers: Support 4G to Ethernet/WiFi, multiple VPNs, Network protocol.
DTU: Support RS232 or RS485 data transparent transmission
IoT gateway: Support Modbus TCP, Modbus RTU, MQTT protocol
