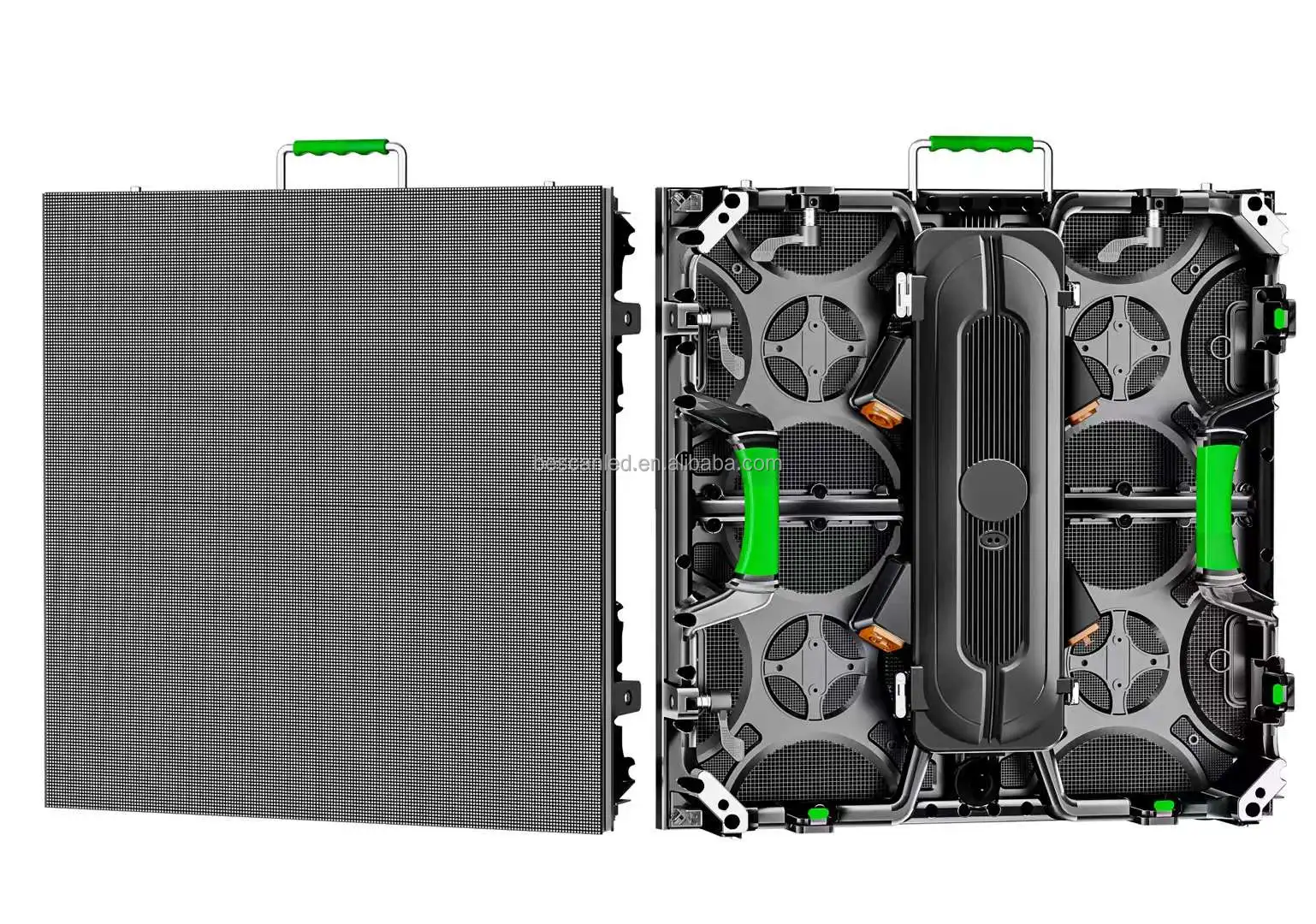

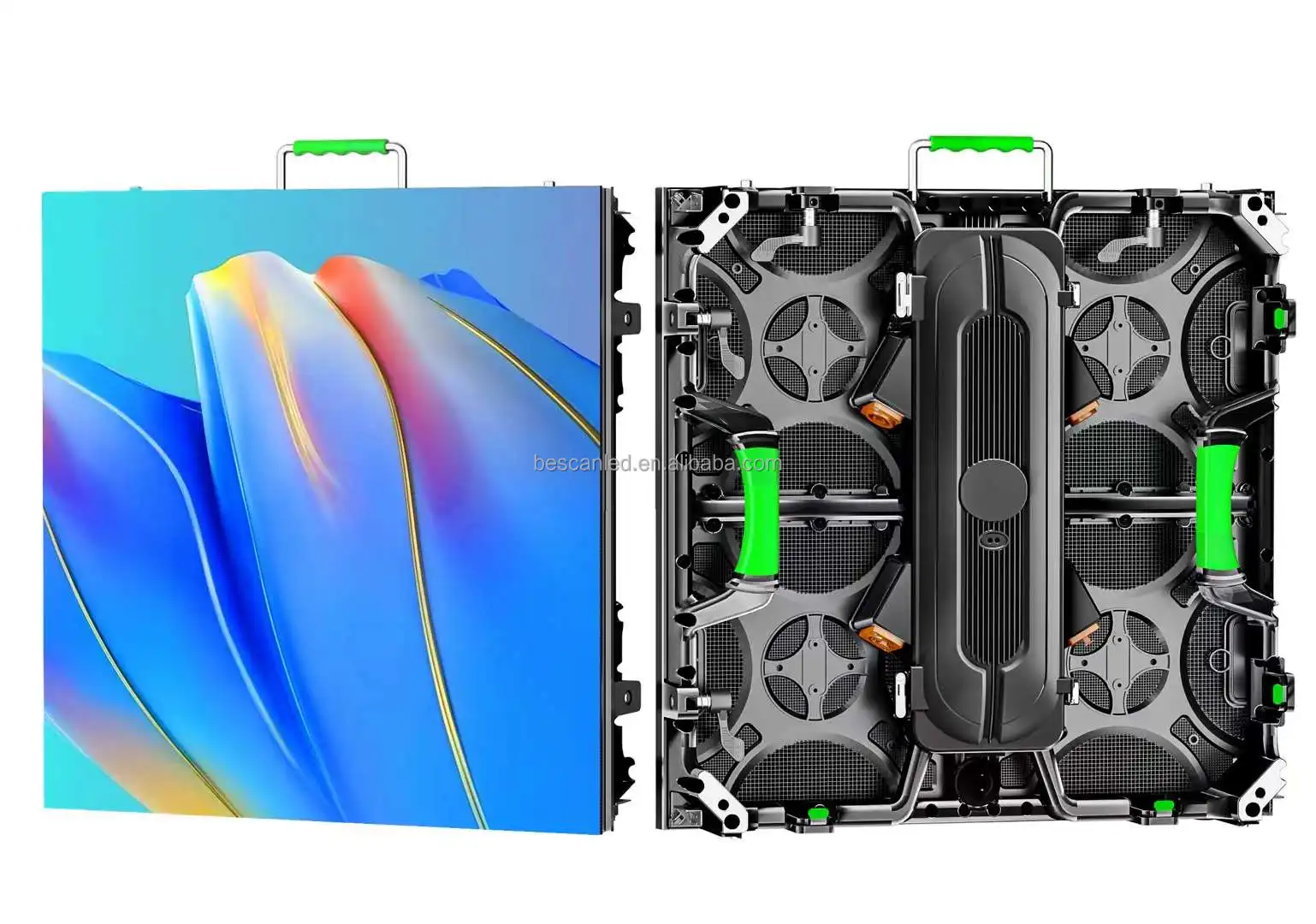

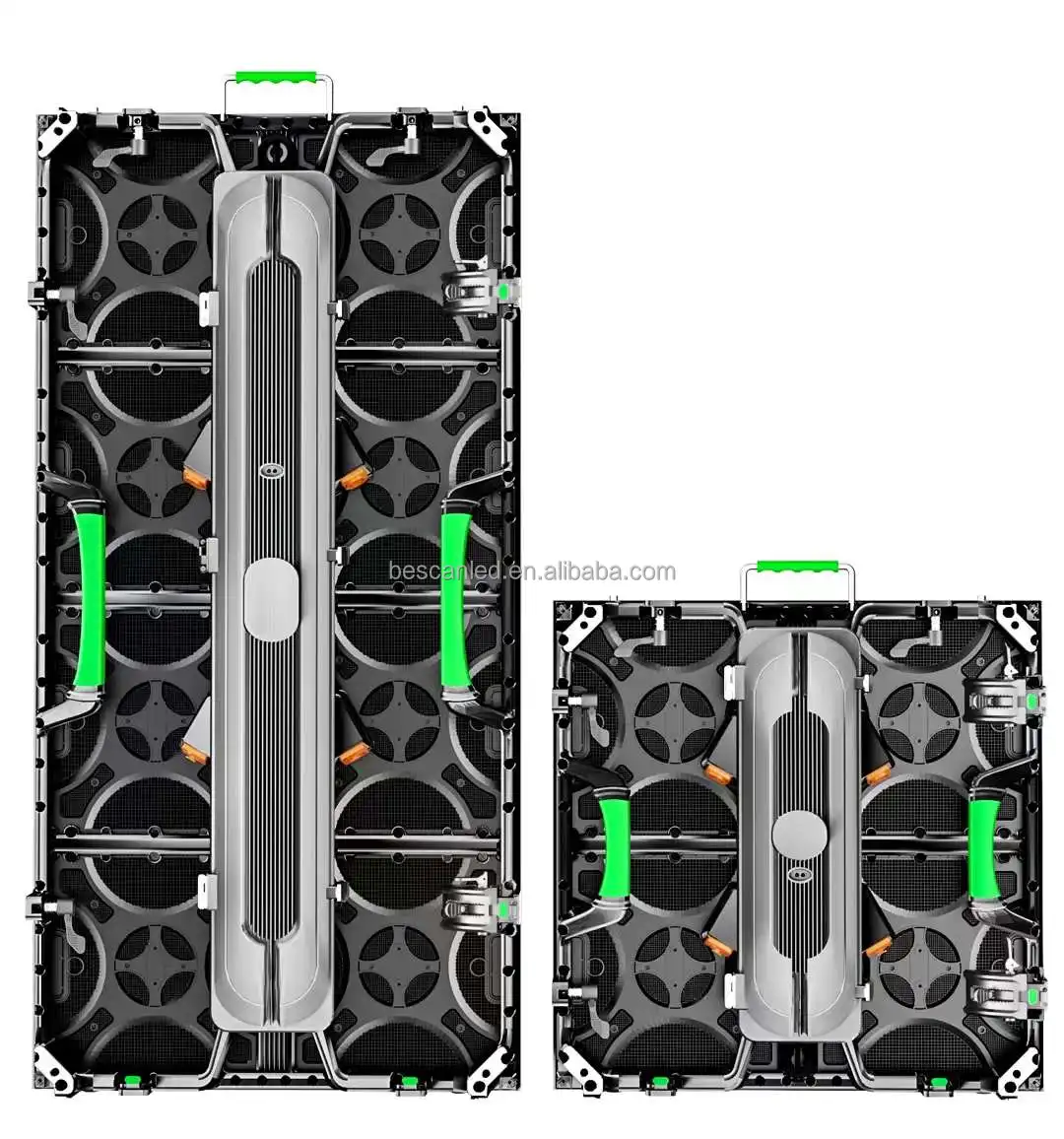

Bescan P3.91 LED Screen Ground Supports Truss Display Exhibition Video wall for indoor and outdoor waterproof

Product Overview

Description

Features:

1.Big fast lock, strong connection.

2.Ultra slim and light, easy for installation and transportation
3.High gray scale and refresh rate
4.Clip-on mask, no screw design, easy to mounted and dismounted. Much more smooth and thinner than soft mask.
5.High intensity alloy, when turning the screw,it’s not easy to break the thread

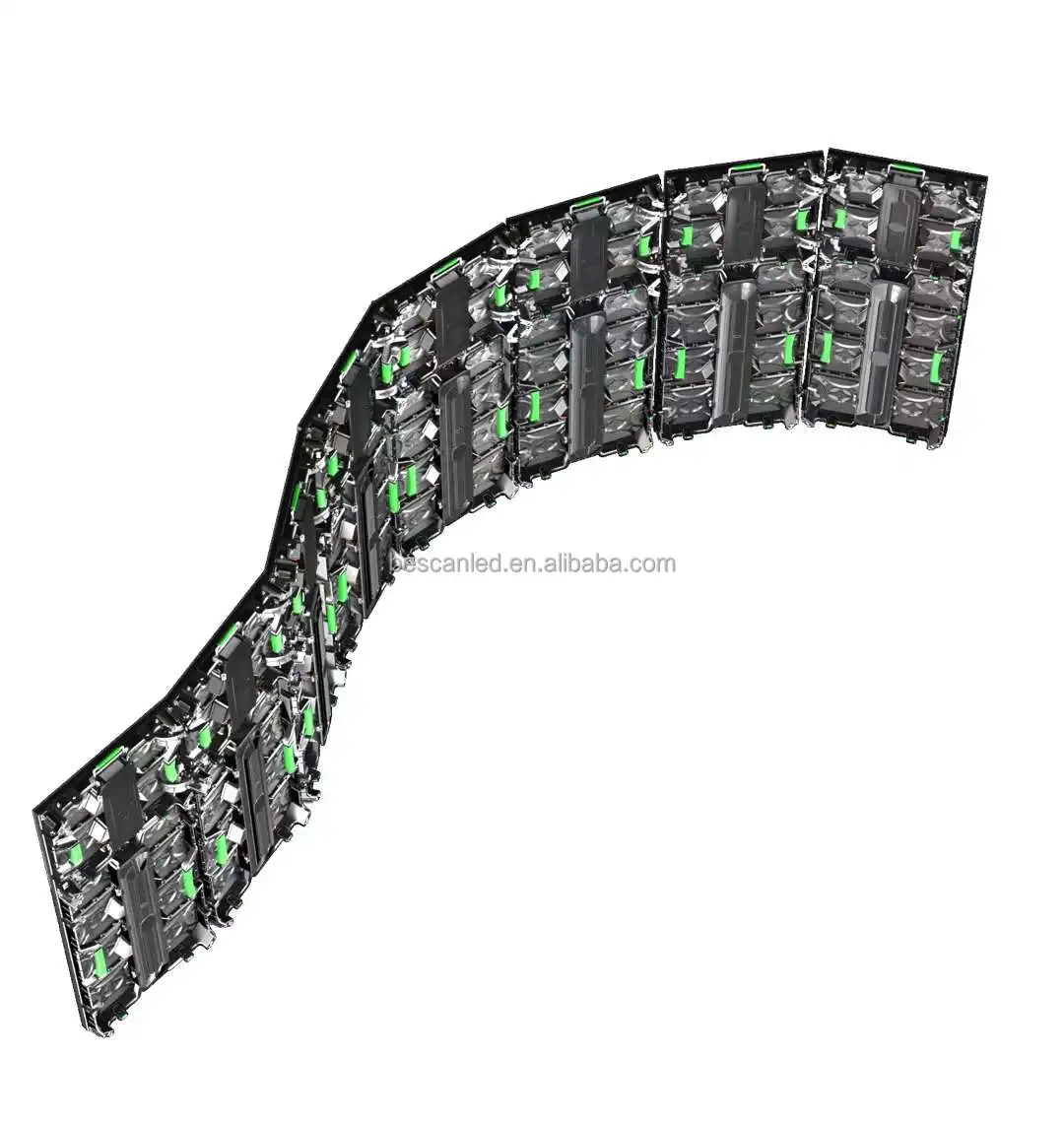

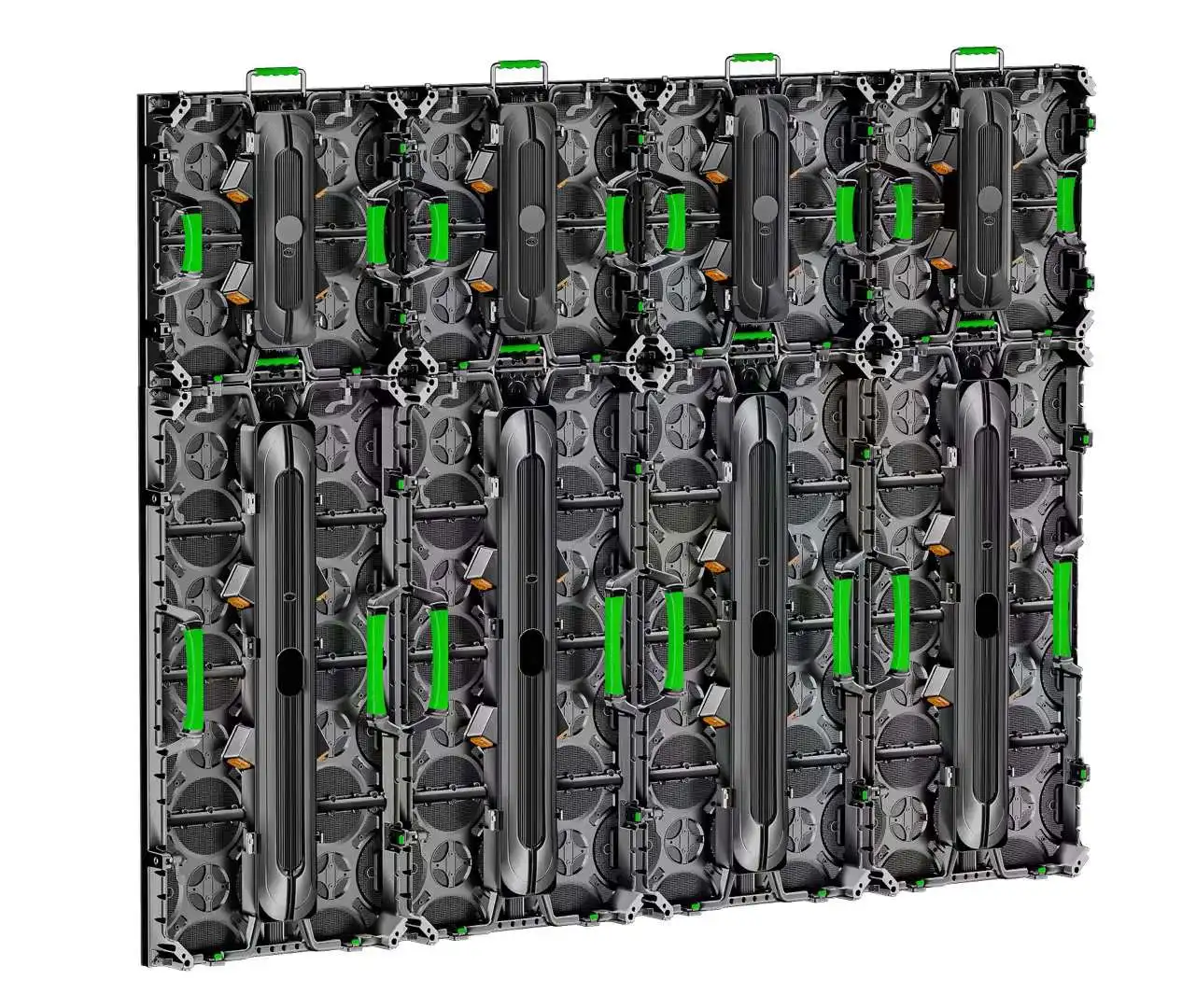

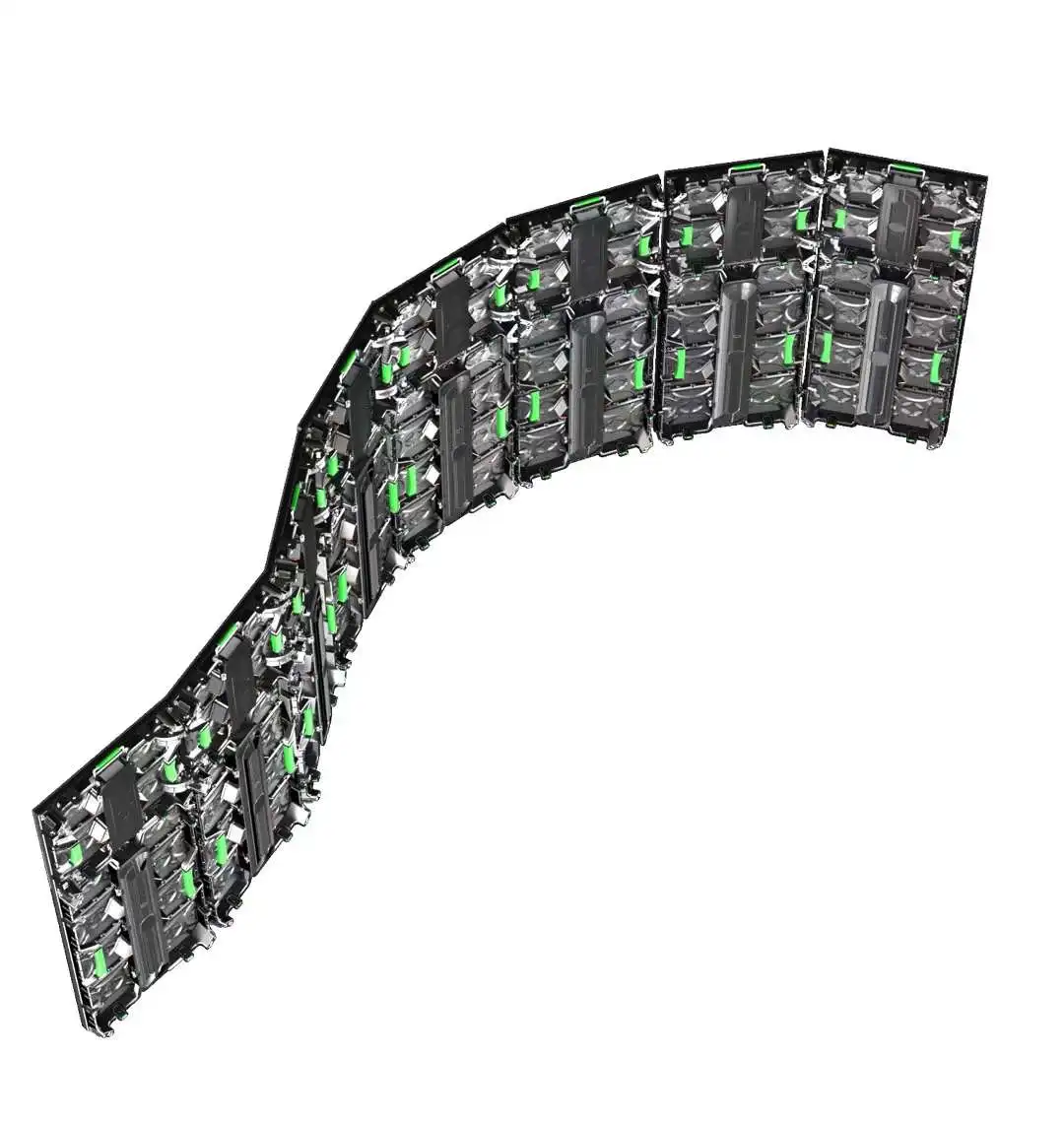

6.Can be used with hanging and standing structure.

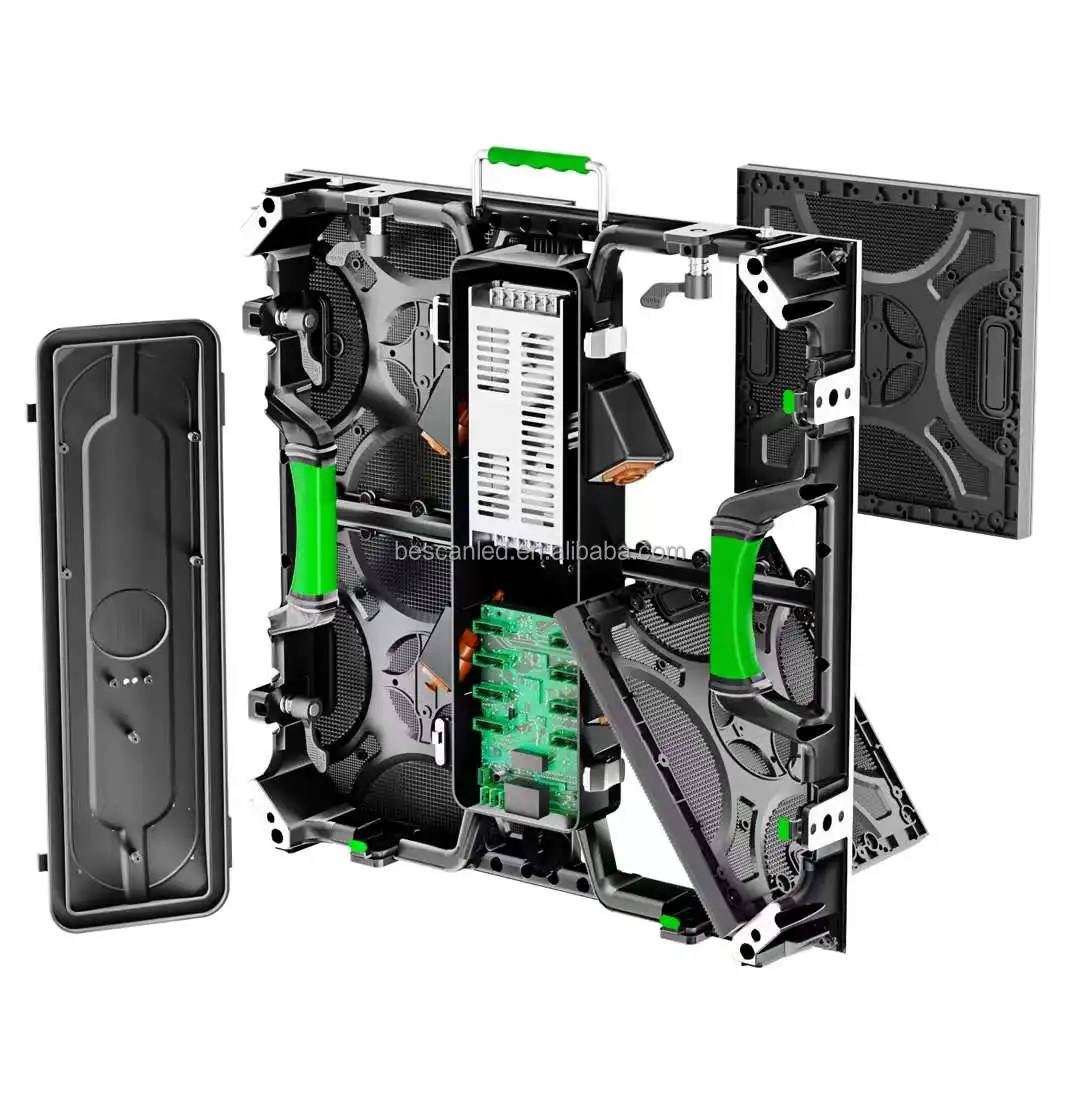

7.Power supply and the receiving card are easily changed even after the installation.

8.In order to facilitated the installation, each corner has a small block to let the cabinet stand on the ground.



Specification



Pixel Pitch	2.6	2.976	3.91	4.81
Pixel Density(dot/sqm)	147456	112896	65536	43264
LED Type	SMD1515	SMD1515	SMD2121	SMD2121
Scanning	1/32	1/21	1/16	1/13
Module Size(mm)	250x250	250x250	250x250	250x250
Cabinet Size(mm)	500x500	500x500	500x500	500x500
Cabinet Weight(kg)	8.5	8.5	8.5	8.5
Cabinet Resolution	192x192	168x168	128x128	104x104
Cabinet Material	Diecasting Aluminum	Diecasting Aluminum	Diecasting Aluminum	Diecasting Aluminum
Brightness(cd/sqm)	1000	1000	1200	1200
Maximum Power Consumption	800	800	800	800
Average Power Consumption	270	270	270	270
Honrizontal Viewing Angle(Deg)	160	160	160	160
Vertical Viewing Angle(Deg)	160	160	160	160
Grey Scale(bit)	16	16	16	16
Refresh Rate(HZ)	3840	3840	3840	3840
