Raw material for lan cable10% 15% CCA CCAM COPPER wires Copper clad aluminum magnesium alloy wire(CCAM)
- Category: >>>
- Supplier: Huizhou Adp Optical Communications Co. Ltd
Share on (1600552129205):
Product Overview
Description
Product Description

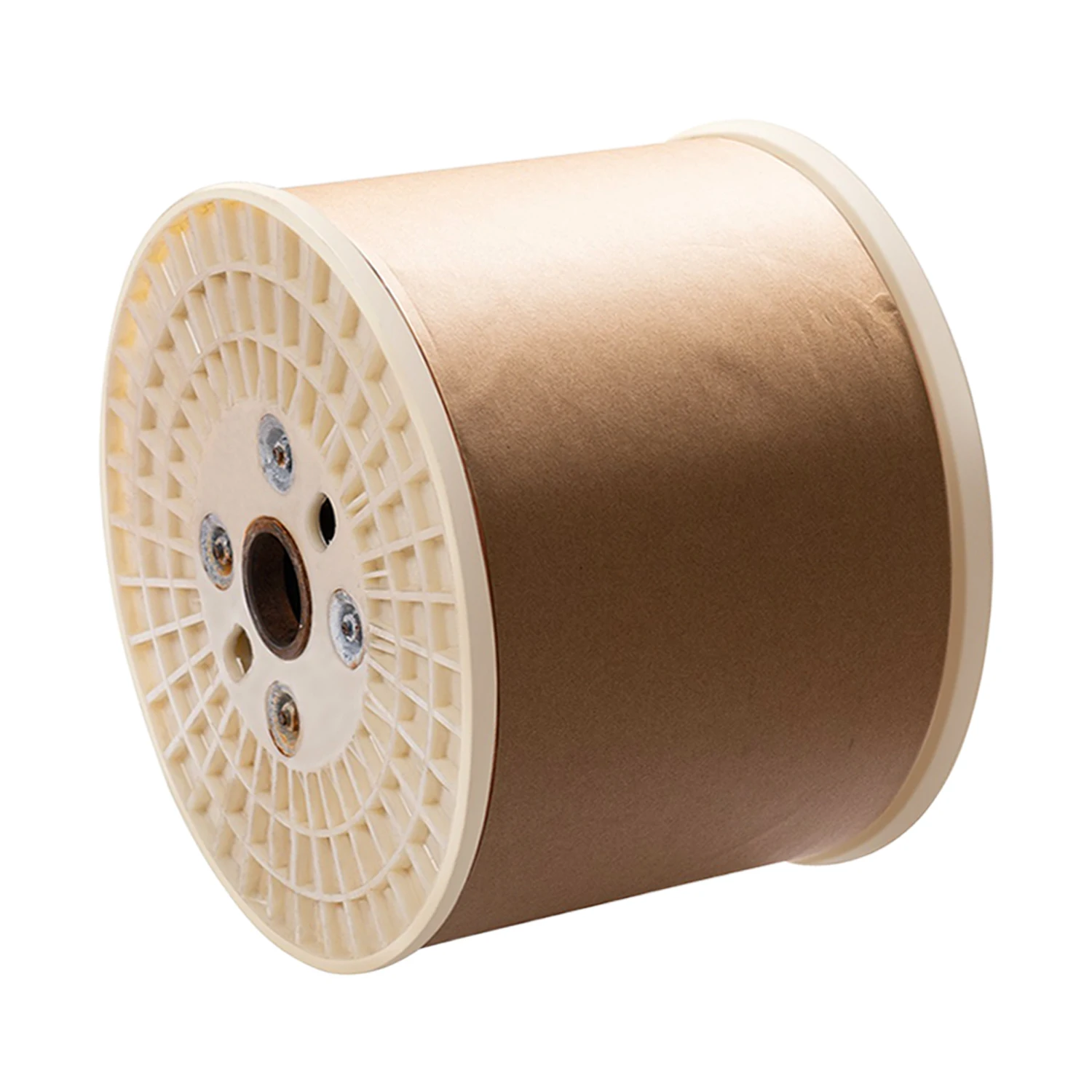

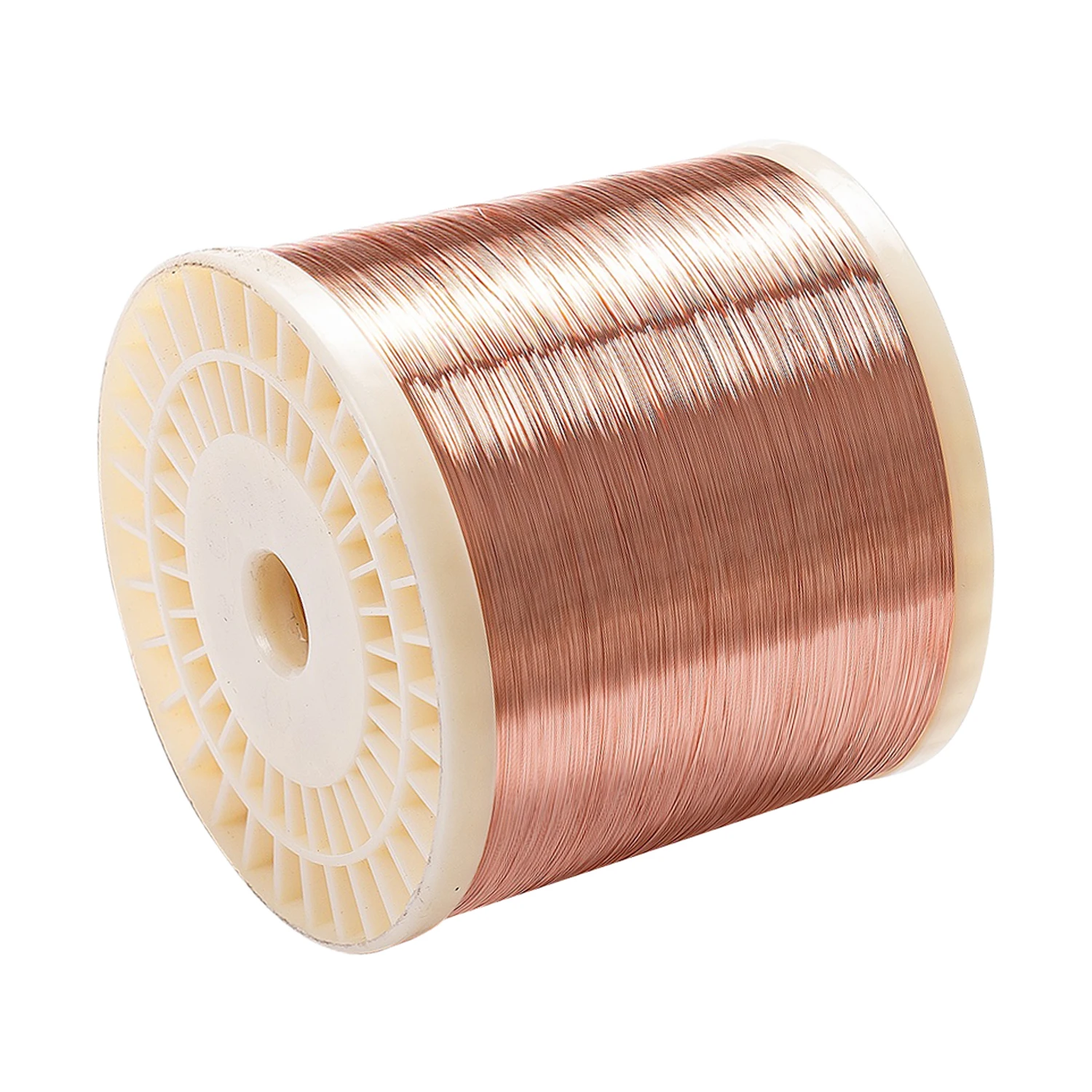

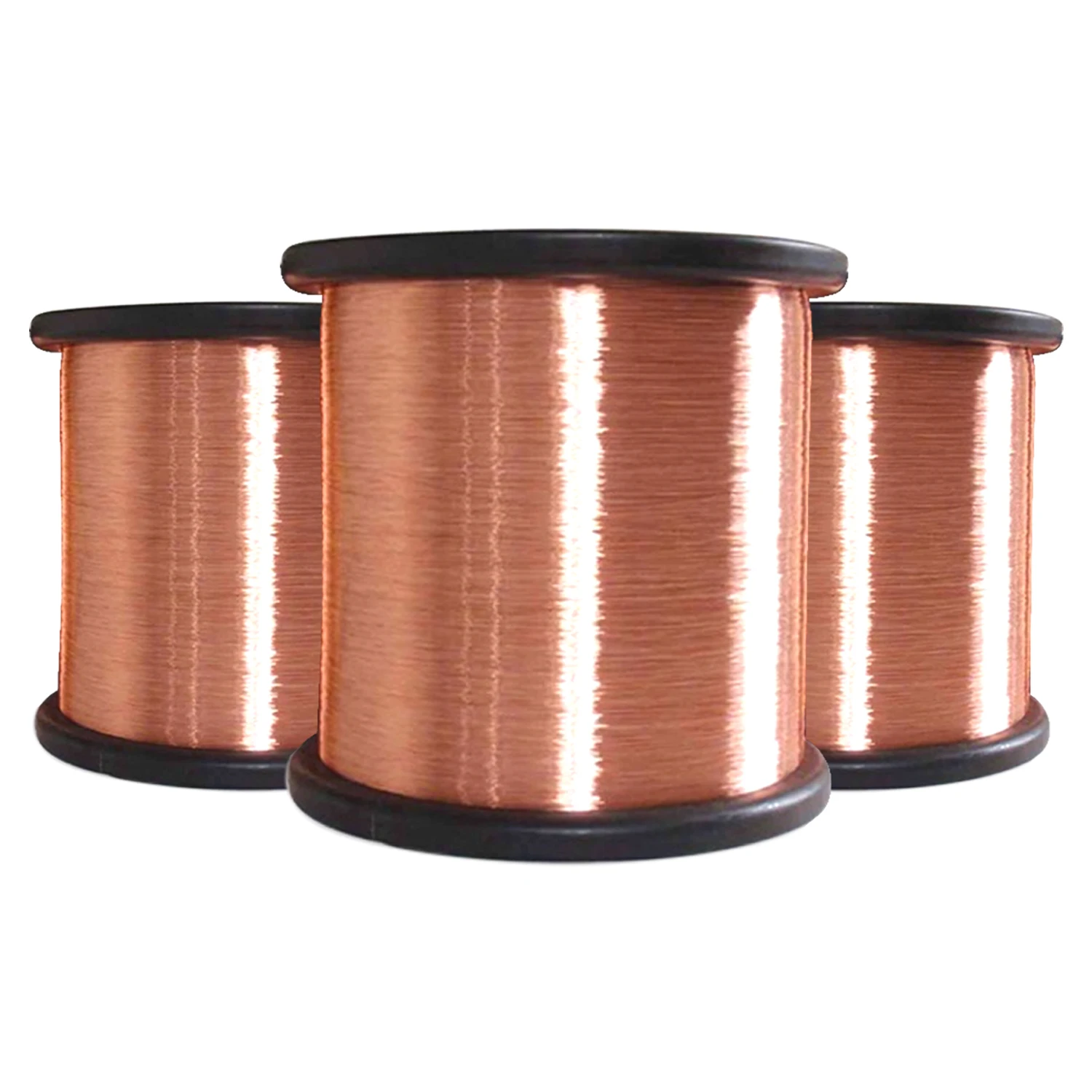

Copper Clad Aluminum Magnesium Wire 0.12mm 0.18mm 0.6mm Stranded Raw Material CCAM CCA Wire

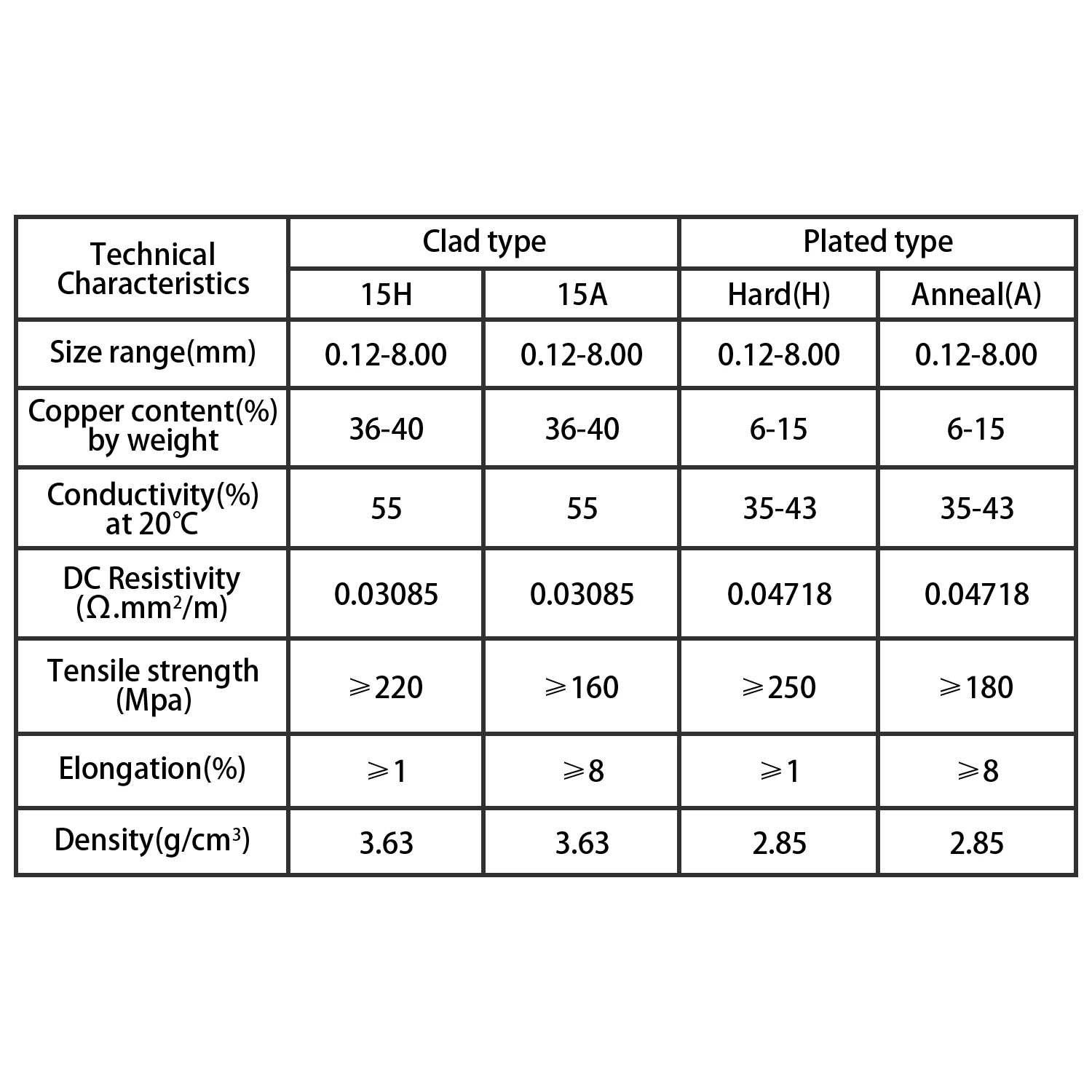

Technical Characteristics | Clad type | Plated type | ||||
15H | 15A | Hard(H) | Anneal(A) | |||
Size range(mm) | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | ||
Copper content(%) by weight | 36-40 | 36-40 | 6-15 | 6-15 | ||
Conductivity(%)at 20℃ | 55 | 55 | 35-43 | 35-43 | ||
DC Resistivity(Ωmm2/m) | 0.03085 | 0.03085 | 0.04718 | 0.04718 | ||
Tensile strength (Mpa) | ≥220 | ≥160 | ≥250 | ≥180 | ||
Elongation(%) | ≥1 | ≥8 | ≥1 | ≥8 | ||
Density(g/cm3) | 3.63 | 3.63 | 2.85 | 2.85 | ||
AS A CABLE MANUFACTURE, WE NOT ONLY CAN SUPPLY CABLE MACHINE FOR YOU, WE ALSO SUPPLY YOU THE ONE-STOP SUPPLY FOR CABLE MATERIAL
SUCH AS :PVC ,HDPE ,LDPE,PP ,LSZH ,PBT,FRP,STEEL TAPE,STEEL WIRE ,OIL JELLY,CCA WIRES,COPPER WIRES.....
SUCH AS :PVC ,HDPE ,LDPE,PP ,LSZH ,PBT,FRP,STEEL TAPE,STEEL WIRE ,OIL JELLY,CCA WIRES,COPPER WIRES.....
Application:
In high frequency signal transmission field, it is applied to:
* Standard Material of Conductor in CATV Coaxial Cable;
* 50 Ohm Radio Frequency Aerial;
* Leaky Cable;
* Soft Coaxial Radio Frequency Cable;
* Data Cable
In power transmission field, it can be applied to:
* Stranded wire;
* Power Cable;
* Control Cable;
* automotive cable;
* Building distribution wire;
* Busbar;
* Radio Frequency shielding;
In special electromagnetic wire, it can be applied to:
* Coils in motor and fans, mahjong machine, Loudspeakers
* Voice coils (e.g. in Headphone, Headset, …)
* Windings
In high frequency signal transmission field, it is applied to:
* Standard Material of Conductor in CATV Coaxial Cable;
* 50 Ohm Radio Frequency Aerial;
* Leaky Cable;
* Soft Coaxial Radio Frequency Cable;
* Data Cable
In power transmission field, it can be applied to:
* Stranded wire;
* Power Cable;
* Control Cable;
* automotive cable;
* Building distribution wire;
* Busbar;
* Radio Frequency shielding;
In special electromagnetic wire, it can be applied to:
* Coils in motor and fans, mahjong machine, Loudspeakers
* Voice coils (e.g. in Headphone, Headset, …)
* Windings
Conductor Characteristic | COPPER WIRE (Annealed) | CCAM IRE (Annealed) | ALUMINUM WIRE (Annealed) |
Copper Percent in Volume(%) | 100 | 15 | 0 |
Density(g/cm3) | 8.89 | 3.5 | 2.70 |
Length Comparison based on same Diameter and same weight | 1:1 | 2.5:1 | 3.29:1 |
Resistivity(ohm.mm2/m) | 0.01724 | 0.035 | 0.02740 |
Tensile strength(Mpa) | 215-265 | ≥160 | 68-107 |
Elongation(%) | ≥20 | ≥10 | ≥15 |

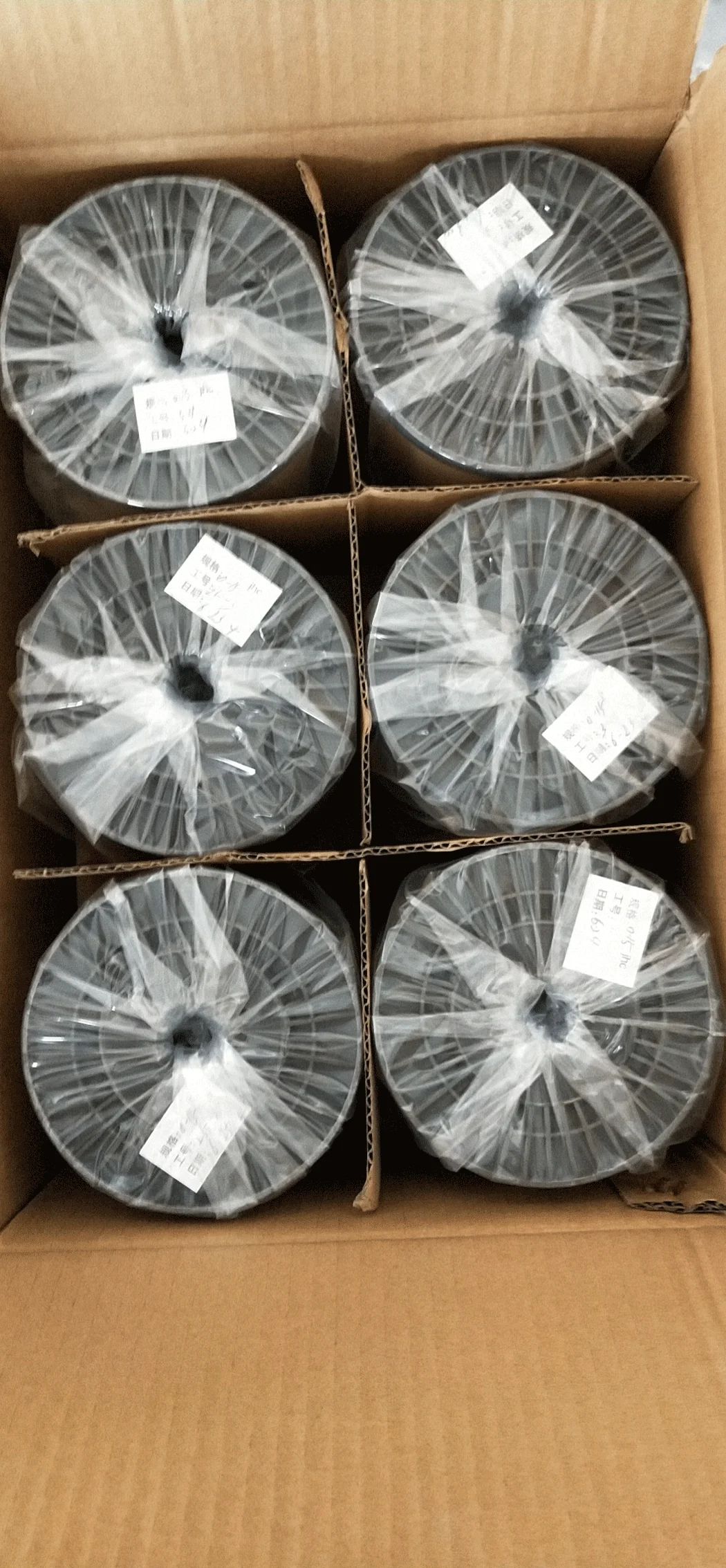

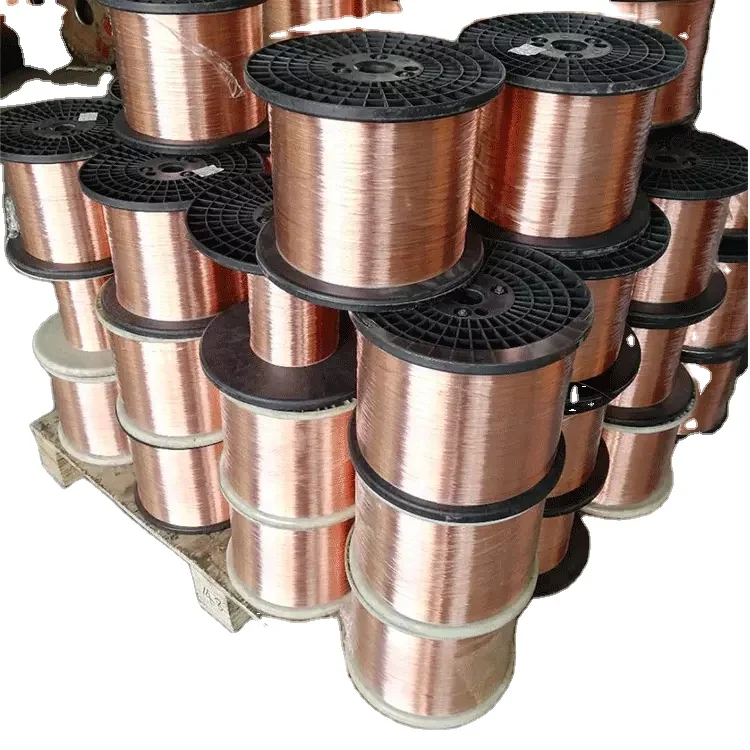

Product Show
