Factory Direct Supply Universal Dividing Head Vertical Machining Center Use Cnc Rotary Table 200mm Diameter Cnc Indexer
- Category: >>>
- Supplier: Anhe,Intelligent,Equipment,(dongguan),Co.,Ltd.
Share on:
Product Overview
Description

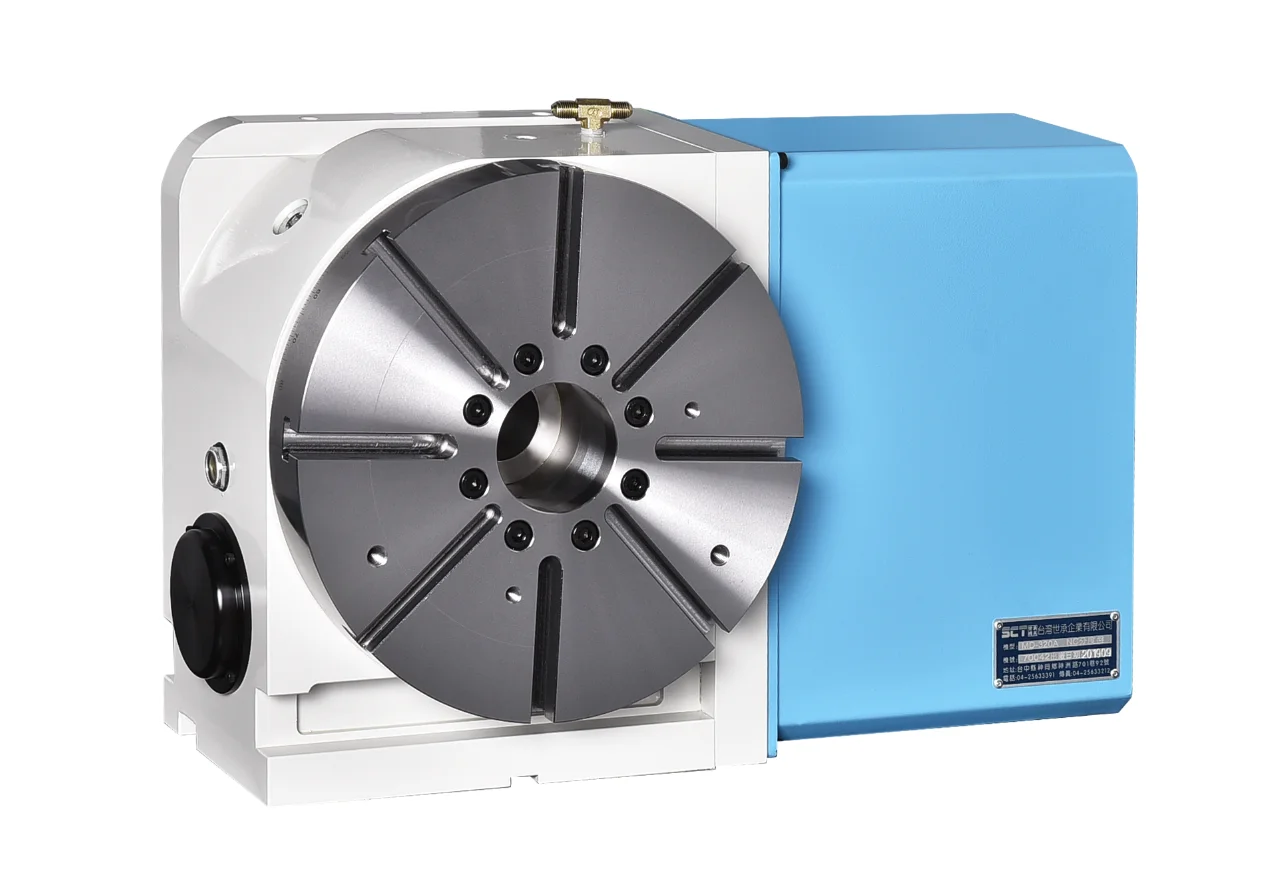

Factory Direct Supply Universal Dividing Head Vertical Machining Center Use Cnc Rotary Table 200mm Diameter Cnc Indexer
This type cnc rotary table is worm& gear drive ,it has hydraulic or pneumatic brake ,major used for cnc machine center ,cnc drill & tap machine center etc.
Features:
1.This rotary table use dual lead worm.
2.The worm material is aluminum bronze alloy.
3.High transmission positioning accuracy.
4.Cross Ball Bearings for make sure the long machining times.
2.The worm material is aluminum bronze alloy.
3.High transmission positioning accuracy.
4.Cross Ball Bearings for make sure the long machining times.
Product Description

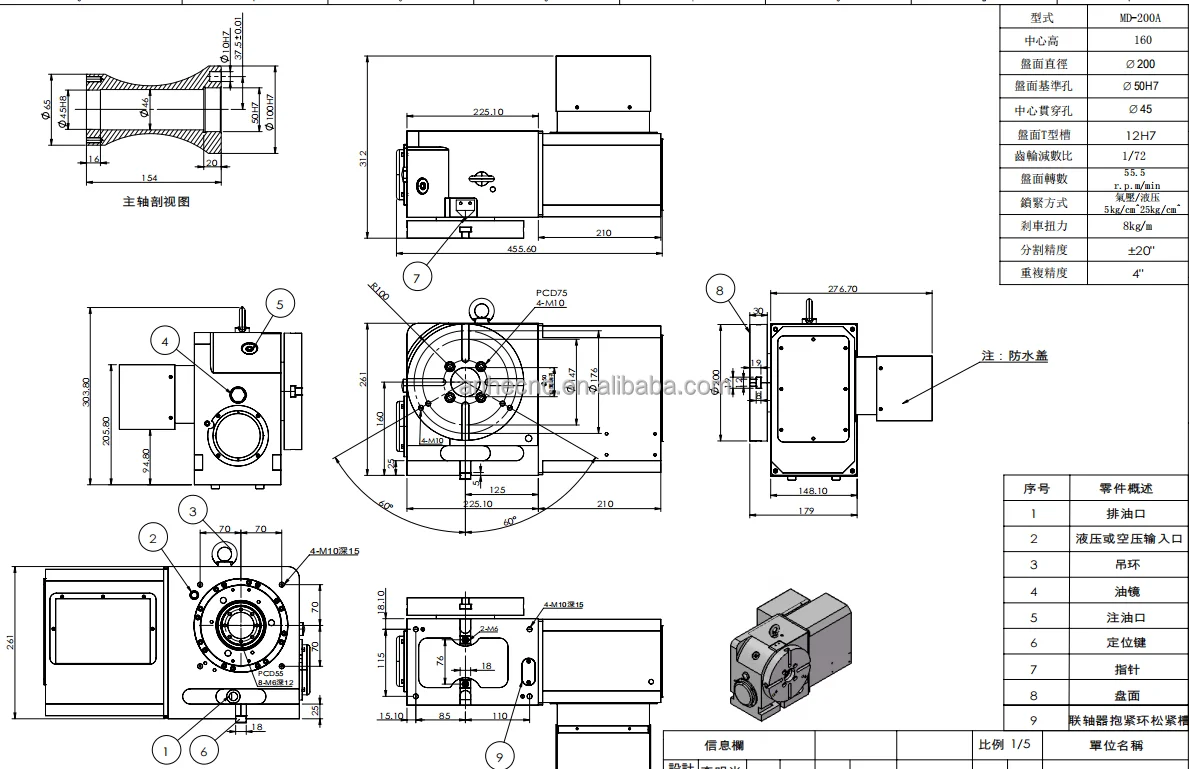

Drawing for MD-200

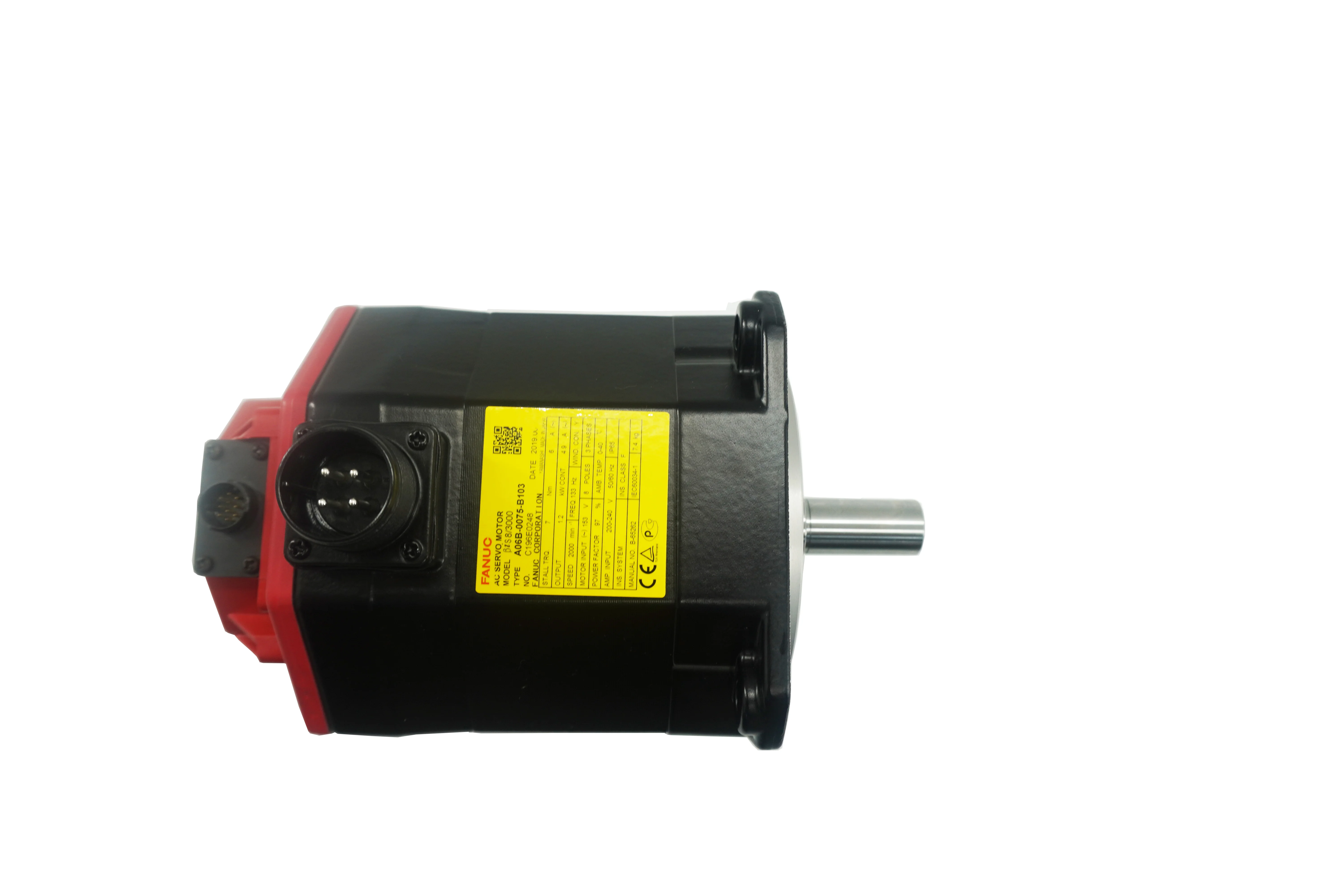

Fanuc Serve motor for MD-200

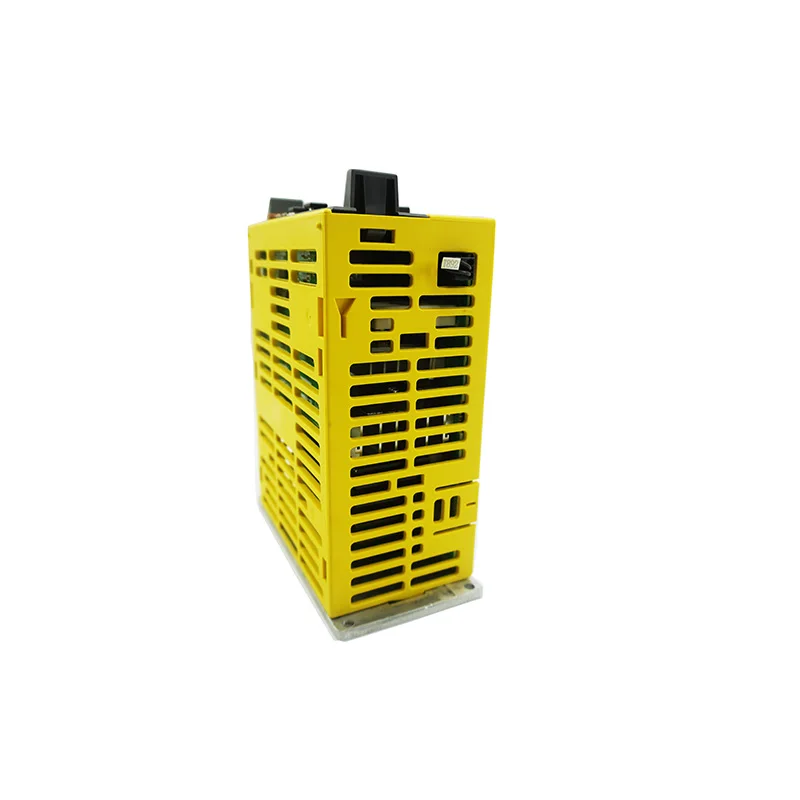

Fanuc drive for the MD-200

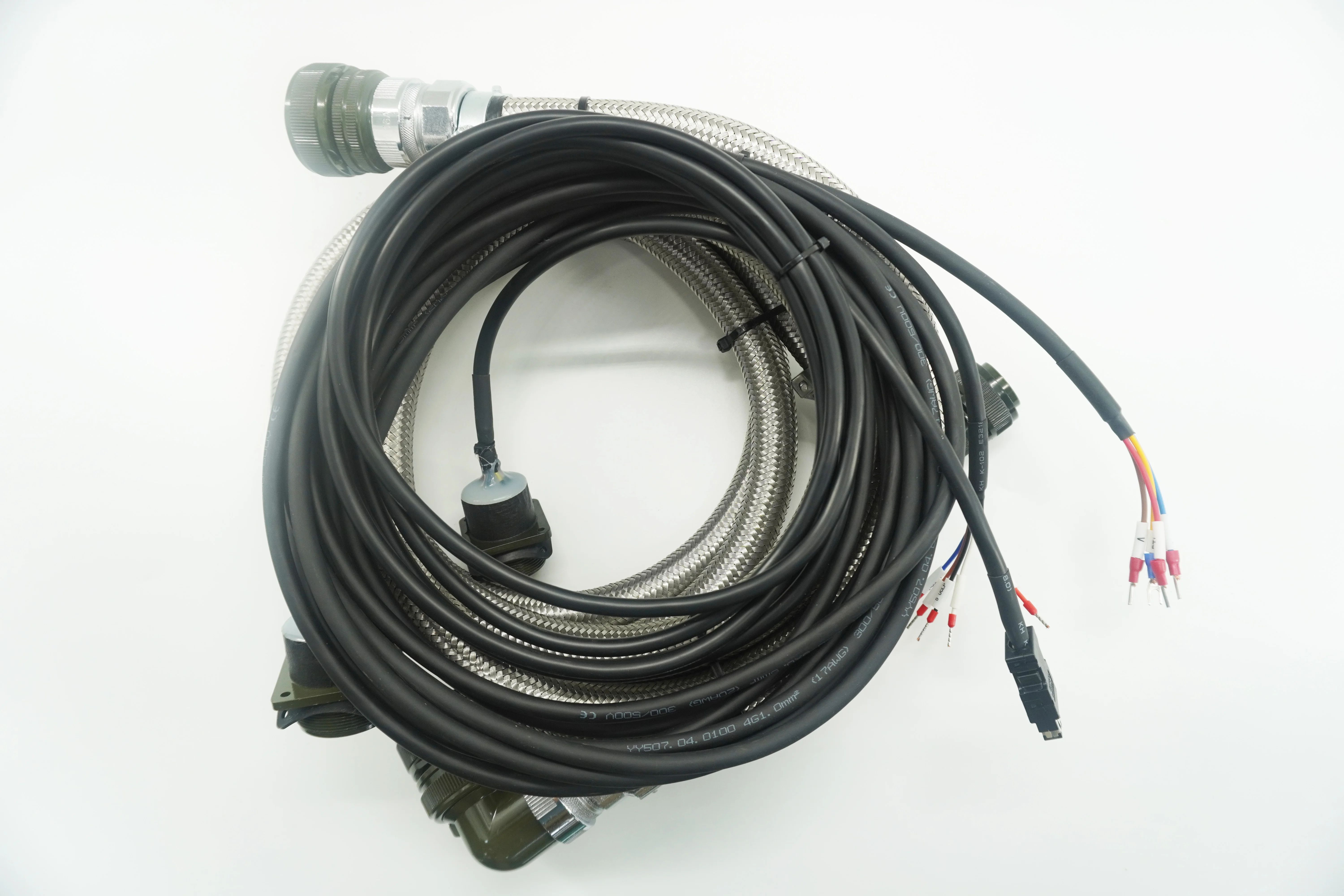

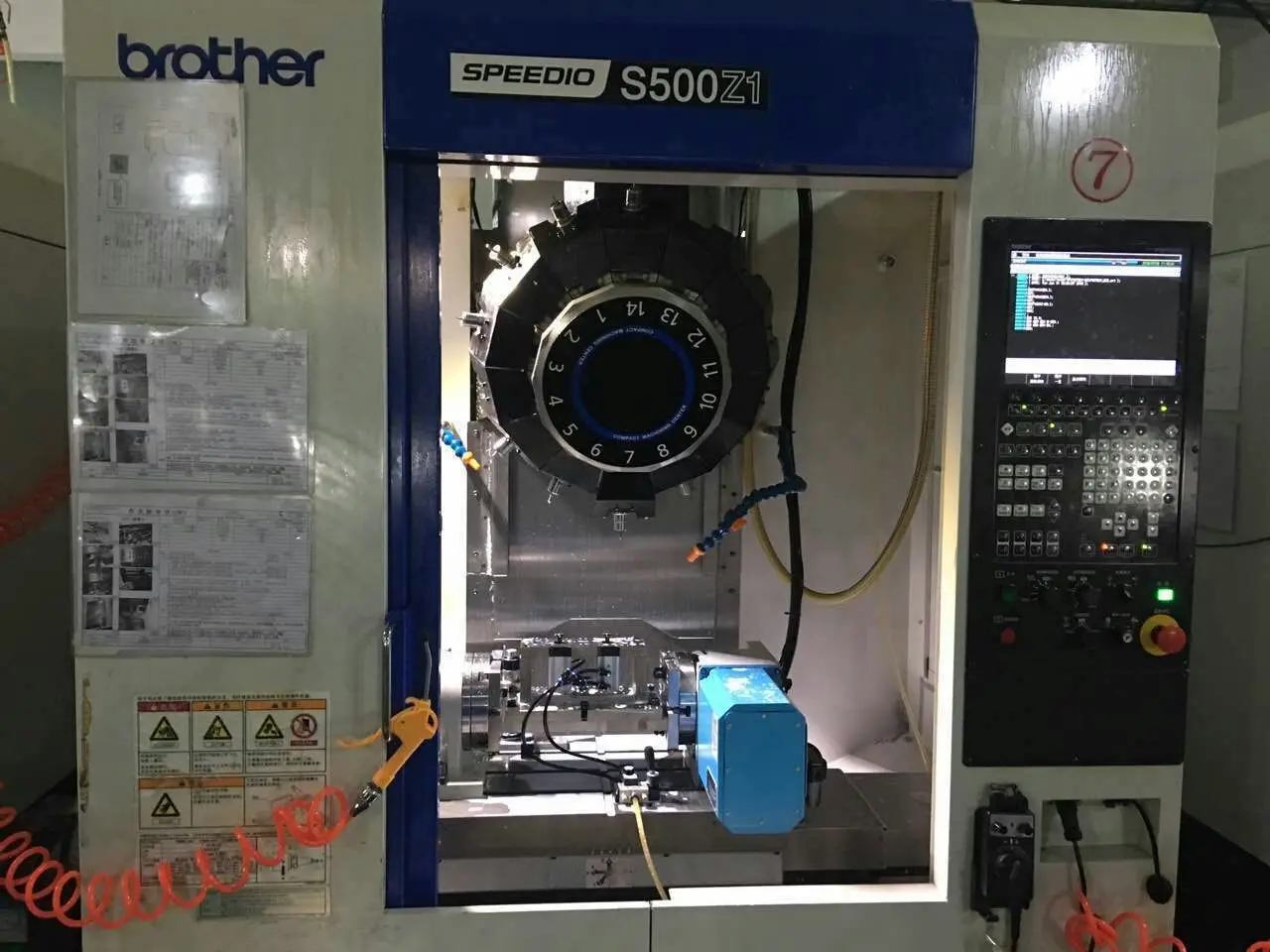

Connect cable for rotary Table to the cnc machine center

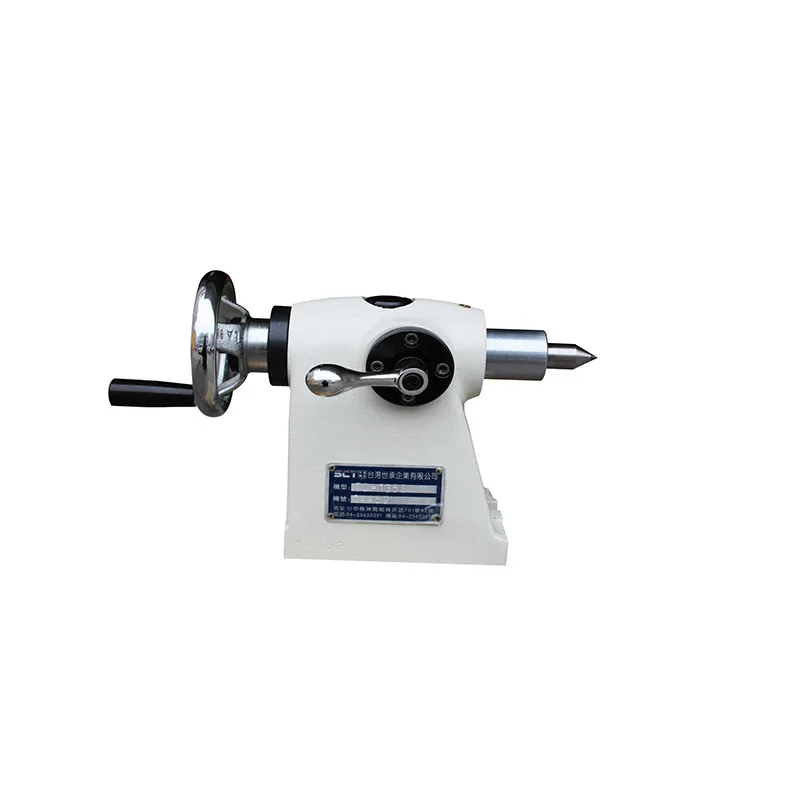

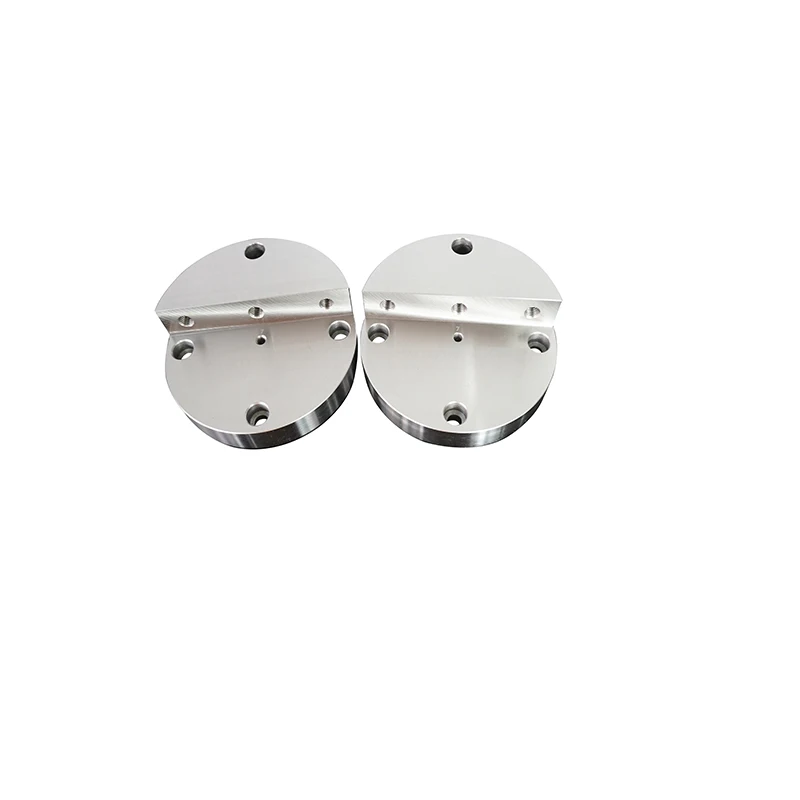

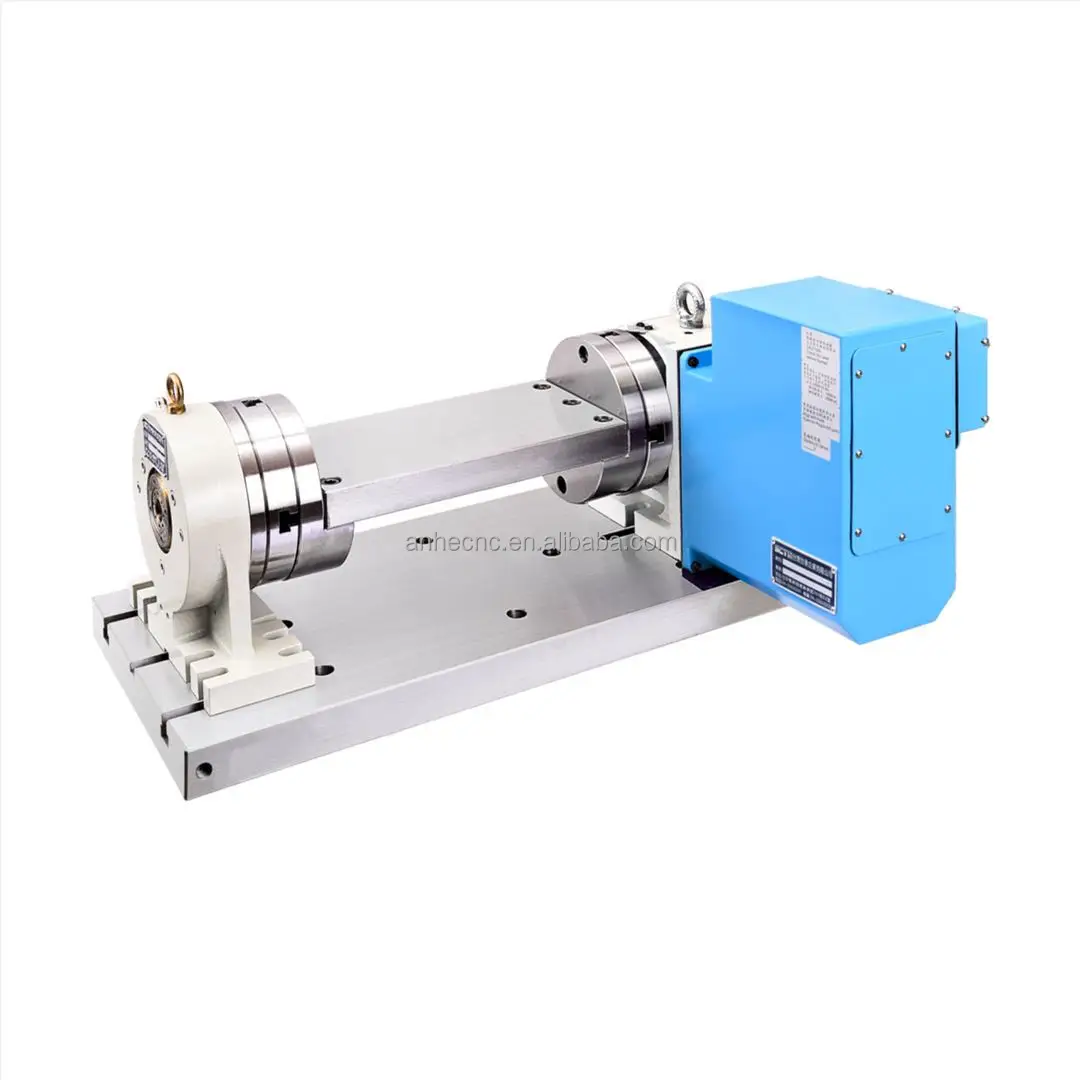

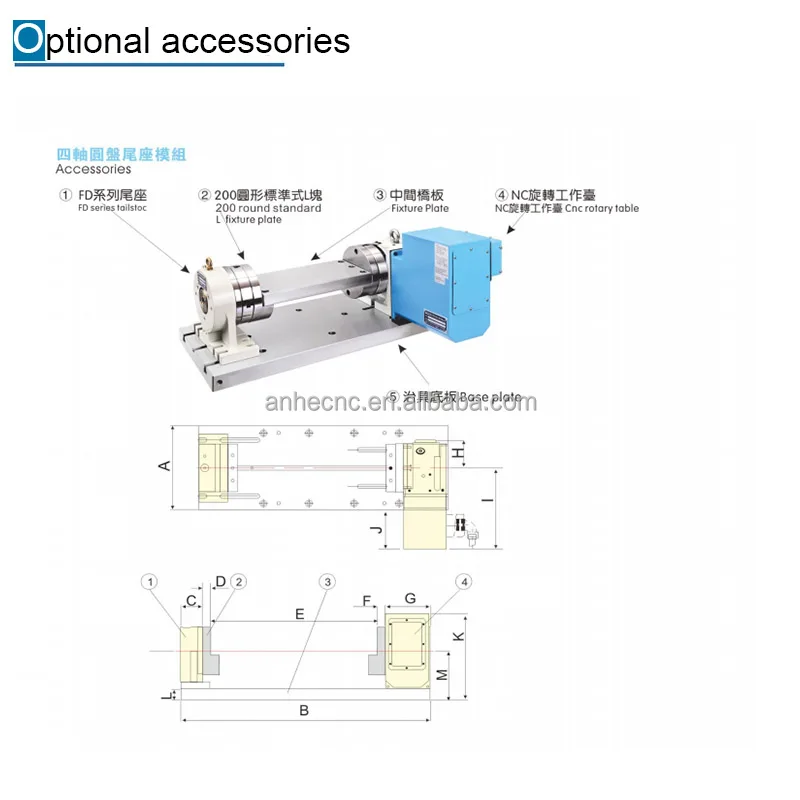

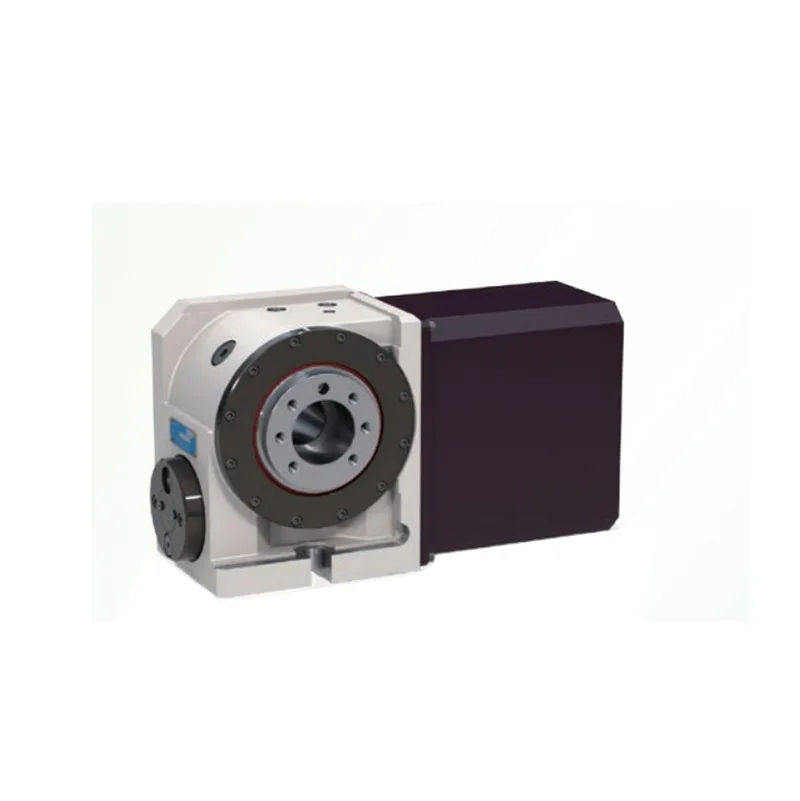

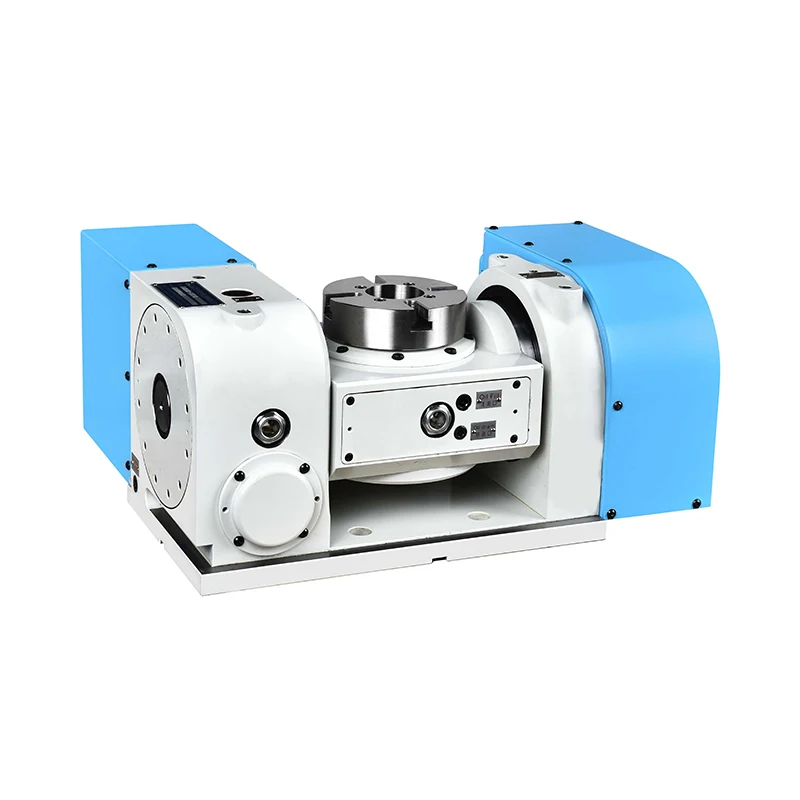

Optional accessories
Solution
Specification
Model | MD-200 |
Disc diameter | 200mm |
Spindle center through holder | 50h7 |
Level place center height | 261mm |
Vertical place center height | 160mm |
T-slot width | 12h7 |
Guide key width | 18h7 |
Locking force | 5kg/cm2(Pneumatic） |
Equal division mini angle | 0.001 degree |
Gear ratio | 1:72 |
Division accuracy(cumulative value) | 30" |
Reproducibility accuracy | ±2" |
Weight | 80kg |
Packing size | 65x55x50cm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Similar products
Cnc Machine Center, Cnc Drill & Tap Machine Center ,Cnc Slant Bed Lathe Machine ,Cnc Rotary Table ,Cnc Machine Tools
FAQ
1. Q: Are you factory or trading company?
A: We are a factory(manufacturer) in Guangdong Province.
2. Q: Where is your factory and trading office located? How can I visit there?
A: Our factory is located in Humen Town, Dongguan City,Guangdong Province, China, about 2 hours driving from Shenzhen /Guangzhou airport.
A: Our factory is located in Humen Town, Dongguan City,Guangdong Province, China, about 2 hours driving from Shenzhen /Guangzhou airport.
3. Q: What is the main product of your company?
A: We are mainly produce: cnc machine center, cnc drill&tap machine center, Cnc Slant Bed Lathe etc.
A: We are mainly produce: cnc machine center, cnc drill&tap machine center, Cnc Slant Bed Lathe etc.
4.Q: What’s the customized MOQ?
A.Usually our normal MOQ is 1pcs.
A.Usually our normal MOQ is 1pcs.
5.Q: What’s the payment terms?
A.Usually we accept T/T,alipay ,alibaba trade assurance etc.
A.Usually we accept T/T,alipay ,alibaba trade assurance etc.
