High Efficiency 20Kw Constant Power EV DC Charging AC EV Charger Power Module 20Kw EC Charger Module
- Category: >>>
- Supplier: Luoyang Grasen Power Technology Co. Ltd.
Share on (1600552512349):
Product Overview
Description
Products Description

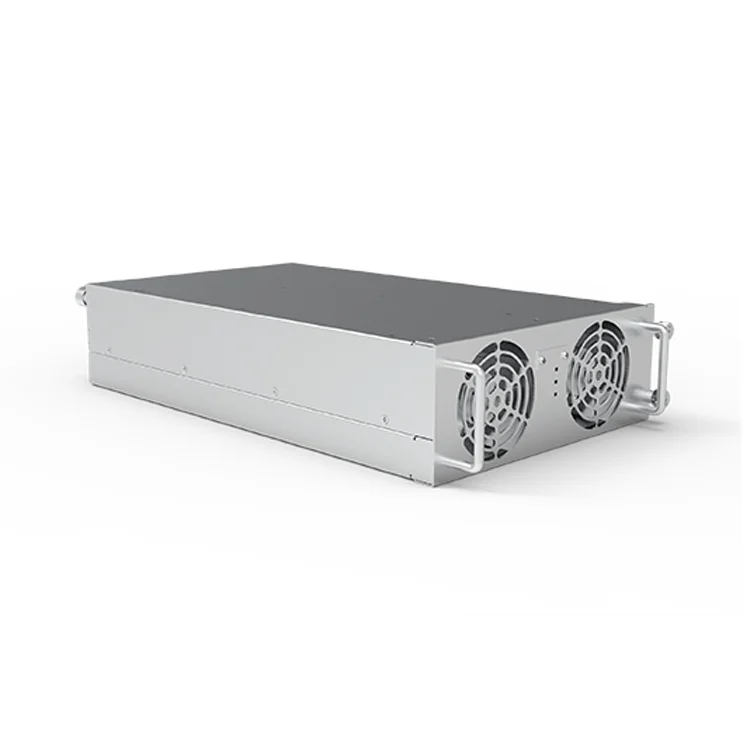

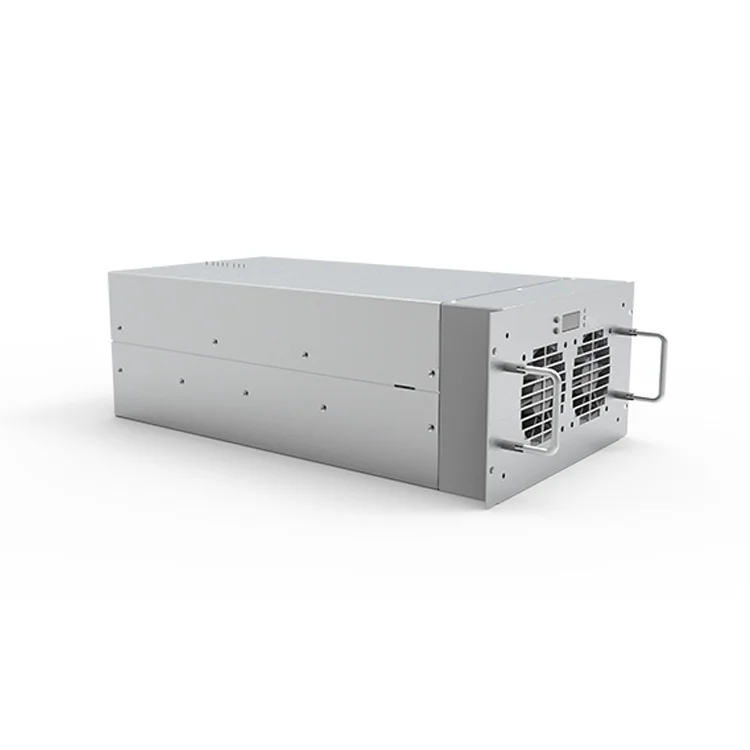

High Efficiency 20Kw Constant Power EV DC Charging AC EV Charger Power Module 20Kw EC Charger Module
As the core component of the ev DC charging station, DC electric vehicle charger module is the key to the stability and reliability of the ev charger. It can convert the power grid AC voltage into DC voltage to charge the electric vehicles.
Power | Power | 15kw | 20kw | 30kw | ||
AC Input | Input System | Three phase + PE | ||||
Voltage Range | 260V~530V AC | |||||
Grid Frequency | 45Hz～65Hz | |||||
DC Output | Voltage Range | 50V～750V | 50V～750V | 150V～1000V | ||
Current Range | 0～25A | 0～40A | 0～100A | |||
Stabilized Voltage Precision | ＜±0.5% | |||||
Stabilized Current Precision | ≤ ±1% | |||||
Working Conditions | Working Temperature | －40℃～＋75℃ | ||||
Storage Temperature | －40℃～＋70℃ | |||||
Cooling Method | Forced air cooling | |||||
Relative Humidity | ≤ 95% RH non-condensing | |||||
Features

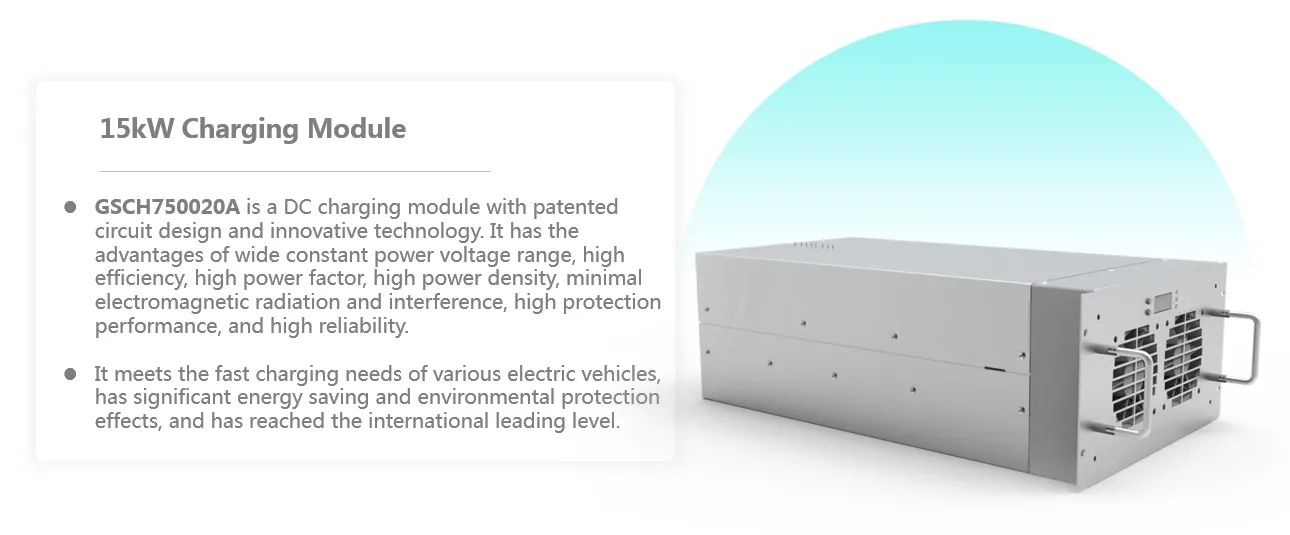

Grasen EV Charger Module
Full hot plug design - When the charging module is connected to the system,
it will not cause disturbance of the system output voltage
Advanced current balancing technology - voltage regulation accuracy ≤±5%
Inside high frequency transformer isolation - Suitable for wet and dusty environments.
Maintenance-free - No maintenance required for ordinary indoor and outdoor
application
High reliability - Designed in accordance with automotive-grade standards,
charging operation is stable and reliable.
Wide operating temperature range: -40℃- +75℃
it will not cause disturbance of the system output voltage
Advanced current balancing technology - voltage regulation accuracy ≤±5%
Inside high frequency transformer isolation - Suitable for wet and dusty environments.
Maintenance-free - No maintenance required for ordinary indoor and outdoor
application
High reliability - Designed in accordance with automotive-grade standards,
charging operation is stable and reliable.
Wide operating temperature range: -40℃- +75℃
About Us
Production Ability
Chile
Ukraine
Canada
Afer-sale Service
Packing&Shipping
FAQ
Q1: Are you trading company or manufacturer?
A: We are a professional researching&designing manufacturer, our factory has been
established for 5 years.
Q2: What are your main market?
A: Asia, Europe, America, Africa.
Q3: How long is the lead time?
A: The lead time is 30-45 working days, it depends on the quantity and production scheduling.
Q4: What kinds of payment do you accept?
A: We have T/T and L/C etc. If you need the detailed terms of payment, pls contact us.
Q5: What standards for cable connectors do you support?
A: We support Chinese national GBT standard, European CCS standard, and Japanese CHAdeMo standard.
established for 5 years.
Q2: What are your main market?
A: Asia, Europe, America, Africa.
Q3: How long is the lead time?
A: The lead time is 30-45 working days, it depends on the quantity and production scheduling.
Q4: What kinds of payment do you accept?
A: We have T/T and L/C etc. If you need the detailed terms of payment, pls contact us.
Q5: What standards for cable connectors do you support?
A: We support Chinese national GBT standard, European CCS standard, and Japanese CHAdeMo standard.
Q6: Can you print our logo on the products? Do the color of plug and cable can be customized according to our requirements?
A: We support OEM and ODM service, but there will be a MOQ for custom design.
