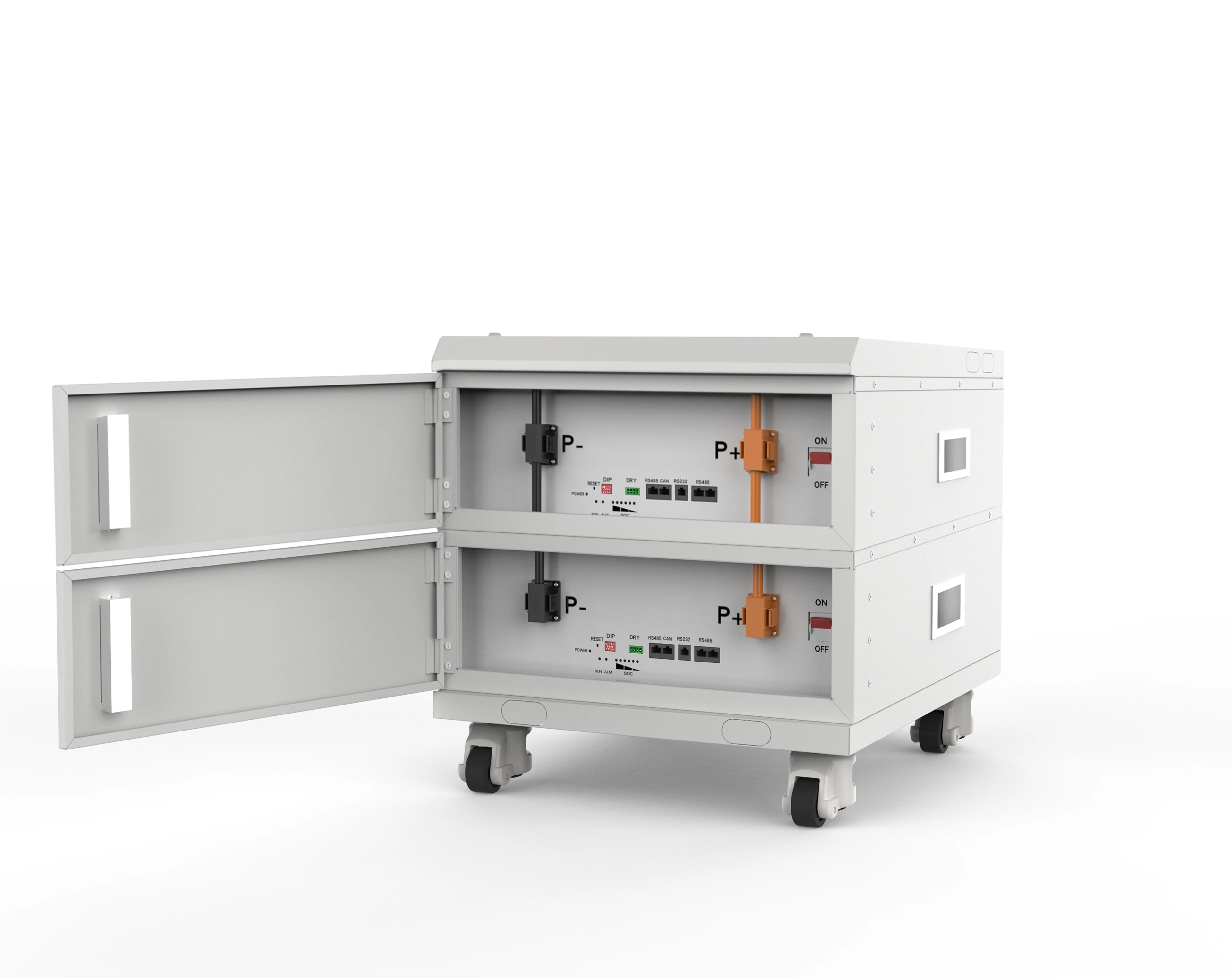

Quality Assurance Oem Mini New Type Micro Home Huawei Batterie Solaire Lithium Ion 48V 100Ah 200Ah
- Category: >>>
- Supplier: Shenzhen Eyesky New Energy Technology Co. Ltd.
Share on (1600552531787):
Product Overview
Description
Product Description
Model Number | TY-CN5K-H1 | TY-CN5K-H2 | TY-CN5K-H3 | TY-CN5K-H4 | TY-CN5K-H5 | TY-CN5K-H6 | ||||||
System Basic Parameters | 100A | 290 | 300 | 310 | 320 | 330 | ||||||
Number of battery packs | 1 | 2 | 3 | 4 | 5 | 6 | ||||||
Nominal system voltage | 51.2V | |||||||||||

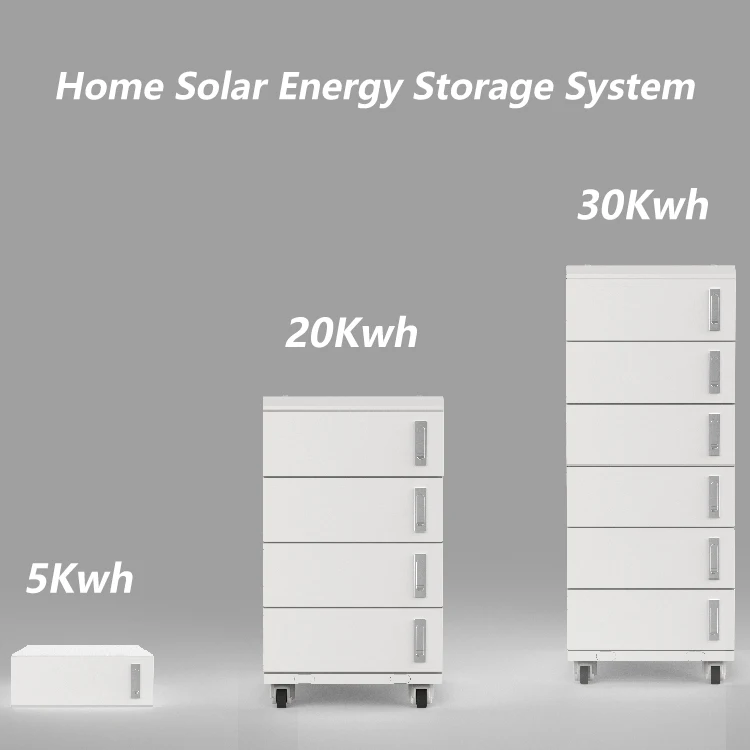

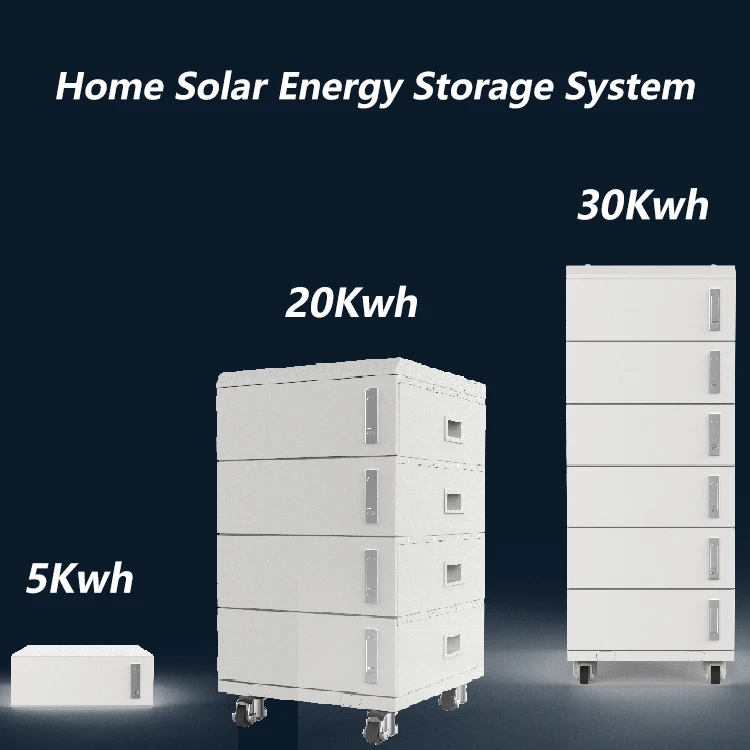

System nominal energy (100% DOD) | 5kWh | 10kWh | 15kWh | 20kWh | 25kWh | 30kWh | ||||||
System available energy (90% DOD) | 4.5kWh | 9kWh | 13.5kWh | 18kWh | 22.5kWh | 27kWh | ||||||

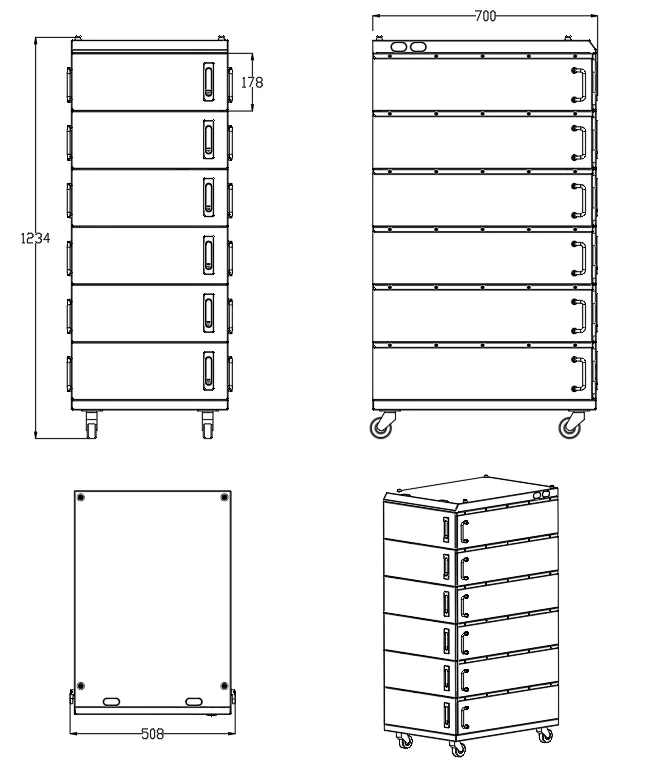

Dimension (mm) | 700*508*346 | 700*508*524 | 700*508*702 | 700*508*880 | 700*508*1057 | 700*508*1234 | ||||||
Weight | 60 | 104 | 147 | 190 | 233 | 276 | ||||||
Protection level | IP65 | 17.90 | 18.40 | 18.78 | 19.10 | 19.60 | ||||||
Cooling method | Natural cooling | |||||||||||
Battery module parameters | ||||||||||||
Nominal Voltage | 51.2Vdc | |||||||||||
Nominal Capacity | 100AH | |||||||||||
DOD | <90% | |||||||||||
Nominal Charging Current | 100A | |||||||||||
Maximum continuous charging current | 105A | |||||||||||
Rated Discharge Current | 100A | |||||||||||
Maximum continuous discharge current | 105A | |||||||||||
Working temperature | Discharge：-20°C~60°C，Charge：0°C~60°C | |||||||||||
Storage temperature | <25°C 12 months，<35°C 6 months，<45°C months | |||||||||||
environment humidity | <95%RH（ No condensation） | |||||||||||
Altitude conditions | <2500m | |||||||||||
Cycle life | 3000times@80%DOD/25°C/0.5C charge & discharge,60%EOL | |||||||||||
Specification
Show details
Application

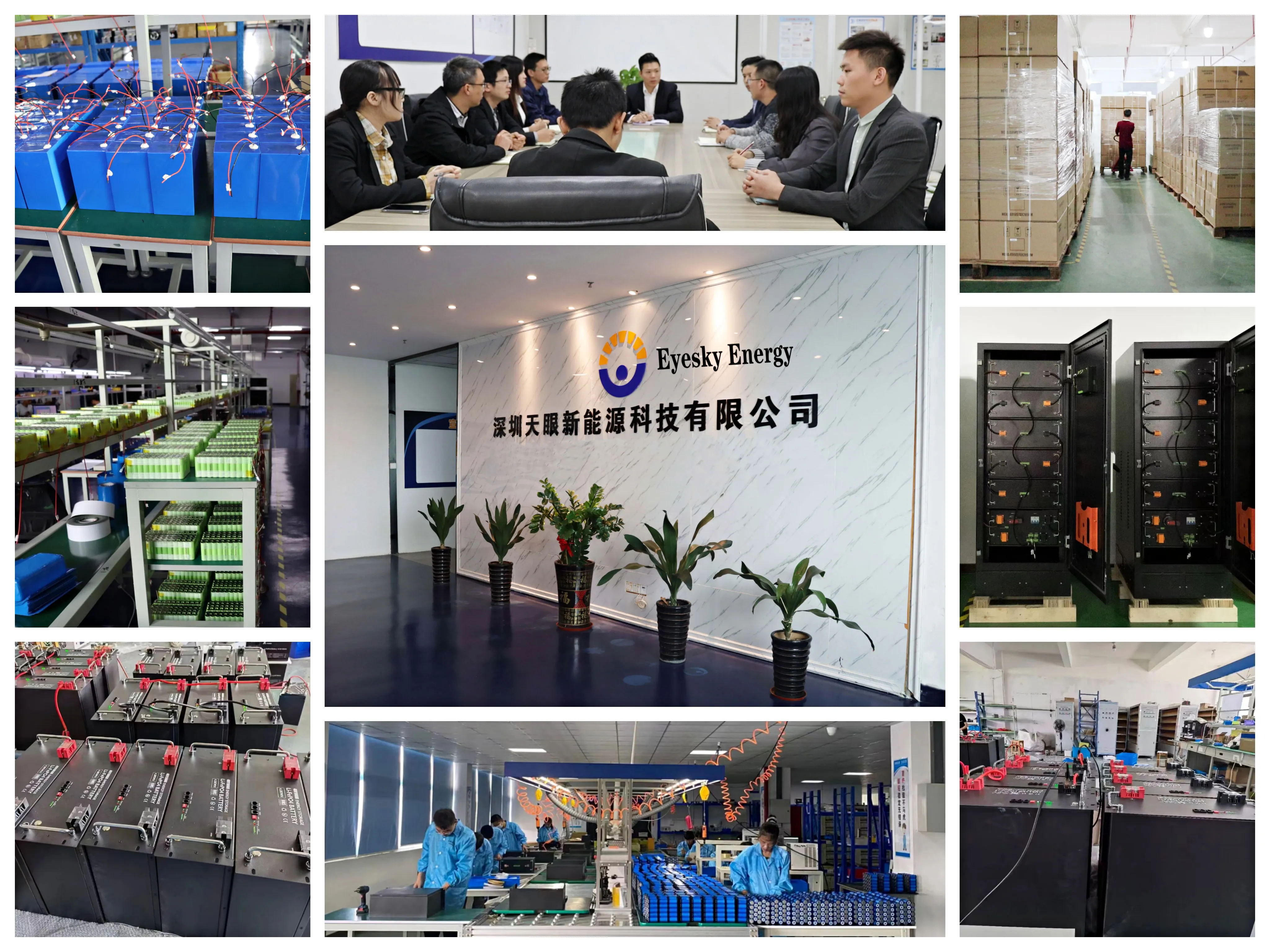

Company Profile
Eyesky energy is a National certified Hi-tech company in Shenzhen. The company integrating R&D, production and sales in home energy storage system ,Solar powered generator for cctv camera and outdoor applications. With technical creativity and scientific management, we adhere to the development idea of combining low-carbon, intelligence and technology to become an independent innovator of lithium battery packs, home energy storage, and solar power generation systems.
We have been pioneer at adapting to different application usage environments in the R&D and production. We have always been at the forefront of the industry. Nearly 10% of our annual revenue is invested in R&D, We have strong R&D technical team. The ISO9001 standard has been introduced into the management system, and the production quality has been strictly controlled, 100% QC checked before leaving factory.To maximum value for customers, we keep ongoing to make innovation and advanced technology in our industry.
We have been pioneer at adapting to different application usage environments in the R&D and production. We have always been at the forefront of the industry. Nearly 10% of our annual revenue is invested in R&D, We have strong R&D technical team. The ISO9001 standard has been introduced into the management system, and the production quality has been strictly controlled, 100% QC checked before leaving factory.To maximum value for customers, we keep ongoing to make innovation and advanced technology in our industry.
Certifications
Shipping
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer of solar products. With many years of production line manufacturing experience, we can provide you with the best quality OEM services.
Q2: What is your minimum order quantity?
A2: Our minimum order quantity is one piece per design, and can be ordered in combination.
A2: Our minimum order quantity is one piece per design, and can be ordered in combination.
Q3: Can I add tags to items?
A3: Of course. We accept all services customized.
A3: Of course. We accept all services customized.
Q4: Can I put my design logo on the item?
A4: Of course, we provide customized services. We can customize your favorite style items and print your own logo on the items. You can inform your logo in advance.
A4: Of course, we provide customized services. We can customize your favorite style items and print your own logo on the items. You can inform your logo in advance.
Q5: Can I get samples before bulk ordering? What is your sample policy?
A5: Yes, we are happy to make samples for your test before you place a big order. Because this is the first time we have cooperated with each other. We will charge for each sample. But the sample fee is just a symbol, we will return the sample fee to you after confirming your large order.
A5: Yes, we are happy to make samples for your test before you place a big order. Because this is the first time we have cooperated with each other. We will charge for each sample. But the sample fee is just a symbol, we will return the sample fee to you after confirming your large order.
Q6: What is the delivery date for bulk goods?
A6: About 3-4 working days after payment.
A6: About 3-4 working days after payment.
