WMD25V Vertical Drilling and Milling lathe high precision manual mill drill lathe small milling machine
- Category: >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (1600552559678):
Product Overview
Description
Product Details

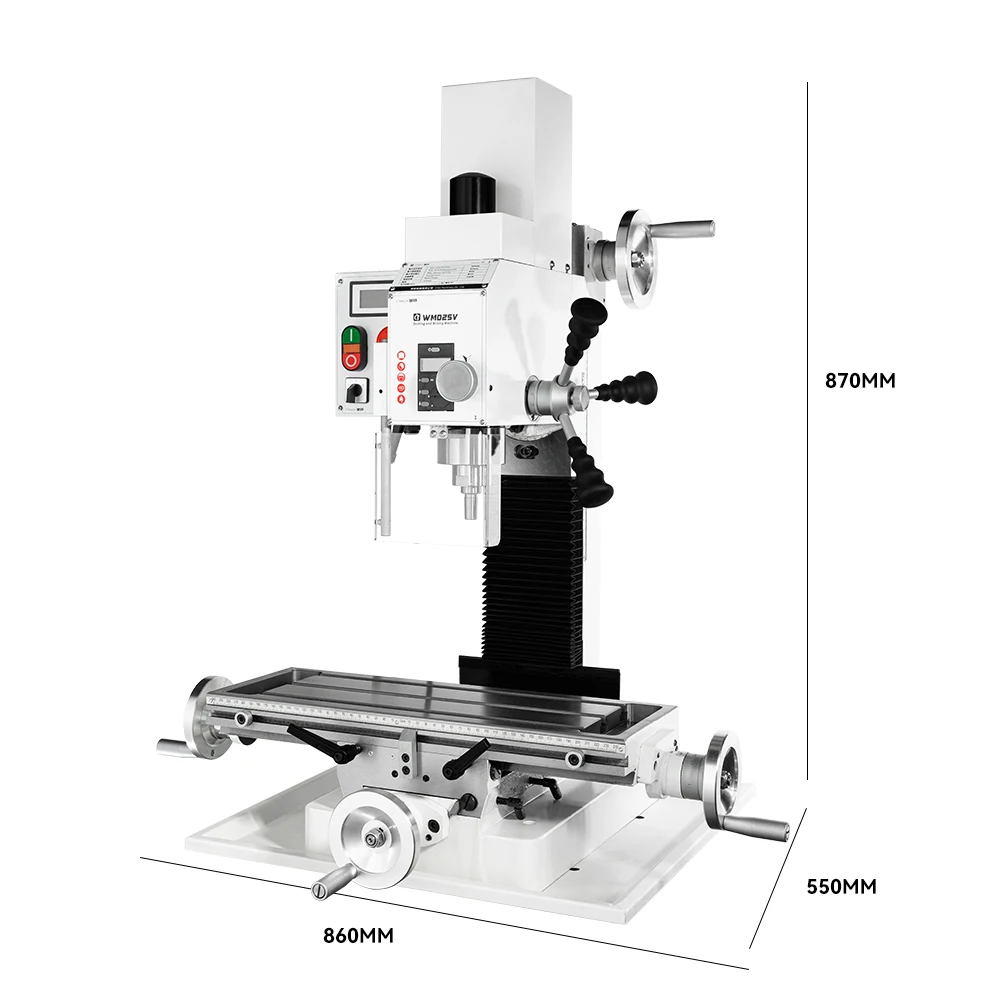

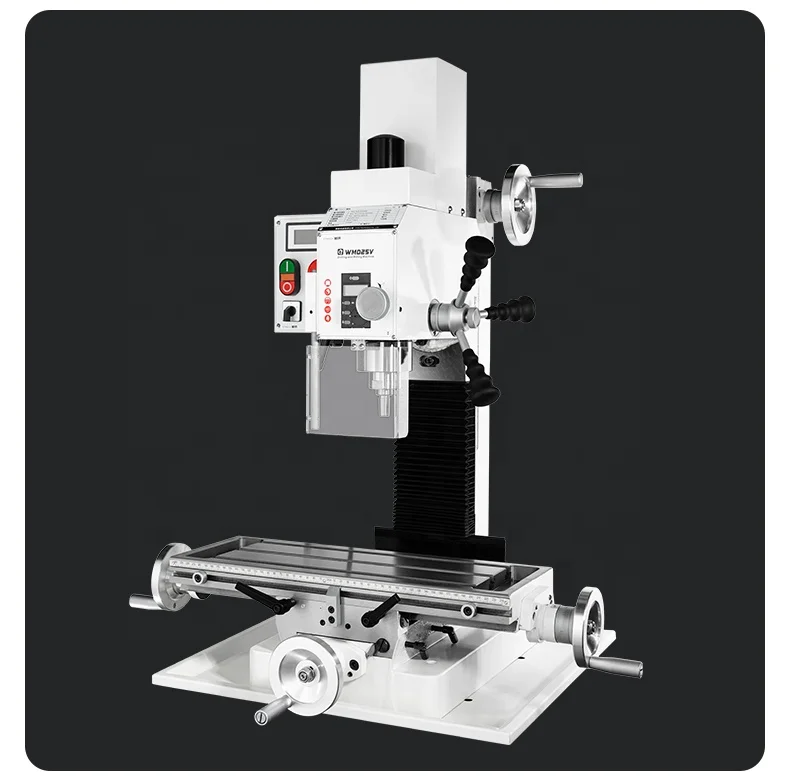

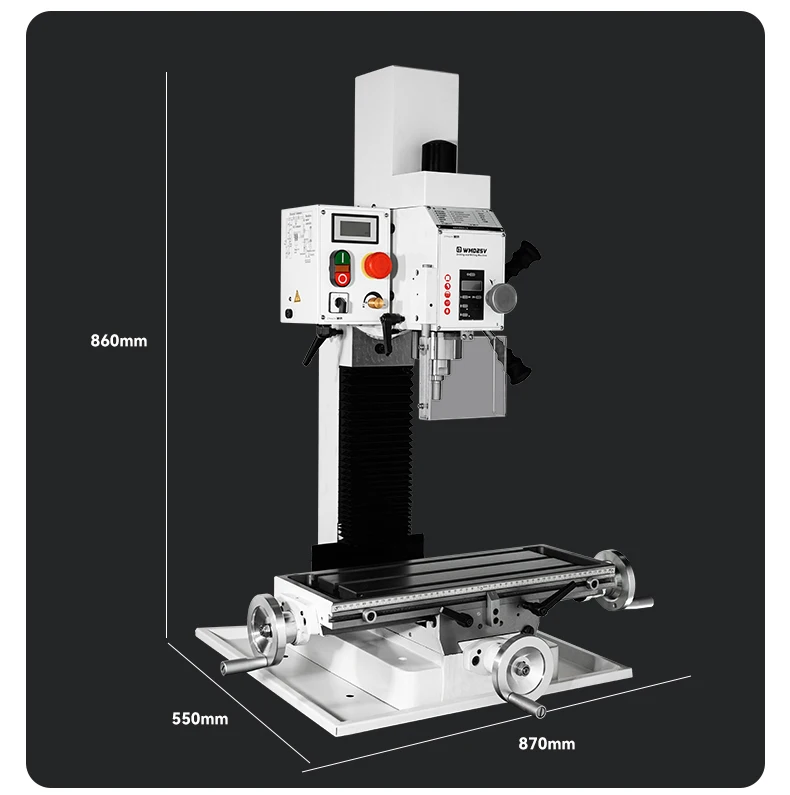

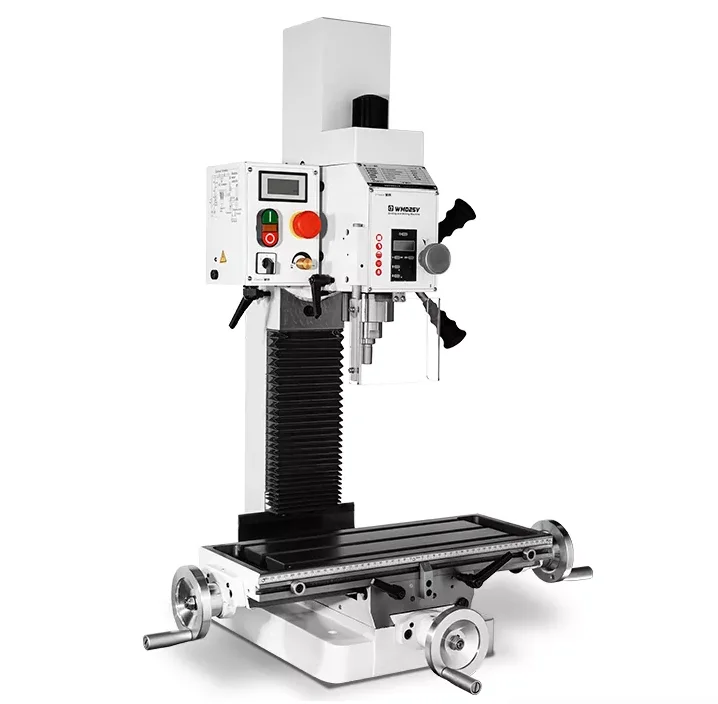

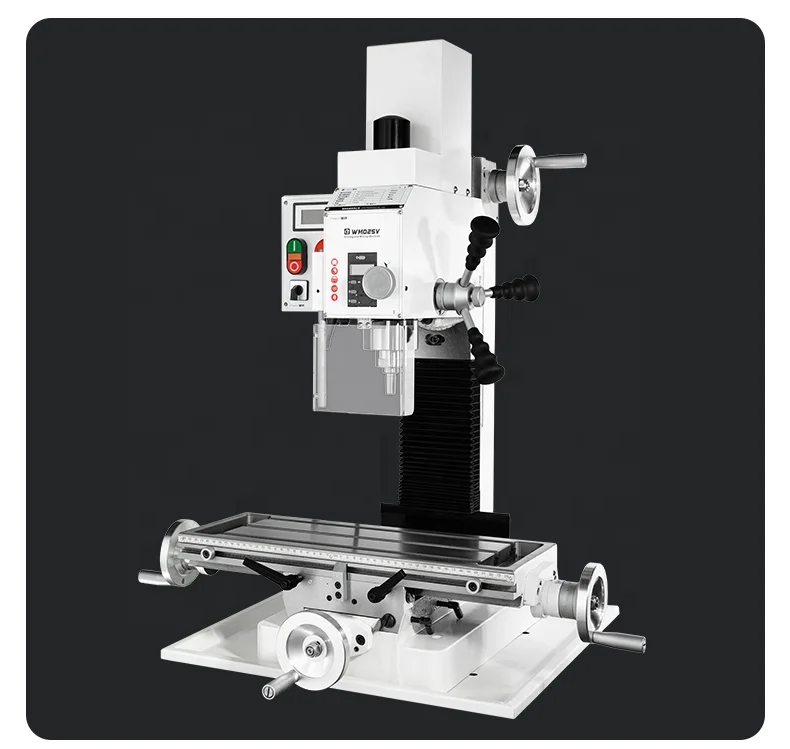

WMD25V Drilling and Milling Machine

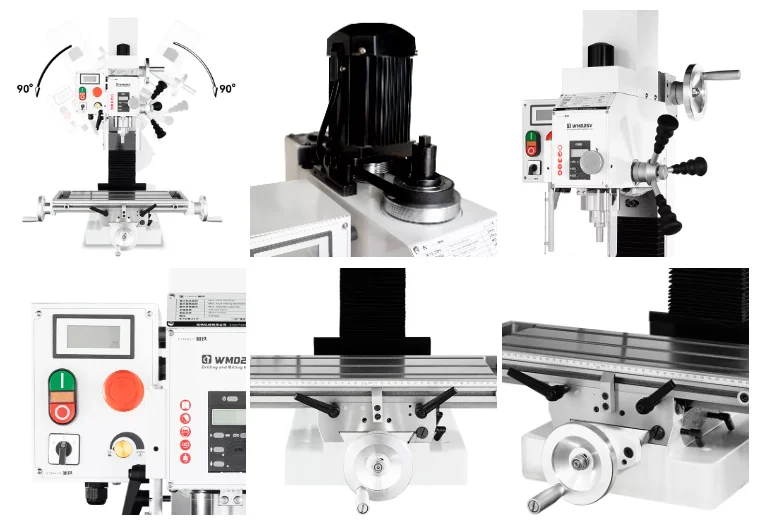

1. Simple operation and wide processing range
2. High strength cast iron column
3. Gearbox
4. Speed digital readout
5. Digital readout of drilling depth
6. Rotation smooth control
7. Precise spindle bearing
Max. Drilling Diamter | 25mm | ||||||
Max. Face Milling Capacity | 63mm | ||||||
Max. Vertical Milling Capacity | 16mm | ||||||
Worktable Size | 500*180mm | ||||||
T-slots Size | 12mm*3 | ||||||
X-Axis Travel | 320mm | ||||||
Y-Axis Travel | 178mm | ||||||
Spindle Taper | MT3 | ||||||
Spindle Travel | 50mm | ||||||
Distance From Spindle Axis to Column Guide Rail | 160mm | ||||||
Distance From Spindle to Table | 300mm | ||||||
Spindle Incline Angle | ±90° | ||||||
Spindle Speed (Variable Speed) | 50-2500rpm | ||||||
Motor Power | 750w | ||||||
N.W. | 105kg | ||||||
Overall Dimensions | 870*550*860mm | ||||||

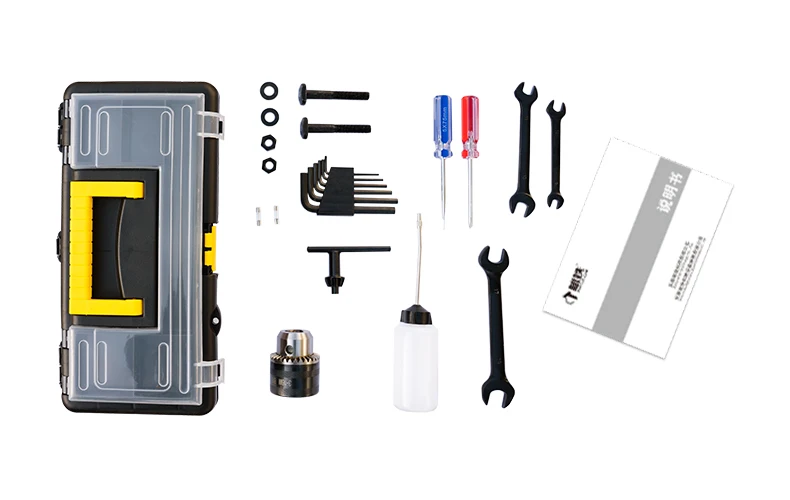

Standard Accessories
Company Profile
CTMACH is one of the largest manufacturers of bench lathes in China. We have 12 years of production and R&D experience. In 2019, we established foreign trade export sales department. We specialize in independent research and development, production, sales and after-sales service of small household machine tools, lathes, drilling and milling machines, small multi-function drilling and milling machines, small CNC machine tools, and cutting machines. Our products are exported to more than 30 countries such as Europe and the United States, and these machines are used in many industries and fields. We always insist on technological innovation and standard process production. We have engineers and after-sales service technicians who have been engaged in mechanical design for many years; with excellent technology and equipment support, our product quality has won the trust and appreciation of many foreign users.
Products are exported to more than 30
countries and regions in the world
CE IS9001
Packing & Shipping
FAQ
Q.What are your normal lead times?
A.Usually, we have stock of the machine, for stock machine we can send it out within 5days after got the payment. And for customized machine need 20-30days after got the payment.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification.
Q: How is the Quality warranty?
A: Warranty time is 13 months after BL date. And every machine before send it out, we have quality controller to test the machine.
Q. Do you have technical support?
A. Yes, we have professional techinal department, they will help solve your problem at anytime.
Q.What kind of package do you offer?
A.Normally in polywood case, to make sure all machines in good condition when shipping.
A.Usually, we have stock of the machine, for stock machine we can send it out within 5days after got the payment. And for customized machine need 20-30days after got the payment.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification.
Q: How is the Quality warranty?
A: Warranty time is 13 months after BL date. And every machine before send it out, we have quality controller to test the machine.
Q. Do you have technical support?
A. Yes, we have professional techinal department, they will help solve your problem at anytime.
Q.What kind of package do you offer?
A.Normally in polywood case, to make sure all machines in good condition when shipping.
