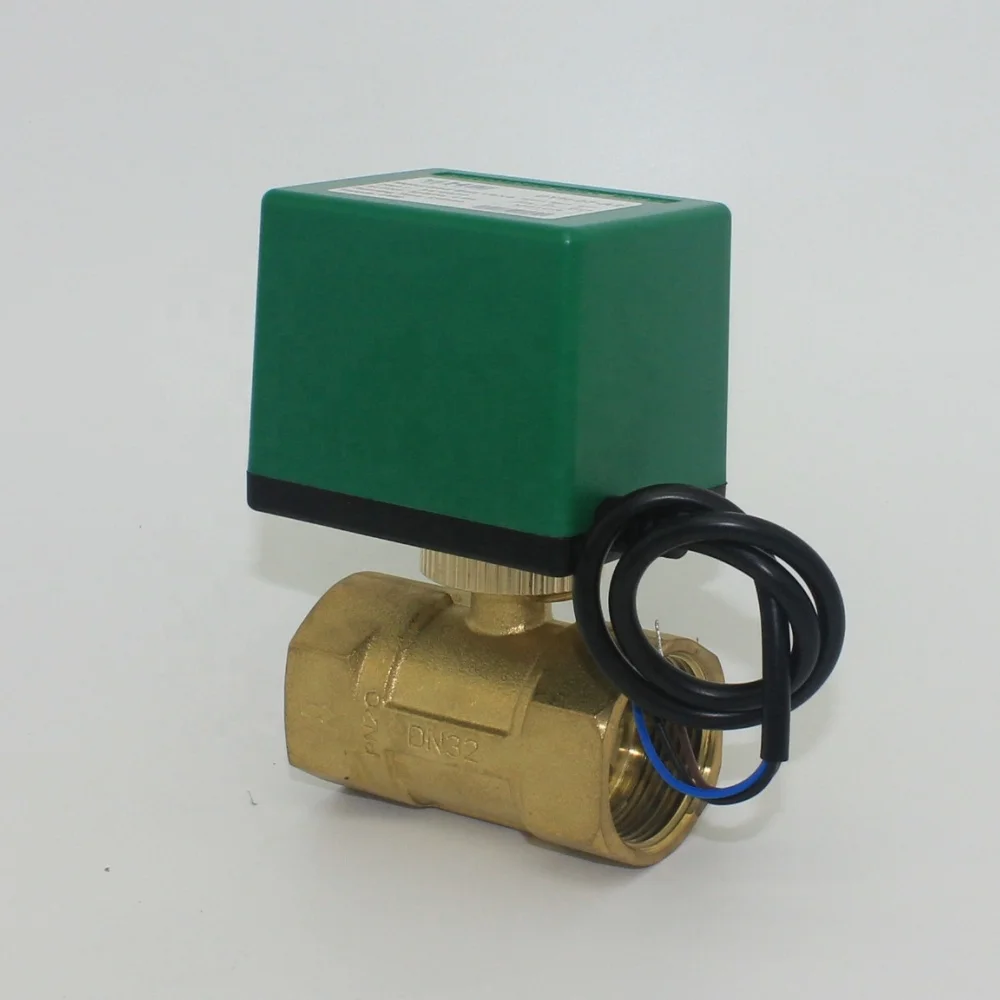

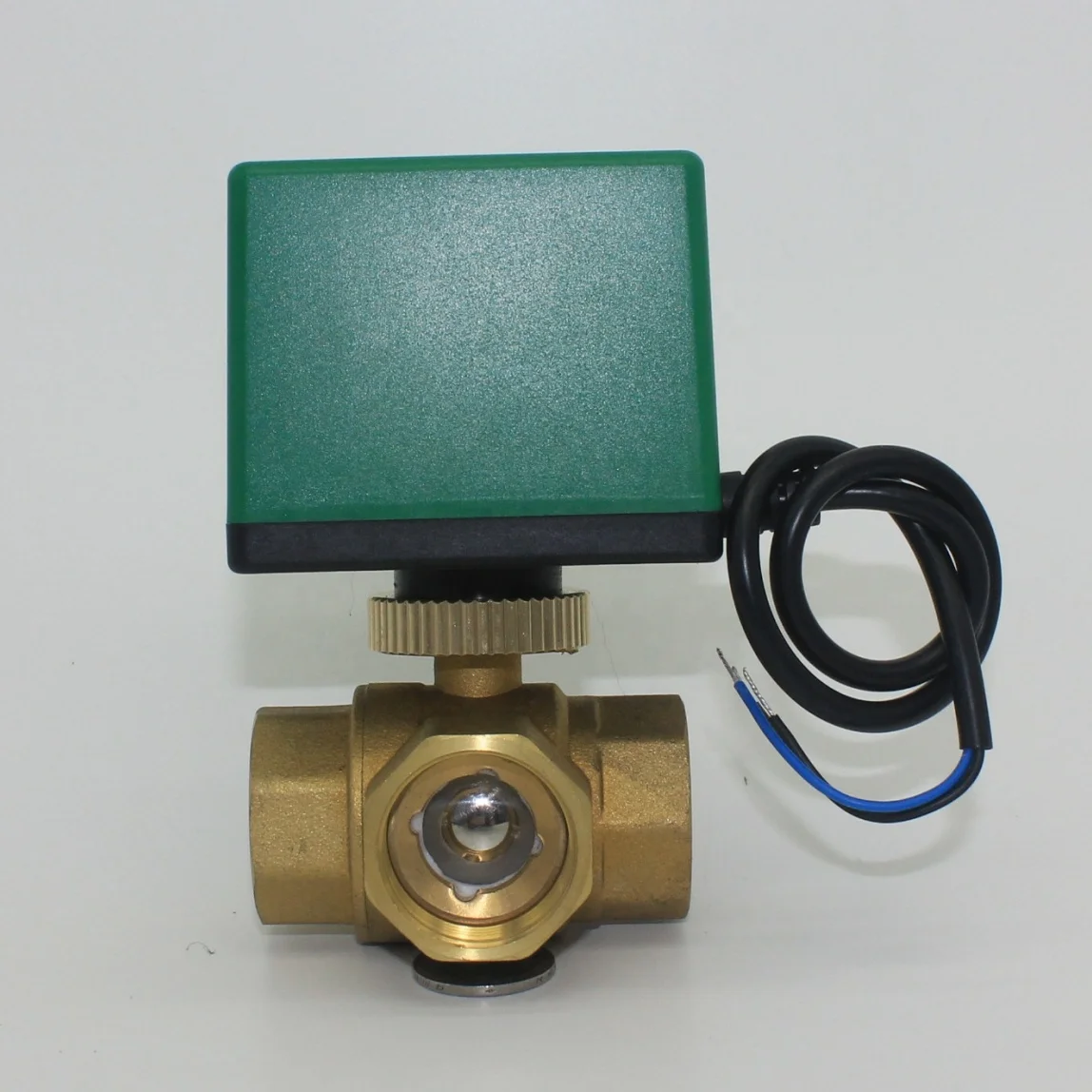

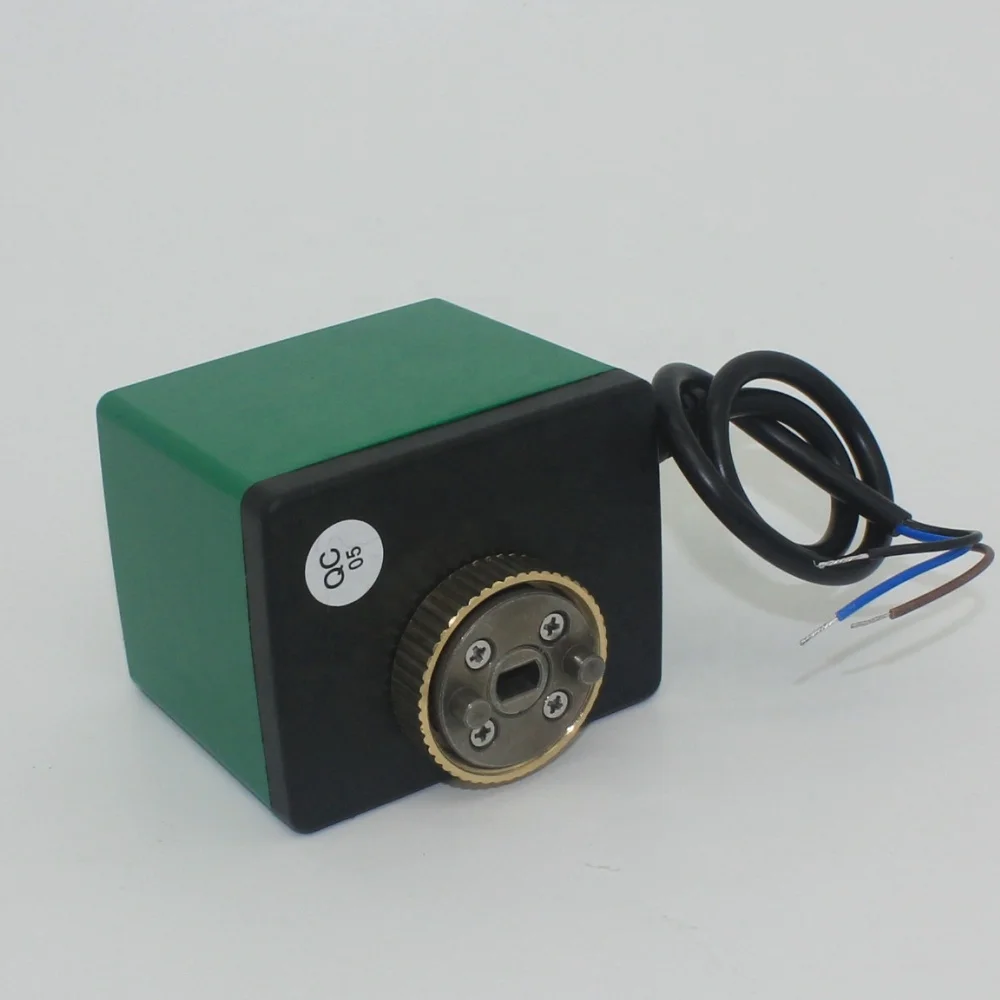

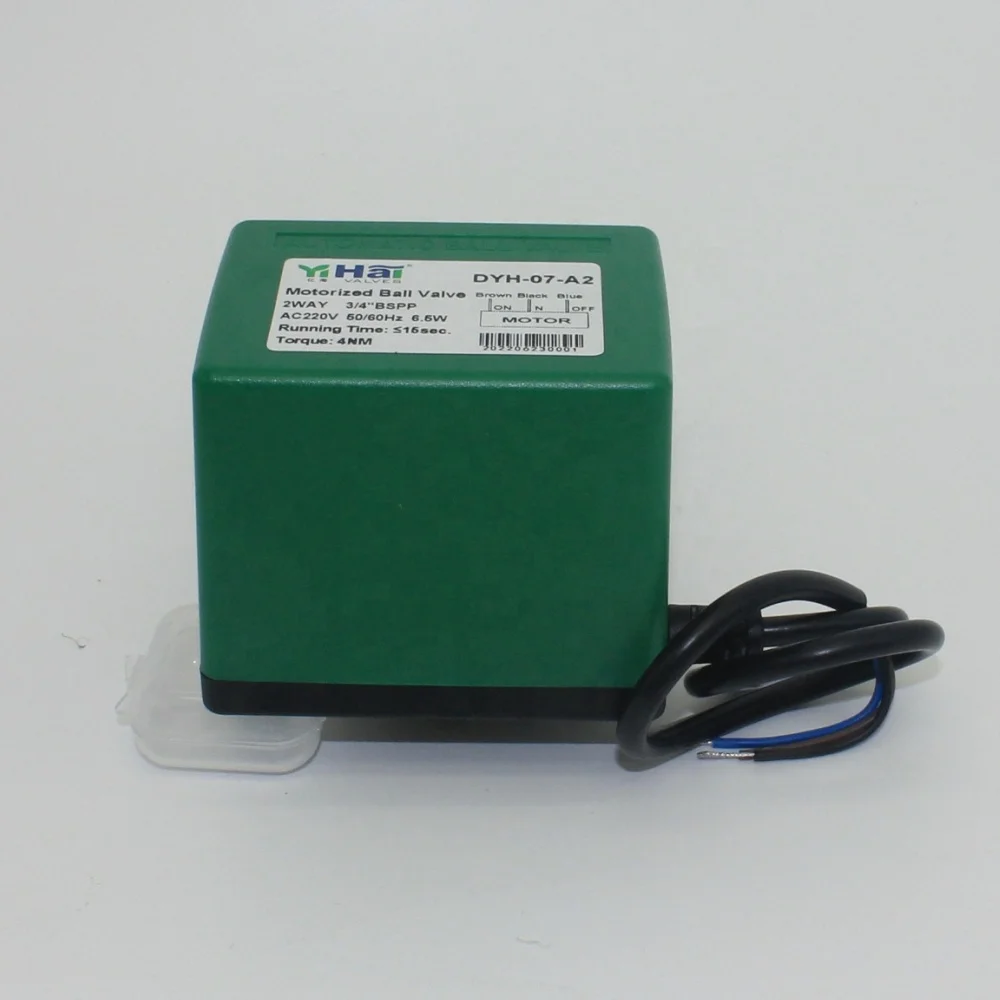

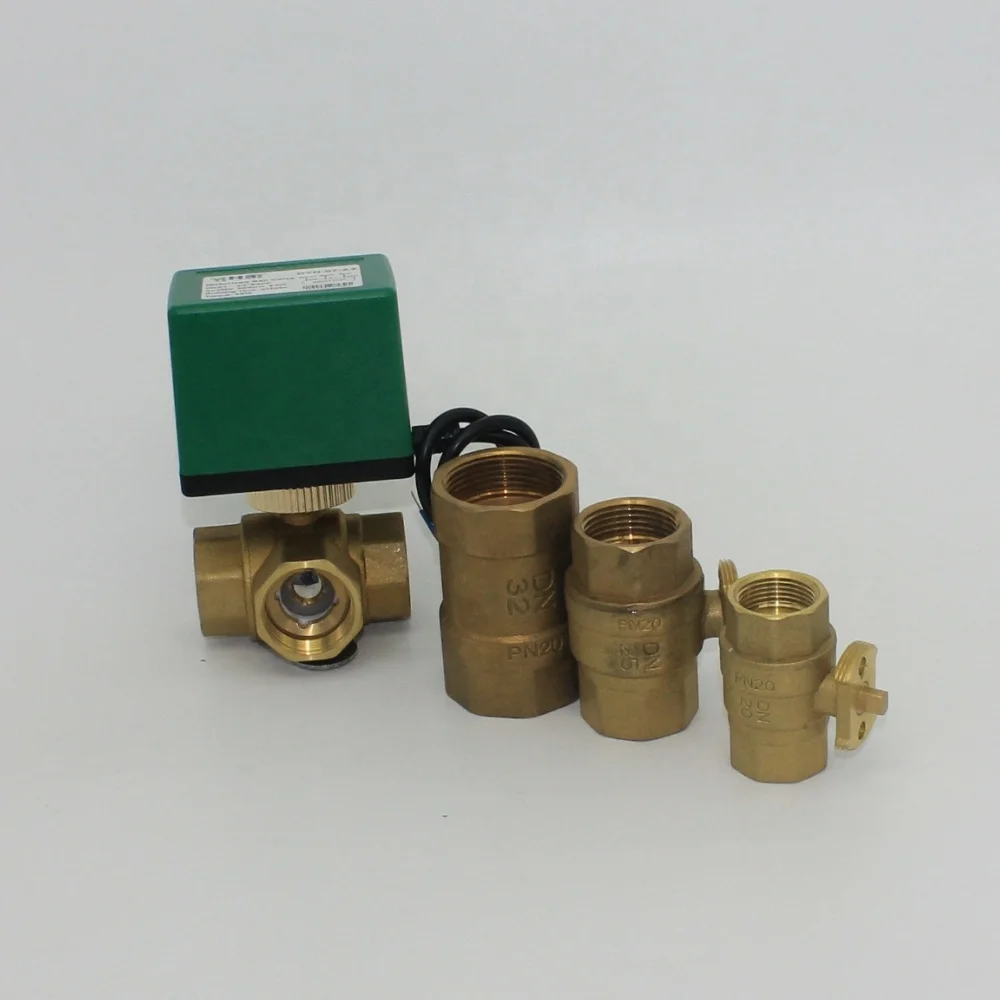

220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator
220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator
220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator
220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator
220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator
220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator
220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator

220v 1/2 3/4 1 inch 2 way 3way motorized control ball valve with electric actuator

Share on (1600552629606):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Item No.
DYH07.A2.215
DYH07.A2.315
DYH07.A2.220
DYH07.A2.320
DYH07.A2.225
DYH07.A2.325
Voltage Supply
AC24V/AC220V±10%, 50/60Hz
Power Consumption
6.5W
Torque
4Nm
Control Mode
3-wire-dual-control/ 3-wire-single-control
Run time
Open<15s Close<15s
Action Type
2-Way
3-Way
2-Way
3-Way
2-Way
3-Way
Rate Pressure
1.6MPa
Services Medium
Chilled and or Hot Water, Up to 50% Glycol
Lead Supply
3 Core(Brown, Blue, Black)
Environment Temperature
0℃（32℉）-50℃（122℉） non condensing
Fluid Temperature
0℃（32℉）-94℃（203℉）
Material
Valve Body: Forged Brass Valve Stem: brass Valve Core: SS(304) Valve Seal: EPDM
DN Size
DN15
DN15
DN20
DN20
DN25
DN25
End Connection
BSPP / NPT Internal Threaded
Size(Inch)
1/2”
1/2”
3/4”
3/4”
1”
1”
Kv (Cv) Value
4.0（4.7）
4.0（4.7）
7.0（8.2）
7.0（8.2）
12.0（14.0）
12.0（14.0）


New Feature
Progress new parts to improve usage life


Power Metallurgy End Connection (NEW)
Nylon End Connection(OLD)


Relay(NEW)
Capacitance(OLD)


Dimensions


Size
L(mm)
H(mm)
A(mm)
DN15 2Way
63
26
--
DN15 3Way
63
26
30
DN20 2Way
63
26
--
DN20 3Way
68
26
33
DN25 2Way
73
32
--
DN25 3Way
73
34
42




Wiring




Installation
1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.

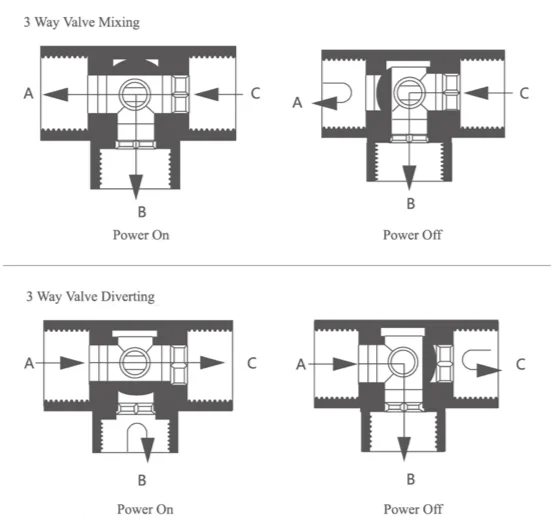

6. 3 way connection as flowing, 2 way connection no direction.

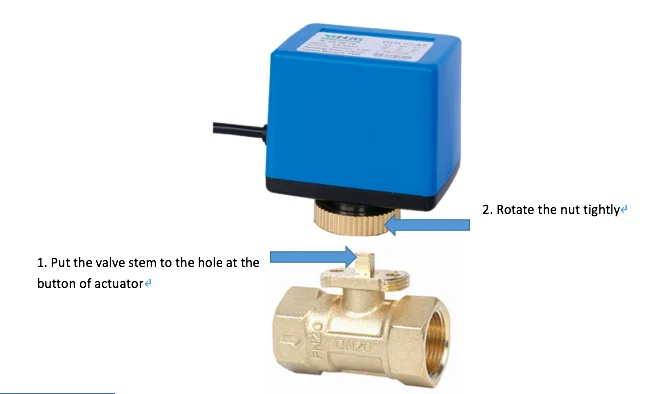

Install Actuator




Selection Chart
