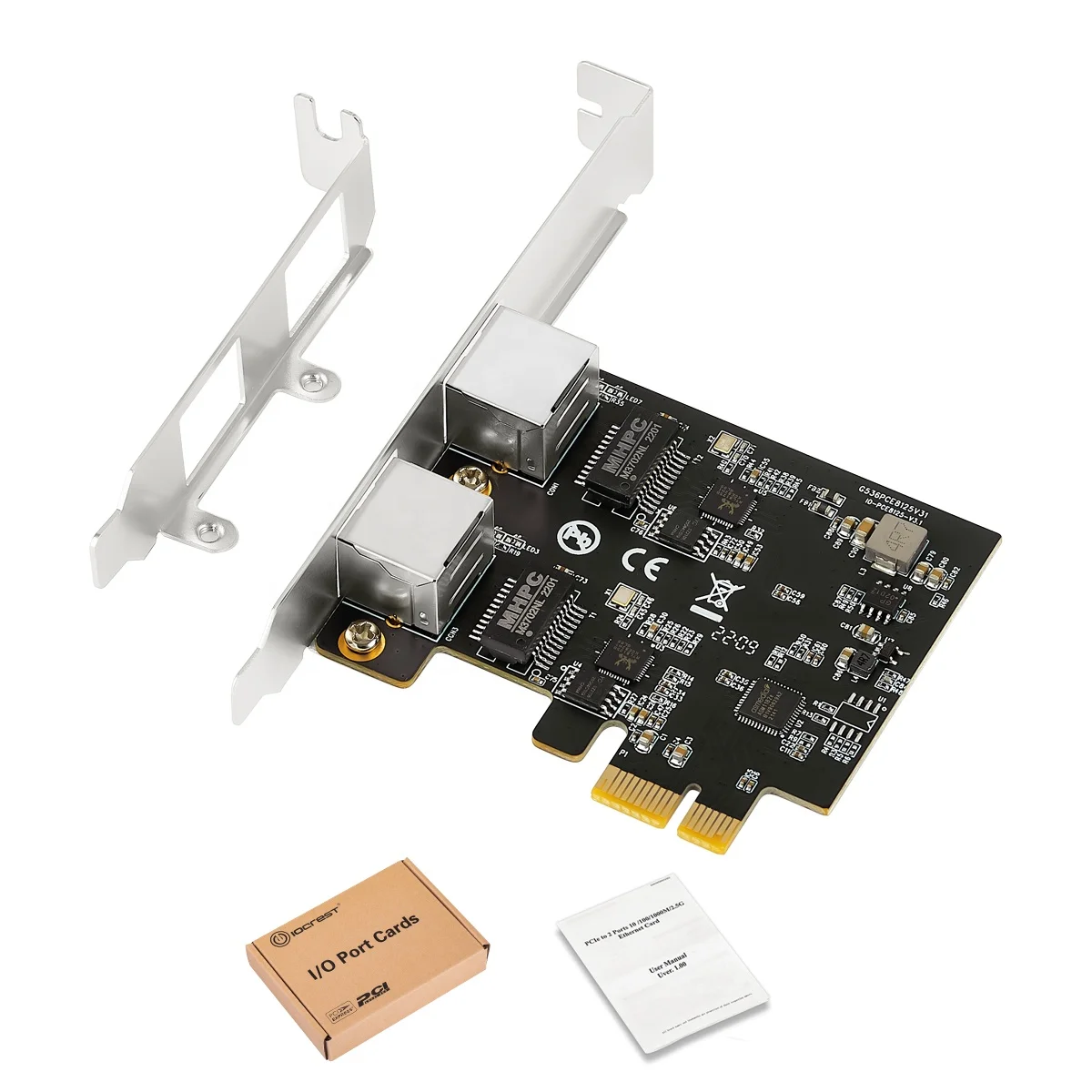

2 port 2.5G RJ45 Network adapter 2500mbps RTL8125B Chipset PCIe PCI Express 25GbE network Lan Card for gaming desktop server
- Category: Network Cards >>>
- Supplier: Shenzhen,MMUI,Co.,Ltd.
Share on:
Product Overview
Description
Driver Donwlod
https://www.realtek.com/zh-tw/component/zoo/category/network-interface-controllers-10-100-1000m-gigabit-ethernet-pci-express-software
Specification
item | value |
Products Status | Stock |
Application | Desktop |
Type | Wired |
Kind | Internal |
Transmission Rate | 150Mbps |
Interface Type | PCI EXPRESS |
Certification | FCC |
Brand Name | IOCREST |
Model Number | IO-PCE8125E-2GLAN |
Place of Origin | China |
Chipset | Realtek 8125B |
Color | Black |
Interface | PCI-E 1X |
Port | 2-port Network Card |
Chip | RTL8125B |
Product name | PCIe to 2 ports 2.5g etherent lan card |
Features
• Supports 2.5G Lite (1G data rate) mode
• PCI-Express 1-Lane(x1) interface
• Supports PCI Express 2.1
• Supports 2 high performance 2.5-Gigabit LAN ports
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-TTM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5/5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports LTR (Latency Tolerance Reporting)
• Wake-On-LAN and ‘RealWoW!’ Technology (remote wake-up) support
• Supports 32-set 128-byte Wake-Up Frame pattern exact matching
• Supports Microsoft WPI (Wake Packet Indication)
• Supports PCIe L1 substate L1.1and L1.2
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBase-T)
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports jumbo frame to 16K byte
• Supports standard and low profile chassis
• PCI-Express 1-Lane(x1) interface
• Supports PCI Express 2.1
• Supports 2 high performance 2.5-Gigabit LAN ports
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-TTM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5/5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports LTR (Latency Tolerance Reporting)
• Wake-On-LAN and ‘RealWoW!’ Technology (remote wake-up) support
• Supports 32-set 128-byte Wake-Up Frame pattern exact matching
• Supports Microsoft WPI (Wake Packet Indication)
• Supports PCIe L1 substate L1.1and L1.2
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBase-T)
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports jumbo frame to 16K byte
• Supports standard and low profile chassis
System Requirements
• Windows OS
• Linux, MAC OS and DOS
• PCI Express-enabled system with an available PCI Express slot
• Linux, MAC OS and DOS
• PCI Express-enabled system with an available PCI Express slot
Package Contents
• 1 x PCI-Express to 2 Ports 10 /100/1000M/2.5G Ethernet Card
• 1 x User Manual
• 1 x Driver CD
• 1 x Low-profile bracket
• 1 x User Manual
• 1 x Driver CD
• 1 x Low-profile bracket
