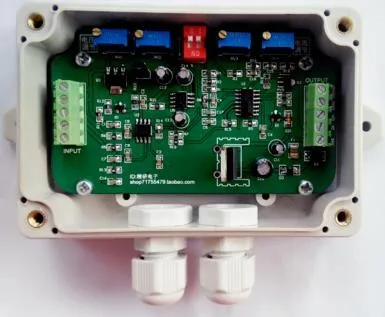

Load Cell Weight Transmitter JY S60 Load Cell Amplifier Covert 2mv/v into 4 20mA 0 10V output without shell

Gear selection

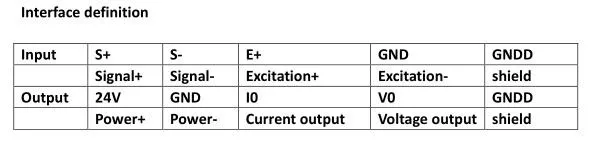

When DIP switch 1 is turned OFF, VO output is 0-5V. When DIP switch 1 is turned ON, VO output is 0-10V. When DIP switches 1 and 2 are both turned OFF, VO output is 0-5V. Output 4-20mA. The other terminal of the current output and voltage output is GND, which is the same negative polarity as the power supply.
