Lovsun Systems Support Structures Solar Ground Panel Mounting Bracket For Sale
- Category: Solar Applications >>>
- Supplier: Lovsun,Solar,Energy,Co.Ltd
Share on:
Product Overview
Description
Product Description
Specifications
Installation Site | Roof, Ground | ||||||
Foundation | Concrete Base, Ground Screw | ||||||
Tilt Angle | 0-60° | ||||||
Wind Load | 60m/s | ||||||
Snow Load | 1.6KN/m² | ||||||
Panel Layout | Portrait or Landscape | ||||||
Applicable Solar Module | Framed or Frameless | ||||||
Ground Clearance | 500-2000mm | ||||||
AS/NZS 1170, DIN 1055, JIS C8955: 2017, | |||||||
International Building Code IBC 2009, | |||||||
California Building Code CBC 2010; | |||||||
Material | Steel Steel Q235B(Hot-Dip Galvanized) | ||||||
Fastener | SUS304 &Hot-Dip Galvanized & Zinc-Nickel Alloy Electrolated Steel | ||||||
Small Components | AL6005-T5 ( Anolized) | ||||||
Color | Silver or Customized | ||||||
Warranty | 10-Year Warranty | ||||||

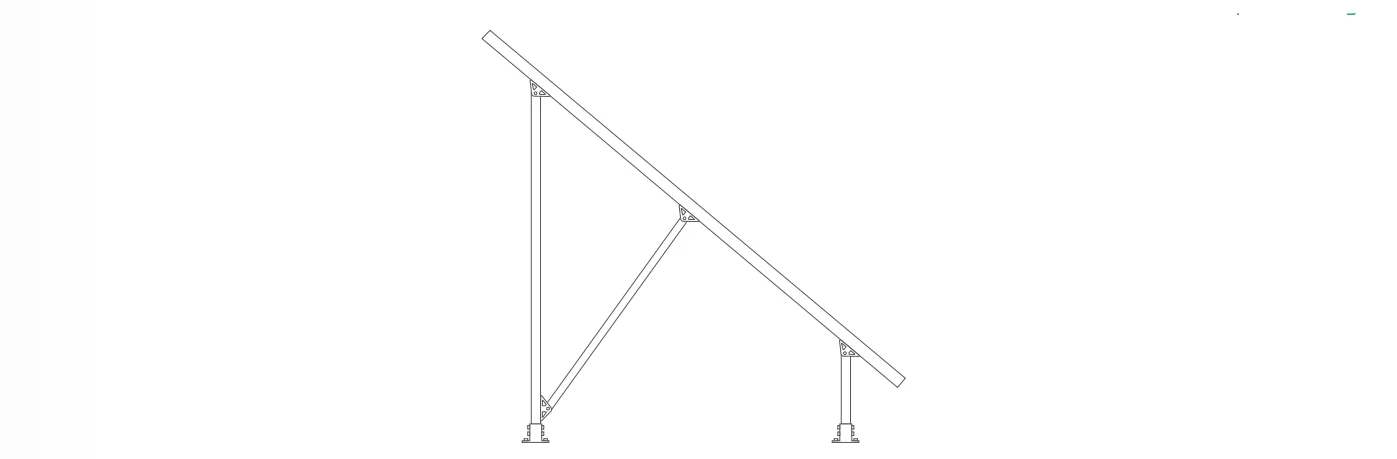

Components

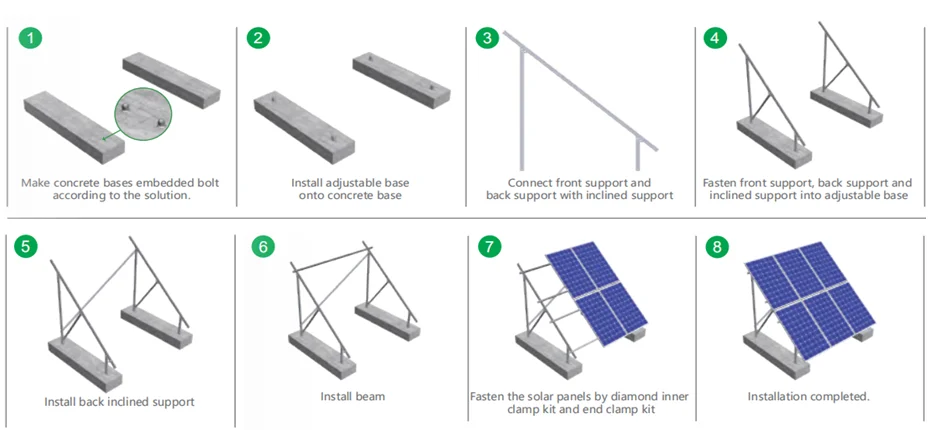

Installation Steps
Certificate

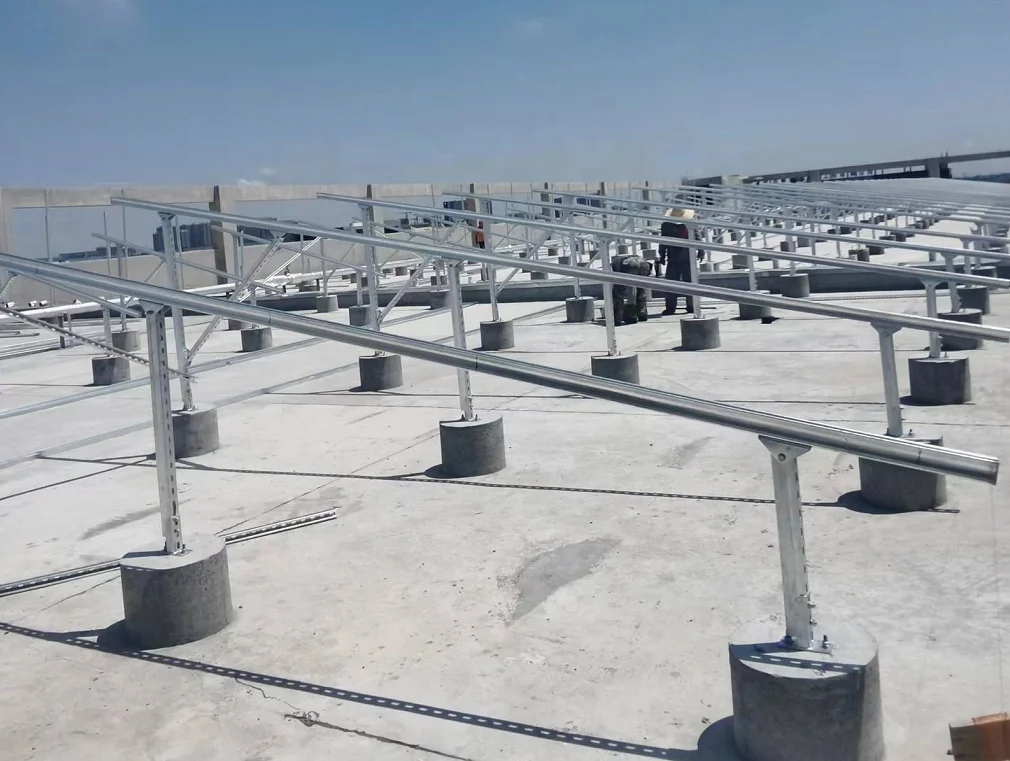

Packing & Projects
Other Products
FAQ
1.What's your main products?
A: Solar system, solar panel, inverter, controller, battery and mounting system and all the related soar power accessories.
2: What kind of service can you provide once we place the order ?
A: After we received the order, we arrange the production, our QC members will control the quality of each stage as well as
guarantee the delivery time. We also can arrange the shipment by sea, air or courier company.
guarantee the delivery time. We also can arrange the shipment by sea, air or courier company.
3:How to get a sample from you?
A: We accept sample orders, the freight cost will be appeared on the listing or negotiable for accurate freight cost. Then we will make a sample contract with our account number online and send to you,after we received the payment, we will send the sample immediately.
