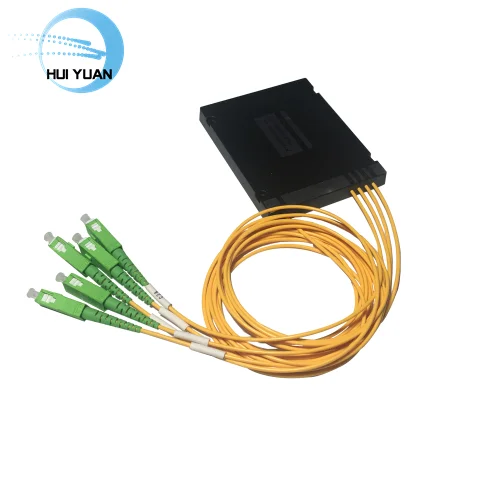

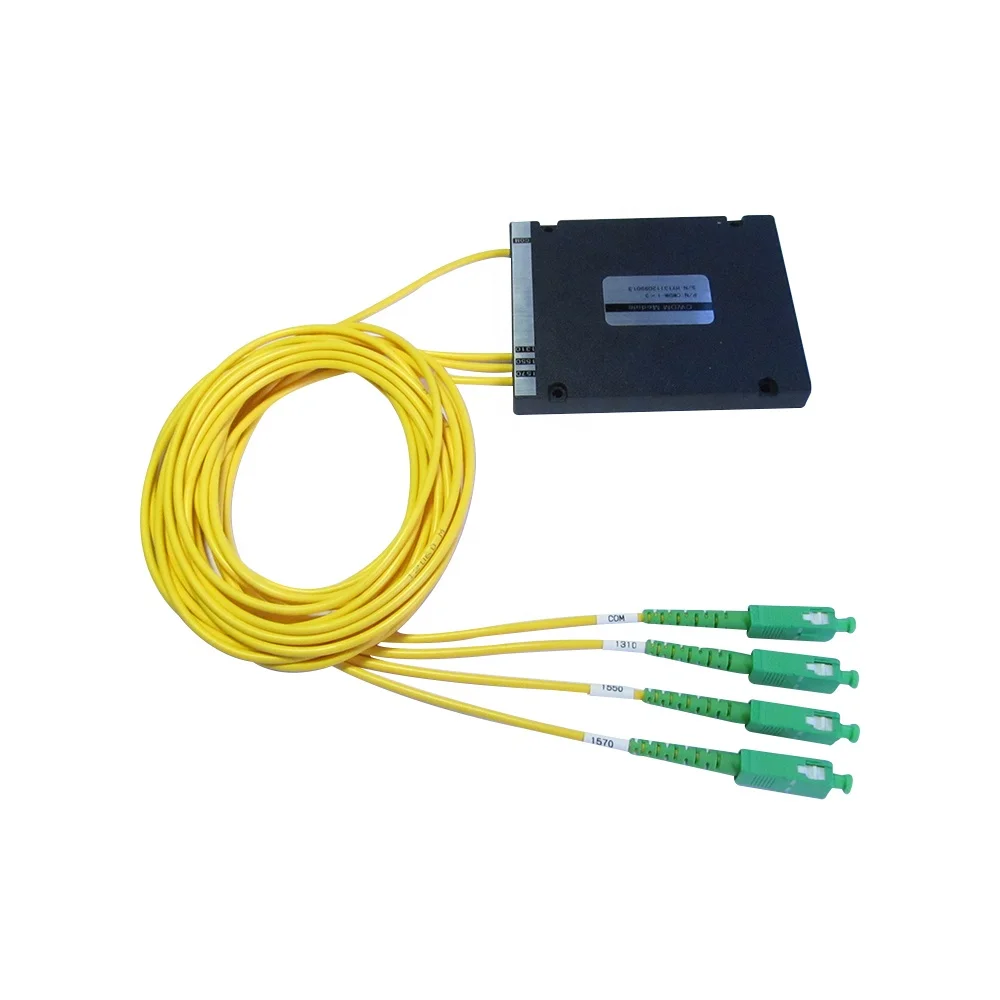

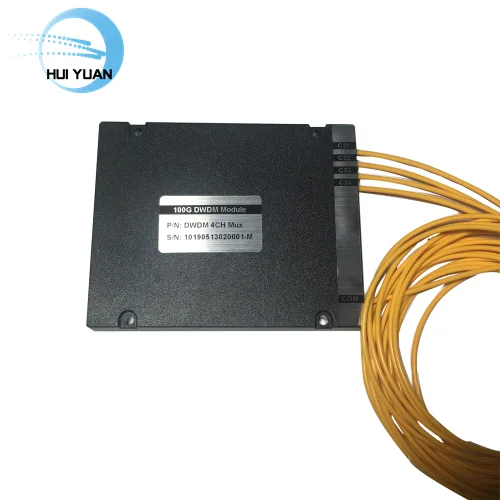

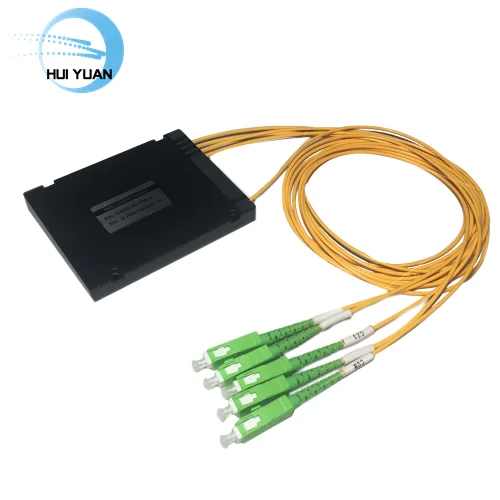

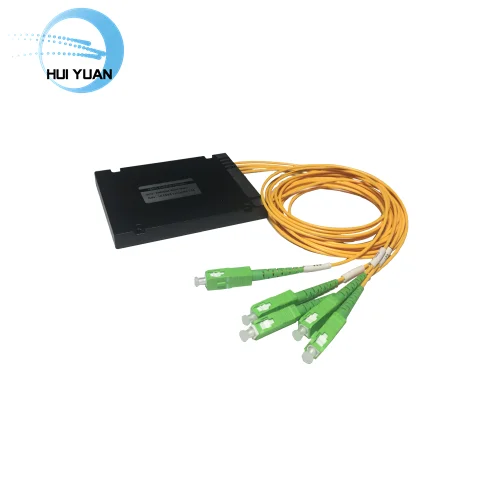

4CH Channel 100G C Band DWDM Module Fiber Optical Wavelength Division Mulitplexer WDM
- Category: >>>
- Supplier: Fuzhou Huiyuan Communication Equipment Co. Ltd.
Share on (1600553010068):
Product Overview
Description
Product Description
Main features
Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability
Applications
WDM system
CATV
CATV
Specification
Parameters | Unit | HY-FWDM Device | ||||
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20 | nm | 1 | T1550 R1310/1490 | |||
2 | T1490 R1310/1550 | |||||
3 | T1310 R1490/1550 | |||||
4 | T1550/1610 R1310/1490 | |||||
5 | T1550/1625 R1310/1490 | |||||
6 | T1625 R1310/1490/1550 | |||||
7 | T1650 R1310/1490/1550 | |||||
Insertion Loss | dB | Transmission: ≤ 0.6 | ||||
Reflection: ≤ 0.4 | ||||||
Transmission Channel Isolation | dB | ≥ 30 | ||||
Reflection Channel Isolation | dB | ≥ 17 | ||||
PDL | dB | ≤ 0.1 | ||||
Wavelength thermal stability | nm/℃ | ≤ 0.003 | ||||
Insertion loss thermal stability | dB/℃ | ≤ 0.005 | ||||
Return loss | dB | ≥ 45 | ||||
Optical Power | mW | ≤ 500 | ||||
Operating Temperature | ℃ | -10 ~ +70 | ||||
Storage Temperature | ℃ | -40 ~ +85 | ||||
Relative Humidity | % | 5 ~ 95 | ||||
Dimension | mm | Φ5.5×34 | Φ4.2×25 | 90×20×10 | ||
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
2. Specified without connector, and add an additional 0.2dB loss per connector.
