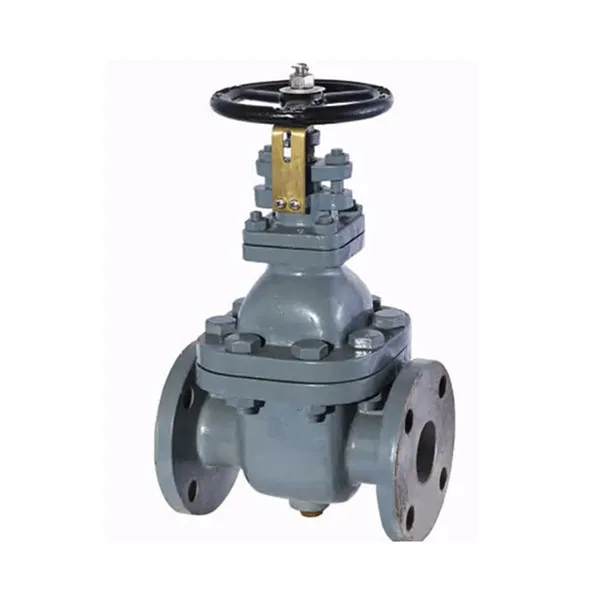

Gate Valve for Marine Use with Competitive Price JIS F7363
- Category: >>>
- Supplier: Chongqing Hi-Sea Marine Equipment Import & Export Co. Ltd.
Share on (1600553032011):
Product Overview
Description
Introduction:
This product is suitable for fuel pipelines, lubricating oil pipelines, water pipelines and steam pipelines at 300℃ and below.
Nominal Diameter & Pressure:
Diameter: DN50~DN150
Pressure: 5K
Features:
The fluid resistance is small, and the sealing surface is less eroded and eroded by the medium.
It is easy to open and close.
The flow direction of the medium is not restricted, the flow is not disturbed, and the pressure is not reduced.
Durable and easy to use.
Main Parameters:
| IMPA | Model | L | D | C | NO | h | t | H | D2 |
| 750801 | 7363 5K050 | 180 | 130 | 105 | 4 | 15 | 16 | 285 | 125 |
| 750802 | 7363 5K065 | 190 | 155 | 130 | 4 | 15 | 18 | 330 | 140 |
| 750803 | 7363 5K080 | 200 | 180 | 145 | 4 | 19 | 18 | 380 | 160 |
| 750804 | 7363 5K100 | 230 | 200 | 165 | 8 | 19 | 20 | 430 | 180 |
| 750805 | 7363 5K125 | 235 | 235 | 200 | 8 | 19 | 20 | 495 | 200 |
| 750806 | 7363 5K150 | 265 | 265 | 230 | 8 | 19 | 22 | 560 | 224 |

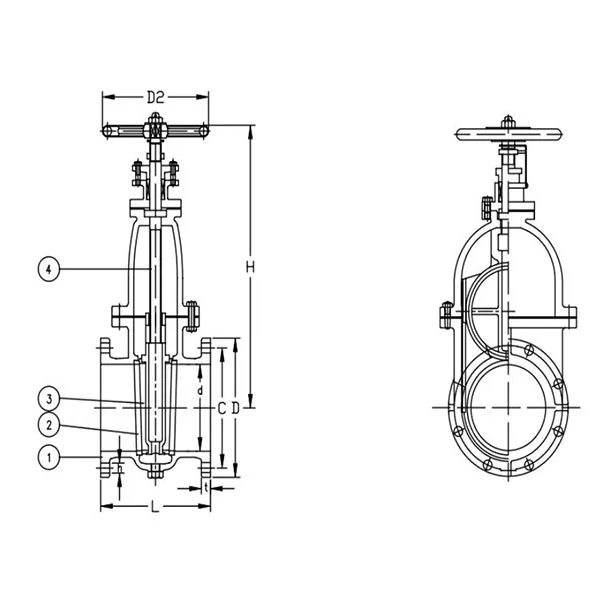

Drawing:
Our Services
1.Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.
2.Product Customization Service
Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.
3.Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc..
4.Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
Certifications
