NBR Blue bellows vacuum suction cup SAB 30 NBR 60 G1/4 IG for steel plate

Product Overview

Description

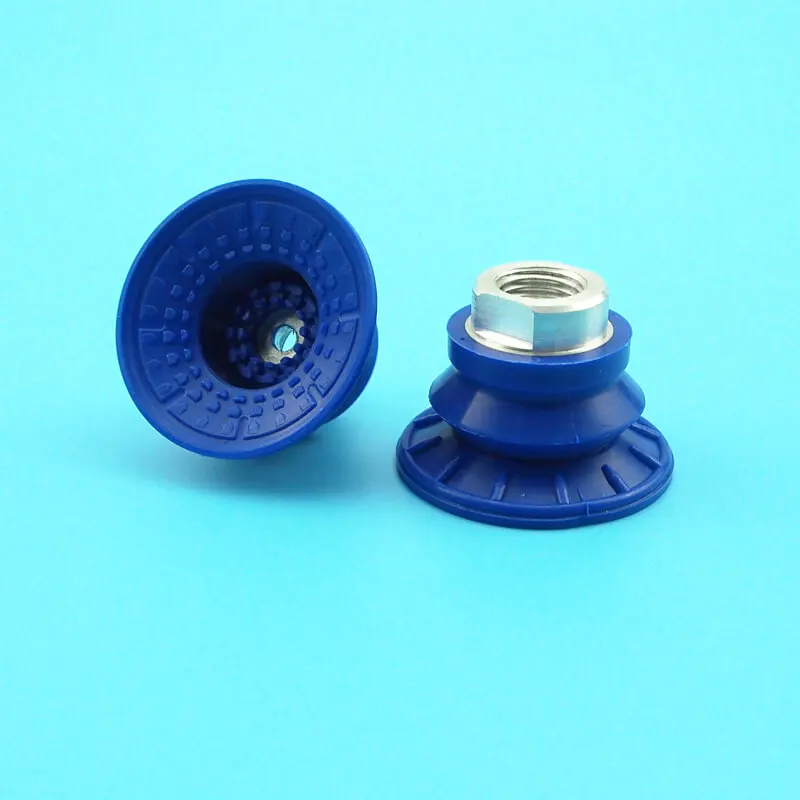

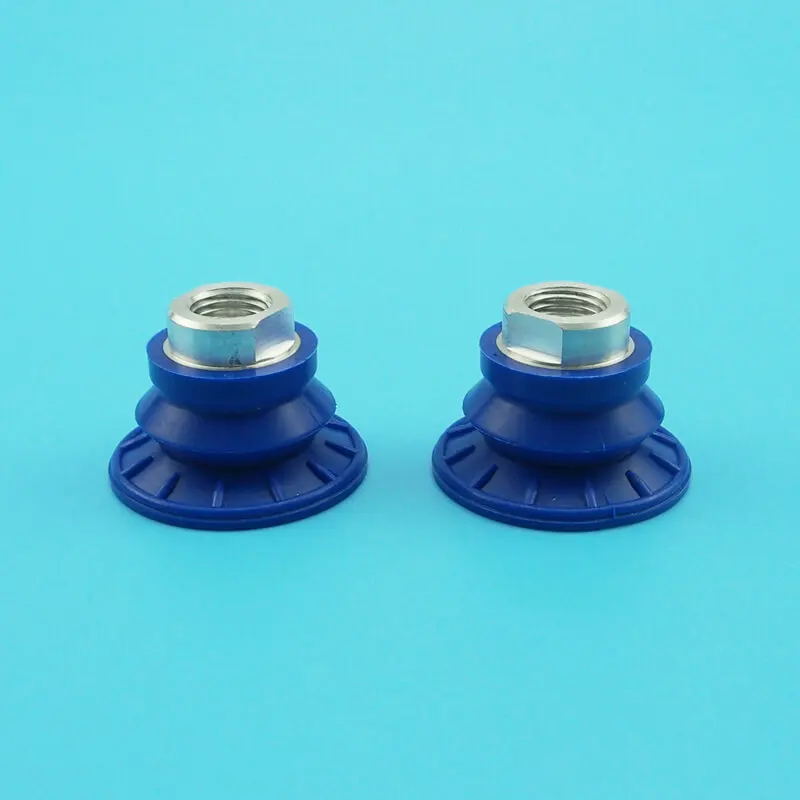

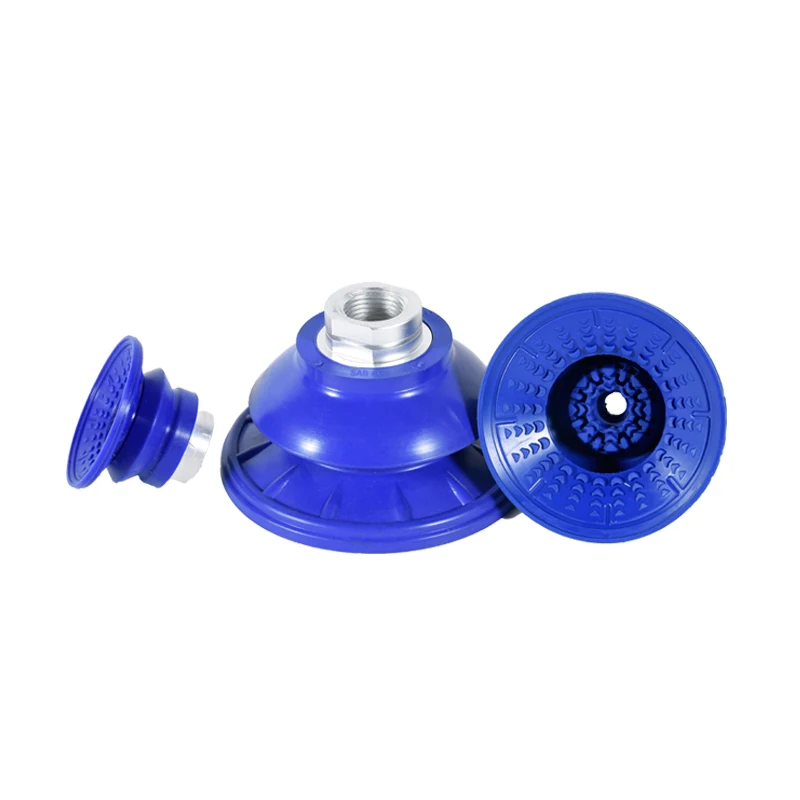

NBR Blue bellows vacuum suction cup SAB 30 NBR-60 G1/4-IG for steel plate



1. Round bellows suction cup with 1.5 folds for dynamic handling of metal sheets (short cycle times)
2. Handling of thin steel sheets and aluminum sheets without deformation
3. Handling of pre-shaped metal sheet parts, since bellows shape permits optimum adaptation
4. Suitable for use in, for example, feeder systems for press lines in the automotive industry
5. Displacement-free handling of oiled sheets due to special slot on the underside of the suction cup e.g. for precise positioning in punching machines etc.

Product Highlights
1. Optimum adaptation and sealing even with curved workpieces and very good damping effect during placement on the workpiece
2. Large, structured inner support prevents deep drawing and withstands the highest lateral forces
3. High stiffness of the upper fold provides very good stability under horizontal forces and lateral acceleration

1. Robust and wear-resistant suction cup SAB made of NBR with 1.5 folds, special slot and inner support
2. Suction cup SAB vulcanized to the connection nipple (very high strength)
3. Suction cups available with various connection types





Diameter: 22 to 125 mm
Material: NBR
Connection nipple vulcanized to elastomer part

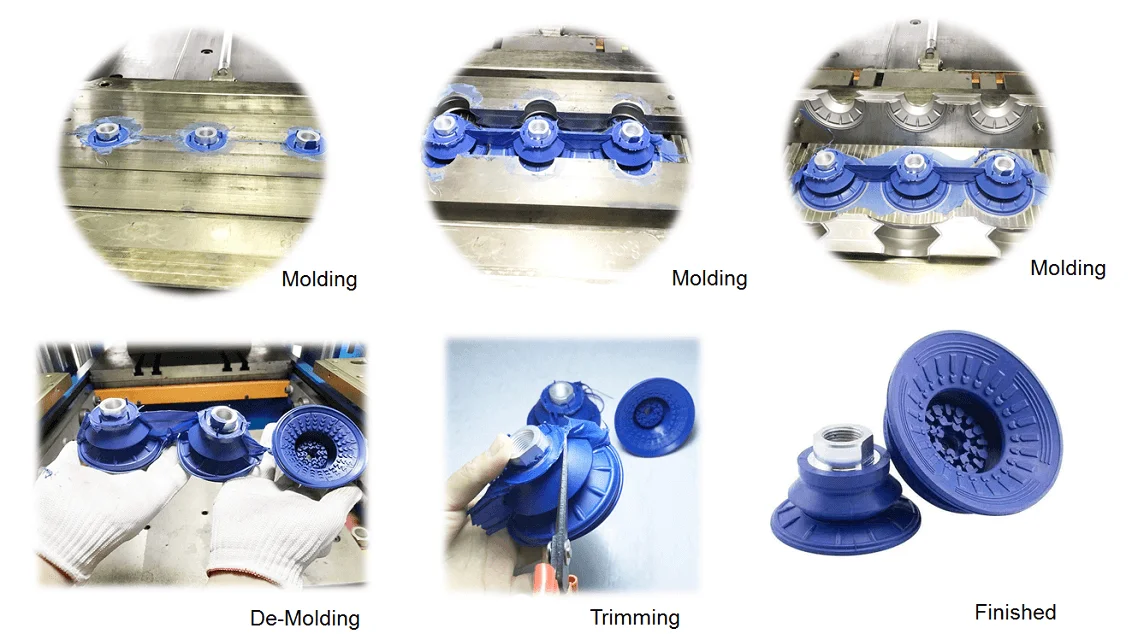

Production process
