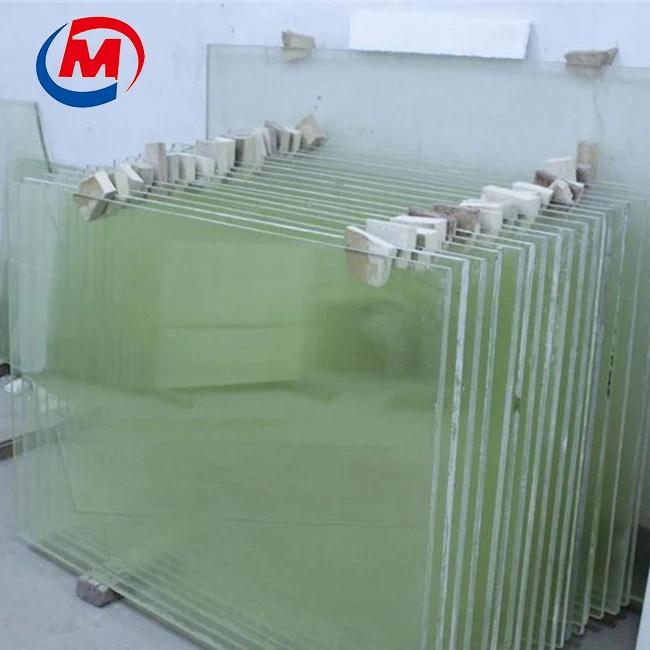

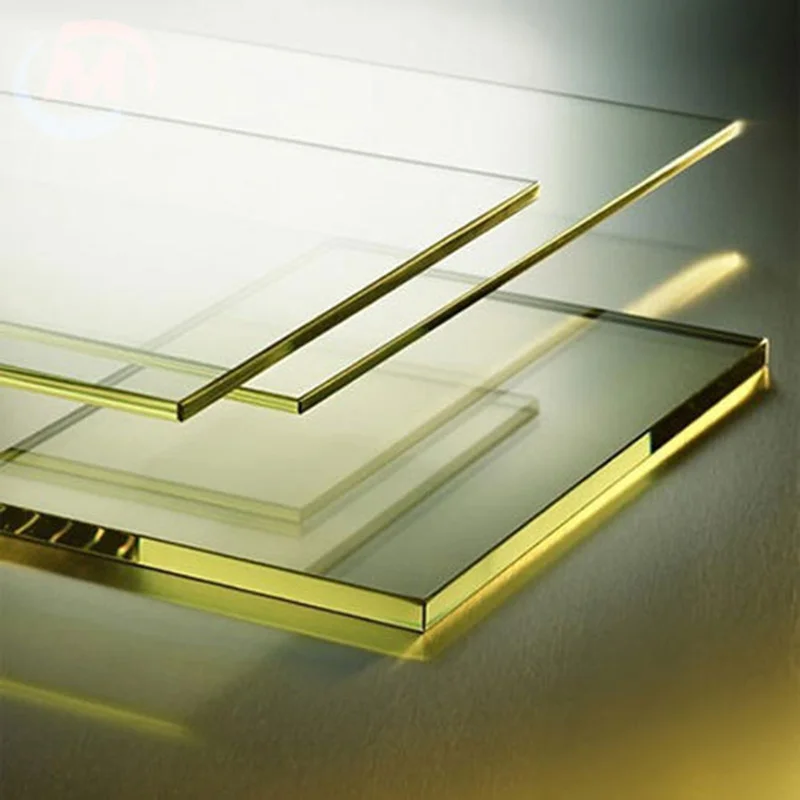

Lead Glass 8mm 10mm 12mm 15mm 18mm 20mm 25mm X-ray Lead Glass Sheet

Share on:

Price:$100.00 - $150.00
Price in USD:Details


Product Overview



In addition to glass forming materials such as silicon dioxide and boron trioxide, glass containing a large amount of lead oxide.
Used in the manufacture of optical glass, electric vacuum glass, low-temperature sealing glass, anti-radiation glass, lead crystal glass, flint-type optical glass, low melting glass, delay line glass, high refraction bead glass and artware glass, etc.

Technical inormation:

    lead equivalent      Thickness:1 mm


sio2pboother materialtransparency
ZF21.672504.12g/cm³0.22 mmpb39.10%55.41%5.49%90%
ZF31.717204.46g/cm³0.24 mmpb33.88%61.05%5.07%85%
ZF61.755004.78g/cm³0.30 mmpb30.96%65.06%3.98%75%
ZF71.06005.20g/cm³0.38 mmpb27.27%70.93%1.8%70%


Product specifications:

A.Model : ZF2 / ZF3 / ZF6 / ZF7
B.Size of Lead glass



8mm / 10mm / 12mm / 13mm /15mm / 17mm / 18mm / 20mm /22mm / 23mm / 24mm / 25mm / 30mm / 40mm / 45mm /

50mm / 60mm / 70mm / 80mm / 90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 160mm / 200mm
