SCU renewable energy solar/wind all in one system for commercial 100kwh power supply to replace diesel generator
- Category: >>>
- Supplier: Sicon Chat Union Electric Co. Ltd.
Share on (1600553473325):
Product Overview
Description
Product Description

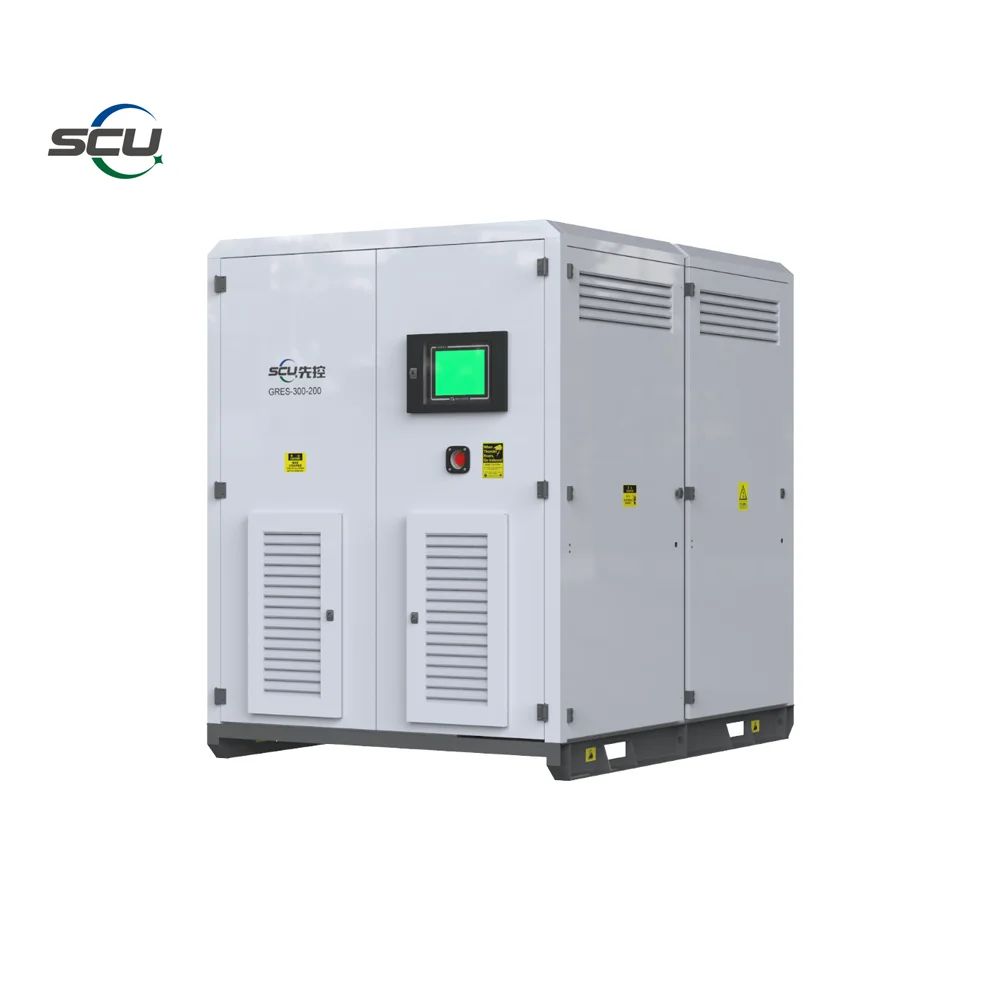

Grid Renewable Energy Storage
Power Supply(GRES system)
GRES is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be flexibly combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power supply, static reactive power compensation, harmonic suppression and other function etc.
Model | GRES-75-50 | GRES-150-100 | GRES-225-150 | GRES-300-200 | GRES-900-600 | |||||
AC parameters (grid connected) | ||||||||||
Rated output power (kW) | 50 | 100 | 150 | 200 | 600 | |||||
Max output power (kW) | 55 | 110 | 165 | 220 | 660 | |||||
Rated grid voltage (V) | 3W+N+PE, 380 | |||||||||
Rated grid frequency (Hz) | 50/60 | |||||||||
Power factor | >0.99(Rated voltage) | |||||||||
Overload capacity | 110% Long term | |||||||||
AC parameters (off grid) | ||||||||||
Rated output power (kW) | 50 | 100 | 150 | 200 | 600 | |||||
Max output power (kW) | 55 | 110 | 165 | 220 | 660 | |||||
Rated grid voltage (V) | 3W+N+PE, 380 | |||||||||
Rated grid frequency (Hz) | 50/60 | |||||||||
Overload capacity | 110% Long term | |||||||||
Basic Parameters | ||||||||||
Working temperature | -20 ～ 55℃ (>45℃ derating) | |||||||||
Relative humidity | 0 ～ 95% ( (no condensing) | |||||||||
Protection | Outdoor IP54 | |||||||||
Certification | IEC62477-1/EN61000/IEC62619/IEC62620/UN38.3 | |||||||||
Product Usage
Product usage introduction
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Description of product use effect
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Related Products

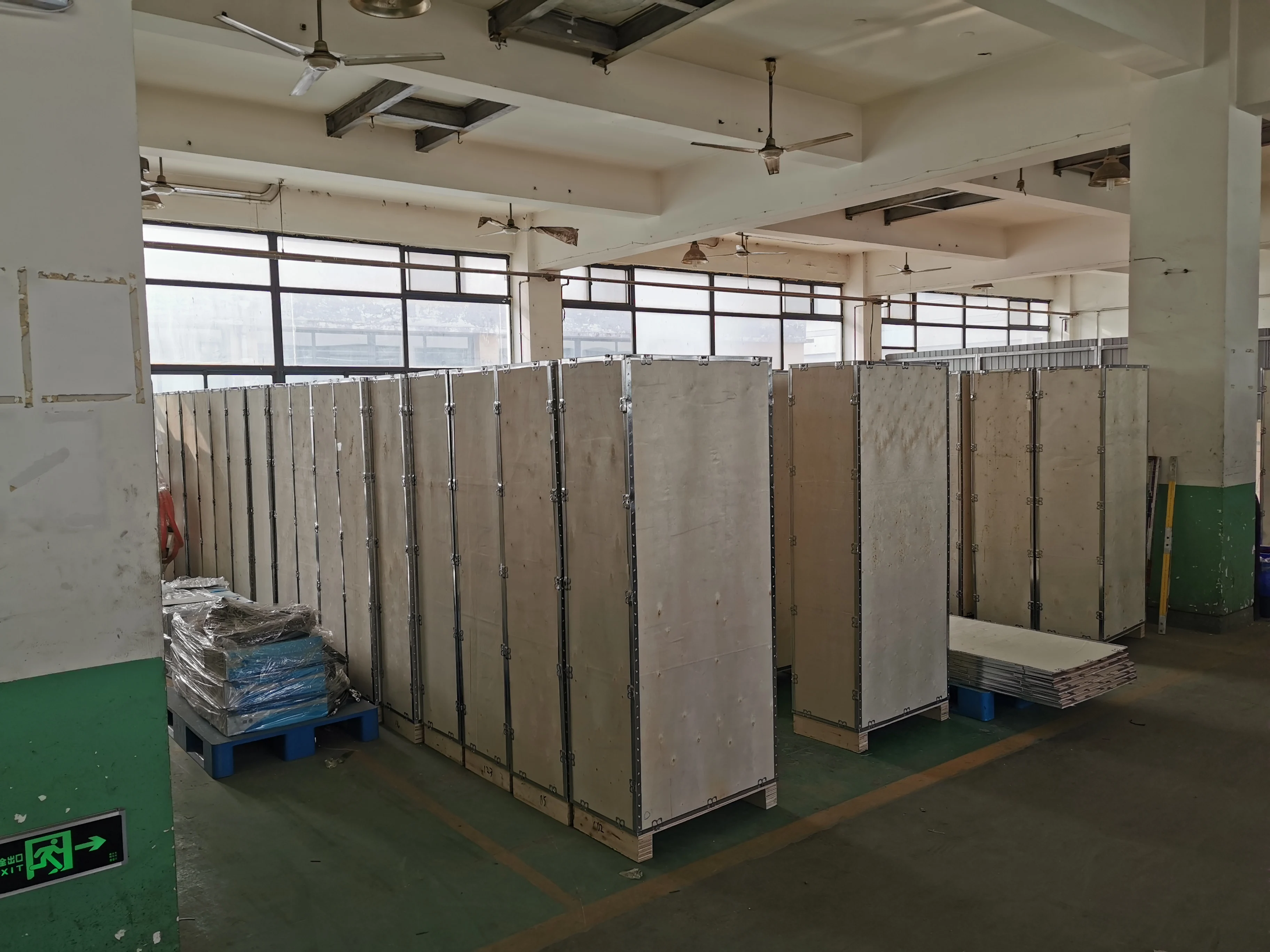

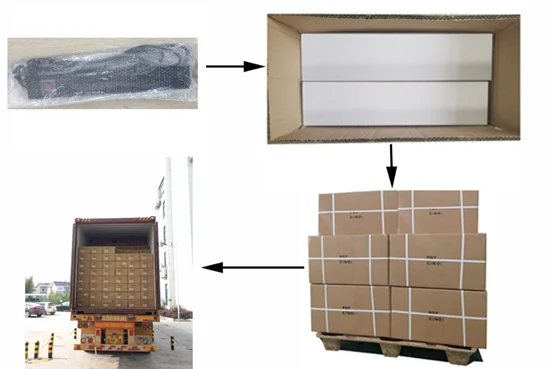

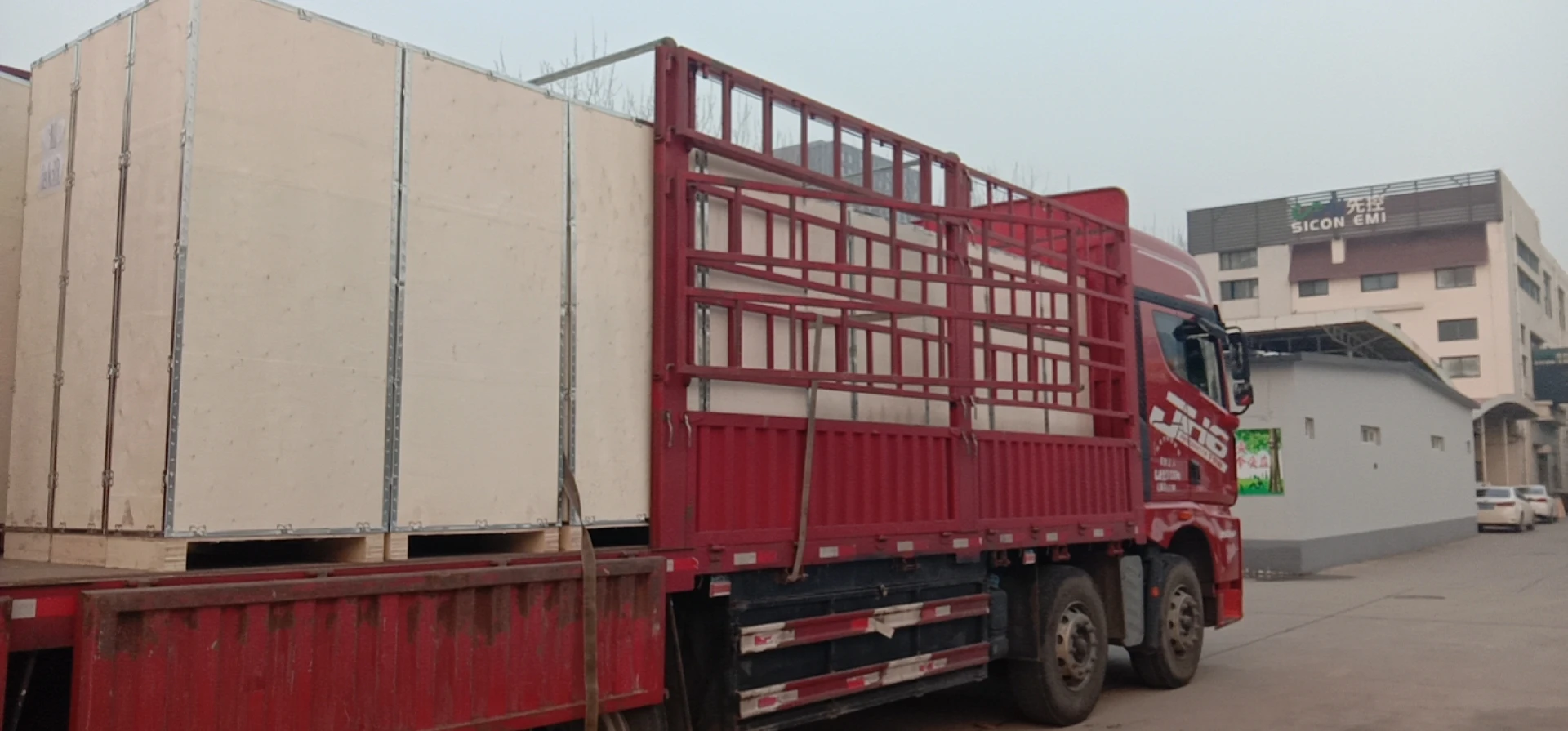

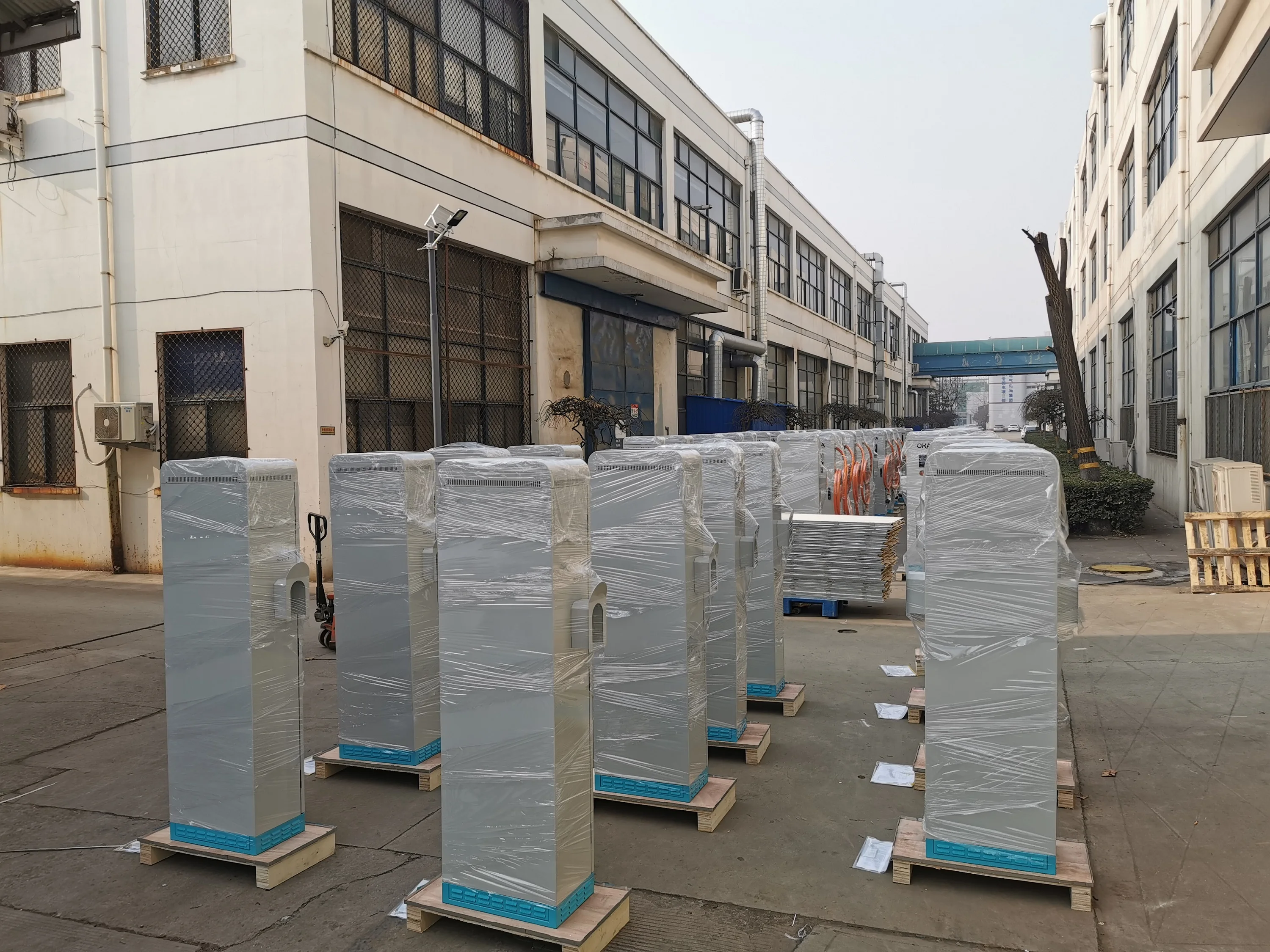

Packing&Shipping

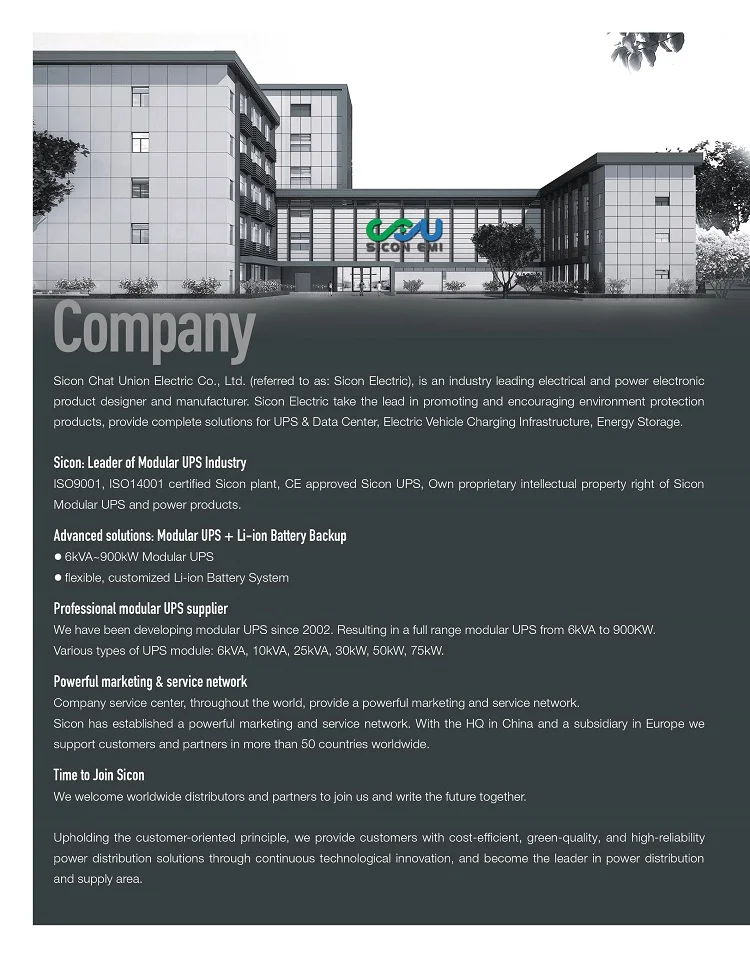

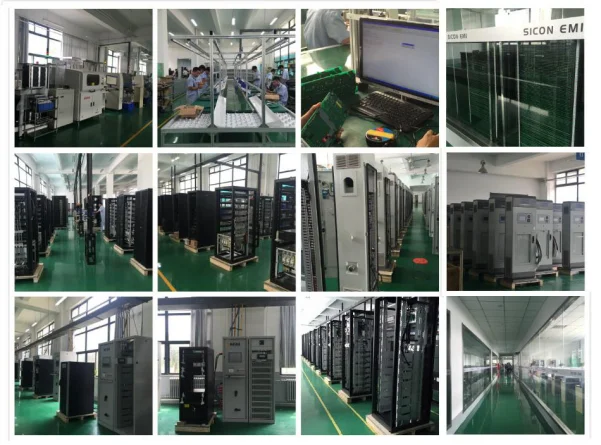

Company Introduction
Why Choose Us
FAQ
1. About Sicon Technology?
Sicon R&D Staff ratio exceeds 30%, annual investment exceeds 10% of sales. As the core of Sicon, R&D team shoulders crucial responsibilities in research, developing new products, and perfecting existing products. As the power leader, Sicon is dedicated in not only electrical and power electronic technology, but also social responsibility of building a green, sustainable and intelligent world.
.....................................................................................................................................................................................................
2. About Quality Control?
We make use of automatic and visual inspection throughout the complete production process. To ensure our ongoing quality, Sicon operations are certified to ISO9001:2001 and ISO14001:2004 standard. All our product solutions carry TLC and CE Certification.
.....................................................................................................................................................................................................
3. About Warranty?
The manufacture warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase.
....................................................................................................................................................................................................
4. About Service?
We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the best perfect service.
.....................................................................................................................................................................................................
More details at: www.sicon-emi.com
Sicon R&D Staff ratio exceeds 30%, annual investment exceeds 10% of sales. As the core of Sicon, R&D team shoulders crucial responsibilities in research, developing new products, and perfecting existing products. As the power leader, Sicon is dedicated in not only electrical and power electronic technology, but also social responsibility of building a green, sustainable and intelligent world.
.....................................................................................................................................................................................................
2. About Quality Control?
We make use of automatic and visual inspection throughout the complete production process. To ensure our ongoing quality, Sicon operations are certified to ISO9001:2001 and ISO14001:2004 standard. All our product solutions carry TLC and CE Certification.
.....................................................................................................................................................................................................
3. About Warranty?
The manufacture warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase.
....................................................................................................................................................................................................
4. About Service?
We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the best perfect service.
.....................................................................................................................................................................................................
More details at: www.sicon-emi.com
