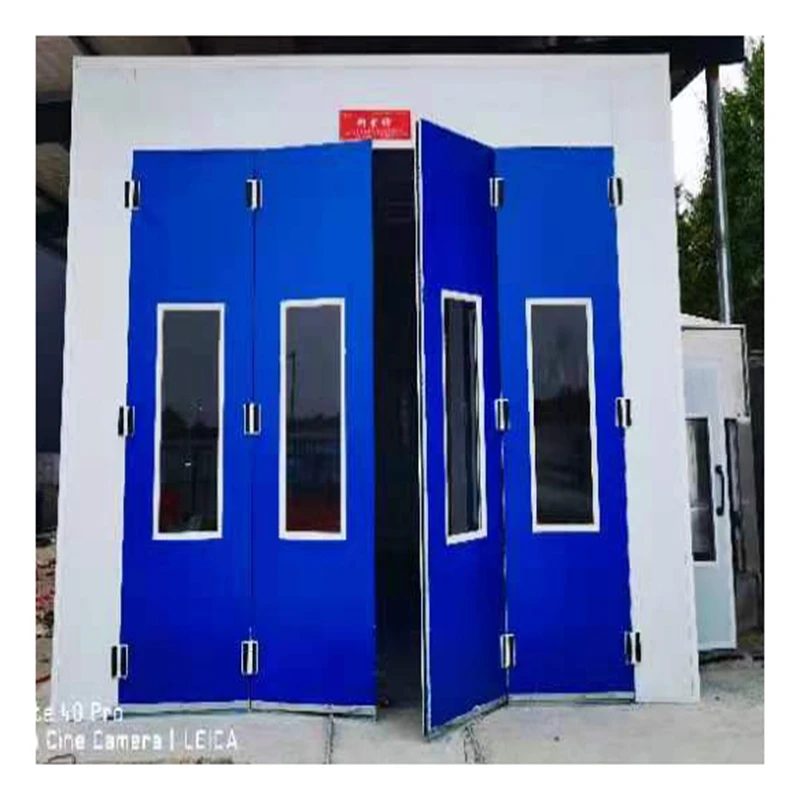

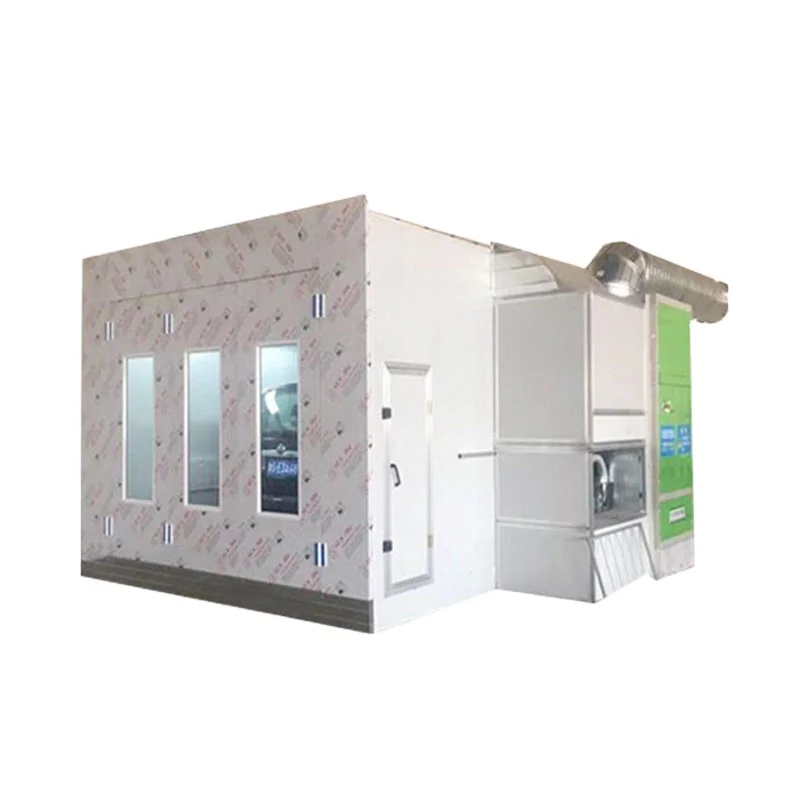

Coloreeze KX-SP3200B Auto Car Painting Baking Spray Booth Oven For Sale
KX-SP-3200B is a new product researched by our company. The booth could be used for common paint painting and water- based paint painting.
The special advantage is following:
¶ Gas or electric heating powder is optional.
¶ Using water rotary machine to handle the extra paint mist so that the exhaust gas could reach Euro Ⅲ standard.
¶ The water based paint could be reused after filtering by untrafilter system. The common filter could be fired or buried.
¶ The heating energy recycling system could recycle 60% heat energy for reusing.
Entry Door Size(mm)
Spray booth with CE suitable for EU market
Total Power 58kw;380v/3phase/50hz Noise<80db
1.Wallboard & roof panel
-EPS colorful steel panel board, 75mm thick, tongue & groove style, steel 0.6mm thickness. Compound construction, anti-flame and heat-insulation, galvanized steel roof panel.
- Metal Pedestal (Galvanized then powder coated on the surface), with Filter Tray* 5rows & Ramps a couple
- Grid Plates (Galvanized)* 5rows
3. Heating System
(gas and electricity)
- Gas Burner (Italy Riello,FS20,200000Kcal/h)* 1unit
- Heating Exchanger (Stainless Steel material)* 1unit
- Electric heating: Quantum radiator 36kw, part of them could be moved.
- Heating energy recycling: One set of heating energy recycling system to recycle 60% heat energy for reusing.
- 5-10 minutes reaching the baking temperature 60-80°C
- Cabinet (rock wool insulation) for the burner & heat exchanger* 1unit; Air Ducts* 2pcs
4. Four-stage Filter System
- A Primary Filter* 1set, HP Ultrathin filter
- B Air-Intake Filter* 1set, CC-600G high efficiency filter(ceiling filrer), flame-resisting levelclass F5, thickness 25mm.
- C Air-Exhaust Filter* 2set of fiberglass flter.
- D Air-Exhaust Filter* 1set of worm curtain and ultrafilter. The worm curtain made by 304 stainless Steel, the ultrafilter could be reused.
5. Air circulation System
- Air-Intake Fan* 1unit, DDF-630B turbo Fan with 7.5kw motor air flow 22000m3/hour.
- Air-Exhaust Fan* 1unit, DDF-630B turbo Fan with 7.5kw motor air flow 22000m3/hour.
- Exaust air pressure regulator* 1 set.
- Cabinet for the fans* 1 unit, the frame made by 50*50 powder coated square steel, the cabinet panel made by powder coated galvanized steel, 0.8 thickness, insulated with 30mm rockwool.
- Air Ducts* 3pcs, and Air Damper (pneumatic)* 1 unit.
6. Water-based paint system
- Spary nozzle*59pcs, direction adjustable. The air duct made by 0.7mm galvanized steel.
- Air intake fan* 2set, YDW4.5AL, air flow 20000m3/hour.
- Ceiling Lights* 32pcs, 36w each, with electronic ballasts, powder-coated light box, tempered glass.
- Side Lights* 20pcs, 30w each, with electronic ballasts, powder-coated light box, tempered glass.
8. Control Panel
- *1 unit, PLC control, including Power switch, common paint spary/baking switch, water-based paint spray/baking, light switch, temperature display, humidity display, time setting, fault alarm, emergency stop, etc.
9. Eviromental handling
- Water rotary machine* 1 unit, to handle the exhause paint mist.
- The water base paint could be reused after filtered by untrafilter system. The common paint could be fired or be buried.
