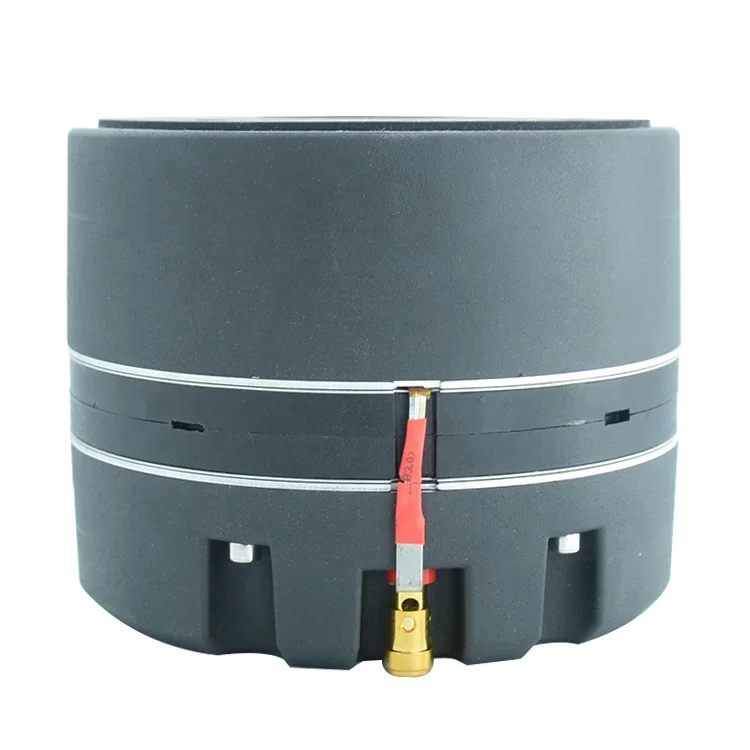

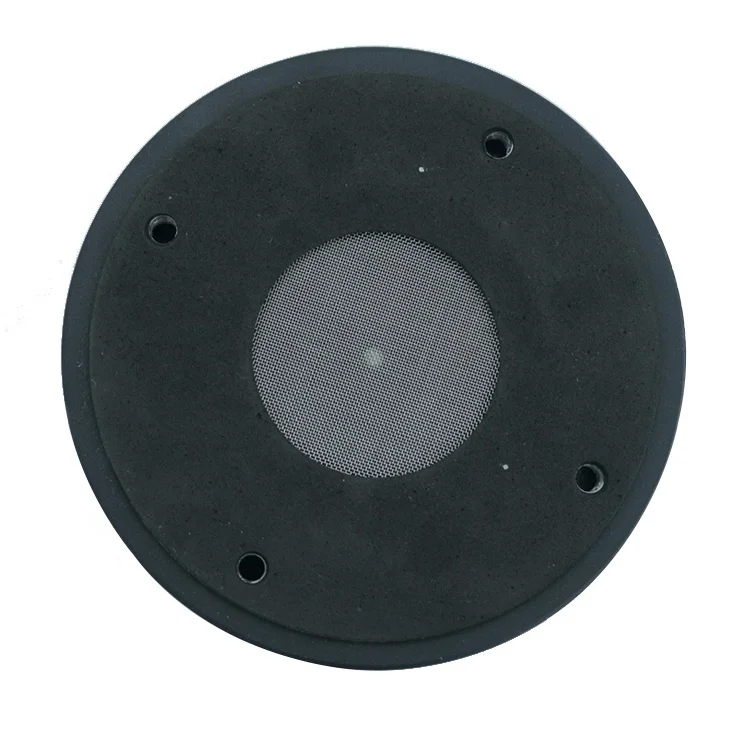

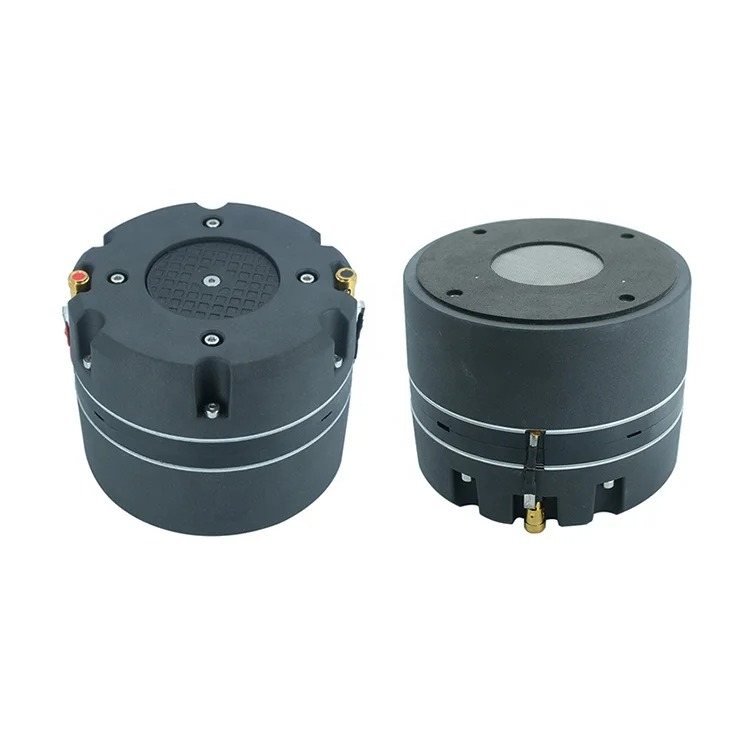

50.8mm throat 400W aluminum horn tweeter neodymium magnet speaker audio sound system altavoz midrange car speaker driver

Share on:

Price in USD:Details


Product Overview


Product Paramenters

Product Name:
Neodymium Speaker
Nominal Impedance:
2X8 or 2X16 Ohm
Power Capacity (AES):
400W (2 x 200W above 300 Hz)
Mounting Type:
4x M6 holes 90° on 101.6 mm
2X1W/1m 123 dB
1W/1m/2.83V 117dB
Max Volume:
160W/1m/35.7V 135.5dB
Frequency Range:
200-9000 Hz
Voice Coil Diameter:
2X3.5in (2X90 mm)
Magnet Material:
Flux Density:
1.95 T
Voice Coil Material:
Copper (2 layers Inside and outside of the VC)
Voice Coil Former:
Diaphragm Material:
Magnet Material:
Overall Diameter x Depth:
Ф 132 (+/- 0.3 mm) x 105 mm





Q1: How can I get samples?
A: If you need a sample test, please contact us. We will make it according to your requirements. You may need to pay the sample fee and its shipping fee. The sample fee can be refunded after you place the order.
Q2: How much is the shipping cost for samples?
A: Different samples have different weights and packaging sizes. Please contact us for details.
Q3: Can I print my logo on the product and packaging?
A: Of course you can. Just need you to send us your logo design, we will make it on the product and packaging according to your request for your confirmation.
Q4: Can you produce according to customer's design?
A: Yes. We mainly do OEM/ODM services.
Q5: How are your products packaged?
A: Generally, we pack in white boxes and brown cartons. If you have legally registered for the patent, we can pack the goods into your branded box after receiving your authorization letter.
Q6: How to strictly control the quality of products?
A: We have strict quality control on products from raw materials to production process, and all products are tested before leaving the factory.
